Thermaltake Smart Series 600W ATX 12V V2.3 / EPS 12V 80 PLUS Certified Active PFC Power Supply - OEM
- ATX12V / EPS12V
- Hardlined
- 80 PLUS Certified
- 100 - 240 V 50/60 Hz
- +3.3V@22A, +5V@17A, +12V@42A, [email protected], [email protected]
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Thermaltake PS-TTP-0600NPCWNN-W
| Brand | Thermaltake |
|---|---|
| Series | Smart Series |
| Model | PS-TTP-0600NPCWNN-W |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 600 W |

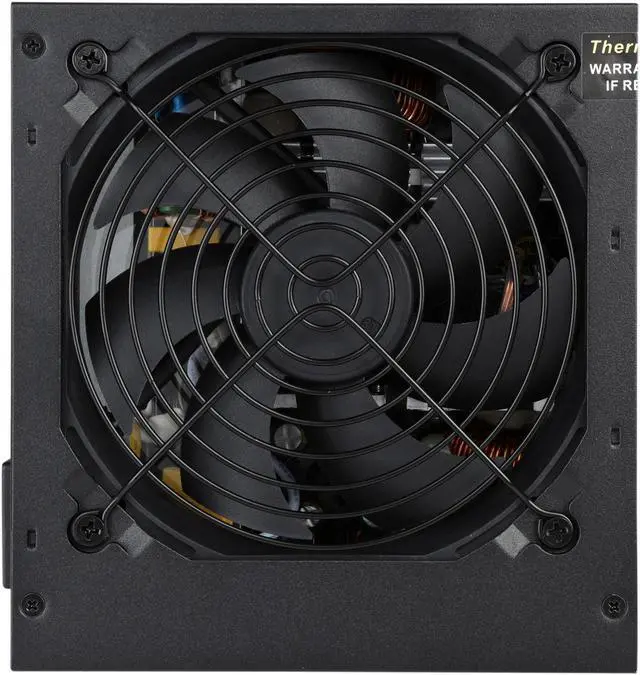

| Fans | 1 x 120mm Intelligent Cooling Fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| Haswell Support | Yes |
| Modular | Hardlined |
| Efficiency | 80% |
| Energy-Efficient | 80 PLUS Certified |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 A |

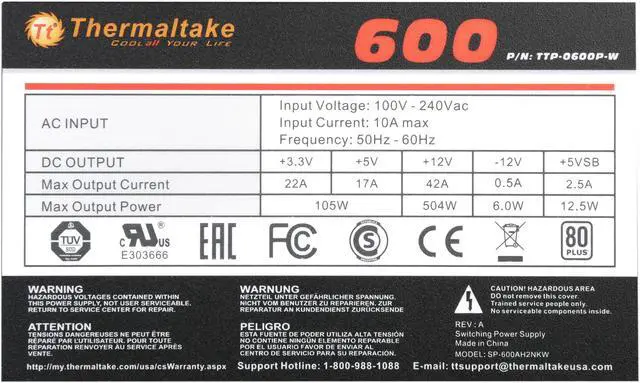

| Output | +3.3V@22A, +5V@17A, +12V@42A, [email protected], [email protected] |
| MTBF | 100,000 Hours |
| Approvals | CE / CB / TUV / UL / FCC |

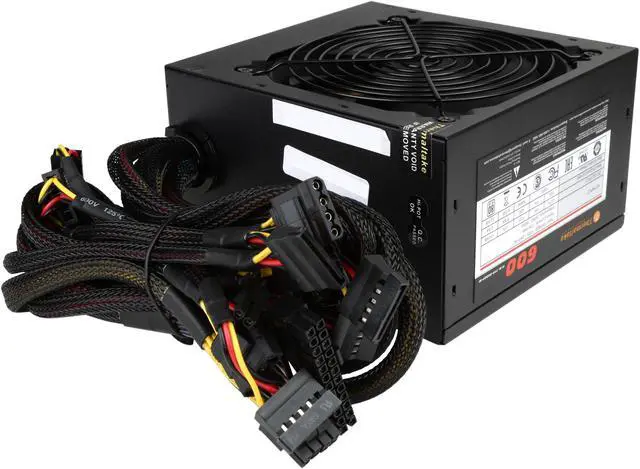

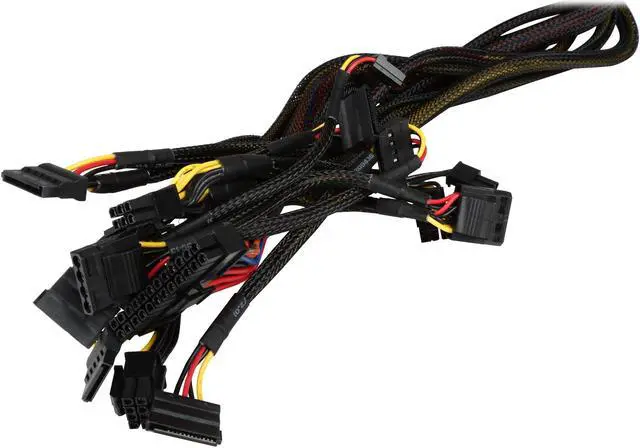

| Connectors | 1 x 20+4pin ATX 1 x 4+4pin EPS 2 x 6+2 PCI-E 6 x SATA 3 x Peripheral 1 x Floppy |
| Features | Compliance with Intel ATX 12V 2.31 & EPS 12V 2.92 standards 80 PLUS Certified - 80% efficiency under typical load Single +12V rail Design Supports Intel C6 Status for improved efficiency Ultra-quiet 120mm fan with intelligent temperature control Hardlined cables for straight forward installation |
|---|
| Dimensions | 3.40" x 5.90" x 5.50" |
|---|
| Date First Available | November 03, 2016 |
|---|
