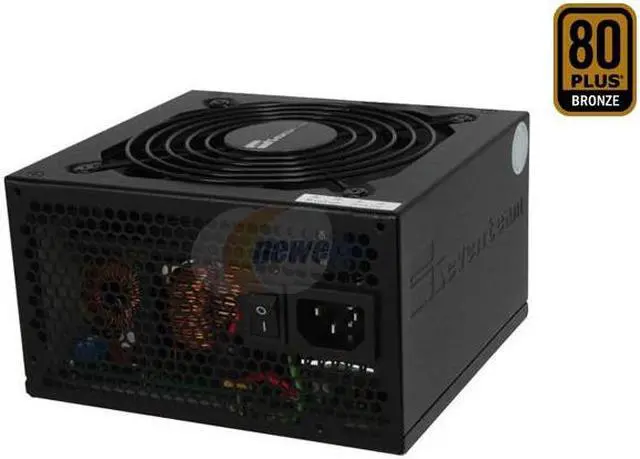

Seventeam ST-650PAF 650 W ATX 12V V2.2 SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply
- ATX 12V V2.2
- 80 PLUS BRONZE Certified
- 100 - 240 V 50/60 Hz
- +3.3V@25A,+5V@30A,+12V1@20A,+12V2@30A,[email protected],[email protected]
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Seventeam ST-650PAF
| Brand | Seventeam |
|---|---|
| Model | ST-650PAF |
| Type | ATX 12V V2.2 |
|---|---|
| Maximum Power | 650 W |

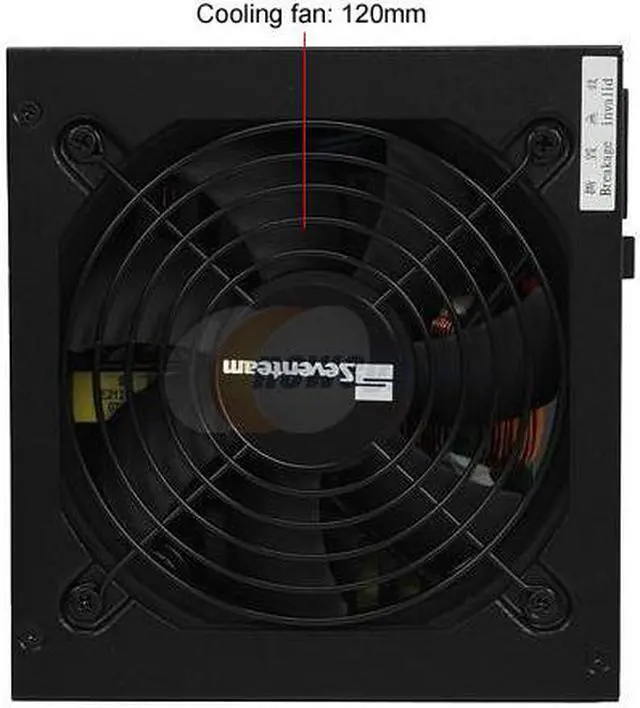

| Fans | 120mm Low-Noise Fan |
| PFC | Active |

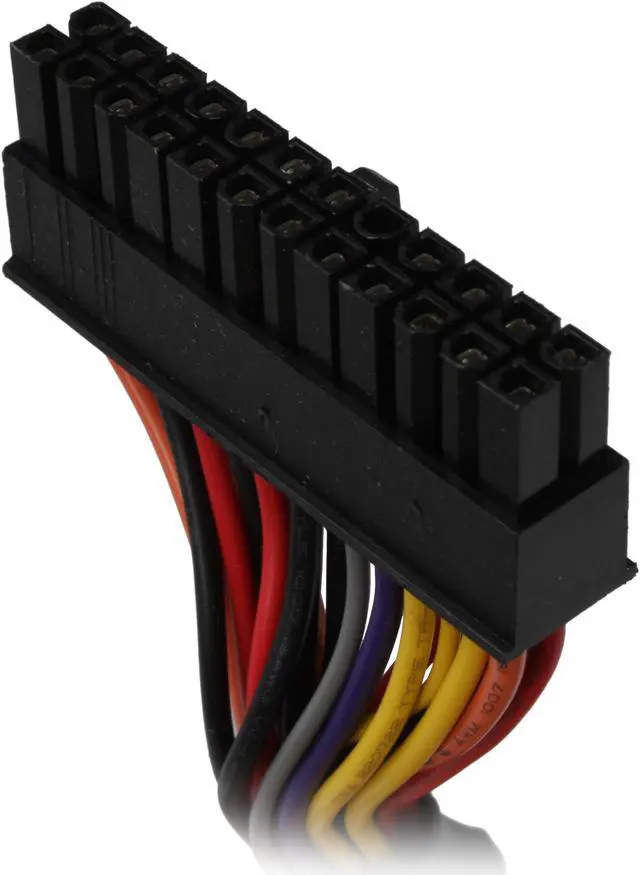

| Main Connector | 24Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 4 |
| SLI | SLI Ready |
| CrossFire | CrossFire Ready |
| Modular | No |
| Power Good Signal | 100-500ms |
| Hold-up Time | 14ms min. |
| Efficiency | Efficiency up to 85% |
| Energy-Efficient | 80 PLUS BRONZE Certified |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10 - 6A |

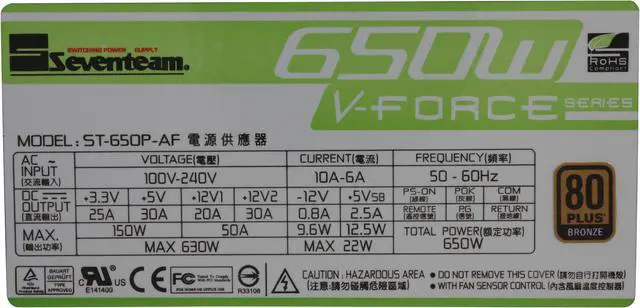

| Output | +3.3V@25A,+5V@30A,+12V1@20A,+12V2@30A,[email protected],[email protected] |
| MTBF | >100,000 Hours |
| Approvals | CE, TUV, CB, FCC, CUL and BSMI |

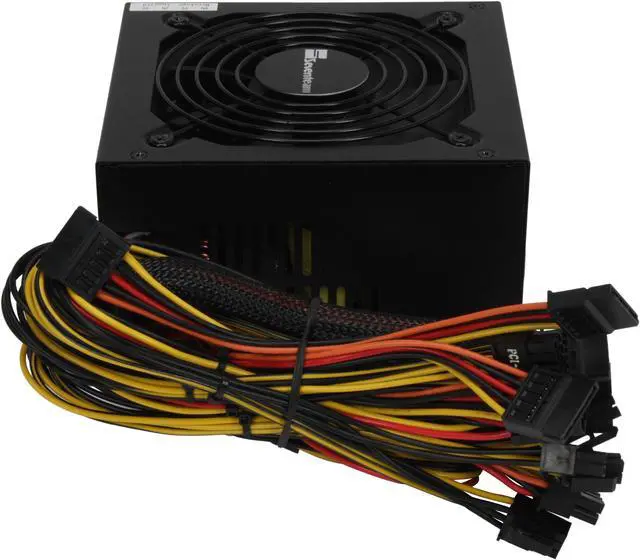

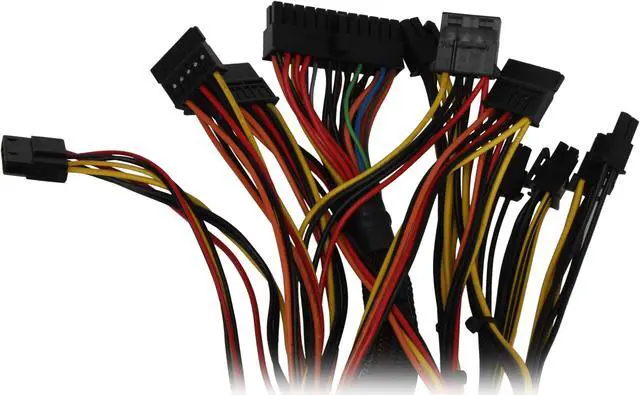

| Connectors | 1 x Main connector (24Pin) 1 x 12V(4+4Pin) 3 x Peripheral 4 x SATA 1 x Floppy 2 x PCI-E |
| Features | ATX 12V V2.2 version compatible Standard compatibility: Support Intel Dual Core and AMD Dual Core CPU Support Nvidia SLI and ATI Crossfire VGA Card Build in STNC fan control 100% Hi-Pot test Build in Japanese Capacitors The Doubles Forward design structure Big heat sink thickness the 5mm Multiple Protections Function:(OCP?OVP?UVP?OPP) |
|---|
| Dimensions | 5.5" x 5.9' x 3.4" |
|---|
| First Listed on Newegg | December 08, 2008 |
|---|
