Can I use this power supply to run GTX 970?

will it work well with a evga 4gb 960 and a ASRock H97M Anniversary LGA 1150 Intel motherboard? im upgrading my pc very soon and i wanna know if it should work well also is it a issue if i use a i7 4770 cpu but i use the stock fan from the 4790k? my friend didnt need his stock fan so he gave it to me and i just wanted to know

Will this work with the i7 7700k and a gtx 1070 with a z270?

If you go to pcpartpicker .com click on 'start a build' and pick all the parts you want it should tell you if theyre compatible or not

How many outputs does it have? Some picture show a basic setup of only a few connections, while others show there to be two complete rows of outputs. If an owner could please answer this that would be great.

One side is the back and the other side is the front. What is confusing about that?

Will this power supply work with a Z170 motherboard and a Skylake processor?

Short Answer: Yes Long answer: If you keep your overall extra hardware low you should be fine. as in 1 SSD or NVME drive 1 Optical, 1 Video card, 4-6 quite fans. no watercooling then you should be fine. Go over the top with GPUs / Watercooling / tons of fans / big Platter hard drives and your going to overload it very quick.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 21 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

Rosewill;PHOTON Series PHOTON-550;Purchase Rosewill PHOTON Series PHOTON-550 ... - Newegg.com

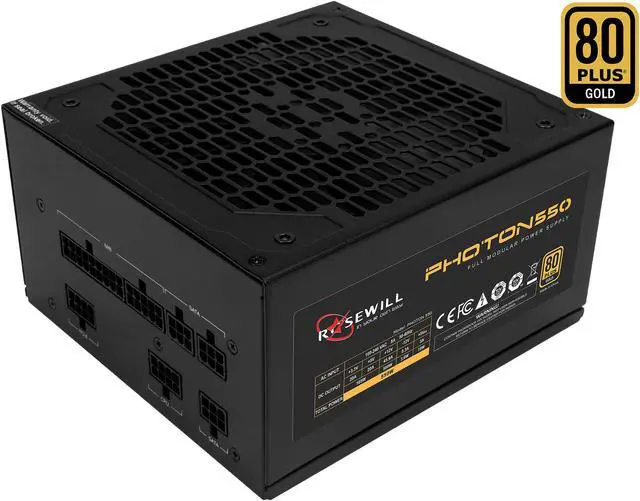

Main image of Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

100%

Alt view image 2 of 7 - Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

Alt view image 3 of 7 - Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

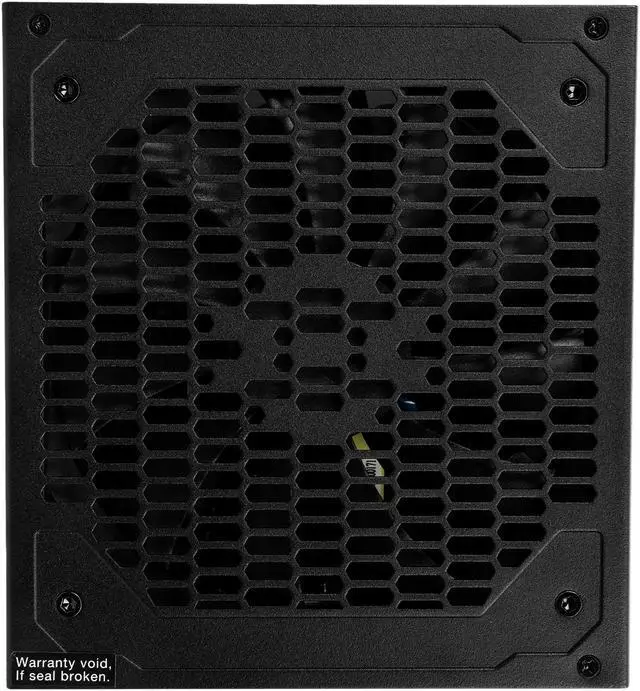

Alt view image 4 of 7 - Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

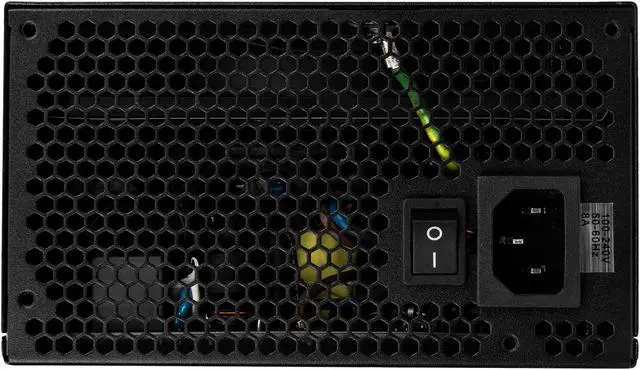

Alt view image 5 of 7 - Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

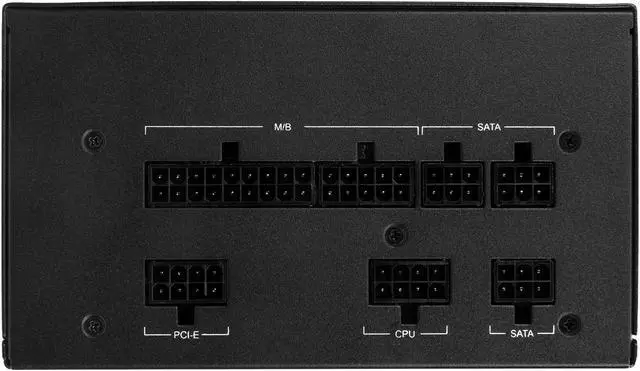

Alt view image 6 of 7 - Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

Alt view image 7 of 7 - Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

360^°

Shop All Rosewill Products

Rosewill PHOTON Series, PHOTON-550, 550W Fully Modular Power Supply, 80 PLUS GOLD Certified, Single +12V Rail, SLI & CrossFire Ready, Black

(49) Write a Review

550 Watt Power Supply
ATX 12V v2.31 / EPS12V v2.92
100 - 240 VAC, 50 / 60 Hz
80 PLUS Gold Certified PSU
Full Modular Design
Silent 135 mm Fan
Strong Single +12V Rail
SLI & CrossFire-Ready

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (49)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

FEATURES

80 Plus Gold-Certified to Deliver over 90% Efficiency

Fully Modular Cable Management

ATX 12V V2.3 Ready, Supports EPS 12V 2.92 and Backwards Compatible with ATX 12V 2.01

Active Power Factor Correction (PFC) with PF Value of 0.99

Crossfire and SLI Support

Silent 135mm Fan with Auto Speed Control

100% High Quality Japanese Capacitors

Over Current / Voltage / Temperature / Power Protection, Under Voltage Protection and Short Circuit Protection

TUV, FCC, CE Certified

Extra-Long Cables Support Full Size Gaming Chassis

5-Year Warranty

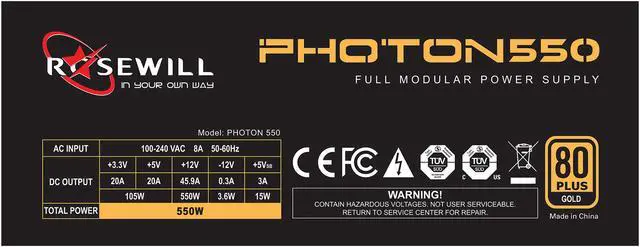

SPECIFICATIONS

Model: PHOTON 550

AC Input	100 ~ 240VAC 8A 50/60Hz
DC Output
	+3.3V	+5V	+12V	-12V	+5VSB
	20A	20A	45.9A	0.3A	3A
	105W		550W	3.6W	15W
Total Power	550W

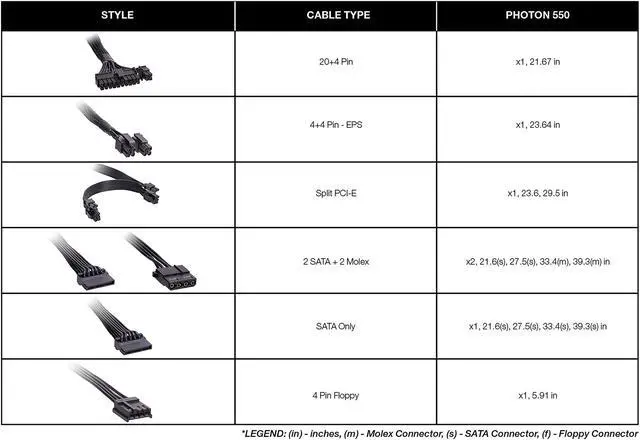

CONNECTORS

20+4 MainBoard Pin x1

+12V EPS 4+4-Pin Connector x1

6+2-Pin PCI-E Connector x2

S-ATA
Connector x6

4-Pin Molex
Peripheral Connector x3

4-Pin Floppy
Connector x1

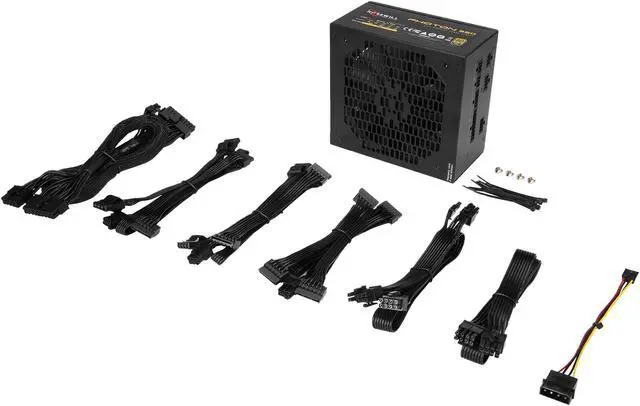

PACKAGE CONTENTS

PHOTON Power Supply Unit
Modular Cable Set
Carry Bag
User Manual
AC Power Cord
Cable Tie
Four Mounting Screws

General
Brand	Rosewill
Series	PHOTON Series
Model	PHOTON-550

Details
Type	ATX12V v2.31 & EPS12V v2.92
Maximum Power	Continuous 550W@40 degree C
Fans	1 x Silent 135mm Auto Speed Control fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	Yes
Haswell Support	Yes
CrossFire	Yes
Max PSU Length	160 mm
Modular	Full Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min.
Efficiency	Up to 92%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	+3.3V, +5V, +12V
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	8 A
Output	+3.3V@20A, +5V@20A, [email protected], [email protected], +5VSB@3A
MTBF	100,000 hours at 25 degree C, max. load, nominal input
Approvals	TUV, cTUVus, CE, FCC certified
Connectors	Modular Cable: 1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V/EPS12V Connector 2 x 6+2-Pin PCI-E Connector 6 x 15-Pin SATA Connector 3 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

Features
Features	80 PLUS GOLD Certified Continuous 550W@40 degree C Single strong 12V rail - ideal for Gaming system SLI & CrossFire ready - 2 x 6+2-Pin Connector 1 x Silent 135mm Fan with auto fan speed control Active-PFC with auto AC-input voltage adjustment (100 - 240V) Over Temperature Protection / Over Current Protection / Over Voltage Protection / Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components

Dimension & Weight
Dimensions	3.39" x 5.91" x 6.30"
Weight	6.10 lbs.

Additional Information
First Listed on Newegg	September 25, 2014
