Will this work with the new skylake processors?

There is no reason why it wouldn't work unless the connection to your motherboard was not 20+4 Pin.

So I so far love this power supply. Its stable and very quiet and I have no other issues than one question that may not be a big issue. When I turn on the computer I hear a tick noise and I again when I turn it off. Its not a loud sound like flipping a switch but like a sharp mouse click. Only when I turn it on and off other than that there is no other noise other than when power switches on and off. Is that a normal protection mechanism of the power supply?

I've been running that supply for over 6 months now. No clicks. No noises like that. Not even when I power it down and up completely with the rocker switch on the supply itself.

I was looking at a new Asus Z170M motherboard and checked the qualified vendors list. There was not a rosewill powersupplly on it. Is this power supply compatible with the ASUS Z170M-PLUS?

I just completed a build with an Asus Sabertooth Z97 Mark 1 and the Capstone_G750. Starting the second week with new build, so far, so good. Also used this psu with an Asrock Z77 OC Formula. About three years of use and all is still well. I know the Z170 chipset is new, so maybe you can run your build through pcpartpicker and check for compatibility. Good Luck.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

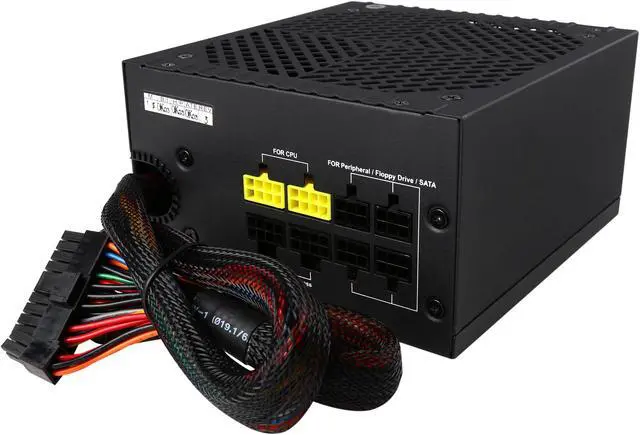

Main image of Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

100%

Alt view image 3 of 7 - Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

Alt view image 4 of 7 - Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

Alt view image 5 of 7 - Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

Alt view image 6 of 7 - Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

Alt view image 7 of 7 - Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

Alt view image 8 of 7 - Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

360^°

Shop All Rosewill Products

Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750

(15) Write a Review

750 Watt Power Supply
ATX12V v2.3/ EPS12V v2.92
80 PLUS GOLD Certified
Modular PSU Design
Continuous 750W @ 40 Degree Celsius
Strong Single +12V Rail
135mm Silent Fan with Auto Fan Speed Control
SLI Ready / CrossFire Ready / Intel 4th Gen CPU Certified

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (15)

Any questions? Our AI beta will help you find out quickly.

Try me now

FEATURES

80 Plus Gold Certified delivers over 90% efficiency

Modular design provides cable management

ATX 12V V2.3 ready, supports EPS 12V 2.92 and backward compatible with ATX 12V 2.01

Active Power Factor Correction (PFC) with PF value of 0.99

Crossfire and SLI support

Silent 135 mm fan with auto-speed control

100% High quality Japanese capacitors

Over Current/Voltage/Temperature/Power Protection, Short Circuit Protection, and Under Voltage Protection

UL, FCC, CE, Nemko Certified

Extra-long cables support full size gaming chassis

5-Year Warranty

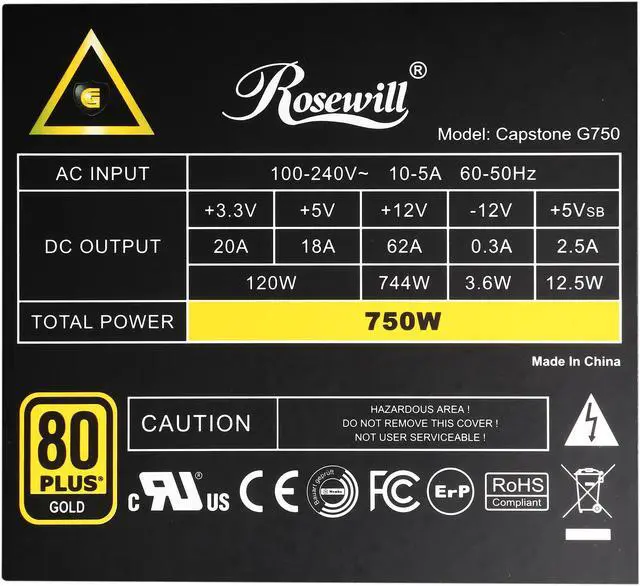

SPECIFICATIONS

Model: CAPSTONE G750

AC INPUT	100-240V~ 10-5A 60-50Hz
DC OUTPUT
	+3.3V	+5V	+12V	-12V	+5VSB
	20A	18A	62A	0.3A	2.5A
	120W		744W	3.6W	12.5W
TOTAL POWER	750W

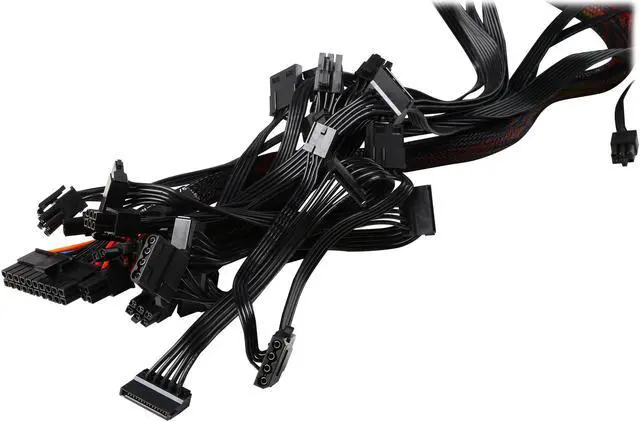

CABLES

Motherboard
Cable
20+4-Pin
Connector x1

+12V EPS
Cable
4+4-Pin
Connector x2

PCIe Cable
6+2-Pin
Connector x4

SATA Cable
15-Pin
Connector x8

Peripheral
Cable
Molex 4-Pin
Connector x4

FDD Cable
4-Pin
Connector x1

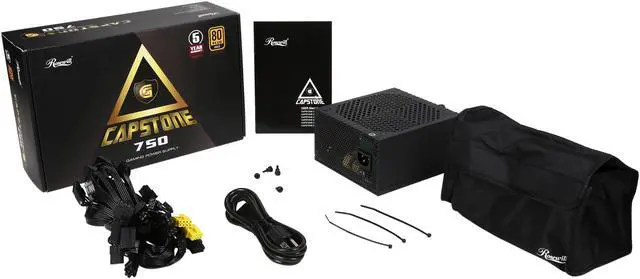

PACKAGE CONTENTS

CAPSTONE G Series Power Supply Unit x1
Modular cables set x1
Cable bag x1
User manual x1
AC power cord x1
Cable tie x3
Mounting screws x4

General
Brand	Rosewill
Model	Capstone G750

Details
Type	ATX12V / EPS12V
Maximum Power	750 W
Fans	1 x 135mm Silent Fan
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
SLI	SLI Ready
CrossFire	CrossFire Ready
Modular	Modular
Efficiency	> 90%
Energy-Efficient	80 PLUS GOLD Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	10 - 5A
Output	+3.3V@20A,+5V@18A,+12V@62A,[email protected],[email protected]
MTBF	>100,000 Hours
Approvals	CE, FCC, UL
Connectors	Fixed Cable: 1 x 20+4-Pin Main Connector Modular Cable: 2 x 4+4-Pin ATX12V / EPS12V Connector 4 x 6+2-Pin PCI-E Connector 8 x SATA Connector 4 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

Features
Features	80 PLUS GOLD Certified, Continuous 750W@40 degree C ctive-PFC with auto AC-input voltage adjustment (100 - 240V) Single strong 12V rail - ideal for gaming system SLI & CrossFire ready - 4 x 6+2pin connector Silent 135 mm fan with auto fan speed control Over Current / Voltage / Power / Temperature Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components

Dimension & Weight
Dimensions	3.39" x 5.91" x 6.30"
Weight	5.50 lbs.

Additional Information
Date First Available	June 04, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 5 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.

Rosewill Capstone G Series 750W Modular Gaming Power Supply, 80 PLUS Gold Certified, Single +12V Rail, SLI & Crossfire Ready - Capstone-G750
