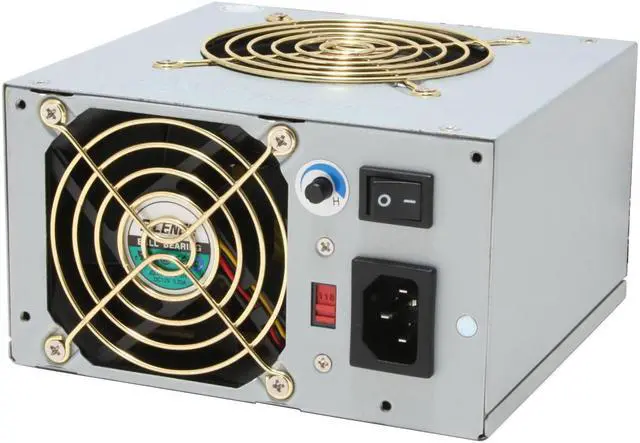

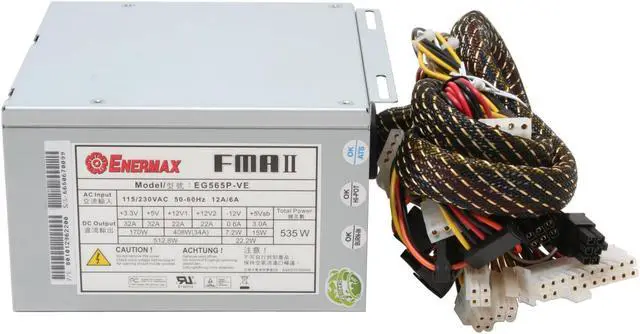

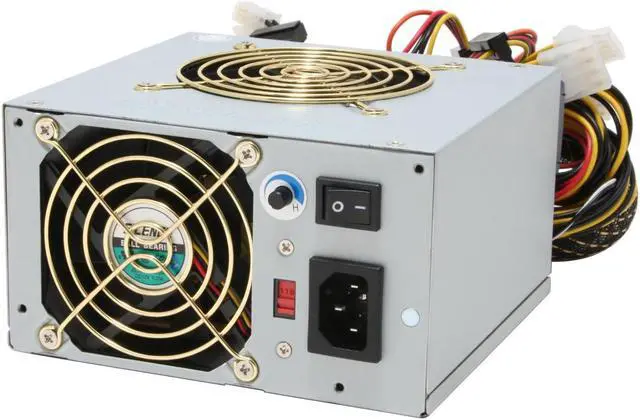

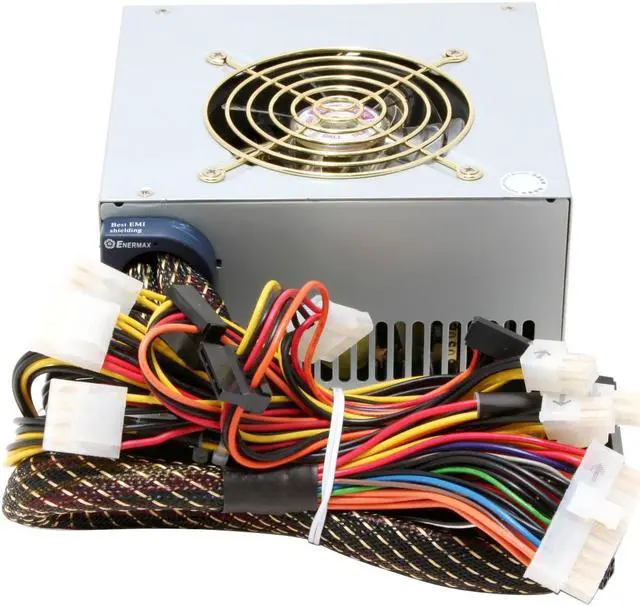

ENERMAX FMA II EG565P-VE 535 W ATX12V SLI Certified CrossFire Ready Active PFC Power Supply
- ATX12V
- 115 / 230 V 50/60 Hz
- +3.3@32A,+5V@32A,+12V1@22A,+12V2@22A,-12V@0.6A,+5VSB@3.0A
Specs
Reviews (12)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ENERMAX EG565P-VE
| Brand | ENERMAX |
|---|---|
| Series | FMA II |
| Model | EG565P-VE |
| Type | ATX12V |
|---|---|
| Maximum Power | 535 W |
| Fans | 2 |
| PFC | Active |

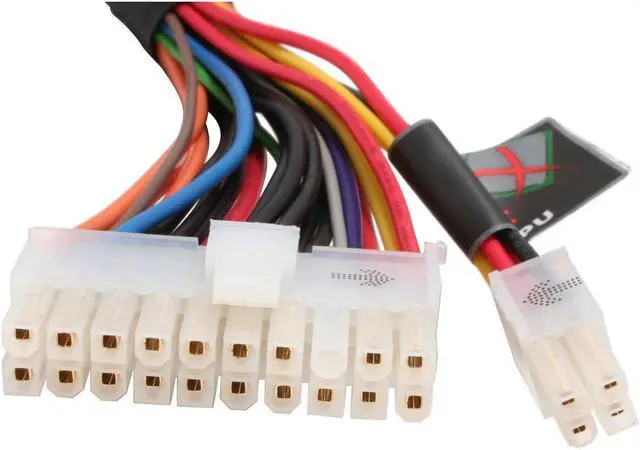

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |
| Modular | No |
| Efficiency | High efficiency of about 80% under wide load range (30-100%) minimizes your electricity bill. |
| Over Voltage Protection | Yes |
| Overload Protection | Yes |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 12A @ 115V, 6A @ 230V |

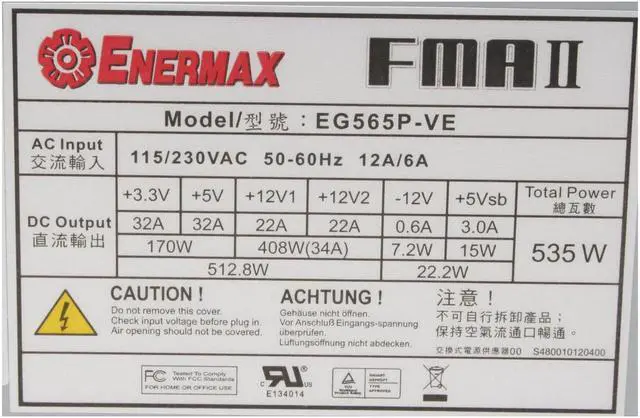

| Output | +3.3@32A,+5V@32A,+12V1@22A,+12V2@22A,-12V@0.6A,+5VSB@3.0A |

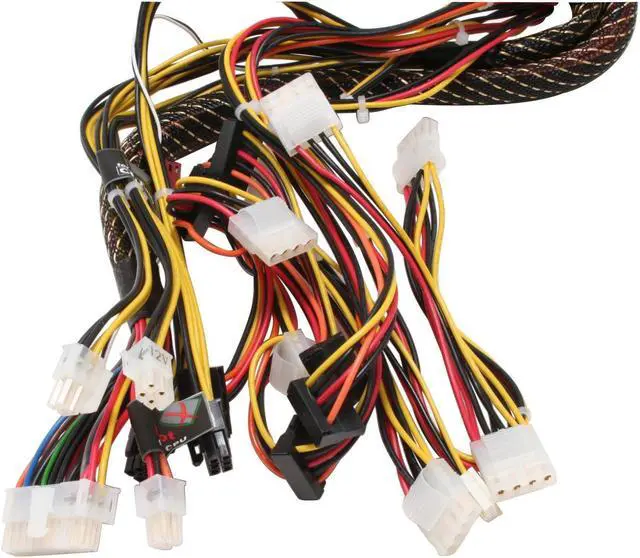

| Connectors | 1 x Main connector (20+4 pin) 1 x 12V (P4) 5 x peripheral 6 x SATA 2 x PCI-E |
| Features | FMA 2.2 w/ RoHS Full support of Dual Core systems (incl. Pentium D EE and Athlon 64 X2) & Dual CPU systems. Convertible design to power up ATX/BTX systems The best cooling method for PC system, and is strongly suggested by AMD Manual fan speed control Automatic fan speed adjustments to prevent system overheat |
|---|
| First Listed on Newegg | August 02, 2006 |
|---|
