APEX Apexgaming AI-500 500 W ATX12V / EPS12V 80 PLUS Certified Non-Modular Active PFC Power Supply
- ATX12V / EPS12V
- Non-Modular
- 80 PLUS Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@14A, +5V@16A, +12V@38A, +5VSB@2.5A, -12V@0.3A
Specs
Reviews (1)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the APEXTECHUSA Apexgaming AI-500
| Brand | APEX |
|---|---|
| Model | Apexgaming AI-500 |
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 500 W |
| Fans | 1 x 120mm silent fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 6 |
| Max PSU Length | 140 mm |
| Modular | Non-Modular |
| Energy-Efficient | 80 PLUS Certified |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 8 - 4 A |

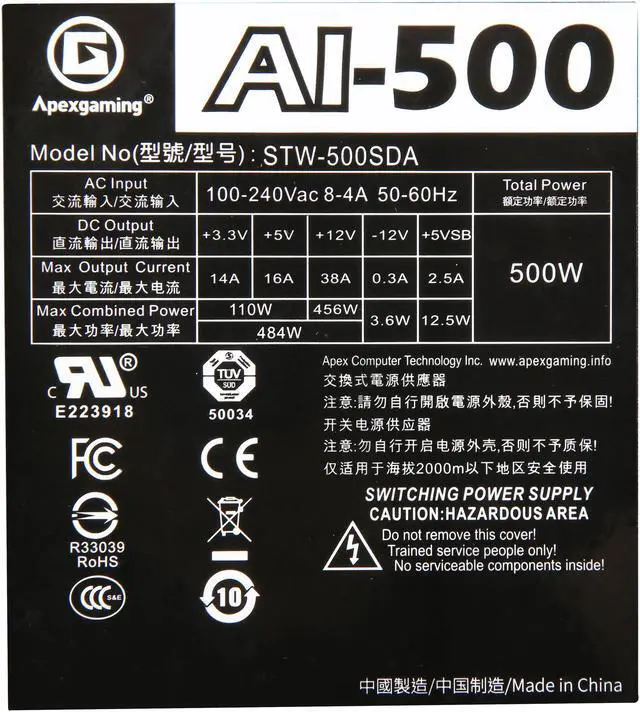

| Output | +3.3V@14A, +5V@16A, +12V@38A, +5VSB@2.5A, -12V@0.3A |
| MTBF | >100,000 Hours |
| Approvals | CE, CB, TUV, FCC, UL/c UL/ c TUVs / CCC / BSMI / GOST-R / EAC / KC / IRAM / RCM |
| Connectors | 1 x 20+4 Pin ATX 1 x 4+4 Pin EPS12V 2 x 6+2 Pin PCI-E 6 x SATA 3 x Peripheral 1 x Floppy |
| Features | Ability to toggle single/multiple +12V 120mm silent fan Active PFC+ forward technology design: safety measures normally found in high-end power supplies to increase safety and current stability Higher Temperature Resistance: capable of operating at 40°C at full load for longer lifespan in hotter environments Peak Power Tolerance: up to 10 seconds, this PSU can reliably push 50W at peak power load Continuous power: 500W/ Peak power: 550W Intel C6/C7 sleep state compatible |
|---|

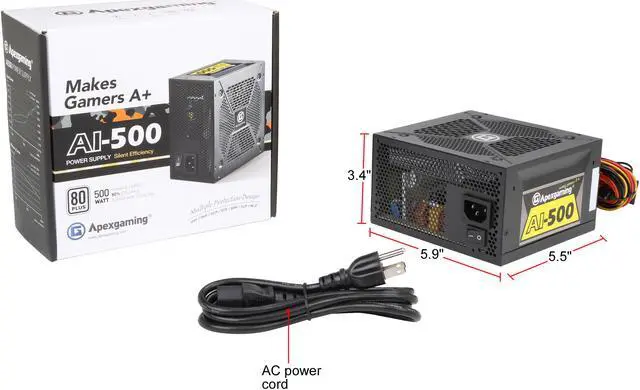

| Dimensions | 5.91" x 5.51" x 3.39" |
|---|---|
| Weight | 3.70 lbs. |
| First Listed on Newegg | July 06, 2018 |
|---|
