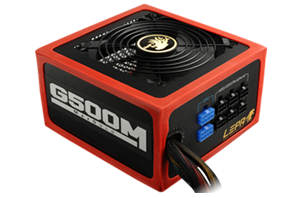

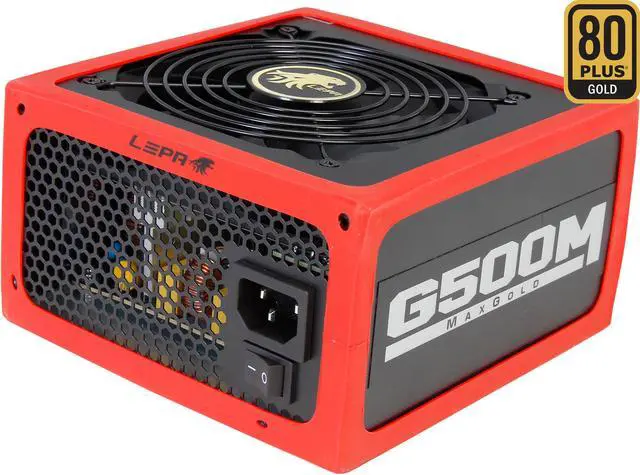

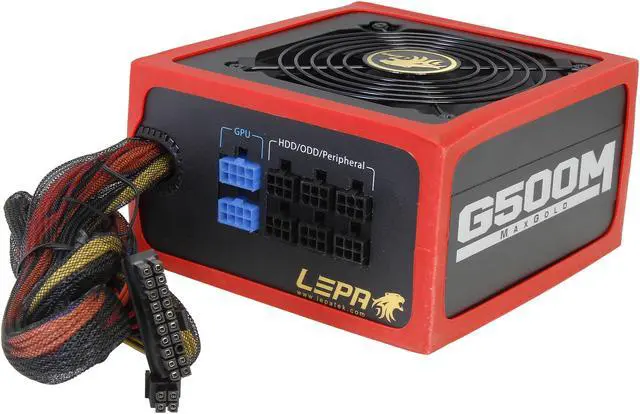

LEPA MaxGold G500-MB 500 W ATX12V / EPS12V CrossFire Ready 80 PLUS GOLD Certified Active PFC Power Supply
- ATX12V / EPS12V
- 80 PLUS GOLD Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@21A, +5V@15A, +12V@40A, [email protected], [email protected]
Overview
Specs
Reviews (1)
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
LEPA MaxGold 80 PLUS Gold
Enjoy high efficiency and an innovative design. The LEPA MaxGold G500-MB Power Supply delivers efficient power up to 92%, surpassing the 80 PLUS Gold level. The Anti3s Q-Brick design ensures resistance to electric shocks, static electricity, and slipping, while the dual-sided PCB design synergizes the PCB's layout.
Video
Features
- Surpasses 80 PLUS Gold level
- Hybrid Modular Cabling Design makes system upgrades and replacements easy

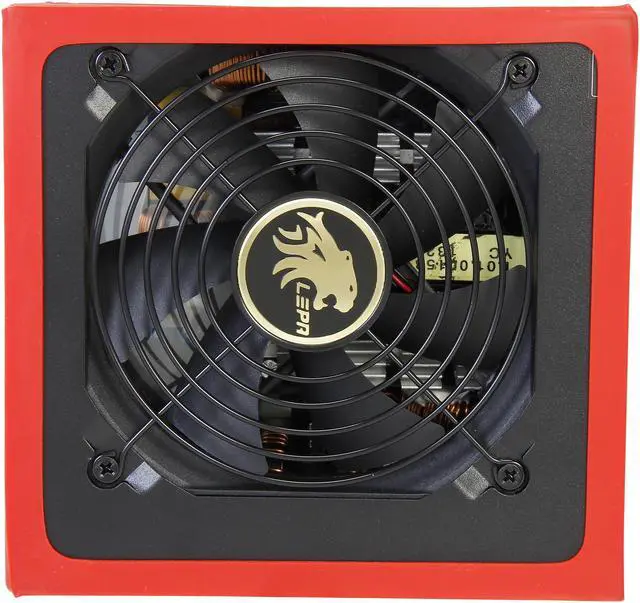

- 12cm hydraulic bearing cooling fan delivers silent and cool performance

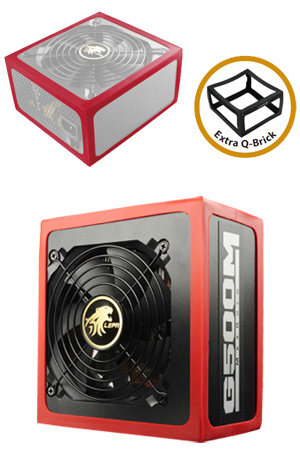

- Anti3s Q-Brick design protects power supply from shock, static electricity, and slipping
- Compliance with EU ErP Lot 6 2010 standards (lower than 1W power consumption at standby mode)
- Double Forward circuit design provides high efficiency
- Dual Sided PCB design synergizes PCB layout
- Powerful single +12V rail output offers great compatibility with heavy-duty graphics cards
- Active PFC universal switching circuit improves Power Factor value up to 0.99
- Over Power, Over Voltage, and Short-circuit protection provide great safety to your system
- ATX 12V version 2.31 and EPS 12V version 2.92 compliant

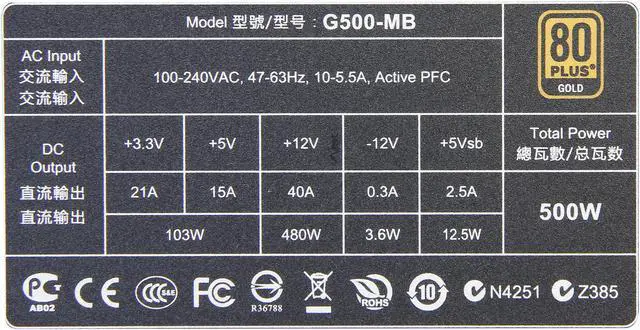

Specifications
| Model Number | G500-MB | G600-MB | G700-MB | ||||
| AC Input Voltage | 100 - 240VAC, 47 - 63Hz, Active PFC | ||||||
| AC Input Current | 10 - 5.5A | 10 - 5.5A | 15 - 7.5A | ||||
| DC Output | +3.3V | 21A | 103W | 21A | 103W | 24A | 130W |
| +5V | 15A | 15A | 24A | ||||
| +12V | 40A | 480W | 48A | 576W | 58A | 696W | |
| -12V | 0.3A | 3.6W | 0.3A | 3.6W | 0.3A | 3.6W | |
| +5Vsb | 2.5A | 12.5W | 2.5A | 12.5W | 2.5A | 12.5W | |
|
Total Power |
500W | 600W | 700W | ||||
| Dimensions (LxWxH) |
6.25in. x 6in. x 3.3in. (160mm x 150mm x 86mm) |
6.5in. x 6in. x 3.3in. (165mm x 150mm x 86mm) |
|||||

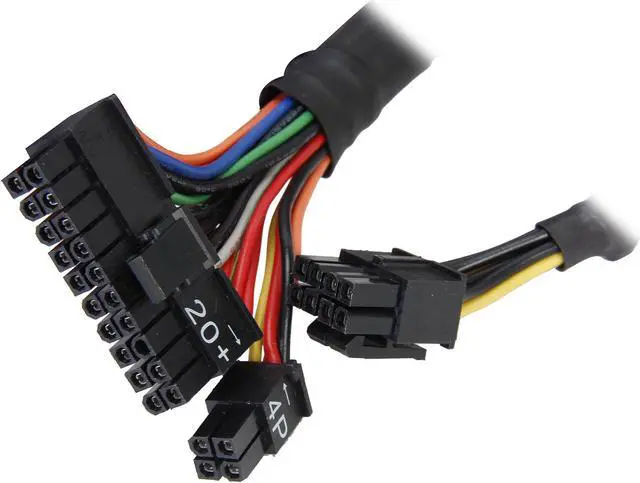

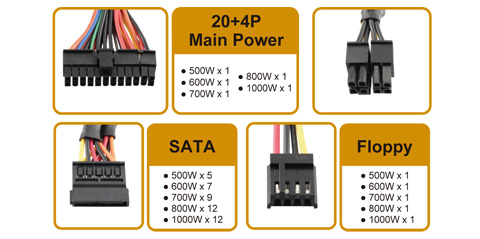

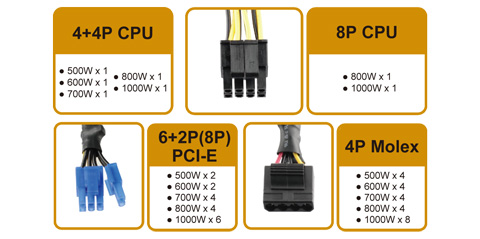

Connectors

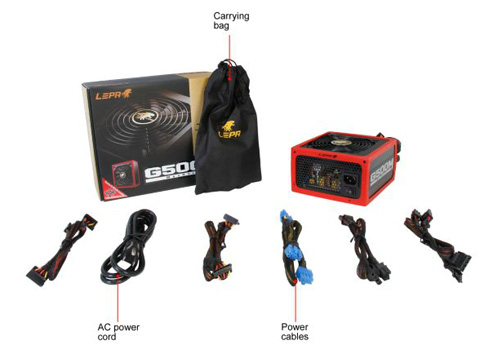

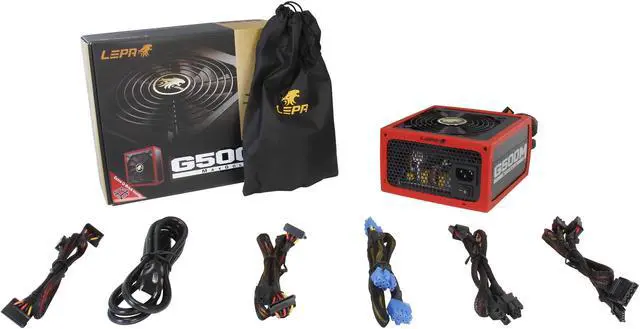

What's in the Box
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 3 years
- Limited Warranty period (labor): 3 years
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's 30-Day Return Policy.
- Read full return policy for details.
