It's time to make the switch to NVME™ storage performance and move on from SATA bottlenecks forever. Introducing the SSD designed to take NVMe mainstream, the Toshiba OCZ RC100 series. With state-of-the-art 64-layer BiCS FLASH™ technology combined with a compact, power-optimized M.2 design, the RC100 SSD series ensures that nobody is stranded with lagging system performance again.
Specifications |
|
| Sequential Read/Write Speed1 | Capacities4 |
| Up to 1600/1100 MB/s | 120GB, 240GB, 480GB |
| Random Read/Write Speed (4KiB)2 | Included |
| Up to 150,000/110,000 IOPS | SSD Utility (SSD management software) |
| Endurance3 | Technology |
| Up to 240 TB TBW (Total Bytes Written) | 64-layer 3D BiCS TLC |
No More SATA Bottleneck
Don't be held back by an interface designed for hard drives. The NVMe interface was designed from the ground up to take advantage of NAND flash technology and the PCI Express bus means it has the bandwidth to deliver performance outclassing even enthusiast SATA SSDs.
NVMe™ Made Affordable
First generation NVMe drives had high performance, but also came at a high cost. Toshiba has leveraged our expertise in NAND flash to design an entire SSD that fits within a single BGA package, delivering an NVMe drive that balances cost and performance.
Power-Optimized Architecture
Leveraging this BGA SSD has resulted in a drive that's extremely power efficient, consuming almost half the active power draw of enthusiast NVMe drives giving you even longer battery life on the go.

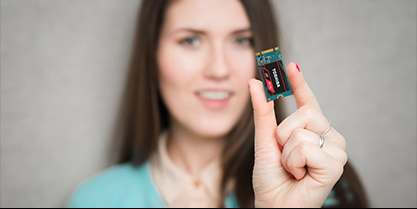

Small Form Factor
Since the entire SSD is contained within a single BGA chip, the RC100 fits onto an M.2 2242 PCB, making it one of the smallest SSDs available in retail. It's perfect for small form factor builds and plugs directly into the motherboard, reducing additional cable clutter.
State-of-the-Art 3D Flash Memory
Each RC100 is built with Toshiba's advanced 3D BiCS FLASH™ memory and a vertically stacked cell structure, deliveringa state-of-the-art storage experience.

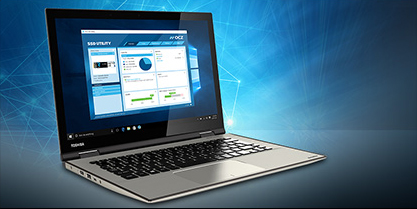

SSD Utility ssd Management Software
The SSD Utility management software was designed to help your OCZ drive thrive and lets you be in control of maintenance, monitoring, SSD tuning, OS tuning and more!
1. Sequential speeds are measured with ATTO v3.05, QD10.
2. 4KiB random performance is measured with CrystalDiskMark 5.1.2 x64 QD32.
3. Definition and conditions of TBW (Terabytes Written) are based on JEDEC standard; JESD218A, fEBRUARY 2011, and defined for the service life.
Definition of capacity: Toshiba defines a megabyte (MB) as 1,000,000 bytes, a gigabyte (GB) as 1,000,000,000 bytes and a terabyte (TB) as 1,000,000,000,000 bytes. A computer operating system, however, reports storage capacity using powers of 2 for the definition of 1GB=230=1,073,741,824 bytes and therefore shows less storage capacity. Available storage capacity ( including examples of various media files) will vary based on file size, formatting, settings, software and operating system, such as Microsoft Operating System and/or pre-installed software applications, or media content. Actual formatted capacity may vary.
