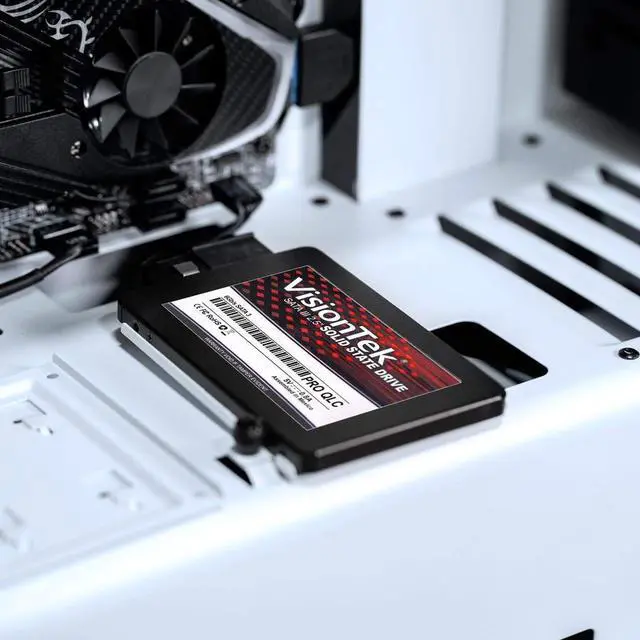

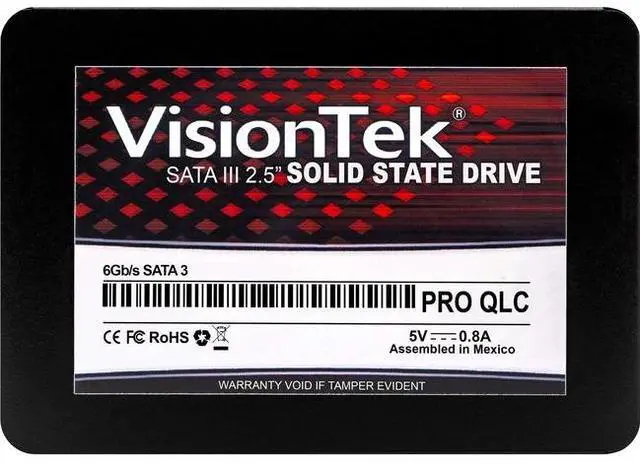

VisionTek Pro 2.5" 500GB SATA III 3D QLC Internal Solid State Drive (SSD) 901368

Be the first to review this product...
  • 2.5"
  • 500GB
  • SATA III
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the VisionTek 901368

Model
Brand VisionTek
Series Pro
Model 901368
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Details
Form Factor 2.5"
Capacity 500GB
Memory Components 3D QLC
Interface SATA III
Protocol SATA
Controller Silicon Motion SM2259
Performance
Max Sequential Read Up to 560 MBps
Max Sequential Write Up to 505 MBps
4KB Random Read Up to 60,000 IOPS
4KB Random Write Up to 66,000 IOPS
MTBF 1,500,000 hours
Features
Features SLC caching accelerates burst performance
Global wear leveling evens program/erase counts to extend drive lifespan
StaticDataRefresh technology ensures data integrity
Data shaping increases endurance
TRIM command support (OS dependent)
S.M.A.R.T. support
LDPC hard and soft decode ECC
DEVSLP support
Internal flash RAID-like parity scheme provides an additional layer of error correction
SATA 3.2 (6Gb/s) interface (backwards compatible with SATA 2.0 (3Gb/s) and SATA 1.0 (1.5Gb/s))
Industry-standard 512 byte sector support
Native Command Queuing (NCQ) support with 32 command que depth
RoHS-compliant package
Environmental
Power Consumption (Idle) 0.09W
Power Consumption (Active) 2.1W
Operating Temperature 0°C ~ +70°C
Storage Temperature -40°C ~ +85°C
Operating Humidity 5-95% relative
Max Shock Resistance 1500G/0.5ms
Max Vibration Resistance 2-500Hz, 3.1G
Dimensions & Weight
Height 7.00mm
Width 69.85mm
Depth 100.45mm
Weight 60.00g
Additional Information
Date First Available May 27, 2022

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
