Specifications: Dimensions: 13.74" x 29.45" x 29.45"
Weight: 16.76 lbs.
Frequency Range: 5.1 - 5.8 GHz
Gain: 31 dBi
Max. VSWR: 1.4:1
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 1,028 N @ 200 km/h (231 lbf @ 125 mph)
Polarization: Dual-Linear
Cross-pol Isolation: 35 dB Min.
ETSI Specification: EN 302 326 DN2
Mounting: Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included

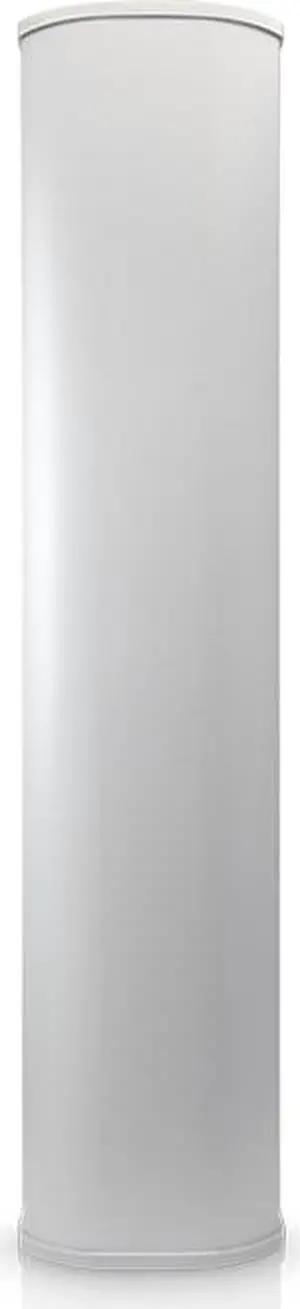

Specifications: Frequency Range 902 - 928 MHz
Gain 16 dBi, Both Polarizations
HPOL Beamwidth 29 to 34°
VPOL Beamwidth 29 to 34°
F/B Ratio 20 dB
Max VSWR <1.5:1 Over Band
Dimensions 1690 x 295 x 295 mm
Weight 4.65 kg
Wind Survivability 120 mph
Wind Loading 35 ft-lbs @ 100 mph
Polarization Dual Linear
Cross-pol Isolation 20 dB
ETSI Specification EN 302 326 DN2
Mounting M8 U-Bolt Pole Mounting Kit Included
Specifications: Form Factor: Pole
Maximum Antenna Range: 31.1 Mile
Product Family: RocketDish
Product Type: Antenna
Number of Connectors: 1
USB: No
Antenna Gain: 30 dBi
Frequency: 5.10 GHz to 5.80 GHz
Frequency Band Type: SHF
Polarization: Dual Linear
Survival Wind Speed: 2112 in/s
Application/Usage: Wireless Data Network
Certifications & Standards: ETSI: EN 302 326 DN2
Package Contents:
AirMax Carrier Class 2x2 PtP Bridge Dish Antenna
Universal Pole Mount
Rocket M Bracket
Weatherproof RF Jumpers
Power Supply: Max. Power Consumption: 10W
Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range: 20 to 26V DC
