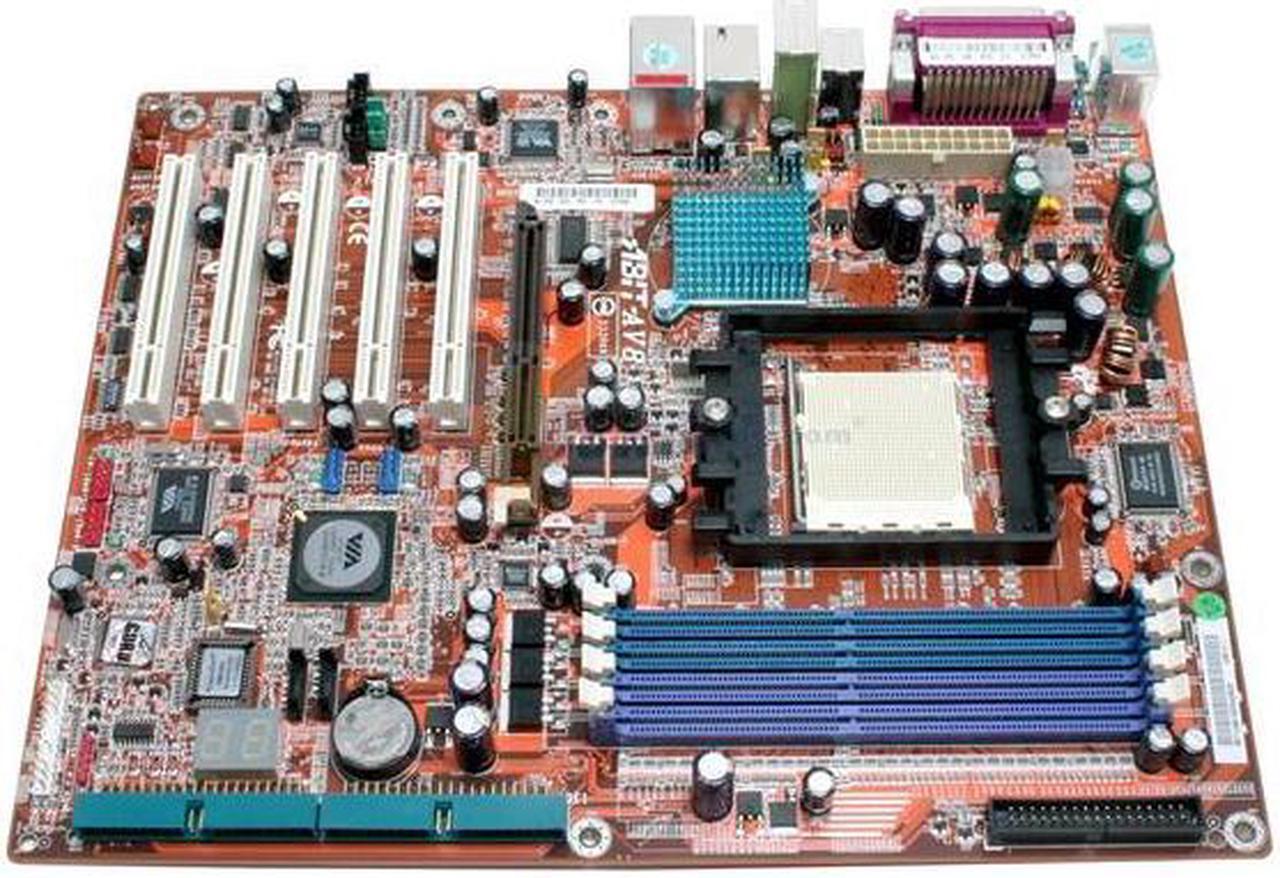

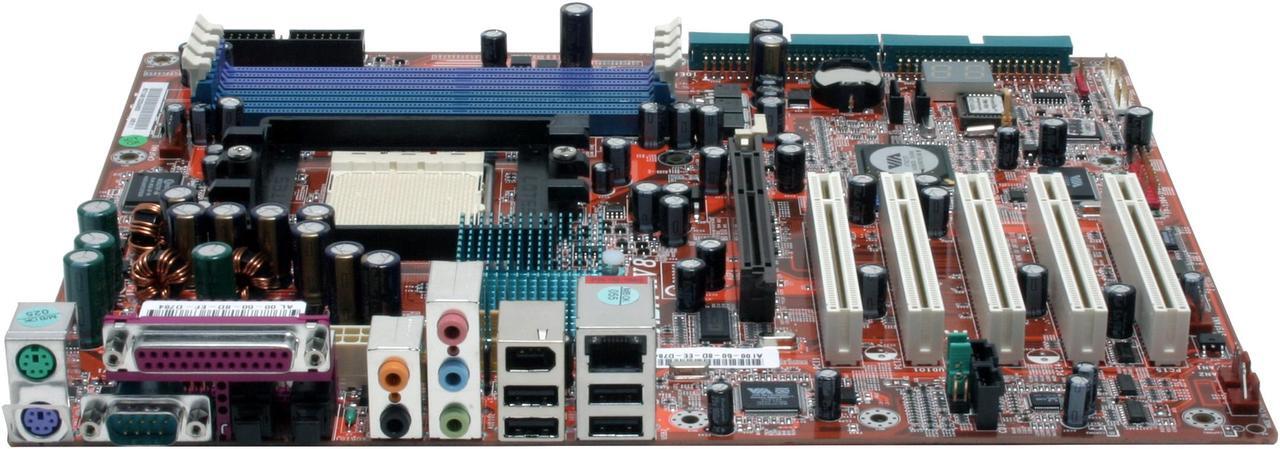

ABIT AV8-3rd Eye 939 VIA K8T800 Pro ATX AMD Motherboard
- VIA K8T800 Pro
- Athlon 64 FX / Athlon 64 / Sempron
- DDR 400
Specs
Reviews (11)
Learn more about the Universal abit USA AV8-3rd Eye
| Brand | ABIT |
|---|---|
| Model | AV8-3rd Eye |
| CPU Socket Type | 939 |
|---|---|
| CPU Type | Athlon 64 FX / Athlon 64 / Sempron |
| FSB | 1000 MHz |
| Chipset | VIA K8T800 Pro |
|---|---|
| South Bridge | VIA VT8237 |
| Number of Memory Slots | 4x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | None |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 5 x Audio Jacks |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| USB 1.1/2.0 | 4 x USB 2.0 |
| IEEE 1394 | 1 x IEEE 1394a |
| Audio Ports | 5 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| Features | ABIT µGuru Technology ABIT CPU ThermalGuard Technology |
|---|
| Date First Available | January 27, 2005 |
|---|
