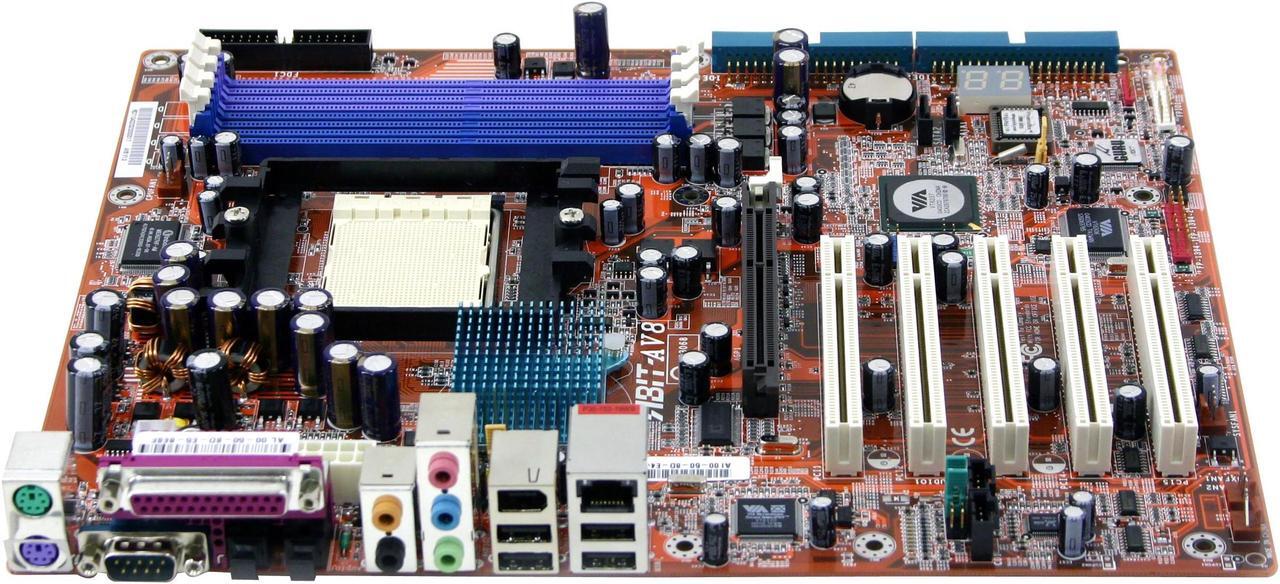

ABIT AV8 939 VIA K8T800 Pro ATX AMD Motherboard

  • VIA K8T800 Pro
  • Athlon 64 FX / Athlon 64
  • DDR 400
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (96)

Learn more about the Universal abit USA AV8

Model
Brand ABIT
Model AV8
Supported CPU
CPU Socket Type 939
CPU Type Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset VIA K8T800 Pro
South Bridge VIA VT8237
Memory
Number of Memory Slots 4x184pin
Memory Standard DDR 400
Maximum Memory Supported 8GB
Channel Supported Dual Channel
Expansion Slots
AGP Slots 1 x AGP 4X / 8X
PCI Slots 5 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset AC97 Codec
Audio Channels 6 Channels
Onboard LAN
Max LAN Speed 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 5 x Audio Jacks
PS/2 2
COM 1
LPT 1
USB 1.1/2.0 4 x USB 2.0
IEEE 1394 1 x IEEE 1394a
S/PDIF Out 1 x Optical
S/PDIF In 1 x Optical
Audio Ports 5 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 20 Pin
Additional Information
Date First Available June 17, 2004
