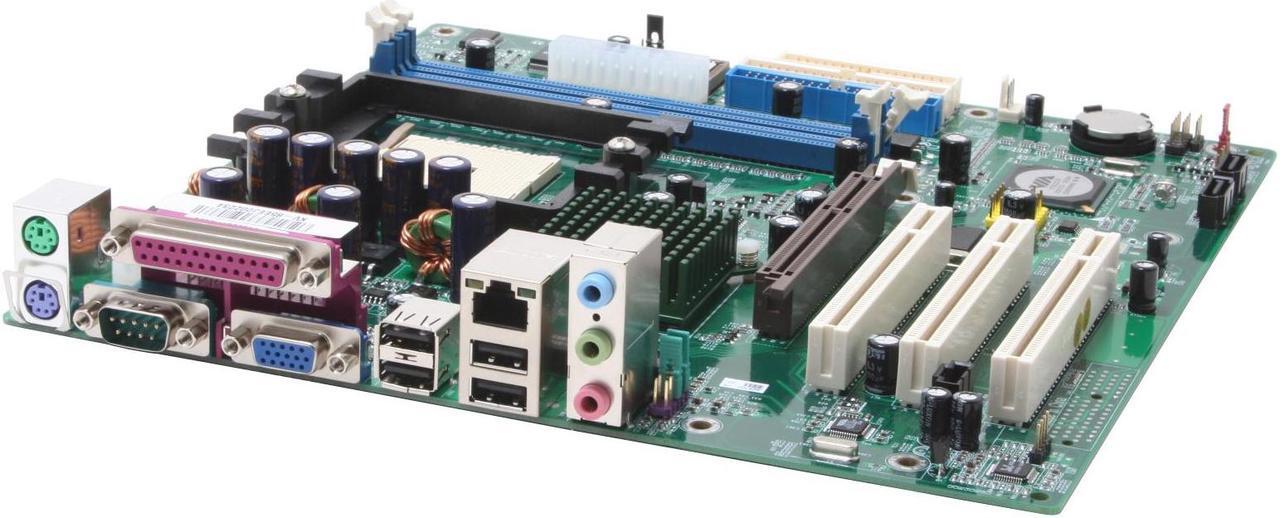

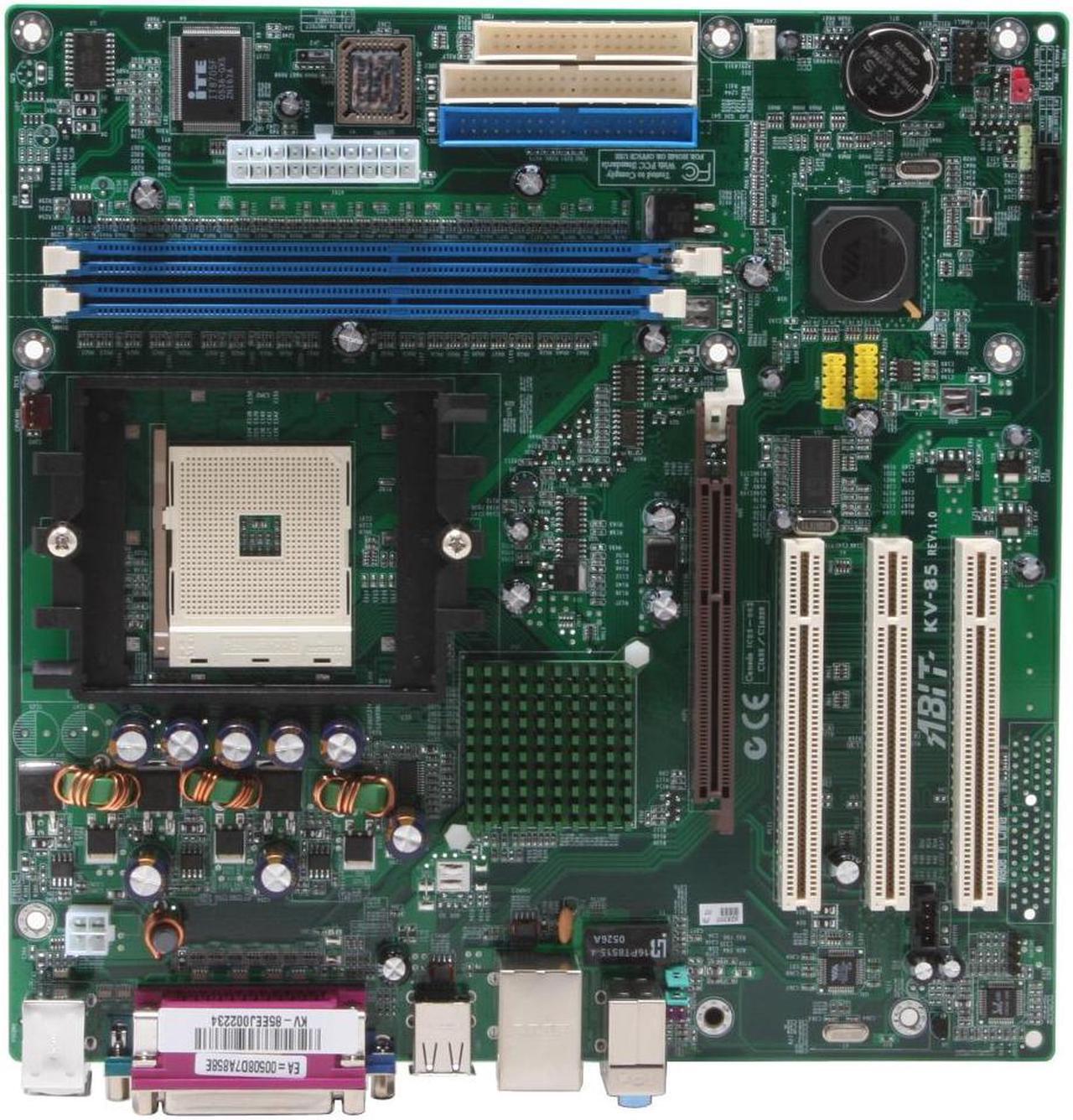

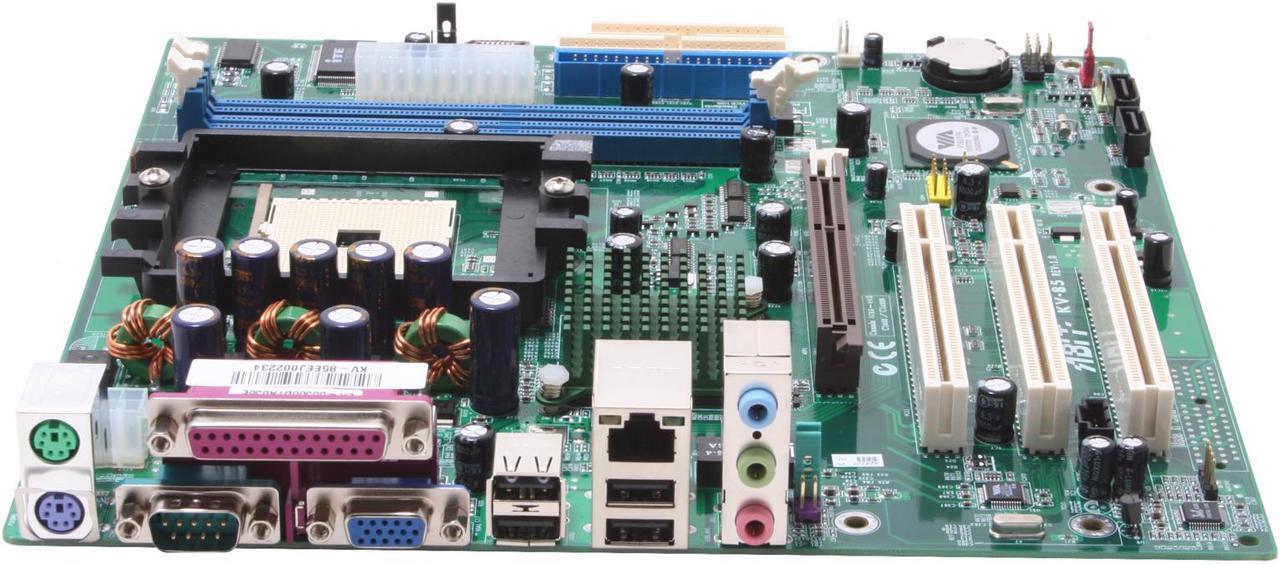

ABIT KV-85 754 VIA K8M800 Micro ATX AMD Motherboard
- VIA K8M800
- Athlon 64 / Sempron
- DDR 400
Specs
Reviews (34)
Learn more about the Universal abit USA KV-85
| Brand | ABIT |
|---|---|
| Model | KV-85 |
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64 / Sempron |
| FSB | 800 MHz |
| Chipset | VIA K8M800 |
|---|---|
| South Bridge | VIA VT8237R |
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 3 x PCI Slots |
| PATA | 2 x ATA100 4 Dev. Max |
|---|---|
| SATA RAID | 0/1 |
| Onboard Video Chipset | S3 Graphics UniChrome Pro IGP |
|---|
| Audio Chipset | AC97 Codec |
|---|---|
| Audio Channels | 6 Channels |
| Max LAN Speed | 100Mbps |
|---|
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 20 Pin |

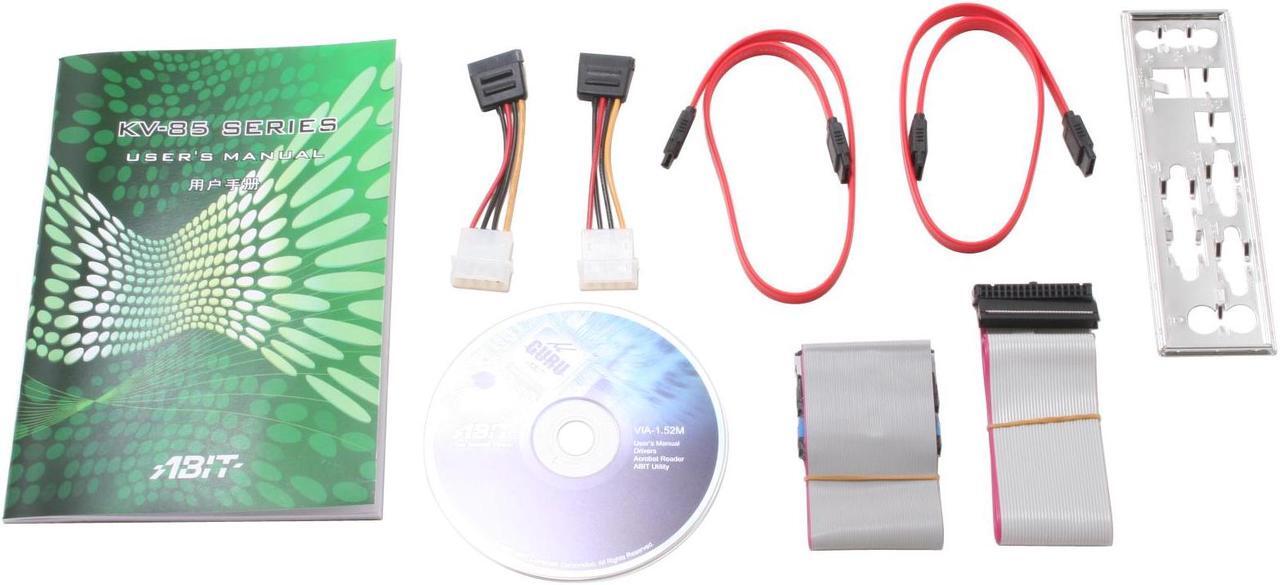

| Package Contents | KV-85 User Manual Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable 2 x SATA Cable 2 x Power Cable |
|---|
| Date First Available | November 14, 2005 |
|---|
