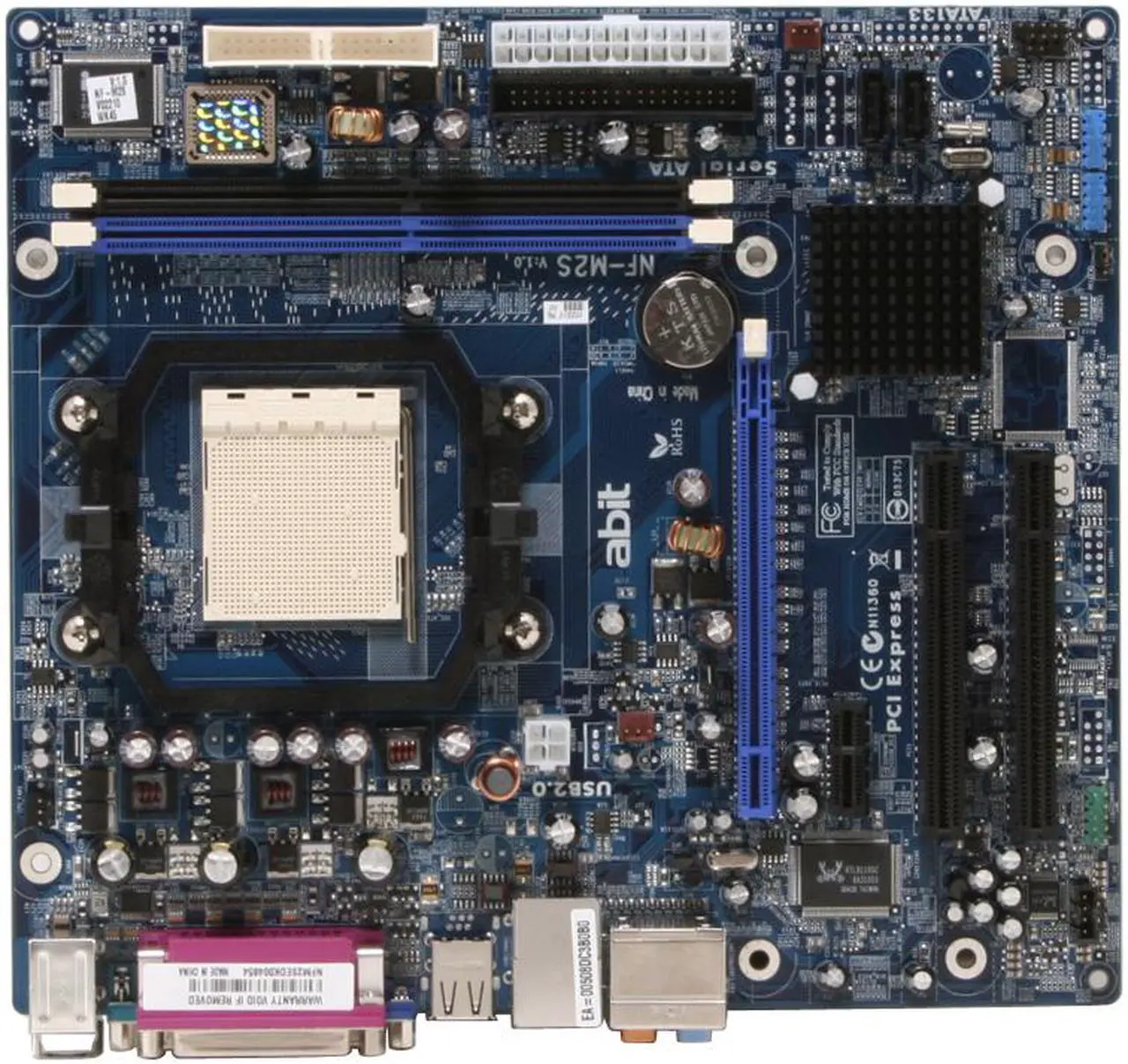

ABIT NF-M2S AM2 NVIDIA GeForce 6100 Micro ATX AMD Motherboard

  • NVIDIA GeForce 6100
  • Athlon 64 X2 / Athlon 64 / Sempron
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (30)

Learn more about the Universal abit USA NF-M2S

Model
Brand ABIT
Model NF-M2S
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 / Sempron
FSB 1000 MHz
Chipsets
Chipset NVIDIA GeForce 6100
South Bridge NVIDIA nForce 405
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 800
Maximum Memory Supported 2GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 1 x PCI-Express x16 (PCI-Express x8 bandwidth)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 1 x ATA100 2 Dev. Max
SATA RAID 0/1
Onboard Video
Onboard Video Chipset NVIDIA GeForce 6100
Onboard Audio
Audio Chipset AC97 Codec
Audio Channels 8 Channels
Onboard LAN
Max LAN Speed 1Gbps

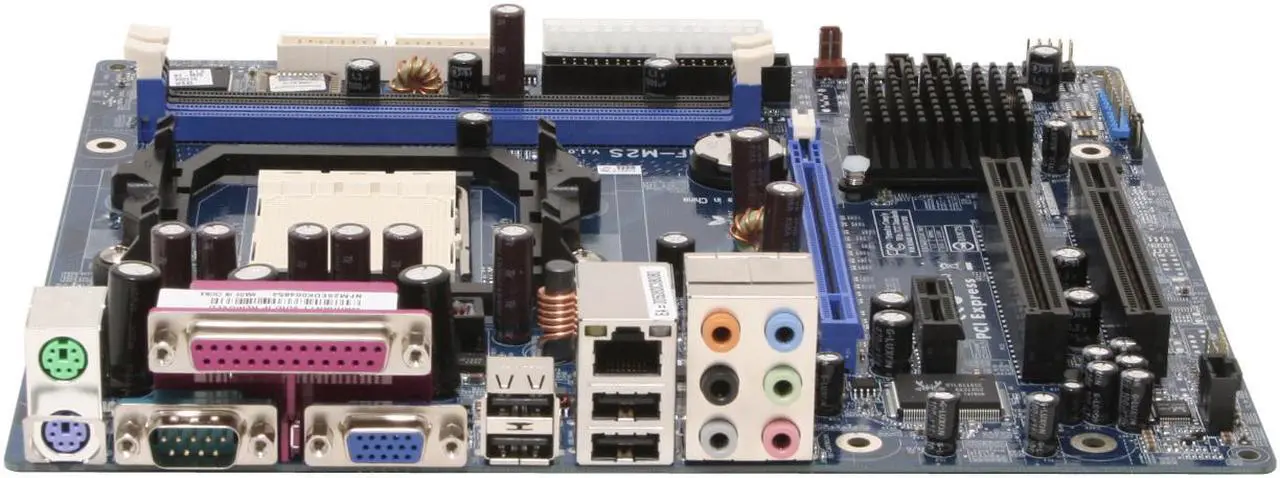

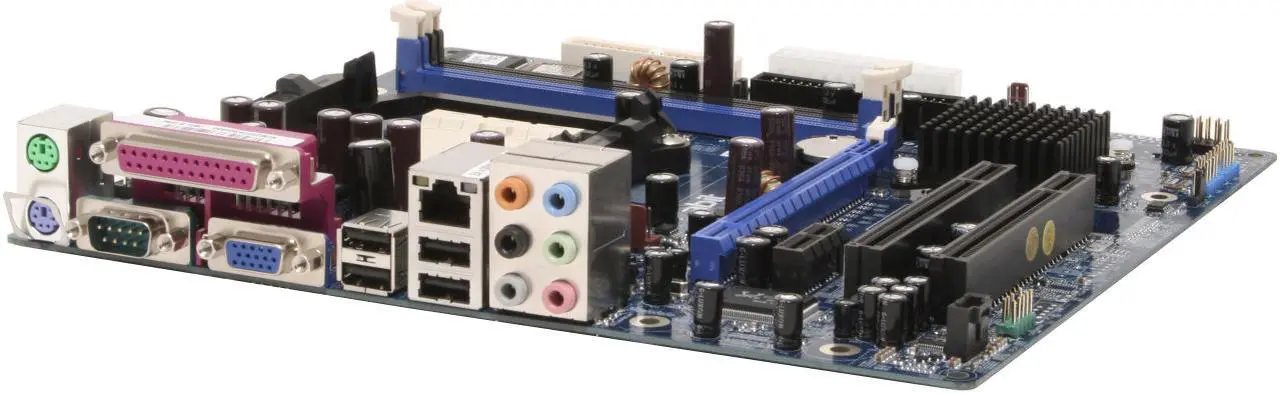

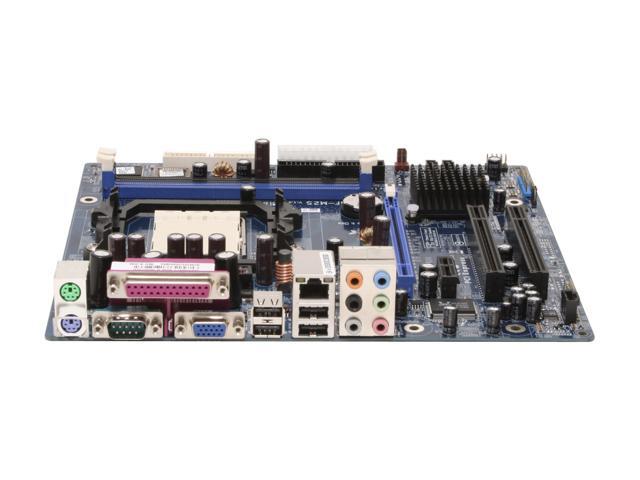

Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 4 x USB 2.0
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.6"
Power Pin 24 Pin
Packaging

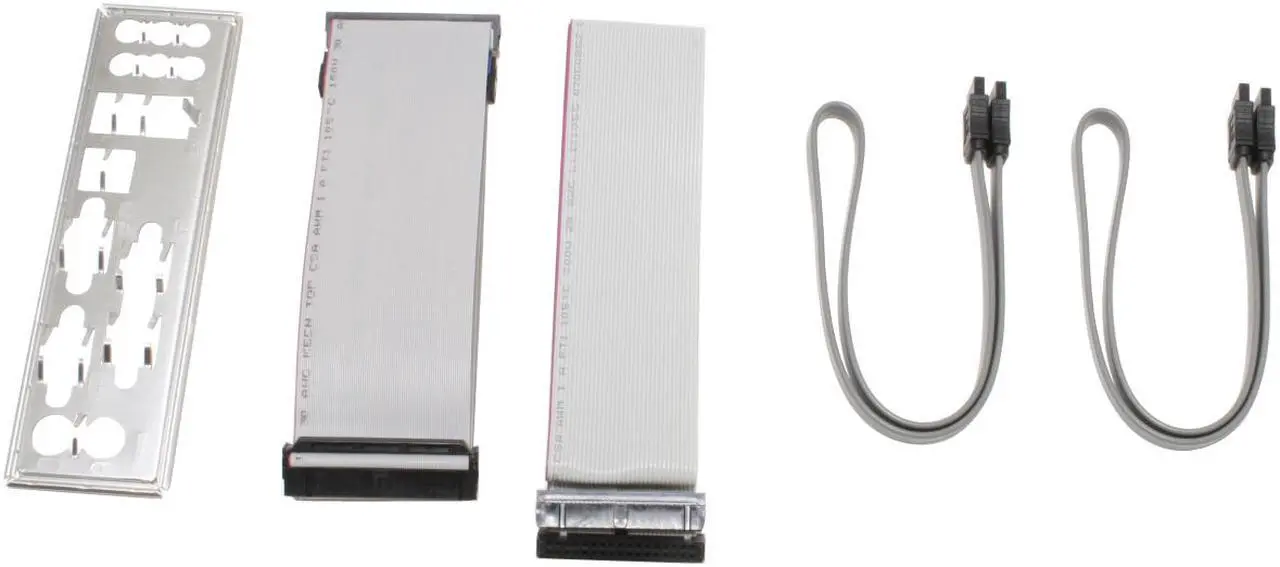

Package Contents NF-M2S

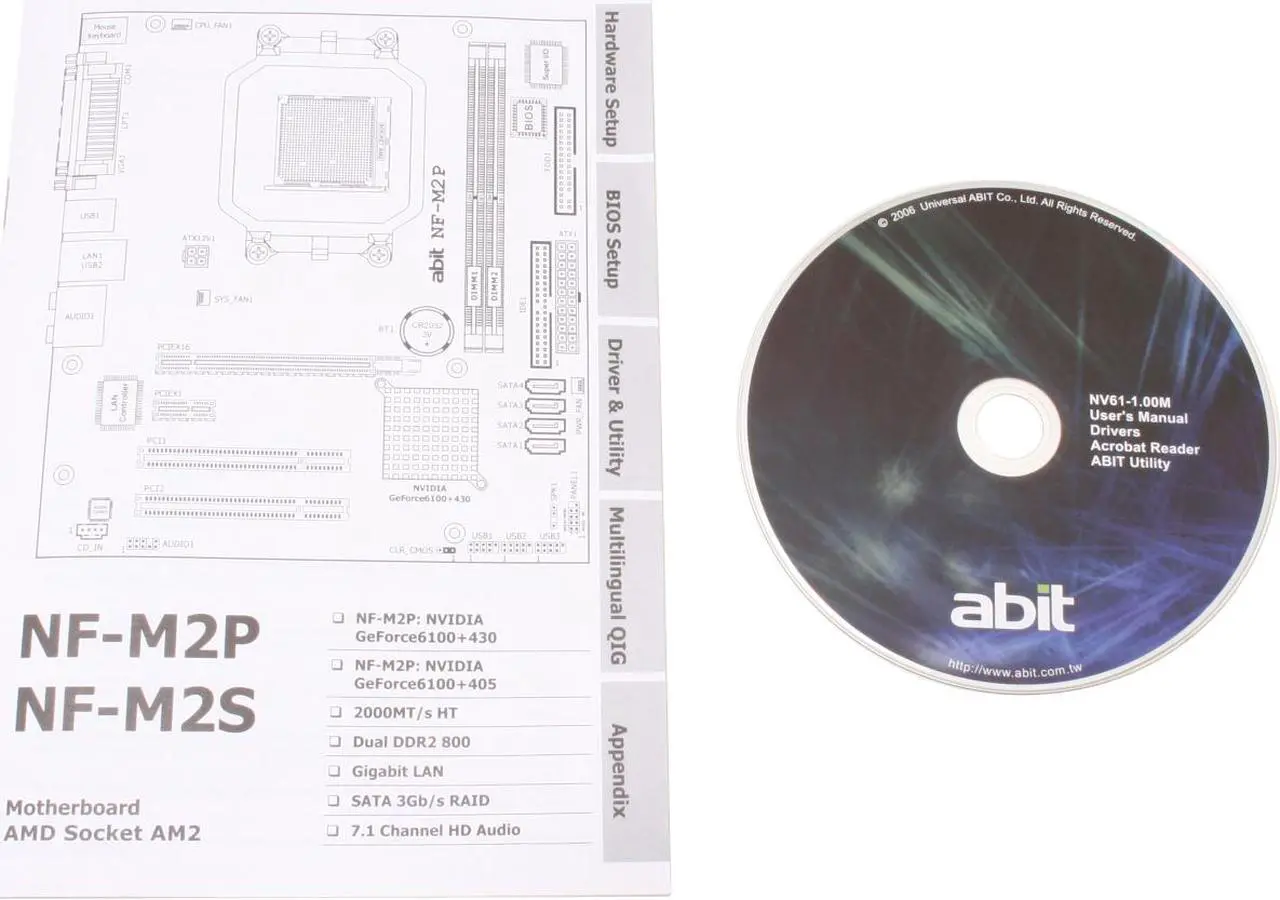

Driver Disk
User Manual
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
2 x SATA Cable
Physical Spec
Windows Vista Certified for Windows Vista
Additional Information
Date First Available December 01, 2006
