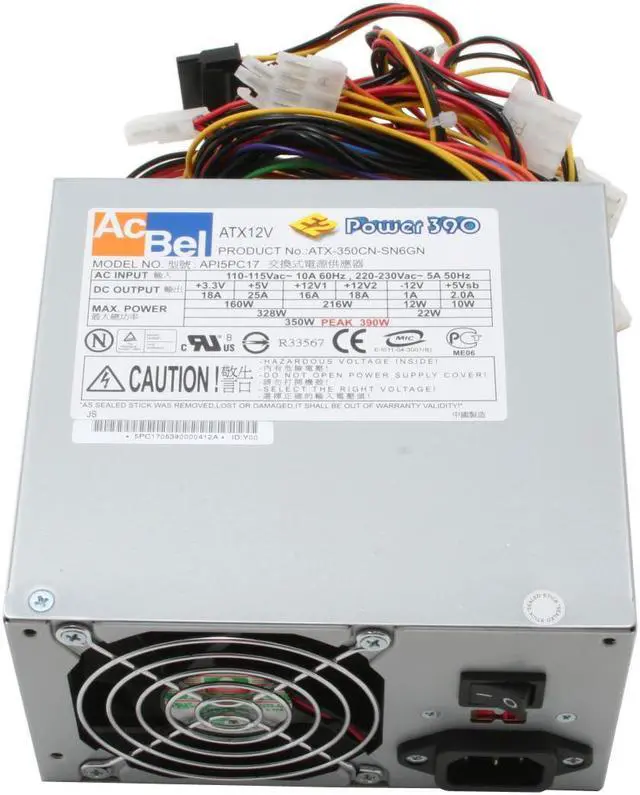

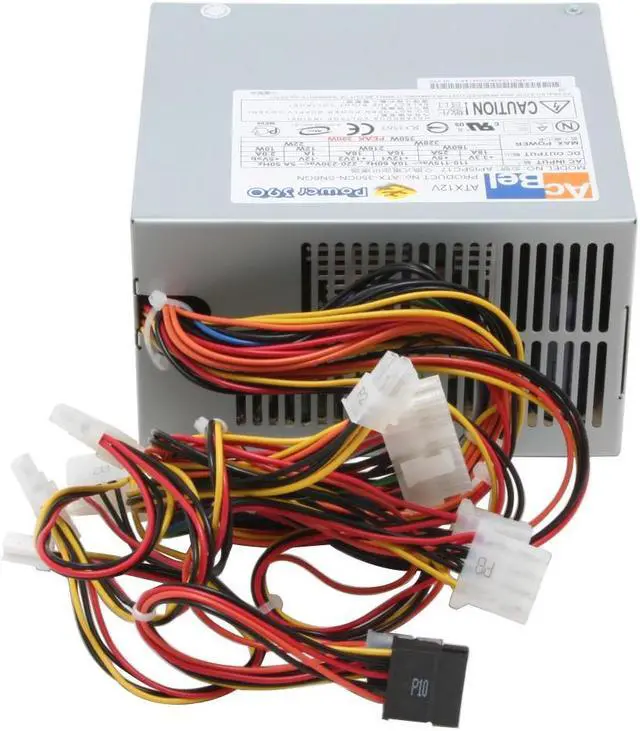

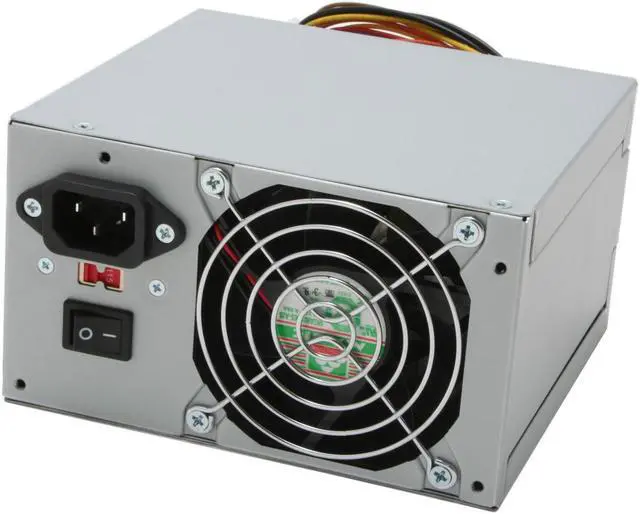

AcBel API5PC17 350W ATX12V Power Supply - OEM

(1) Write a Review
  • ATX12V
  • 110 - 115V/ 220 - 230V 50/60 Hz
  • +3.3V@18A,+5V@25A,+12V1@16A, +12V2@18A,-12V@1A,[email protected]
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (1)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the AcBel API5PC17

General
Brand AcBel
Model API5PC17
Details
Type ATX12V
Maximum Power 350 W
Fans 1
PFC No

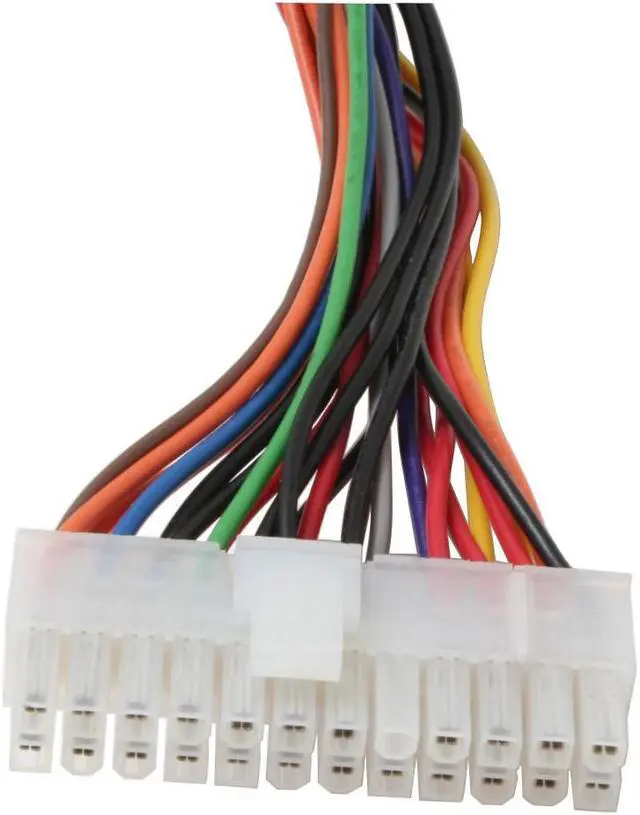

Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector No
SLI No
CrossFire No
Modular No
Hold-up Time 16ms@Max. Load 115Vac/60Hz
Efficiency 75%@115Vac
Overload Protection Yes
Input Voltage 110 - 115V/ 220 - 230V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V
Output +3.3V@18A,+5V@25A,+12V1@16A,
+12V2@18A,-12V@1A,[email protected]
MTBF >100,000 Hours
Approvals cUL, CE, TUV,

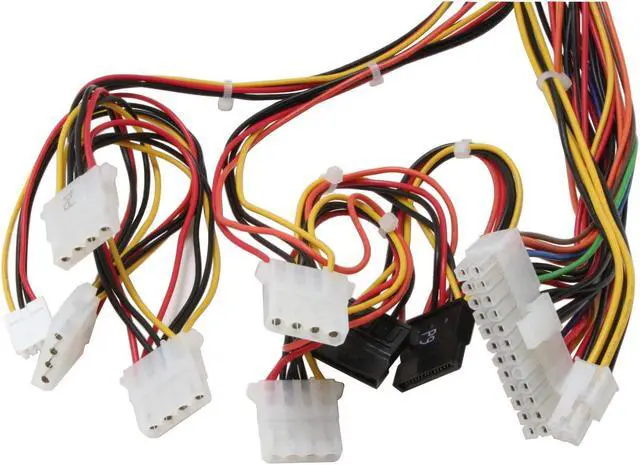

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
5 x peripheral
2 x SATA
1 x Floppy
Features
Features Cooling : Intelligent-Thermal Fan Control
Operating Temperature: 0~50°C
Storage Temperature: -40~70°C
SCP: Latch off all main outputs reset by cycling on/off control or AC power
Additional Information
First Listed on Newegg March 06, 2006
