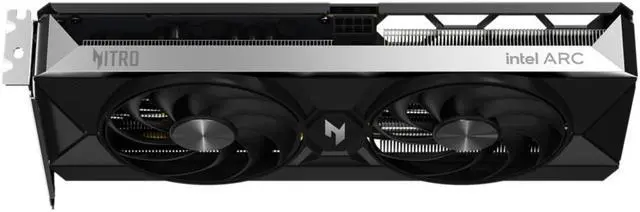

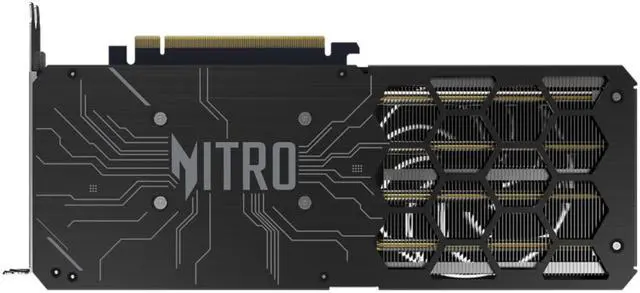

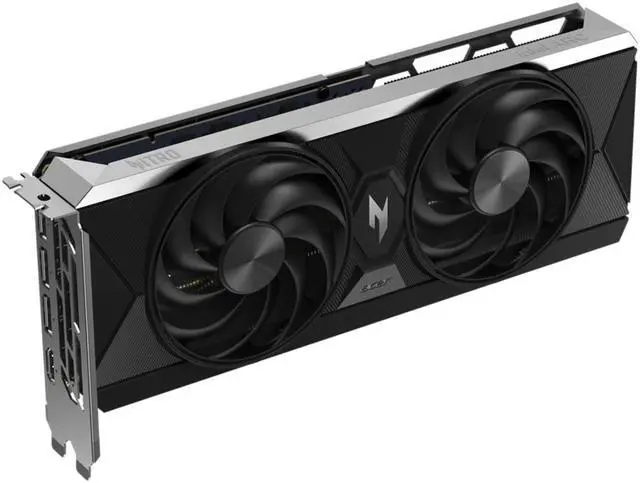

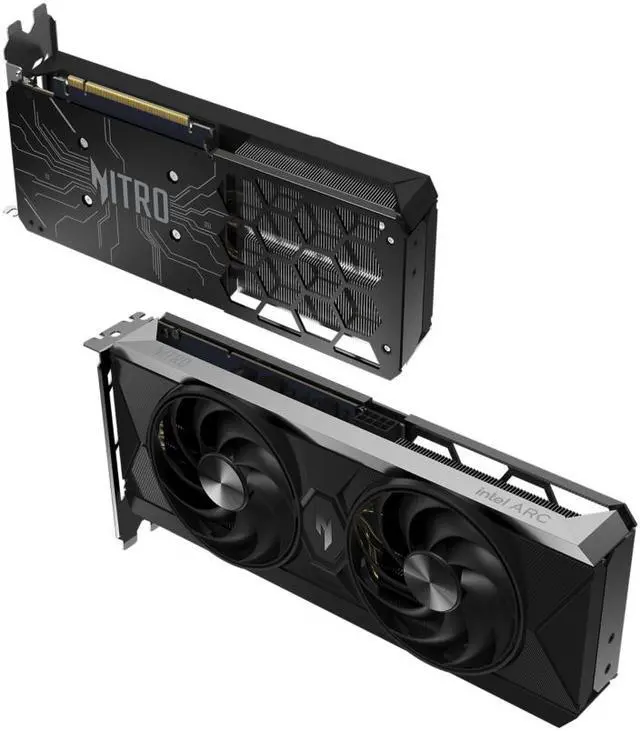

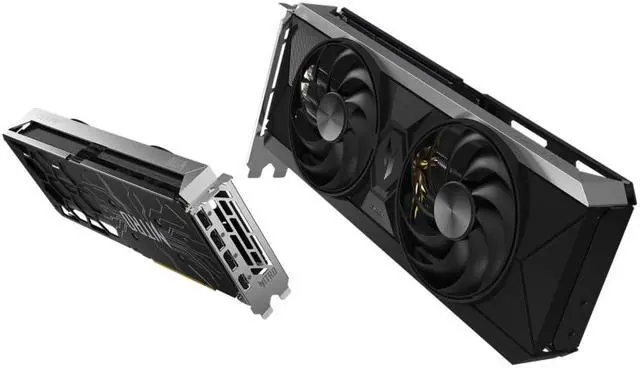

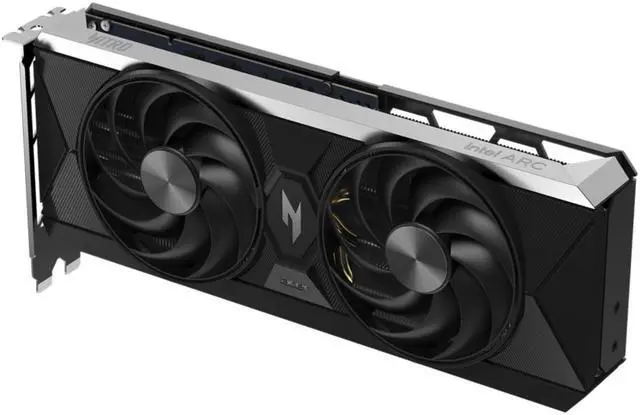

Acer Nitro Intel Arc B580 12GB 192 Bit GDDR6 456Gb/s 20 XE Cores, 20 Ray Tracking units, Up to 8K Resolution at 120Hz HDR, Intel Battlemage Video Card
- 12GB 192-Bit GDDR6
- 20 XE Cores, 20 Ray Tracking units
- Core Clock 2740 MHz
- 1 x HDMI 2.1 3 x DisplayPort 2.1
- Up to 8K Resolution at 120Hz HDR
- PCI Express 4.0 x8
Specs
Reviews (7)
Learn more about the Acer America AN-B580-OCA
| Brand | Acer |
|---|---|
| Series | Nitro |
| Model | AN-B580-OCA |
| Part Number | DP.Z4BWW.P01 |
| Interface | PCI Express 4.0 x8 |
|---|
| Chipset Manufacturer | Intel |
|---|---|
| GPU Series | Intel ARC B-Series |
| Core Clock | 2740 MHz |
| Xe-cores | 20 |
| Effective Memory Clock | 19000 MHz |
|---|---|
| Memory Size | 12GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
|---|---|
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
|---|---|
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 3 x DisplayPort 2.1 |
| Max Resolution | 7680 x 4320 |
|---|---|
| Cooler | Air Cooler |
| Thermal Design Power | 205W |
| System Requirements | Minimum System Requirements • 10th Gen Intel® Core™ Processors or newer with compatible motherboards supporting Resizable BAR, AMD Ryzen™ 3000 Series Processors or newer with compatible motherboards supporting Smart Access Memory • PCI-Express® compliant motherboard with one x16 PCIe slot • 600W or greater power supply with 1x 8-pin PCIe power connector • 8GB of system memory minimum, 16GB recommended • Windows® 11 64-bit or Windows® 10 64-bit See intel.com/arcquickstart for more details. |
| Recommended PSU Wattage | 600W |
| Power Connector | 8-Pin |
| Form Factor | ATX |
|---|---|
| Max GPU Length | 268 mm |
| Card Dimensions (L x H) | 268 x 113 x 40 mm |
| Slot Width | 2 Slots |
| Date First Available | December 12, 2024 |
|---|
