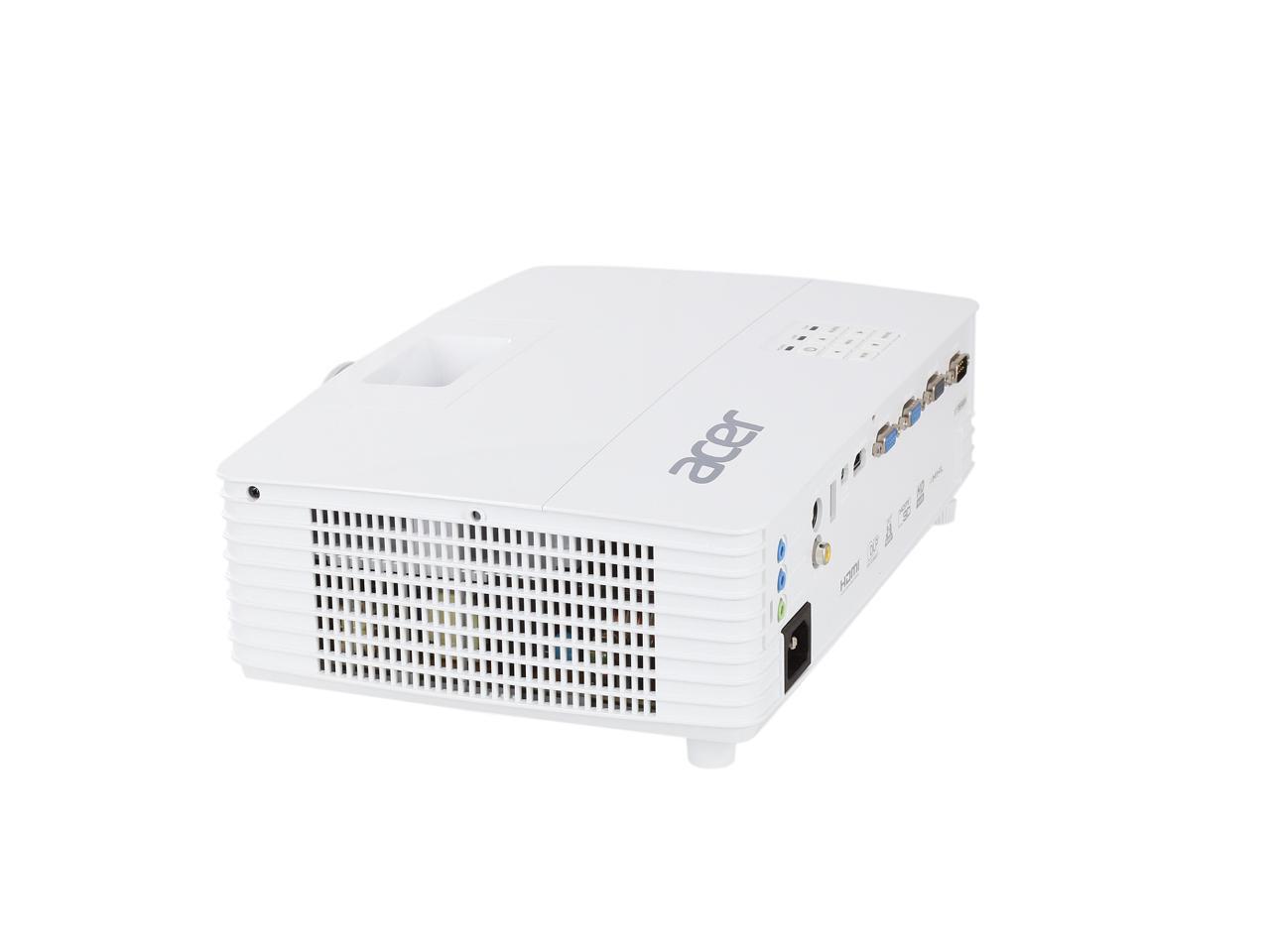

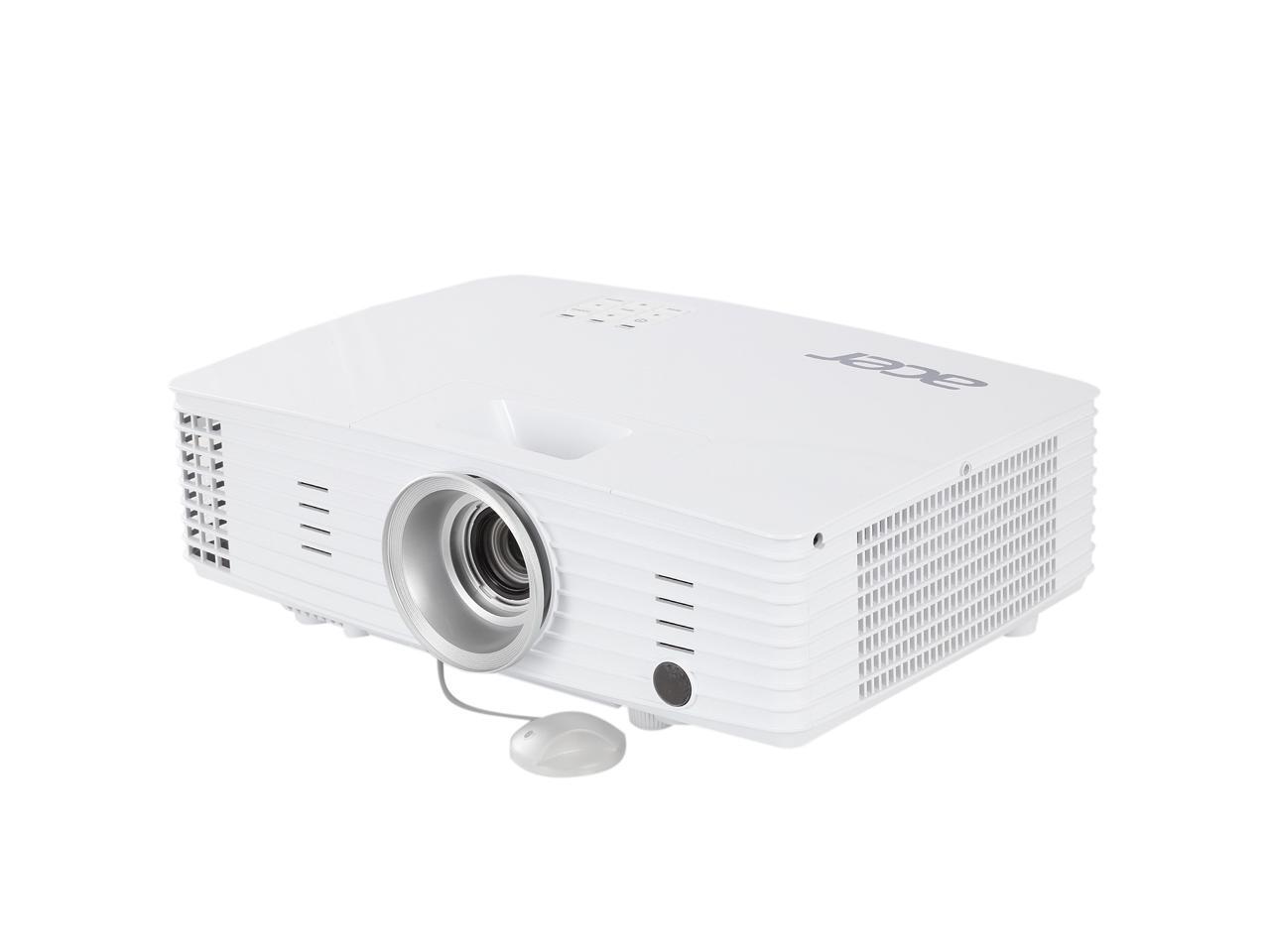

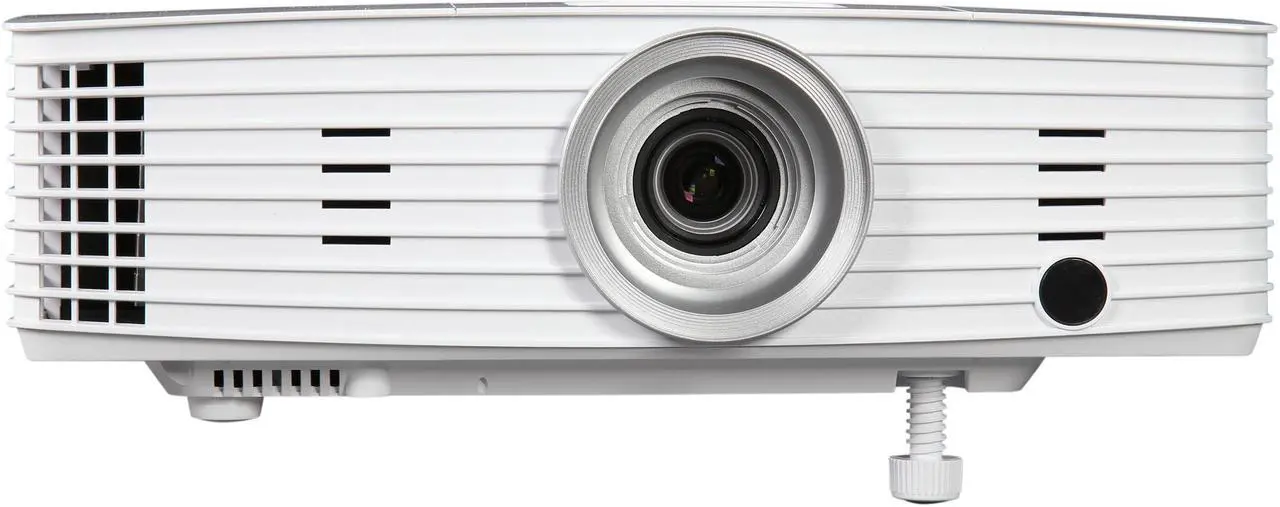

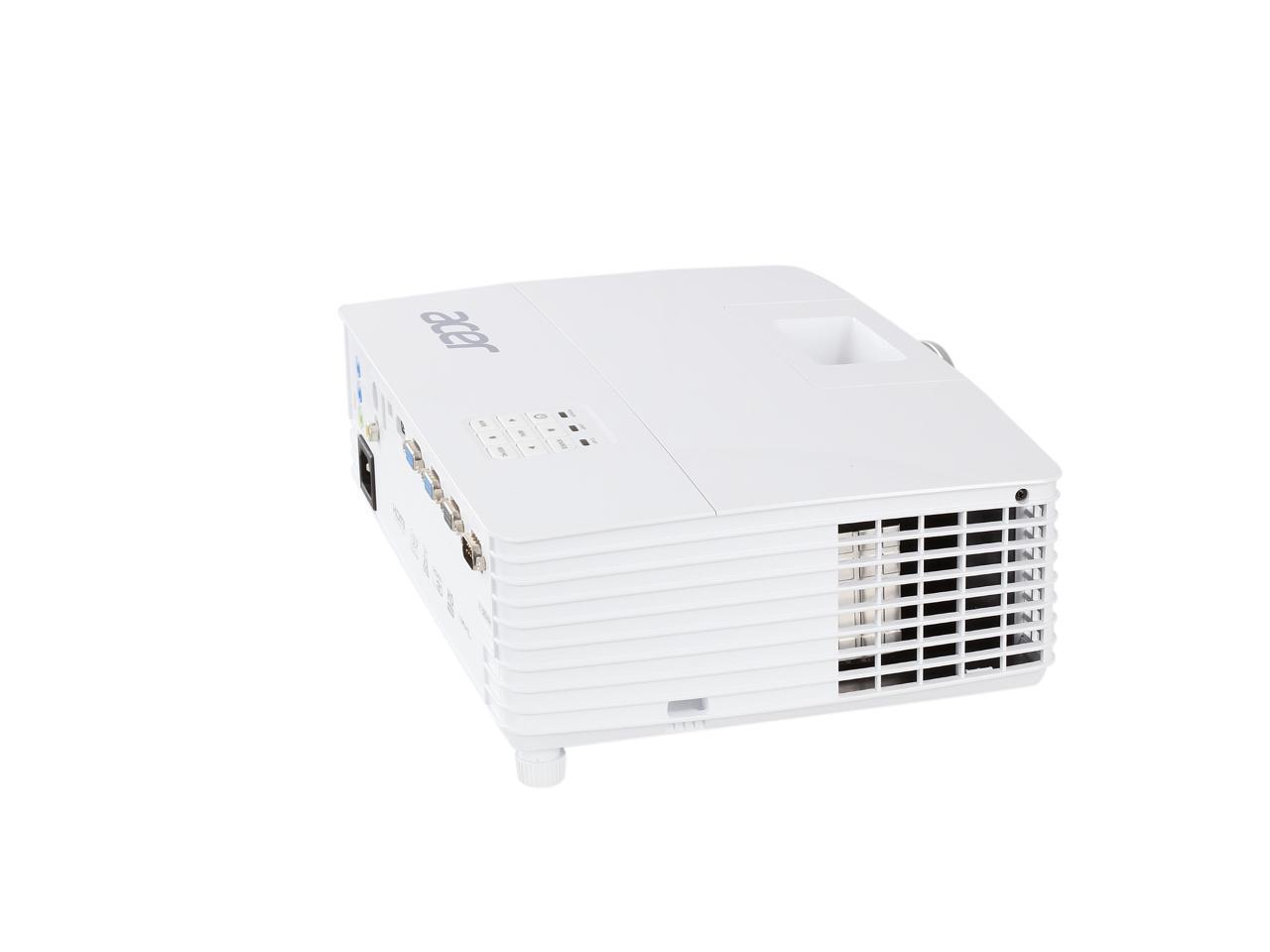

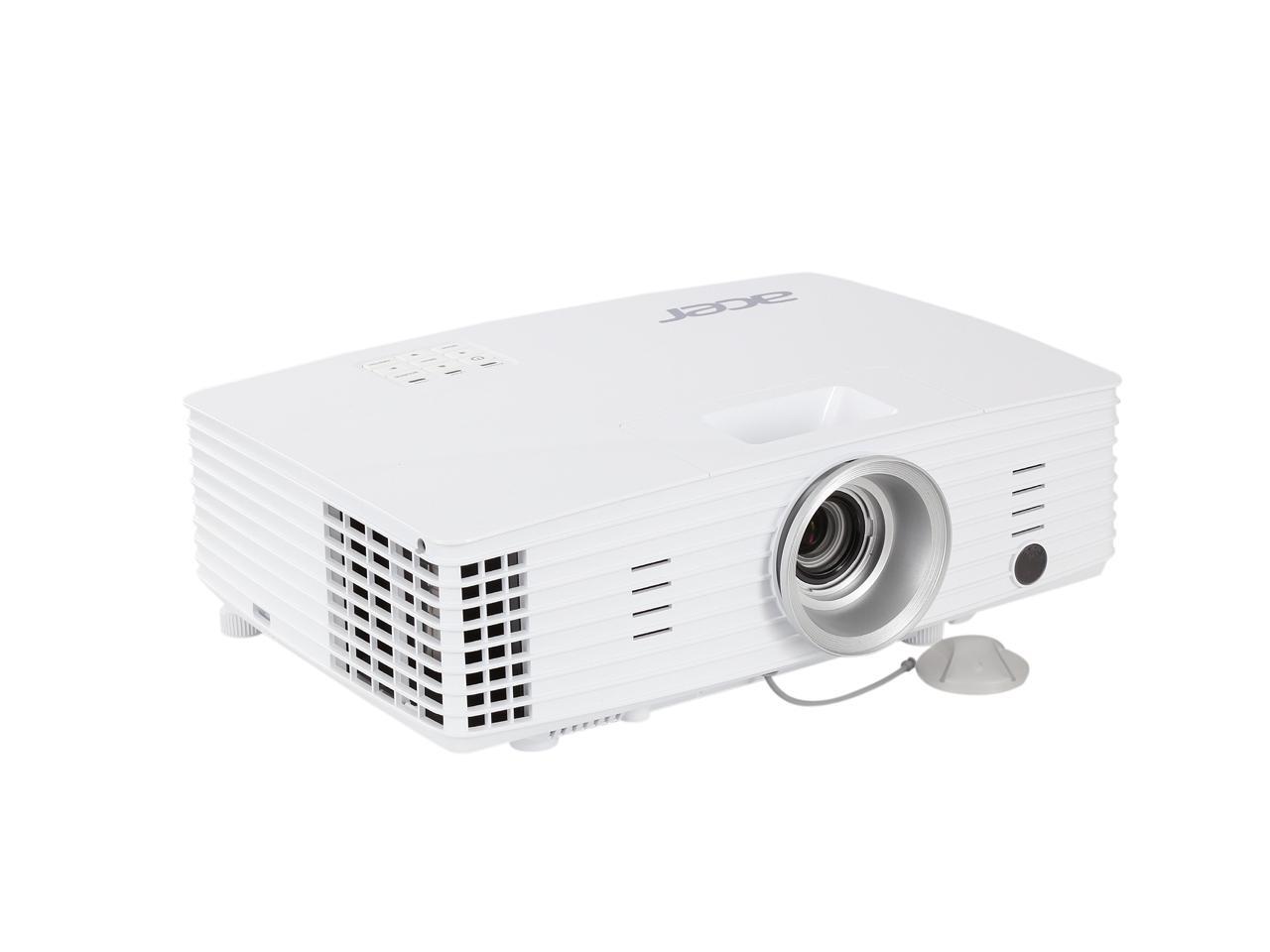

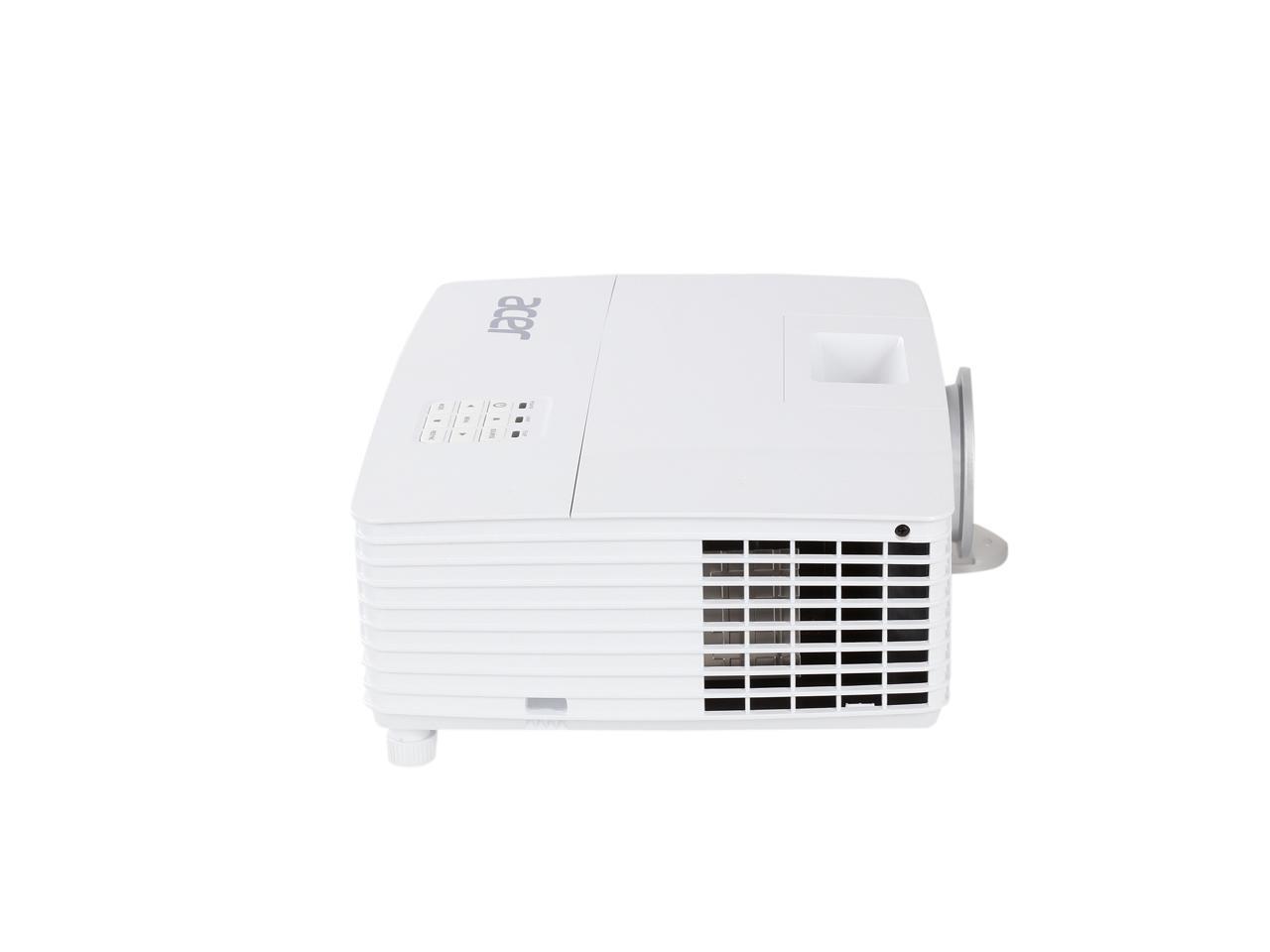

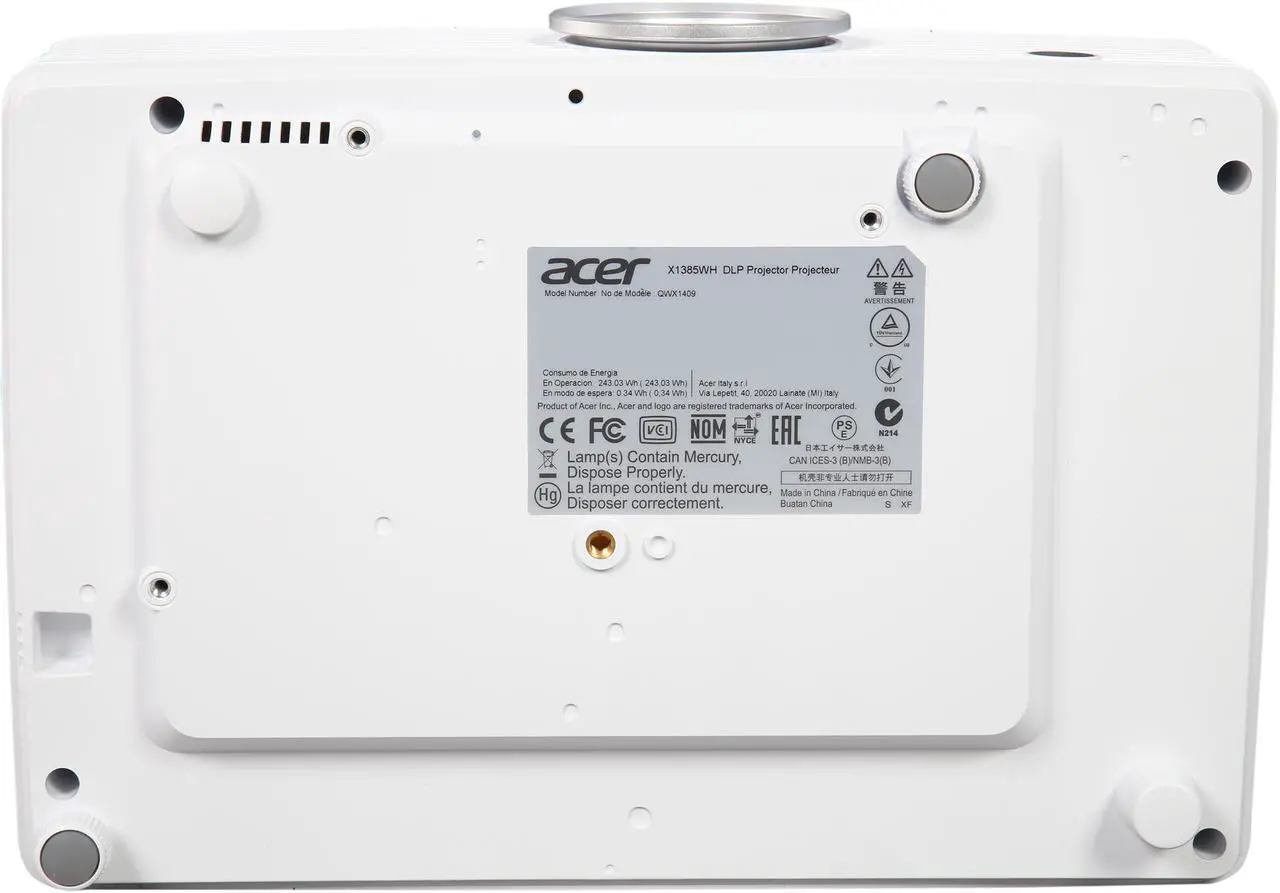

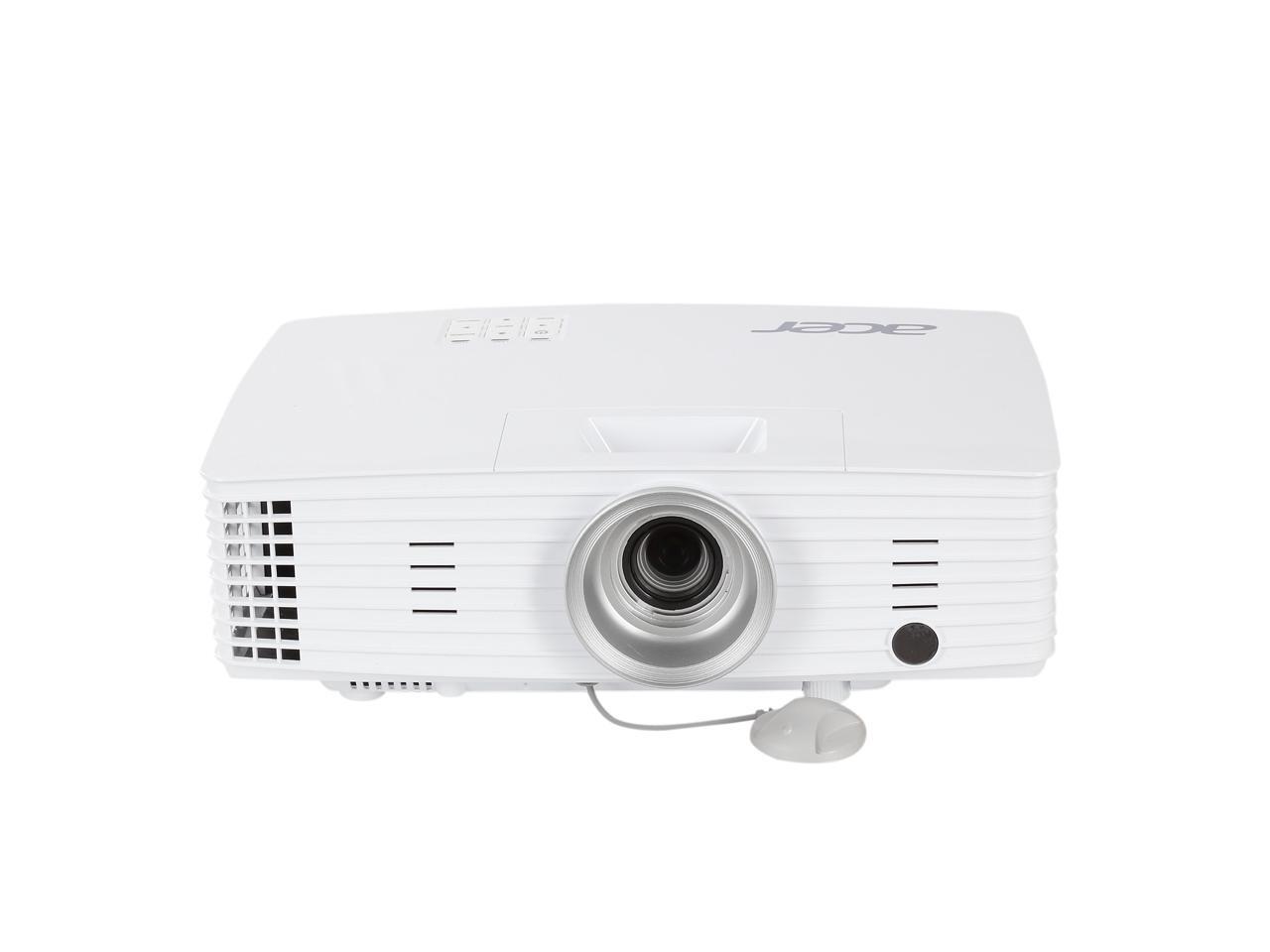

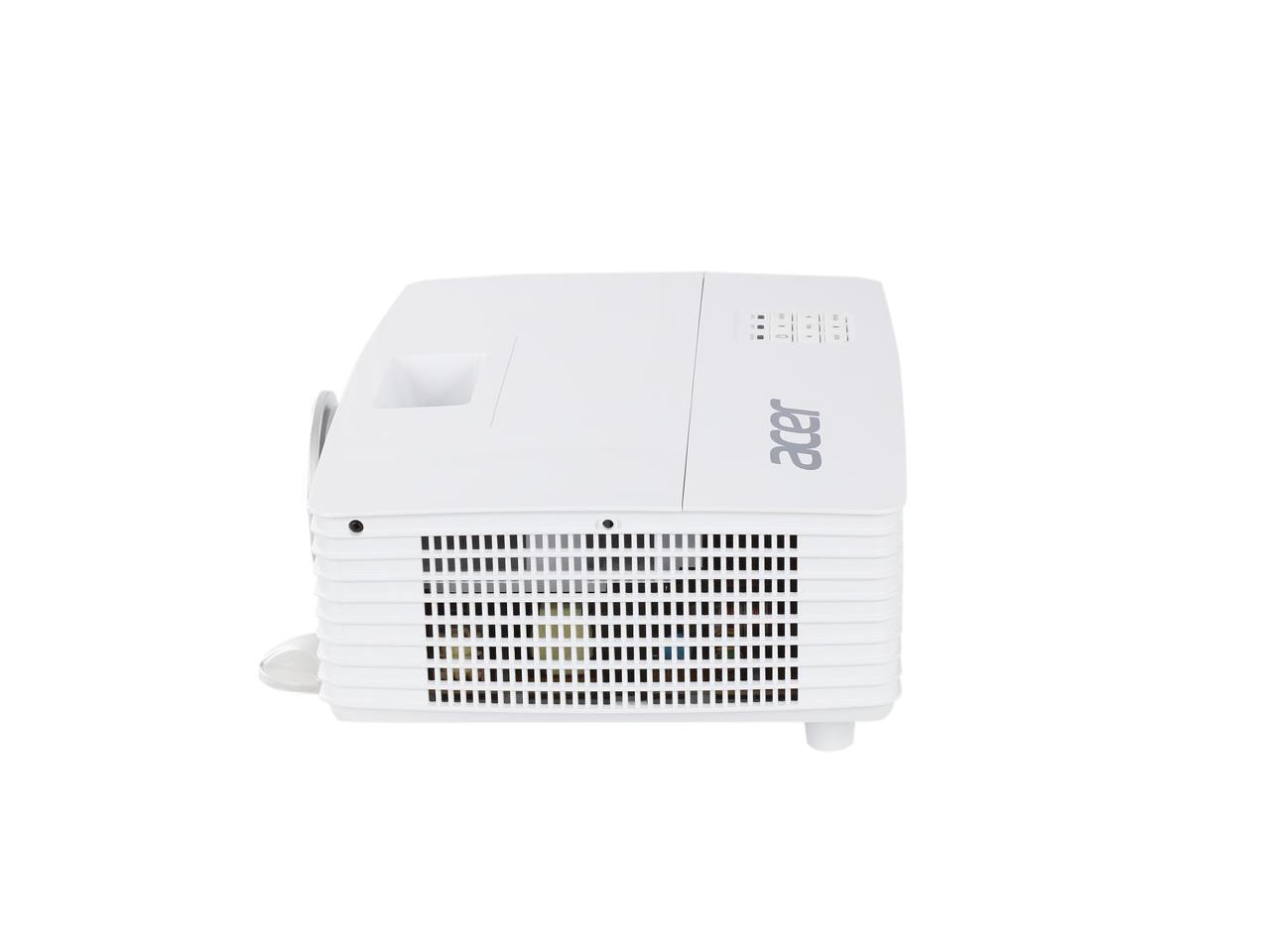

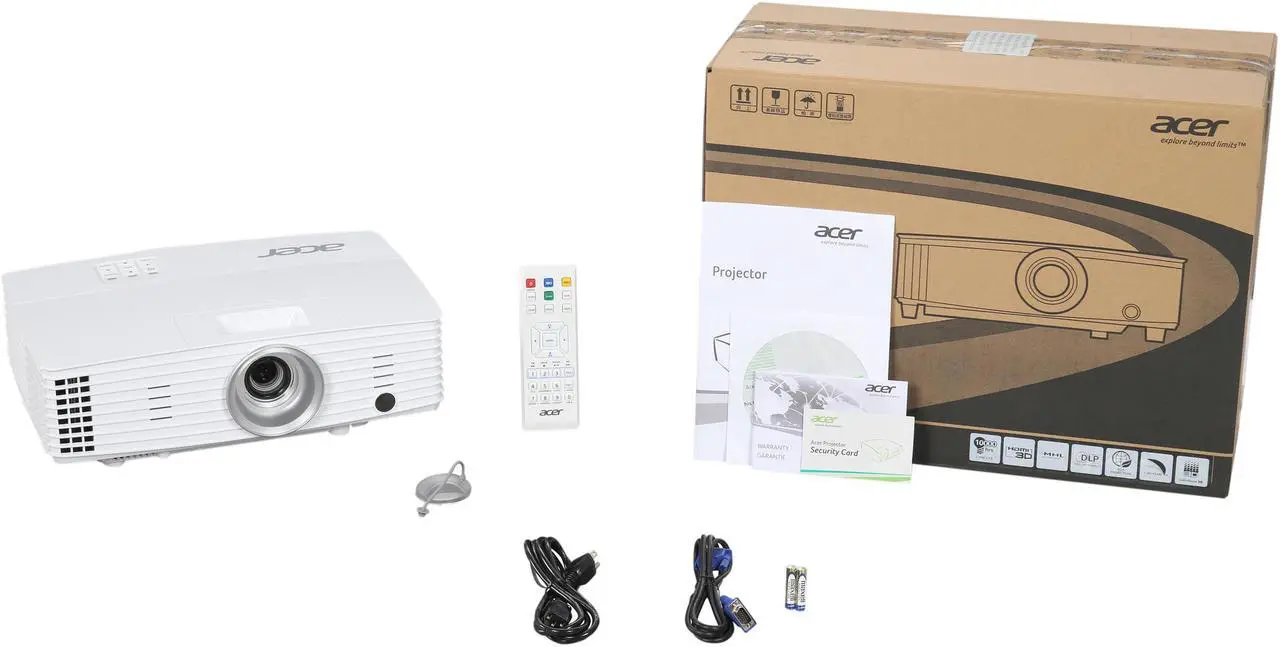

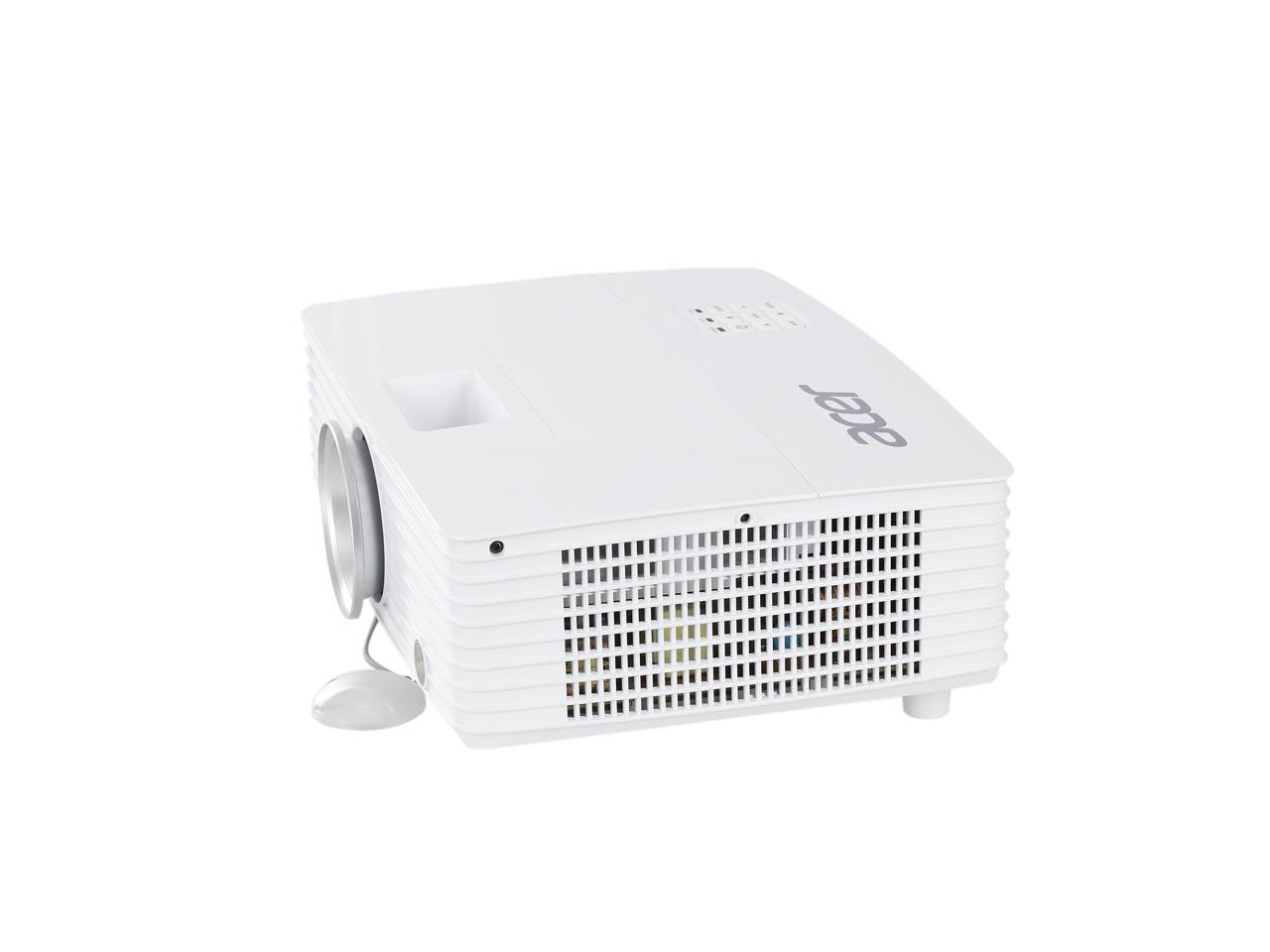

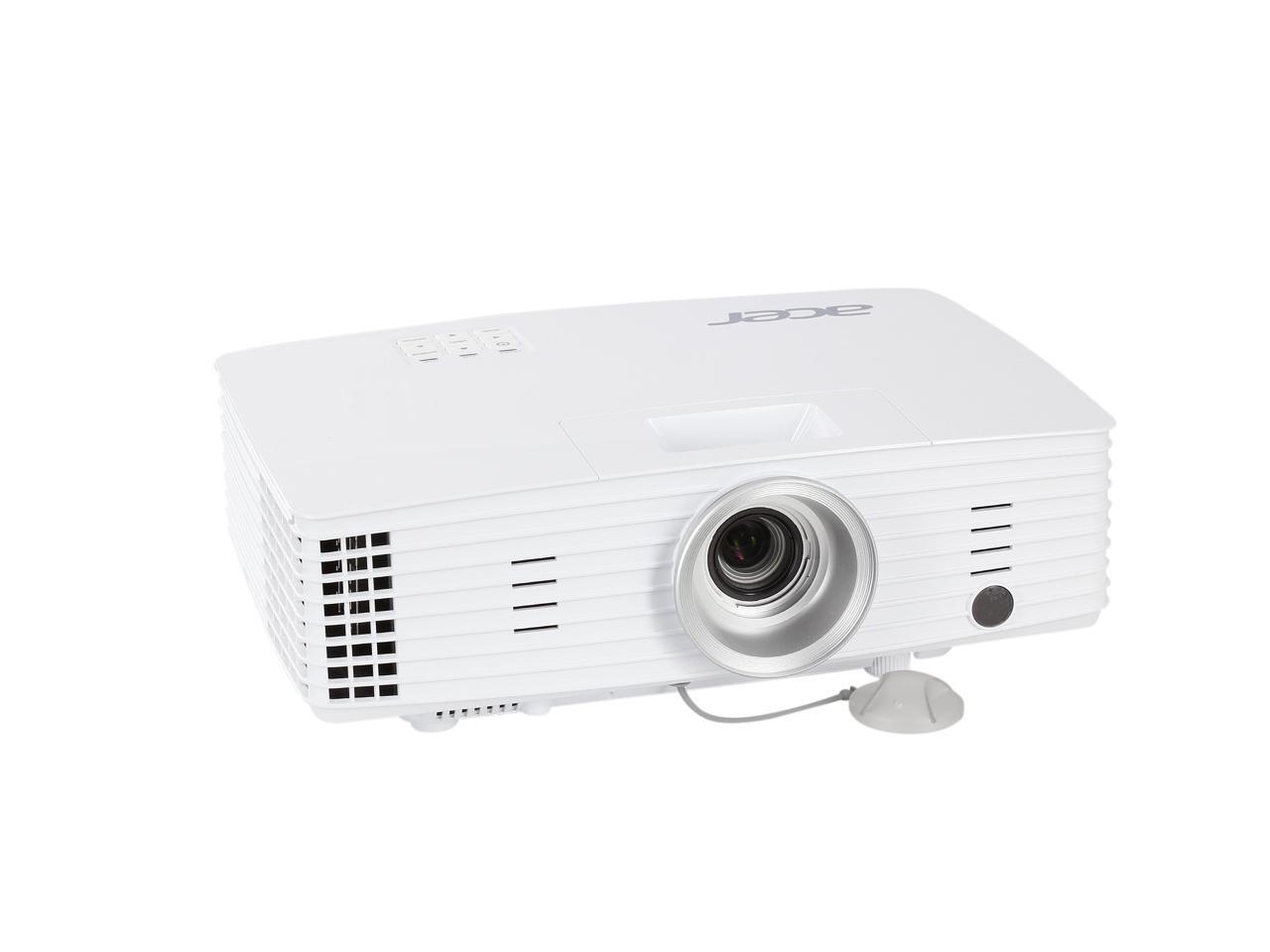

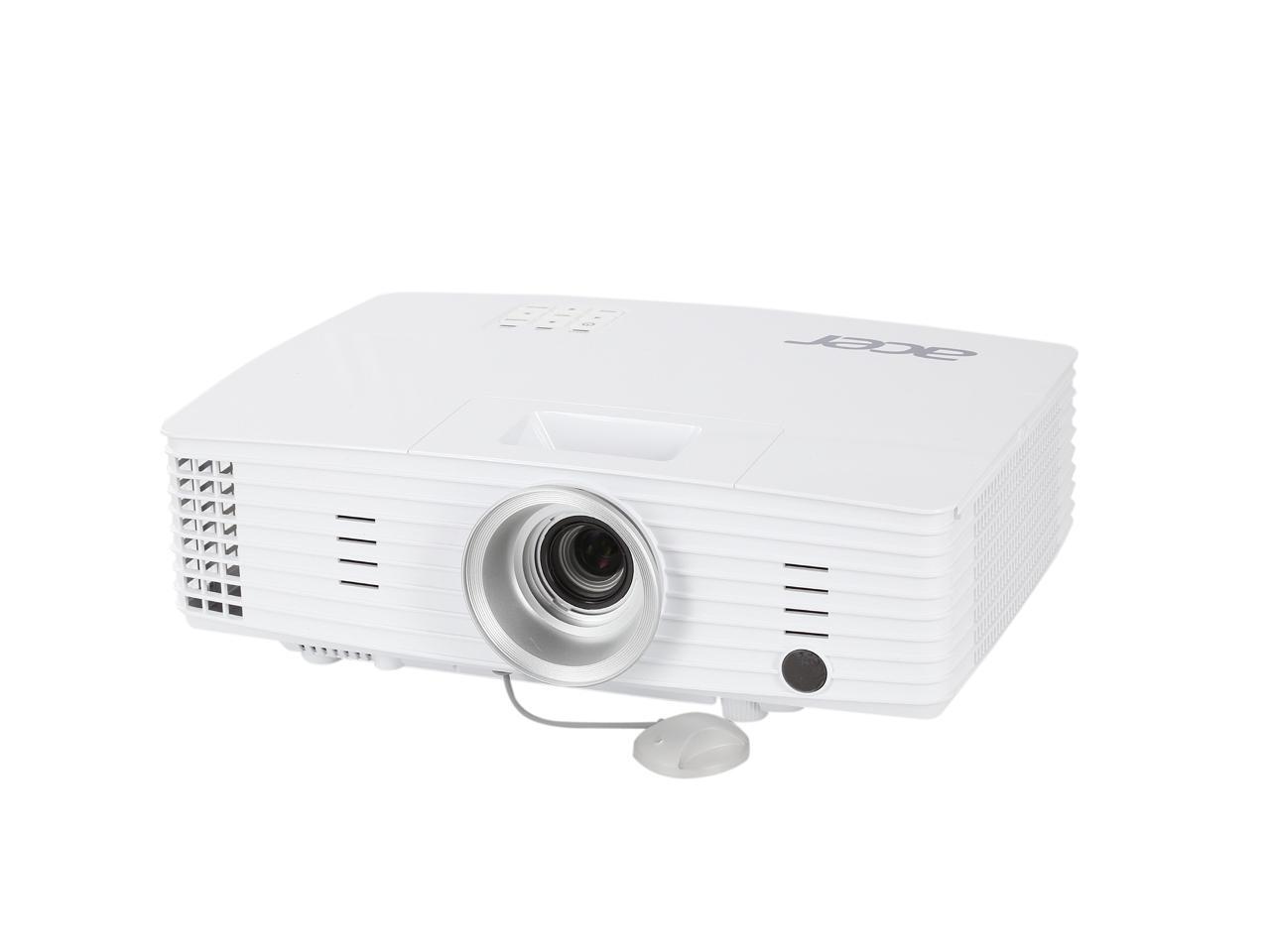

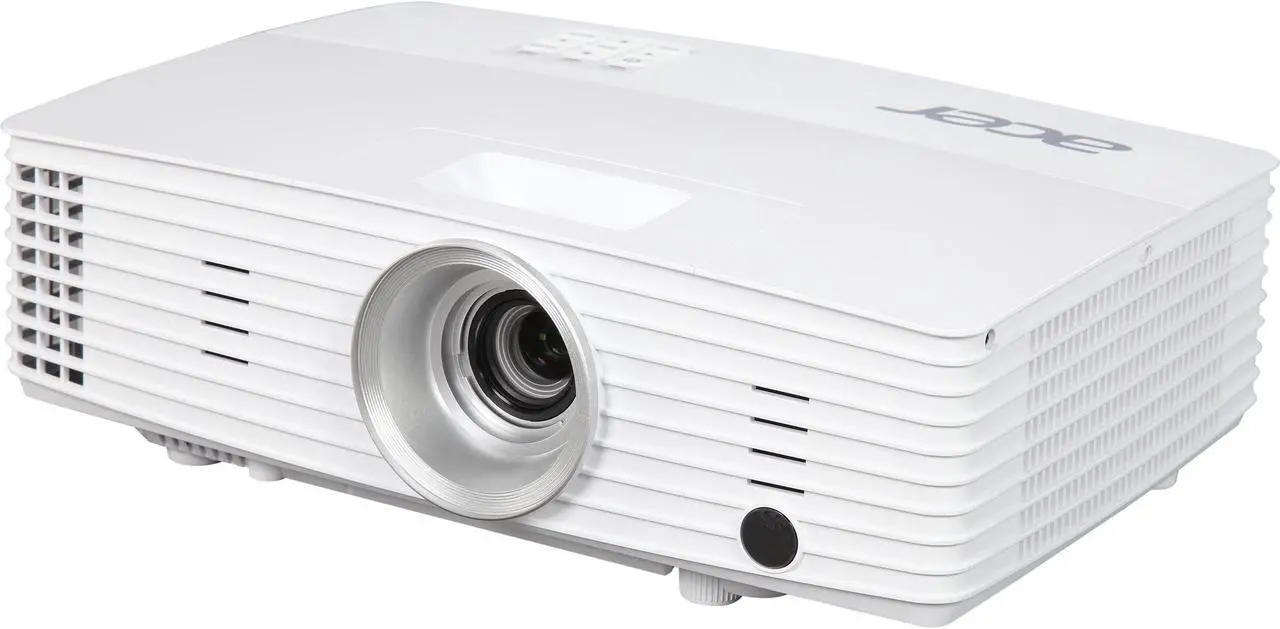

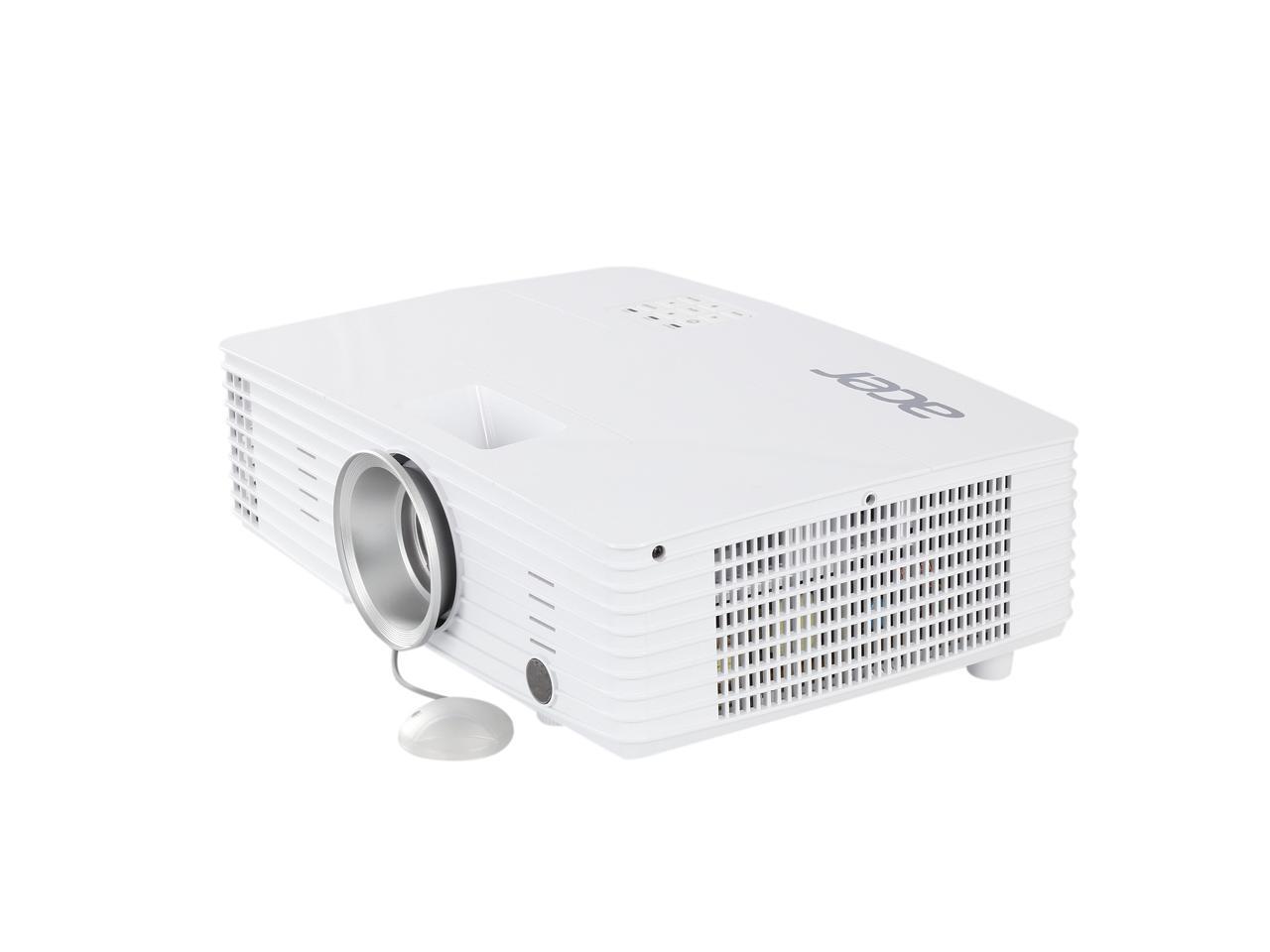

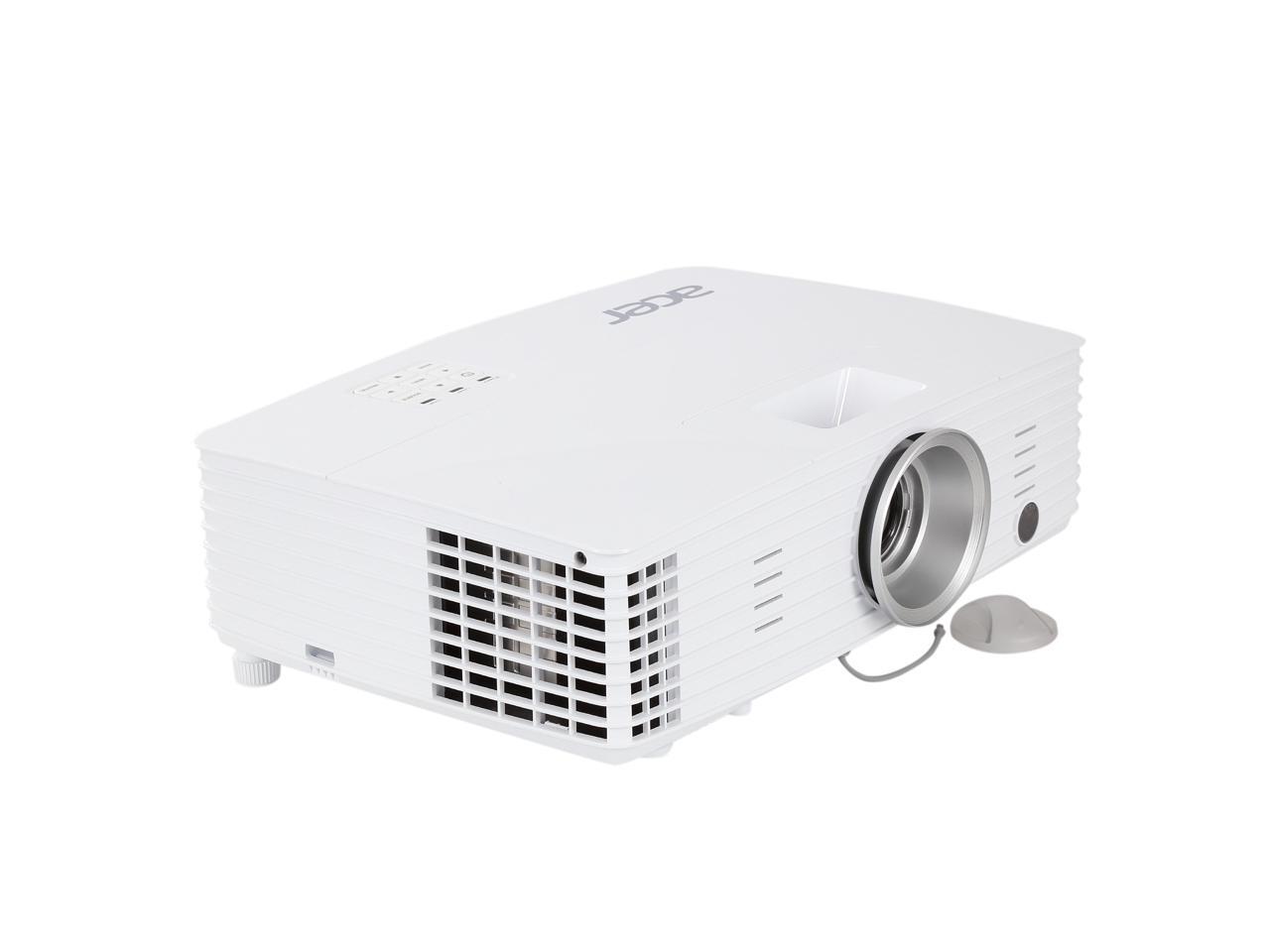

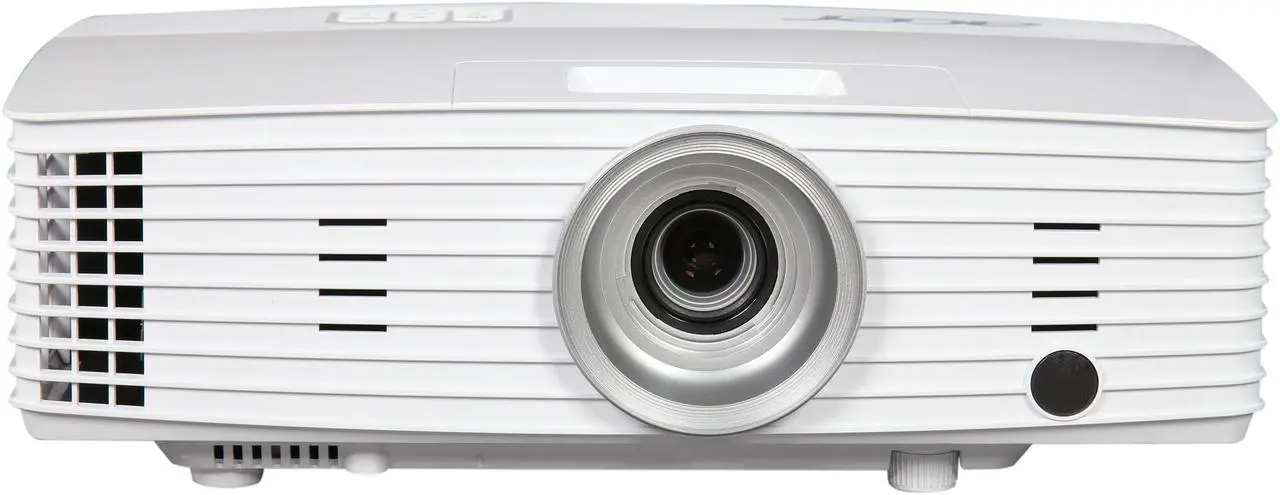

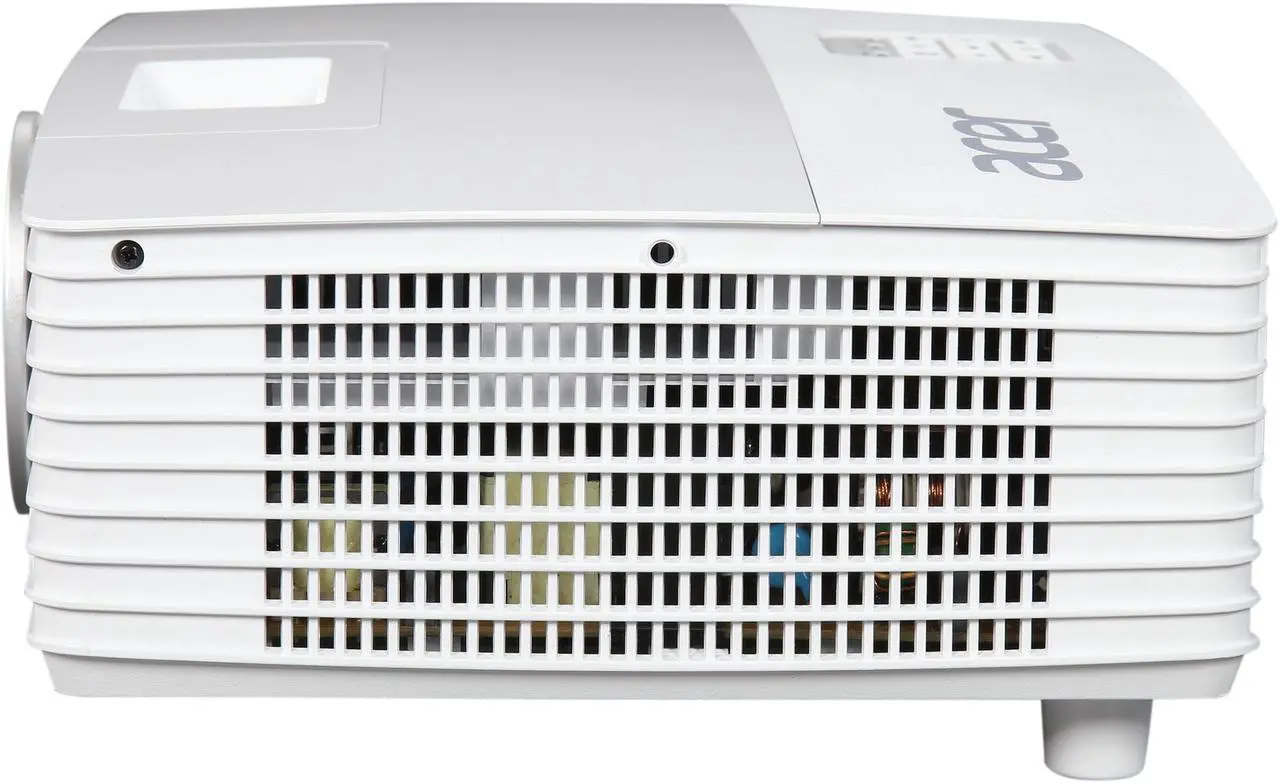

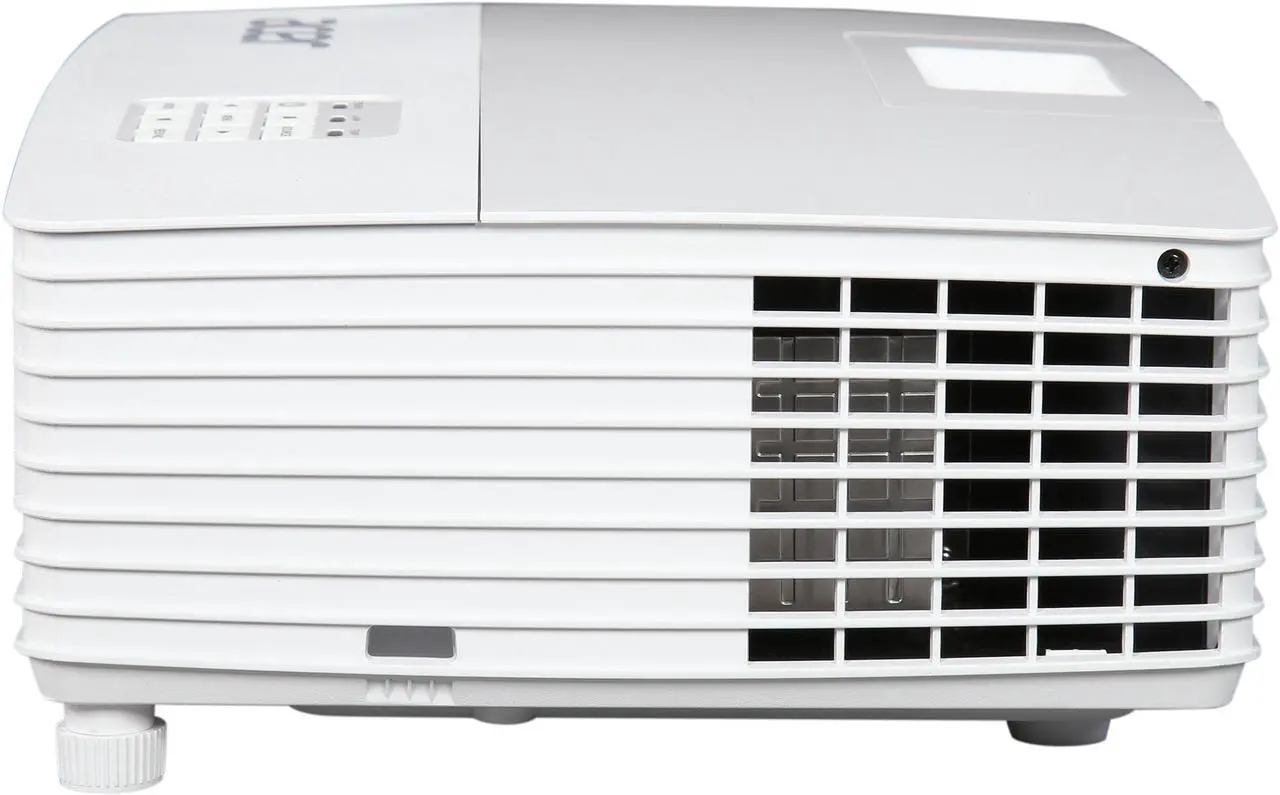

Acer X1385WH WXGA 1280,1280 x 800, 3,200 ANSI Lumens 20,000:1 Contrast Ratio, 3W Speaker DLP Projector, Ceiling Mountable, Wireless Compatible, D-Sub x 2/Mini DIN/HDMI
- 1280 x 800
- 3,200 ANSI Lumens
- D-Sub x 2/Mini DIN/HDMI
- Contrast Ratio 20,000:1
- Ceiling Mountable
Specs
Reviews
Learn more about the Acer America X1385WH
| Brand | Acer |
|---|---|
| Model | X1385WH |
| Cabinet Color | White |
|---|---|
| Type | DLP |
| Brightness | 3,200 ANSI Lumens (Standard), 2,560 ANSI Lumens (ECO) |
|---|---|
| Native Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 (Native), 4:3, 16:9 |
| Contrast Ratio | 17,000:1 |
| Display Size | 28" (71cm) ~ 300" (762cm) |
| Horizontal Refresh Rate | 15k ~ 100 Hz |
| Vertical Refresh Rate | 24 ~ 120 Hz |
| Lens | 1:1.1 Manual Zoom and Manual Focus |
|---|---|
| f Number | 2.56 ~ 2.80 |
| Focal Length | 21.00mm ~ 23.10mm |
| Throw Ratio | 62"@2m (1.50 ~ 1.65:1) |
| Display Colors | 1.07 Billion |
| Throw Distance | 3.3' (1.0m) ~ 31.8' (9.7m) |
| Projection Methods | Front, Rear, Front-Ceiling, Rear-Ceiling |
| Keystone Correction | +/-40 Degrees (Vertical ), Manual & Auto |
| Lamp | Osram 190 W user replaceable P-VIP lamp |
|---|---|
| Lamp Life | 4,000 Hours (Standard), 6,000 Hours (ECO), 10,000 Hours (ExtremeEco)* * ) Lamp Life of ExtremeEco mode is based on an industrial standard of educational usage cycle, which consists of 45 minutes of Full, ECO and/or Dynamic modes, 75 minutes of ExtremeEco (lowest lamp power) mode and 15 minutes of Power Off mode |

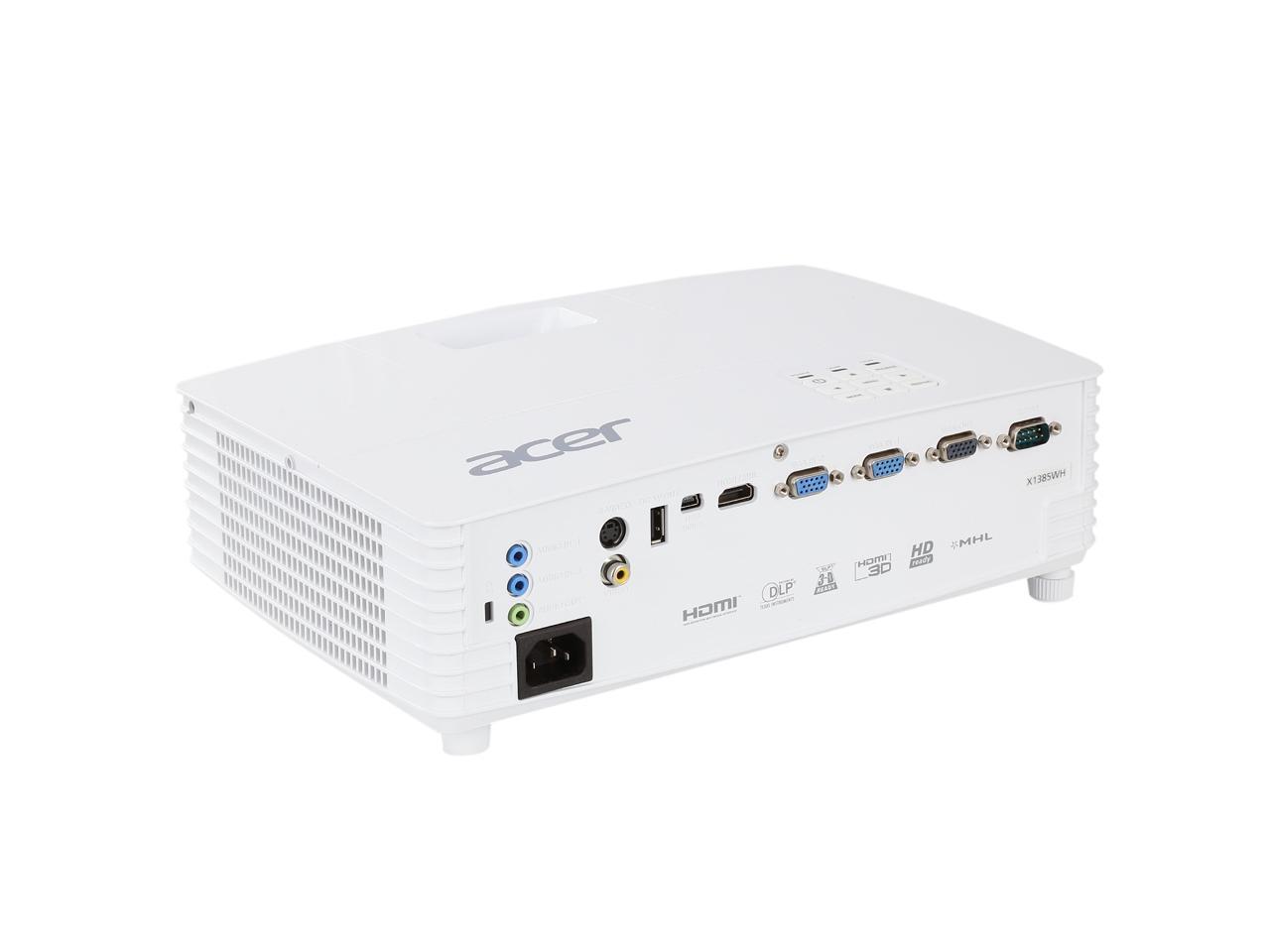

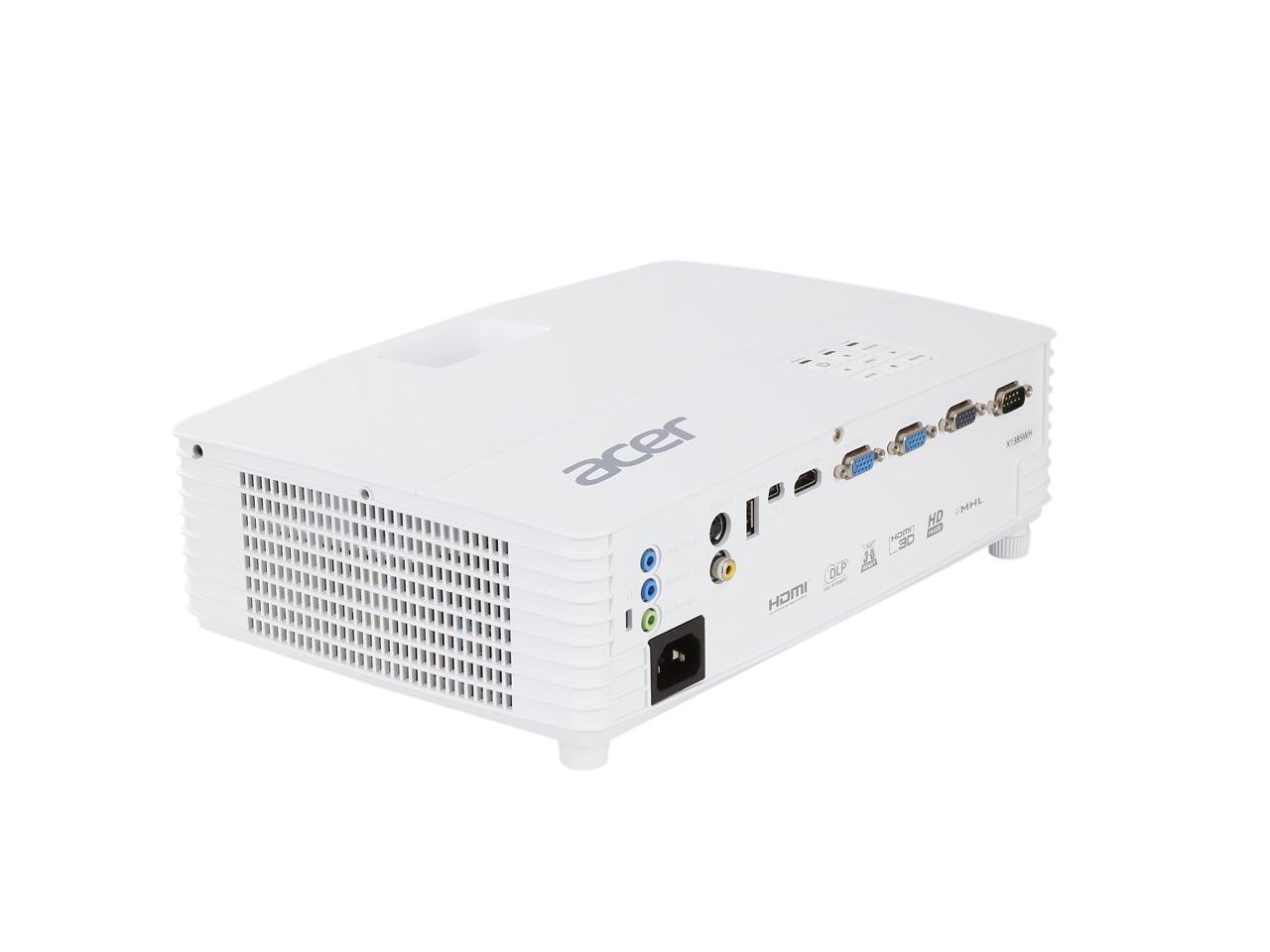

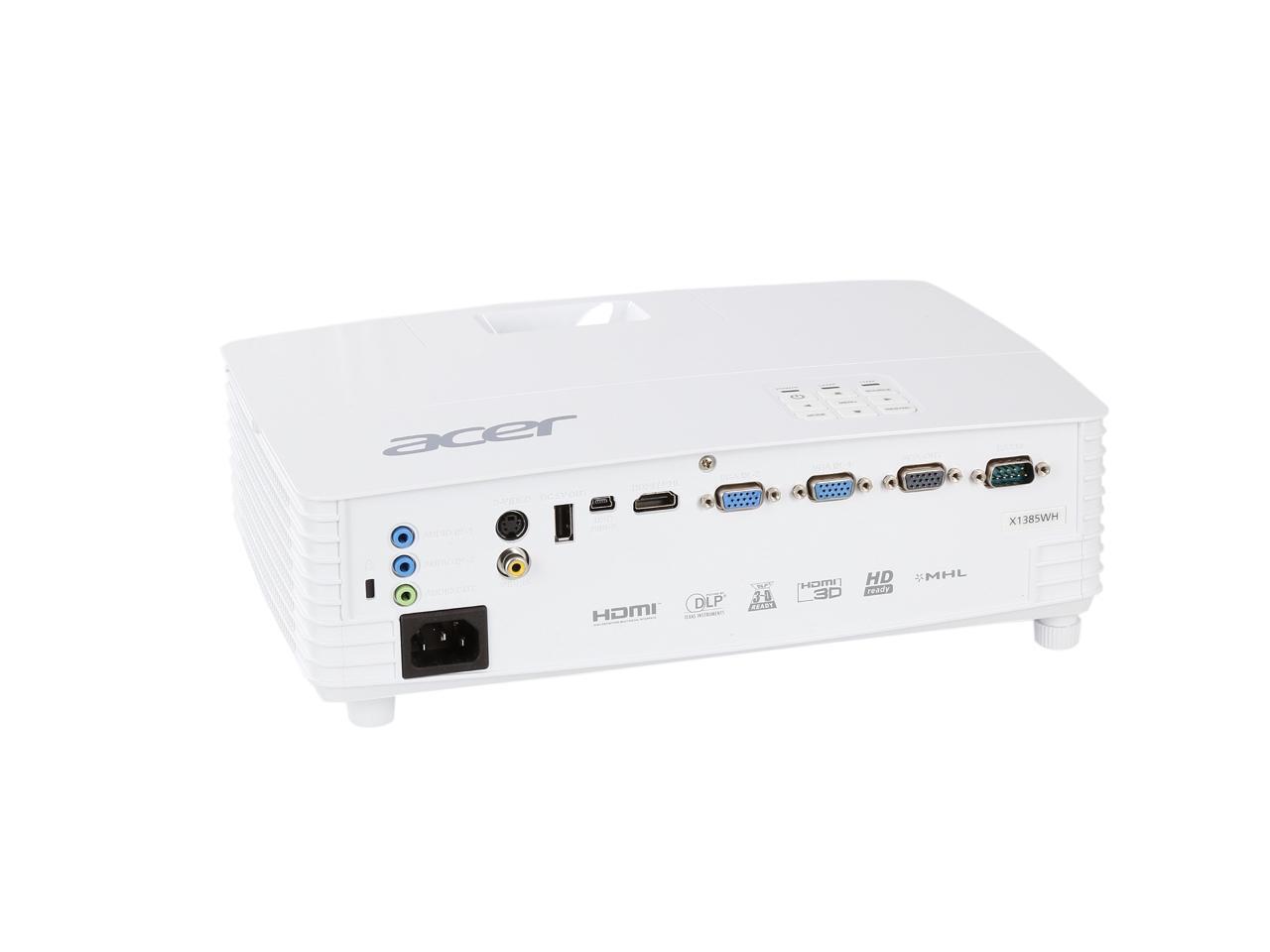

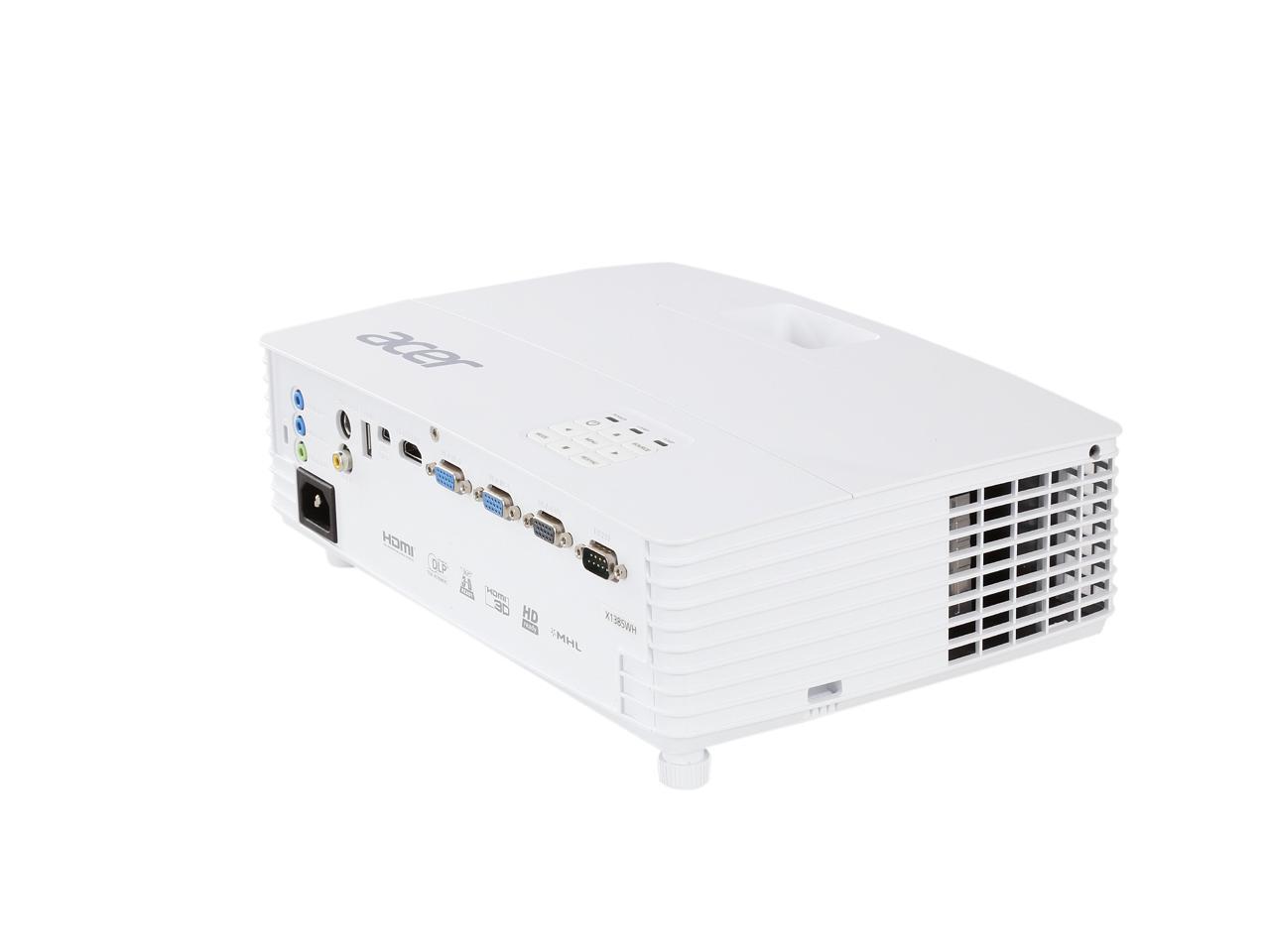

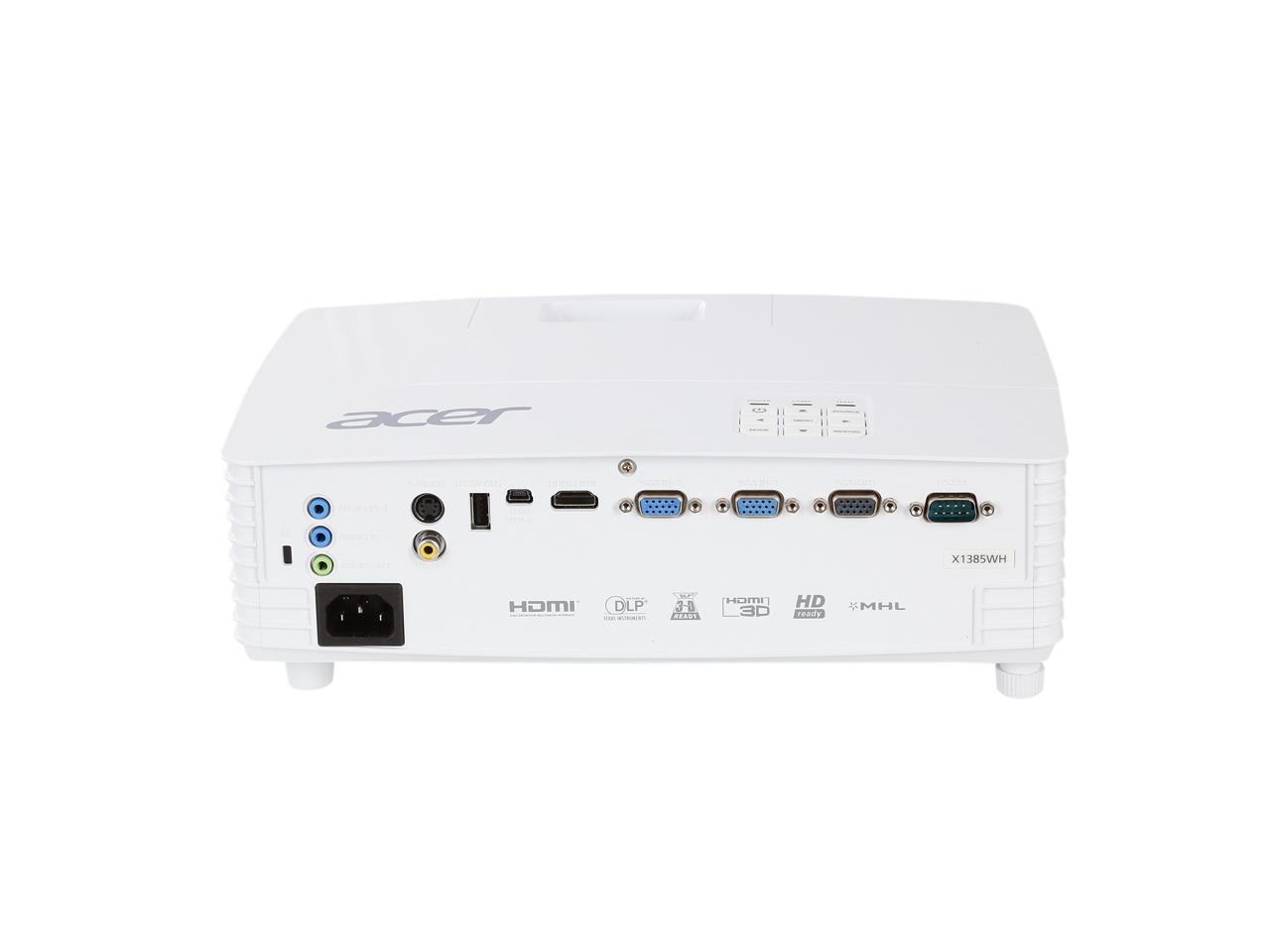

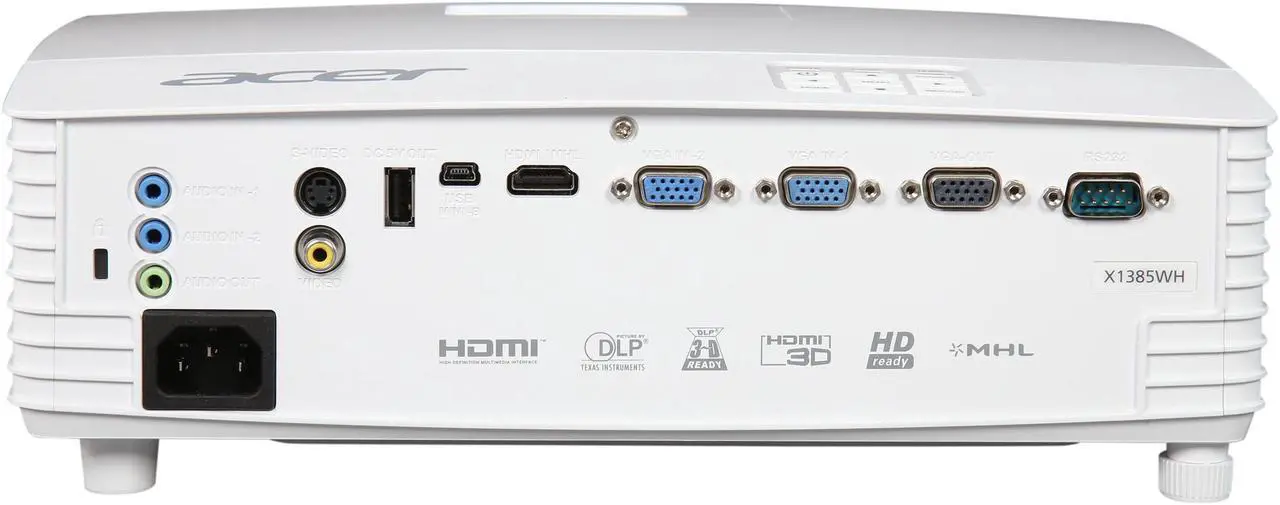

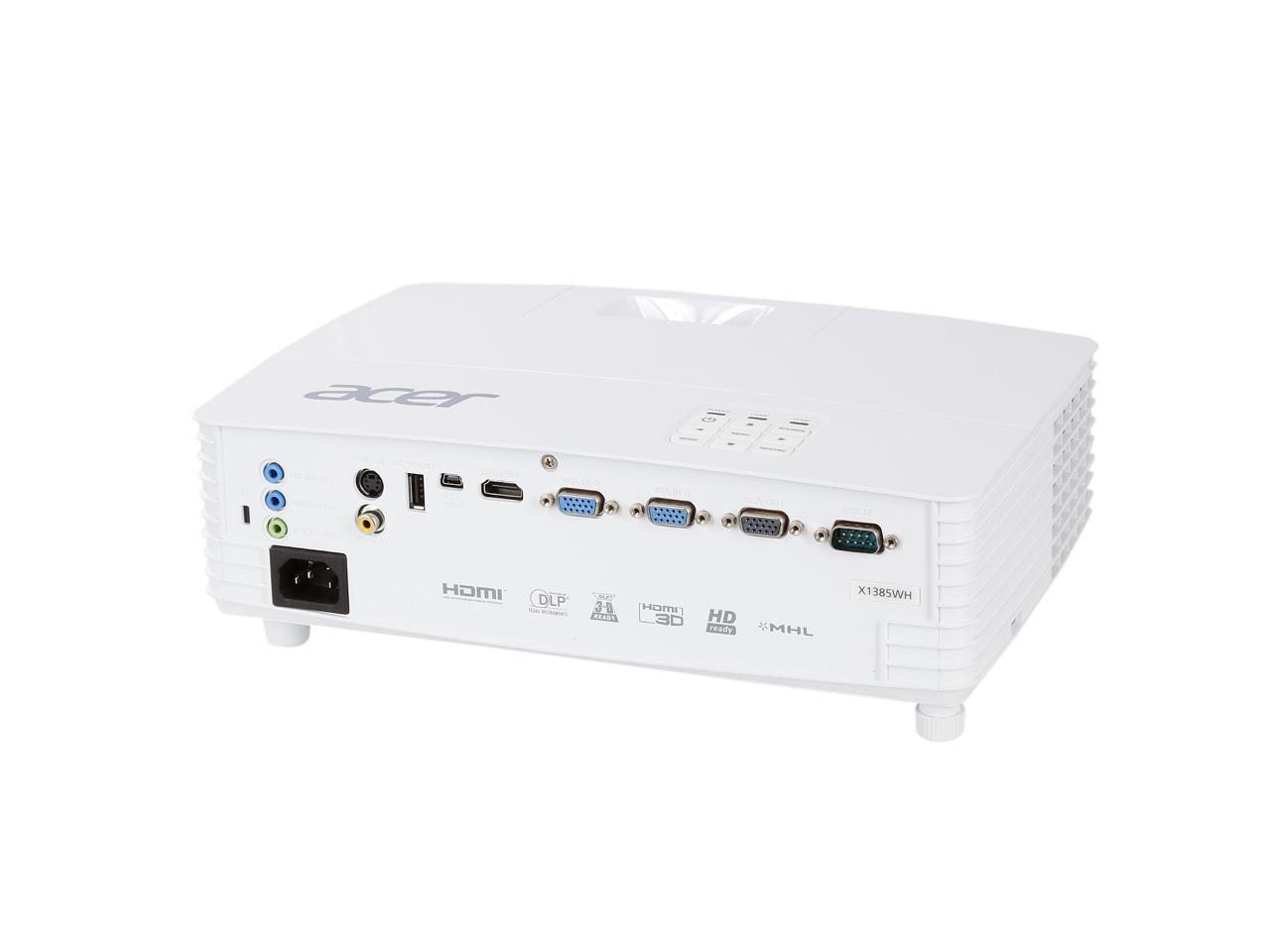

| Input Video Connectors | Analog RGB/Component Video (D-sub) x 2 Composite Video (RCA) x 1 S-Video (Mini DIN) x 1 HDMI/MHL (Video, Audio, HDCP) x 1 |
|---|---|
| Input Audio Connectors | PC Audio (Stereo mini jack) x 2 |
| Output Video Connectors | Analog RGB (D-sub) x 1 |
| Output Audio Connectors | PC Audio (Stereo mini jack) x 1 |
| USB | USB (Mini-B) x 1 |

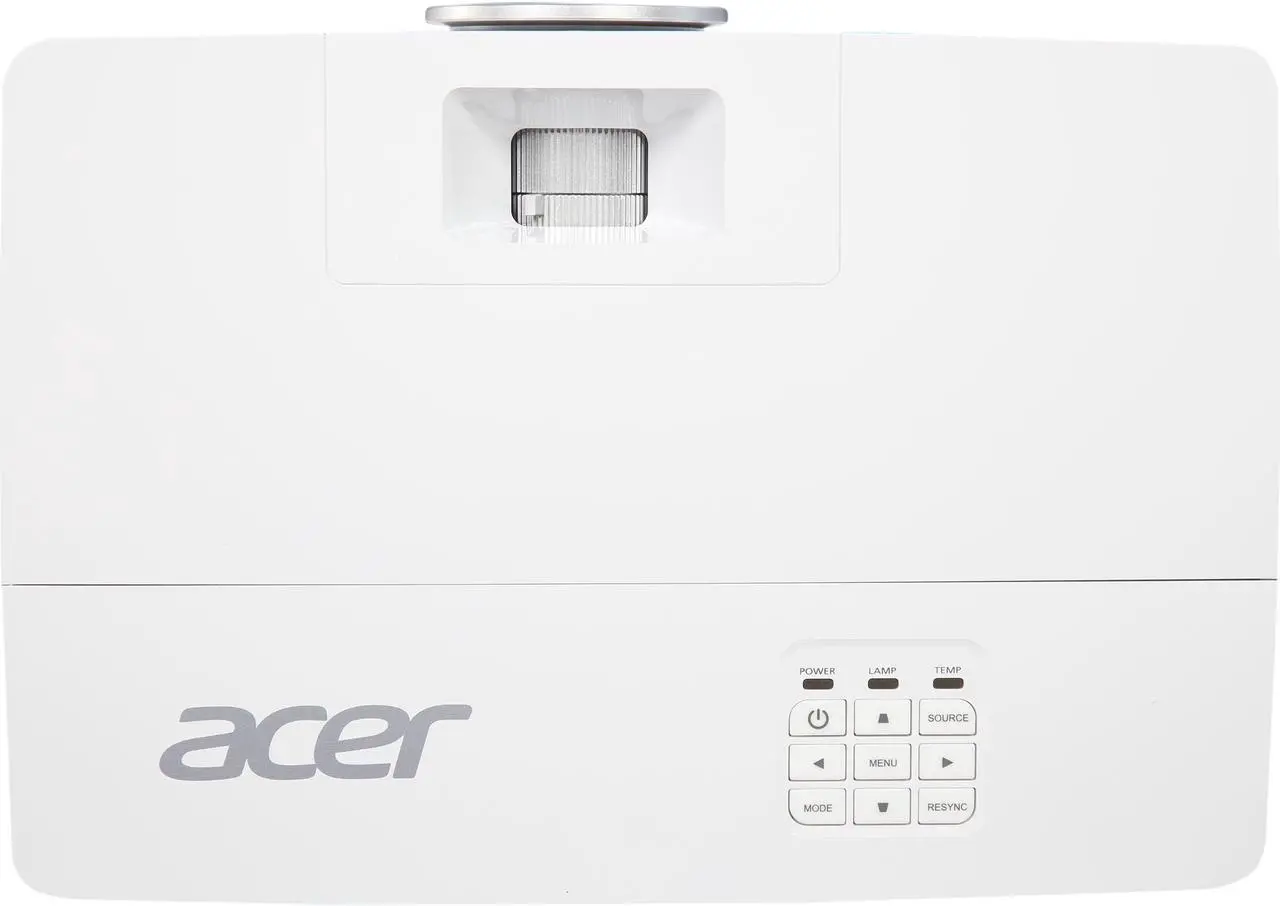

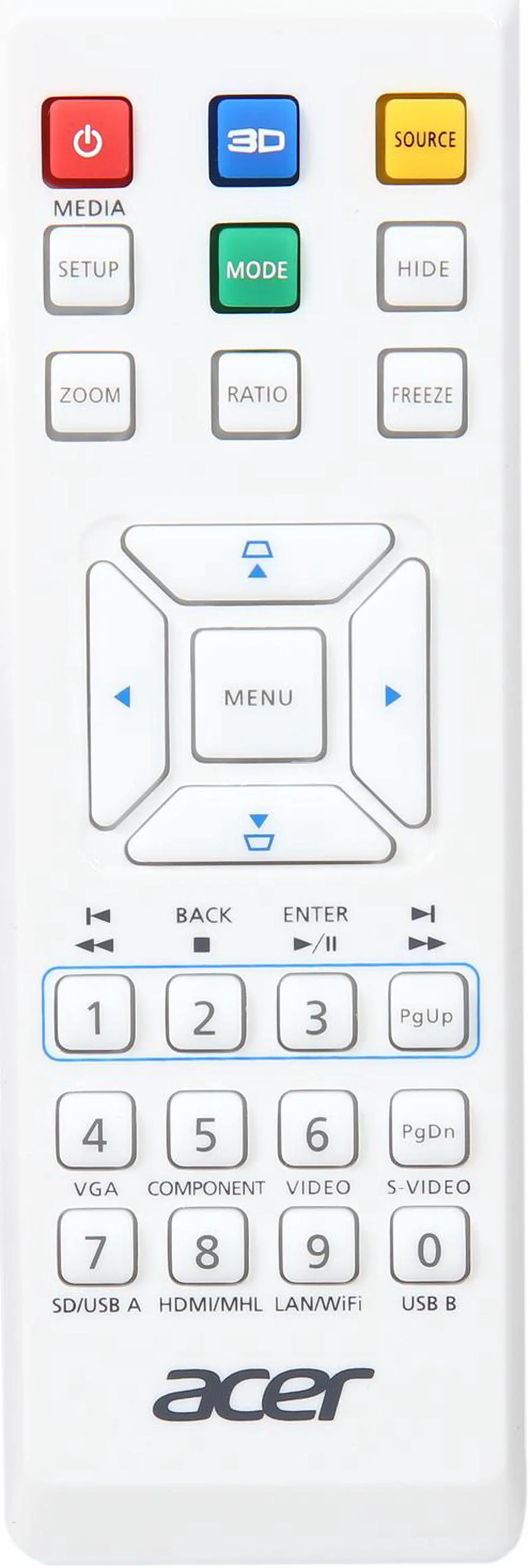

| Users Controls | IR remote control with PgUp/PgDn functions |
|---|---|
| Built-in Speakers | 3 Watts Internal Speaker x 1 |
| Compatibility | Computer Compatibility IBM PC and Compatibles, Apple iMac/MacBook, and VESA Standards WUXGA (1,920 x 1,200), 1080p (1,920x1,080), WSXGA+ (1,680 x 1,050), WXGA+ (1,440 x 900), WXGA (1,280 x 800, 1,280 x 768), UXGA (1,600 x 1,200), SXGA+ (1,400 x 1,050), SXGA (1,280 x 1,024), XGA (1,024 x 768), SVGA (800 x 600), VGA (640 x 480) Video Compatibility NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p, 576p), SDTV (480i, 576i) Wireless Capability Yes (By optional WirelessHD transmission kit, Miracast/eDisplay MHL wireless adapter and Android MHL wireless adapter) |
| Power Supply | 100 - 240 VAC, 50/60Hz |
|---|---|
| Power Consumption | 285 Watts (Operation), <0.5 Watts (Standby) |
| Temperature Range | 0°C ~ 40°C / 32°F ~ 104°F |
|---|---|
| Humidity Range | 80%RH (Max.) |
| Noise Level | 30 dBA (Standard mode), 26 dBA (ECO mode) |
| Dimensions (H x W x D) | 3.40" x 12.10" x 8.30" |
|---|---|
| Weight | 4.40 lbs. |
| Date First Available | July 18, 2016 |
|---|
