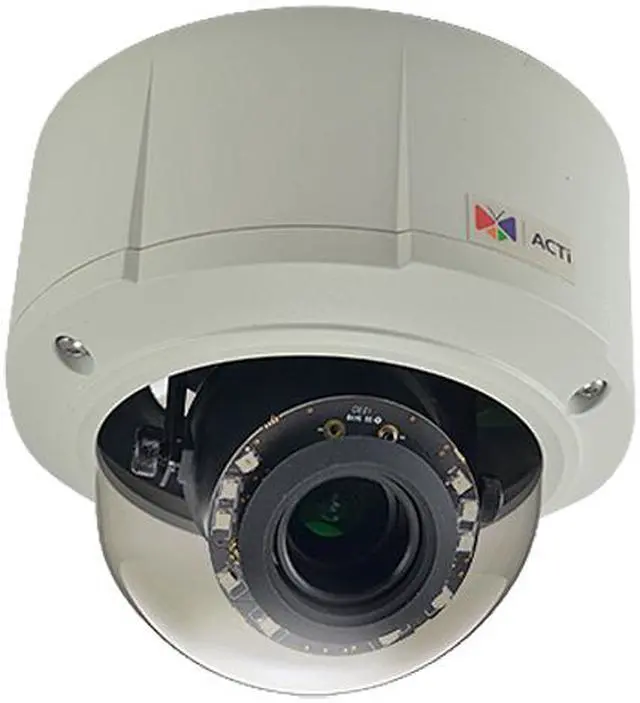

ACTi E89 RJ45 10MP, Outdoor Dome Camera with D/N,Adaptive IR, Basic WDR, Vari-focal Lens

Be the first to review this product...

Dome Camera
RJ45

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

10MP Outdoor Dome with D/N, Adaptive IR, Basic WDR, Vari-focal lens, f3.1-13.3mm/F1.4-4.0 (HOV:100.5°-25.8°), H.264, 1080p/30fps, DNR, Audio, MicroSDHC/MicroSDXC, PoE, IP67, IK10, DI/DO

Model
Brand	ACTi
Model	E89

Details
Type	Dome Camera
Connection Type	RJ45
Color	White/Black

Network
Networking Protocol	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
Ports	1, Ethernet (10/100 Base-T), RJ-45 connector Digital Input 2, Terminal block Digital Output 2, Terminal block

Camera
Sensor & Detector	1/2.3" Progressive Scan CMOS
Frame Rate	6 fps at 3648 x 2736; 6 fps at 3648 x 2160; 6 fps at 2592 x 1944; 6 fps at 2048 x 1536; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 640 x 480; 15 fps at 320 x 240
Lens Type	Focal Length / Aperture Vari-focal, f3.1 -13 mm / F1.4 Iris: Fixed iris Focus: Manual focus Mount Type: Board mount Horizontal Viewing Angle: 25.8°~100.5° Viewing Angle Adjustment Pan: 0°~350°; Tilt: 5°~170°; Rotate: 0°~350°
Shutter Control	Electronic Shutter 1/5 ~ 1/2,000 sec (manual mode); 1/5 ~ 1/10,000 sec (auto mode)
Security	IP address filtering; HTTPS encryption; Password protected user levels; Anonymous login; IEEE 802.1X network access control
Night Vision	Yes
Audio	Compression 8kHz, Mono, PCM, 16 bit encoding, G.711 Audio-In Terminal block Audio-Out Terminal block

Power
Power over Ethernet	Yes
Power	PoE Class 2 (IEEE802.3af) / 5.28W (IR on)

Features
Features	10 Megapixel with 4K/1080p Day & Night with Adaptive IR LED Vari-focal Lens with f3.1-13mm / F1.4 Basic WDR (65.2 dB) 30 fps at 1920 x 1080 Weatherproof (IP66) and Vandal Proof (IK10) Minimum Illumination: Color: 0.1 lux at F1.4 (30 IRE, 2400°K); B/W: 0 lux (IR LED on) Color to B/W switch: ISP based switch, configurable Mechanical IR Cut Filter IR Sensitivity Range: 700~1100nm IR LED: IR LED x 15 (850nm) IR Working Distance: 15 m (0 lux, 30 IRE,Gain 255, Auto shutter mode) H.264 HP, MJPEG Compression Multi-Streaming Simultaneous dual streams based on two configurations Bit Rate 28 Kbps - 6 Mbps (per stream) MicroSDHC/MicroSDXC memory card slot (card not included) Dimension: 6" x 5.1" (Diameter x H) Weight: 3.935lbs

Additional Information
First Listed on Newegg	October 07, 2014

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.

Manufacturer Contact Info

Manufacturer Product Page
Manufacturer Website
Support Phone: 1-866-410-ACTI
Support Website
