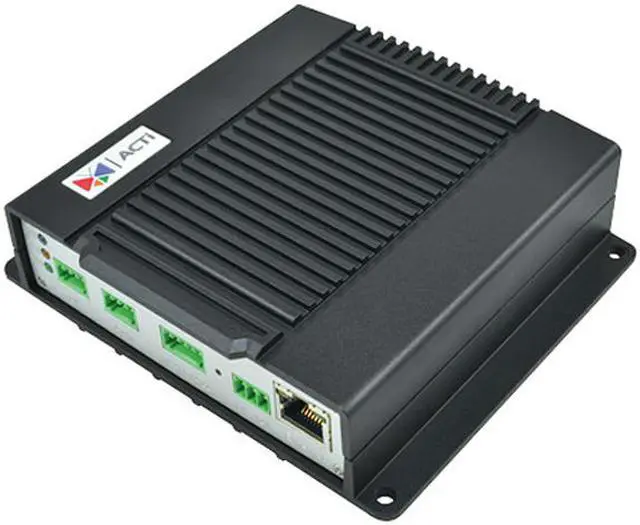

1-Channel 960H/D1 H.264 Video Encoder with, BNC Video Input, RJ-45 Video Output, Audio, MicroSDHC/MicroSDXC, RS-485, RS-422, DI/DO, PoE/DC12V

Model
Brand	ACTi
Model	V21

Details
Supported Protocols	TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour,Sony VISCA, Pelco D, Pelco P
Ports	1, Ethernet (10/100 Base-T), RJ-45 connector
Video Input	1, CVBS, 1.0Vp-p with 75O BNC connector
Video Output	1, CVBS, 1.0Vp-p with 75O BNC connector
Frame Rate	30 fps at 960 x 480 (NTSC); 25 fps at 960 x 576 (PAL) 30 fps at 720 x 480 (Full D1, NTSC); 25 fps at 720 x 576 (Full D1, PAL)
Compression Format	H.264 HP, MJPEG
Power Supply	PoE Class 3 (IEEE802.3af) / 3.36W DC 12V (adapter not included) / 3W

Environmental
Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Humidity	10% ~ 85% RH

Features
Features	25/30 fps at full D1 resolution Selectable H.264 HP, MJPEG compressions Two-way audio Video motion detection Digital input and digital output Serial ports for PTZ control Analog video output

Dimensions & Weight
Dimensions	1.40" x 5.40" x 4.8" (H x W x D)
Weight	0.98 lb.

Additional Information
First Listed on Newegg	October 07, 2014
