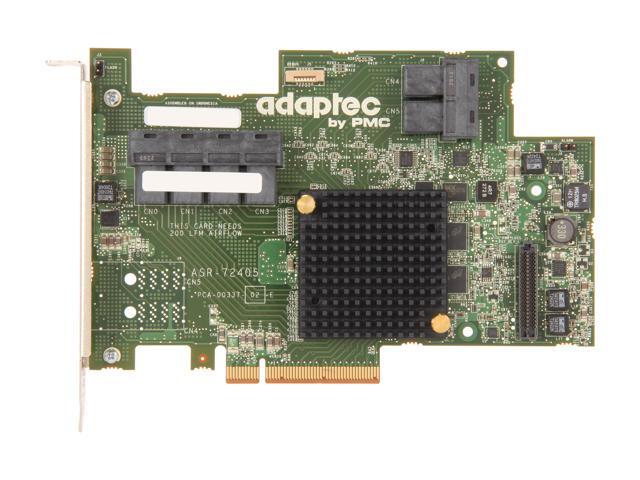

Brand | Adaptec |
---|---|
Series | RAID 72405 |
Model | 2274900-R |
Type | SATA / SAS |
---|---|
Internal Connectors | 6 x SFF-8643 mini-SAS HD |
Interface | PCI-Express 3.0 x8 |
Transfer Rate | Up to 6Gb/s |
Cache Memory | 1GB |
RAID | RAID 0/1/1E/5/6/10/50/60 |
Operating Systems Supported | Microsoft Windows Red Hat Linux SUSE Linux Fedora Debian Linux Ubuntu Linux Sun Solaris FreeBSD VMware ESX |
Dimensions | 4.198 "H x 6.6"L (107mm x 167 mm) |
Features | Connector: Six internal mini SAS HD (SFF-8643) |
---|

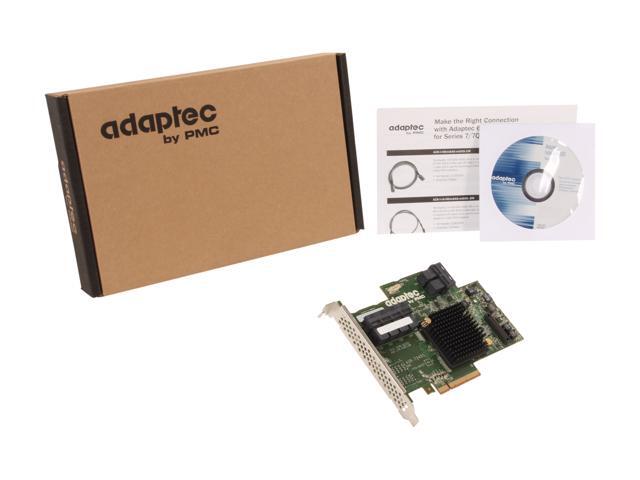

Package Contents | Adaptec RAID 72405 adapter |
---|
Date First Available | June 17, 2022 |
---|
Pros: I installed this card in to my home Ubuntu file server to run its 22 hard drives. So far this card has worked like a champ. The install looks a lot cleaner going from 22 SATA cables to just six SAS cables. It's probably overkill for a home server, but I got tired of dealing with drives falling out of arrays when under high IO load.
Cons: Monitoring software for Ubuntu seems to be lacking. I had to flash my motherboard's BIOS to get the system to POST after the card was installed. Afterwards I got a lot of kernel warnings until I also flashed the card's firmware. It's running solid now though. The card ran at 150F until I installed a fan next to it. Now it's down to 105.
Overall Review: Very pricey, but probably worth it. I debated dropping an egg due to the monitoring software for Ubuntu, but it's such a good card I hate to drop it to a four. It's probably a 4.5.
