Is this compatible with HP ML350 Gen9 server / Windows Server 2012 R2 ?

When you say "compatible" do you mean in the sense of HP and/or Adaptec providing official support for the configuration combining this card with that server and OS? If so you should check with the vendor (probably HP) to see. If you just want to know if the card will work, then yes, it will work, of course, because that's a very recent server and Windows Server 2012 R2 supports this card out of the box (though you should still install the latest drivers from the Adptec website).

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

More Resources

a;2281600-R;Adaptec 81605ZQ (2281600-R) - Newegg.com

a;81605ZQ (2281600-R);Adaptec 81605ZQ (2281600-R) - LASystems

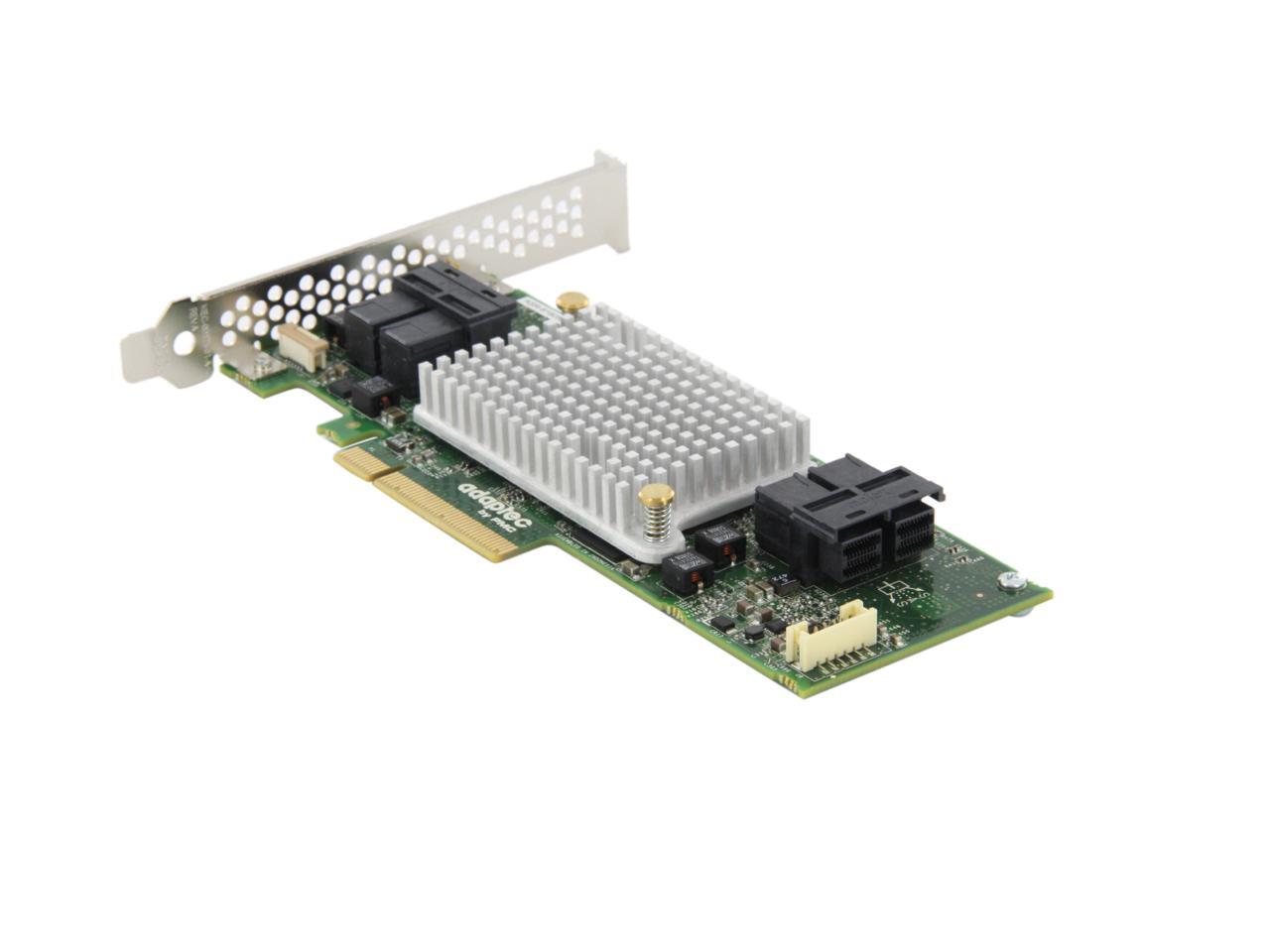

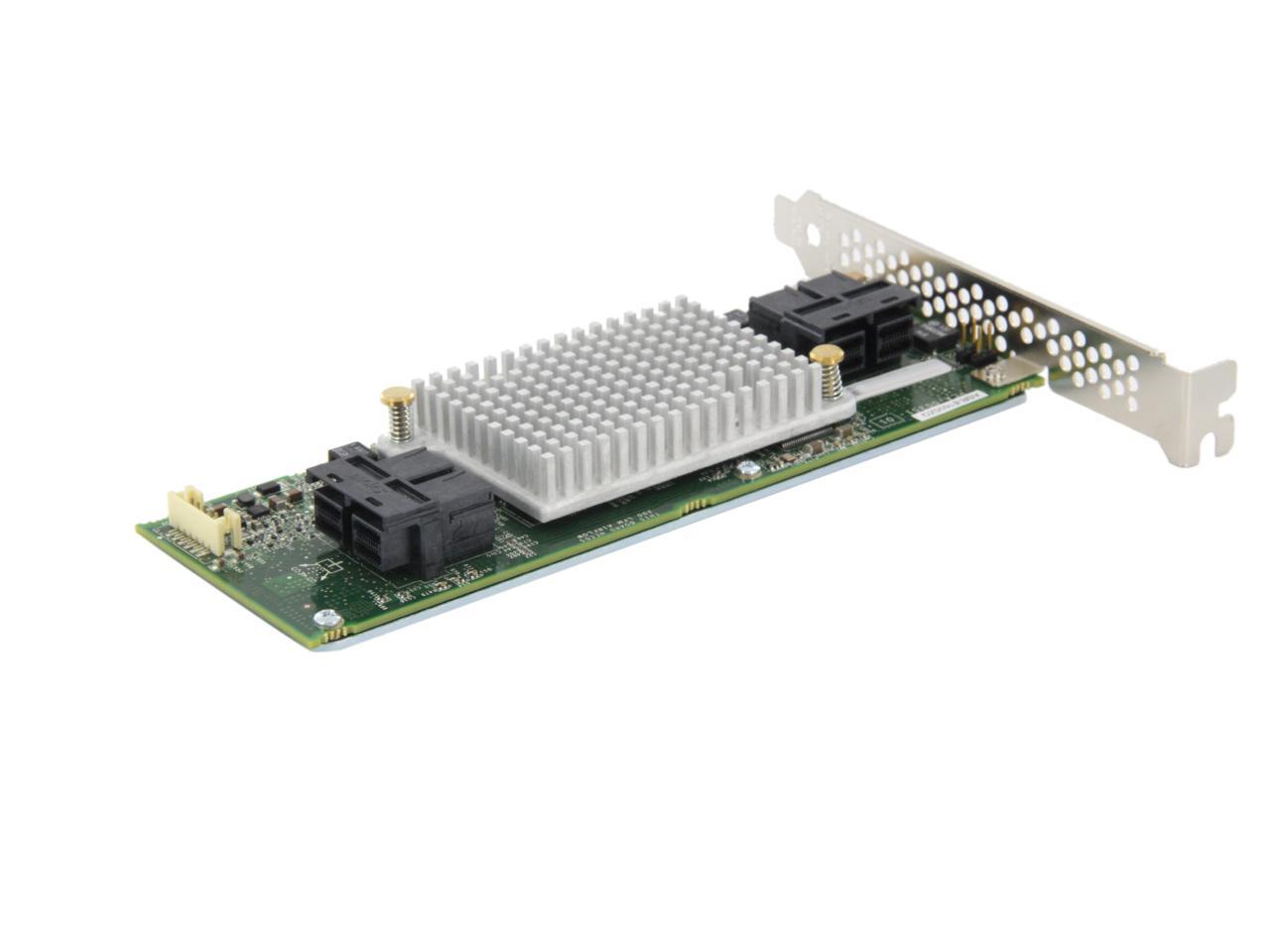

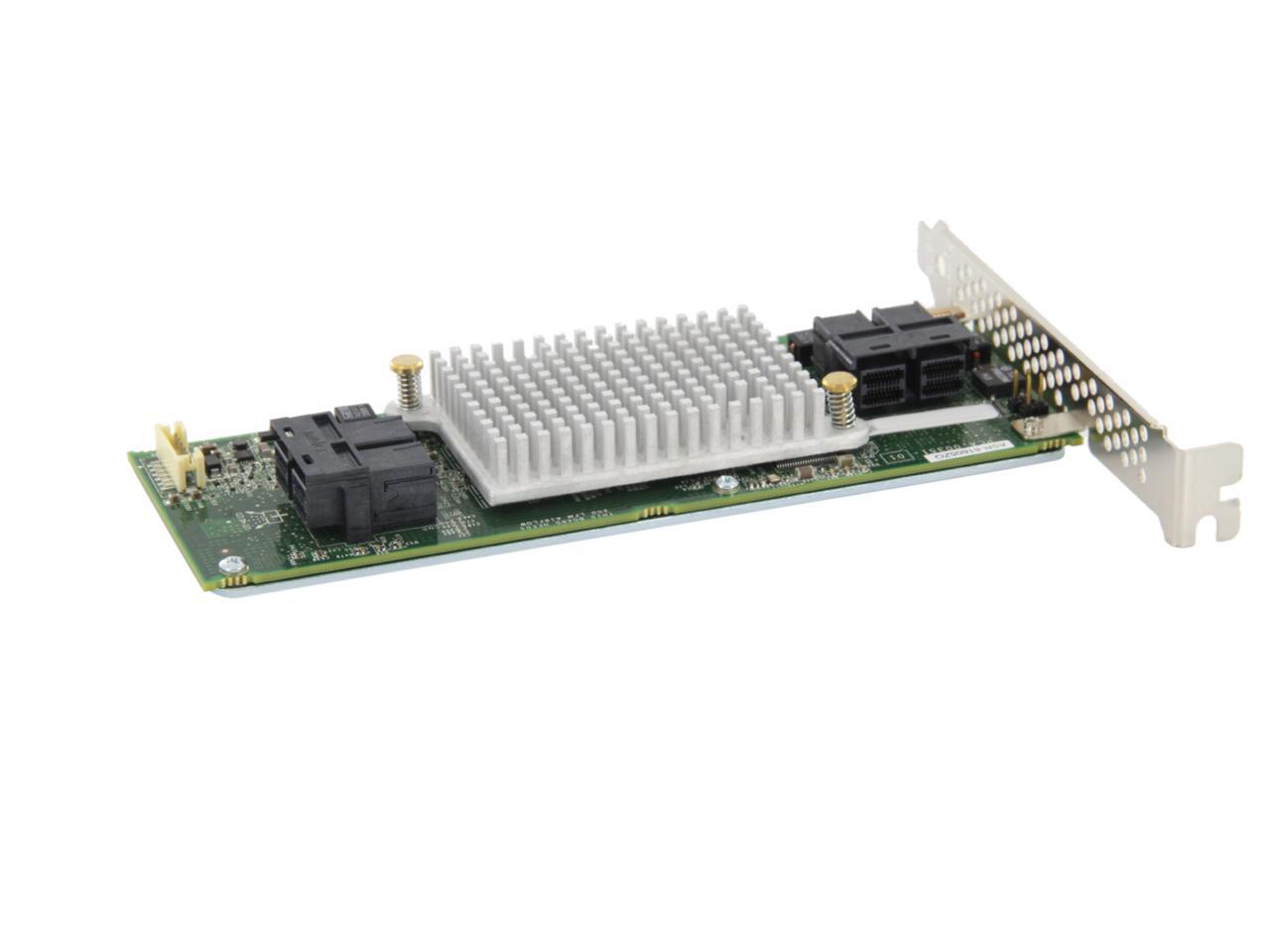

Main image of Adaptec 81605ZQ (2281600-R) PCI-Express 3.0 x8 SATA / SAS 16 Internal Ports SAS/SATA RAID

100%

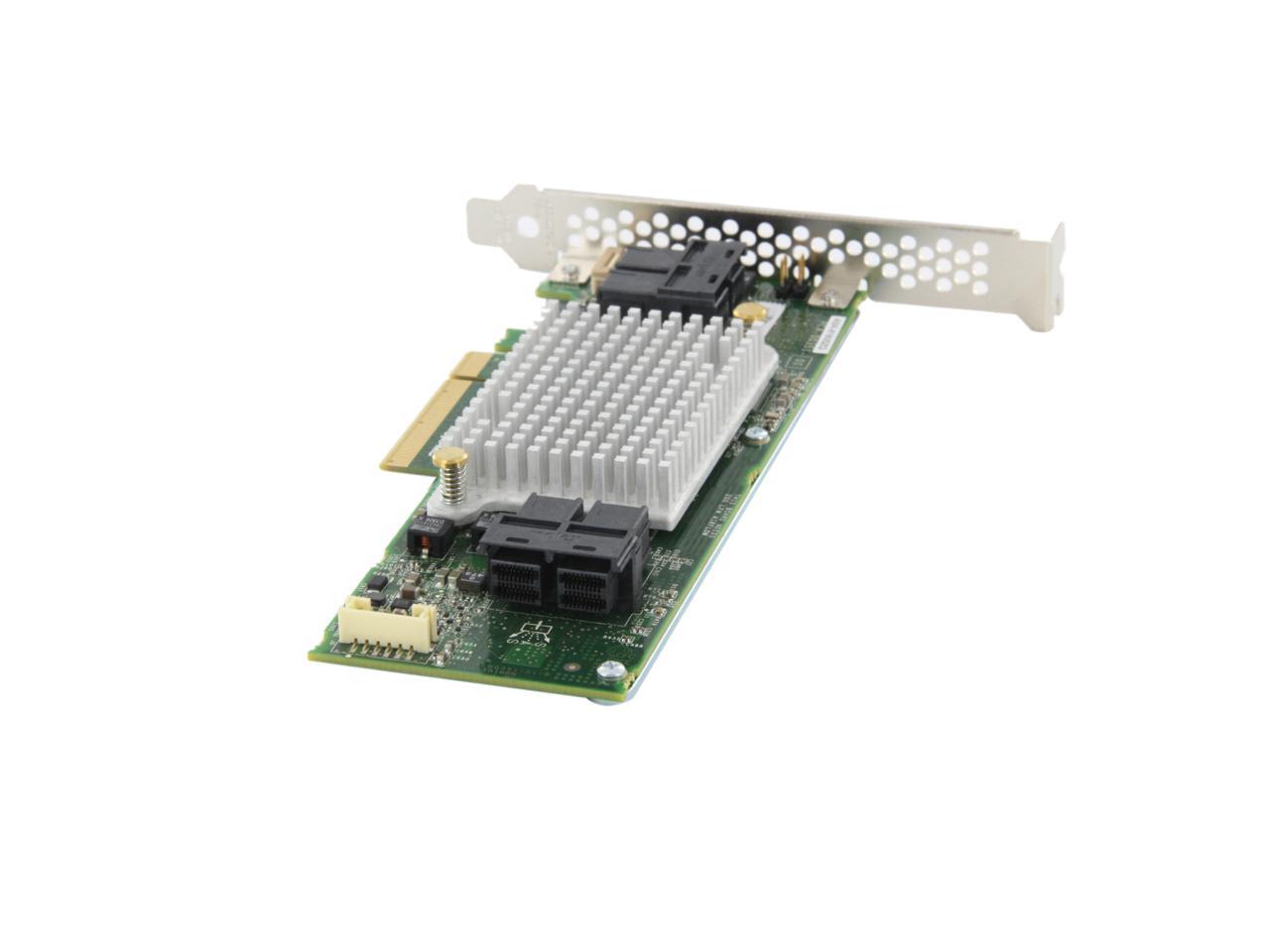

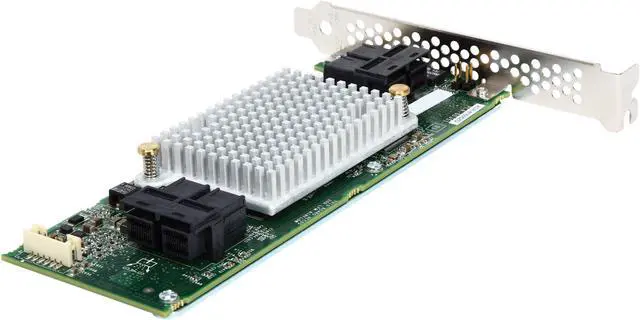

Alt view image 2 of 6 - Adaptec 81605ZQ (2281600-R) PCI-Express 3.0 x8 SATA / SAS 16 Internal Ports SAS/SATA RAID

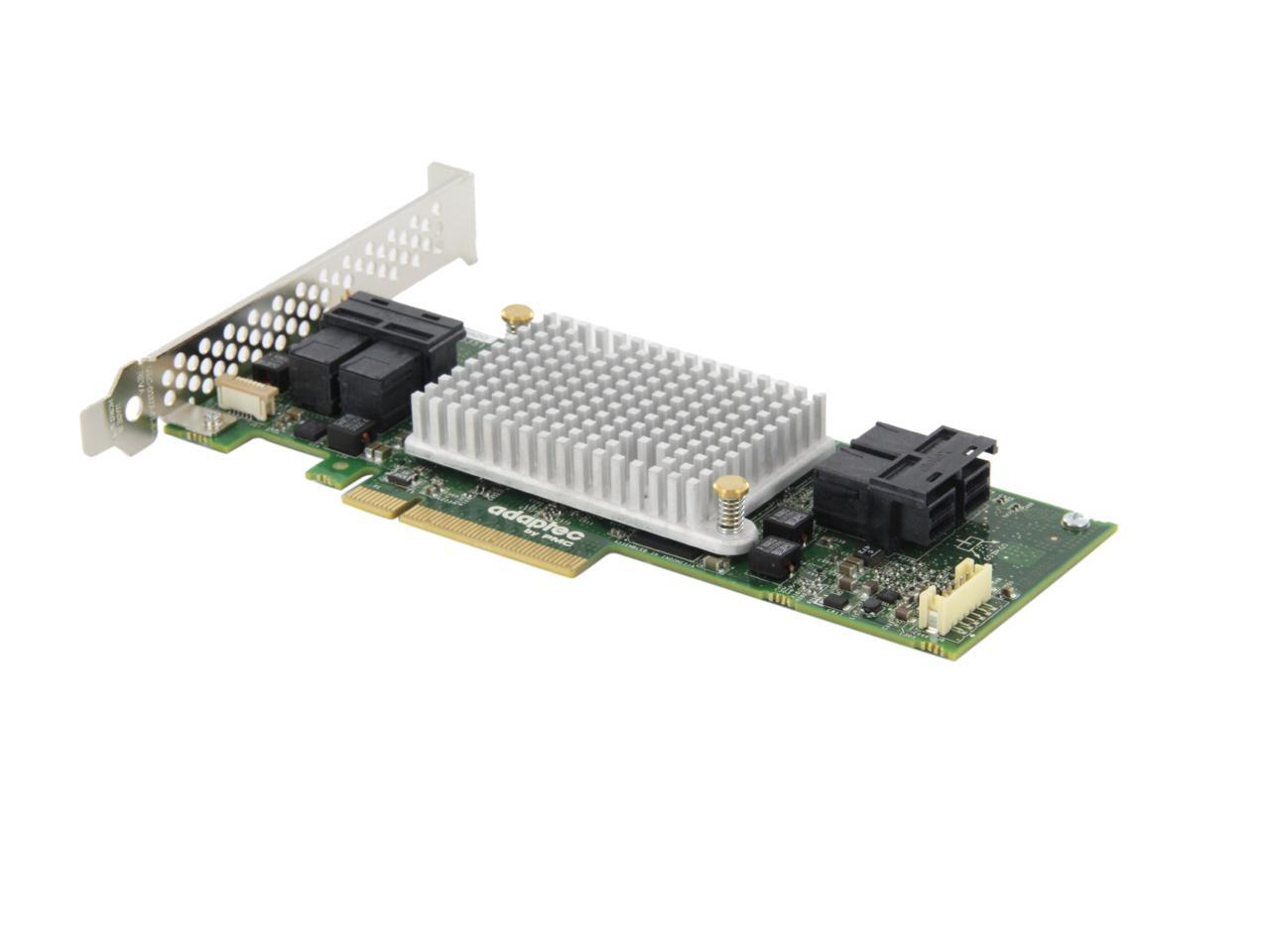

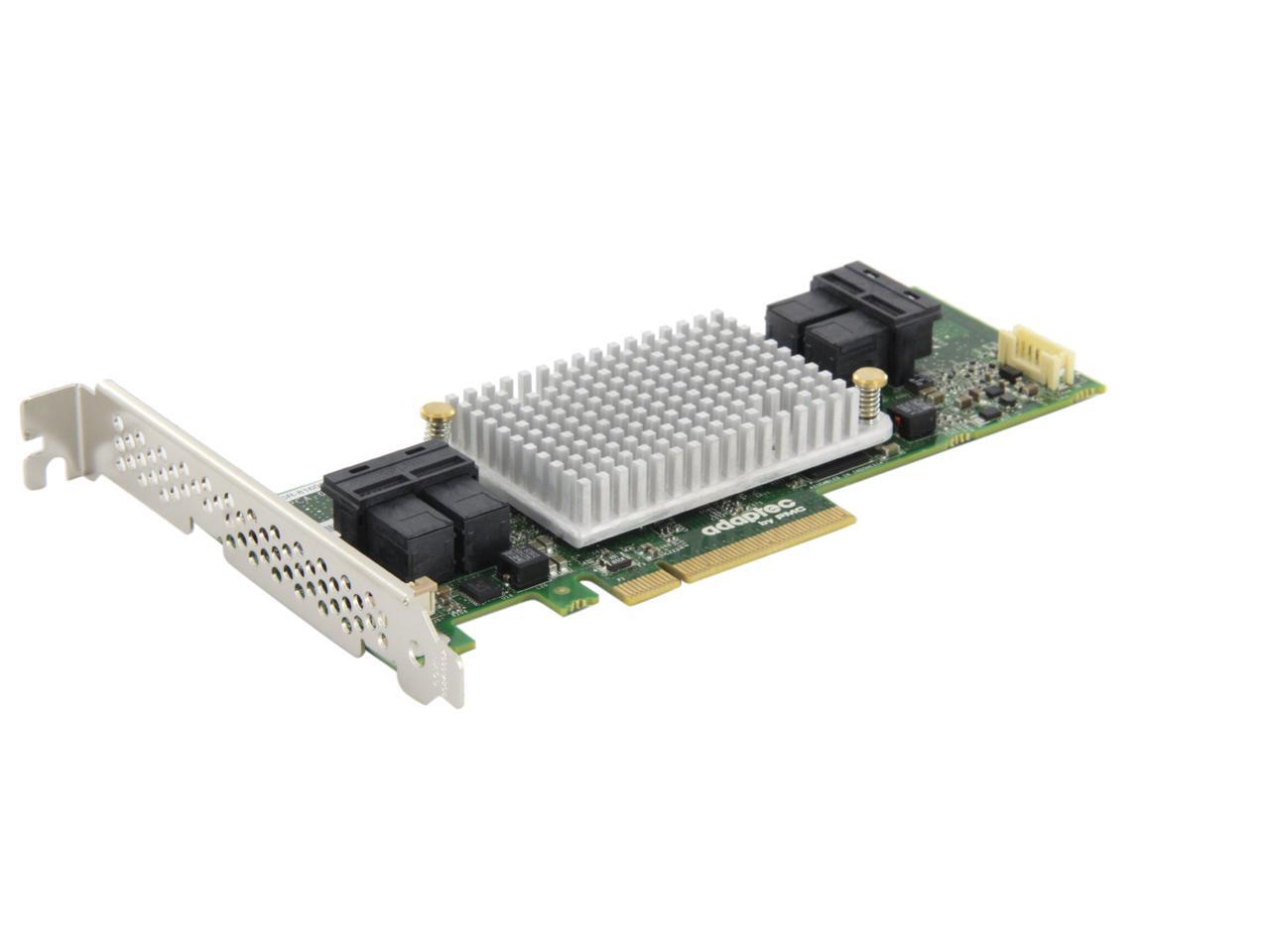

Alt view image 3 of 6 - Adaptec 81605ZQ (2281600-R) PCI-Express 3.0 x8 SATA / SAS 16 Internal Ports SAS/SATA RAID

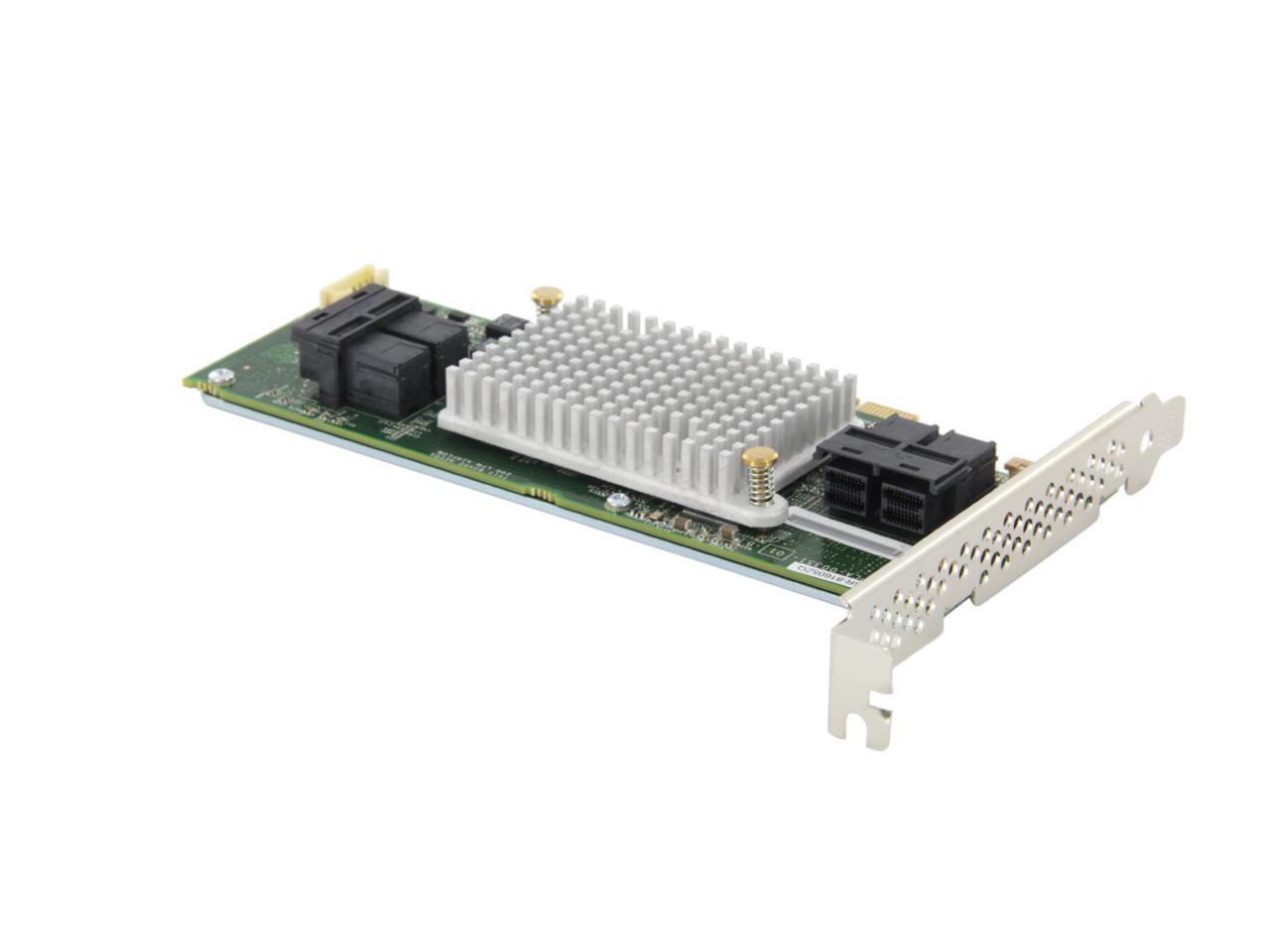

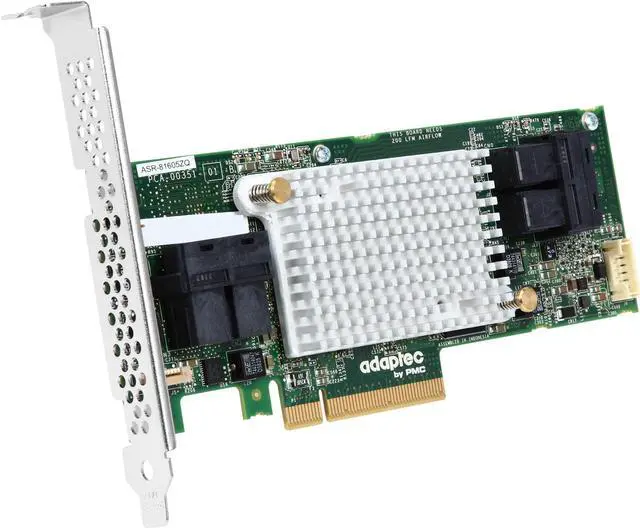

Alt view image 4 of 6 - Adaptec 81605ZQ (2281600-R) PCI-Express 3.0 x8 SATA / SAS 16 Internal Ports SAS/SATA RAID

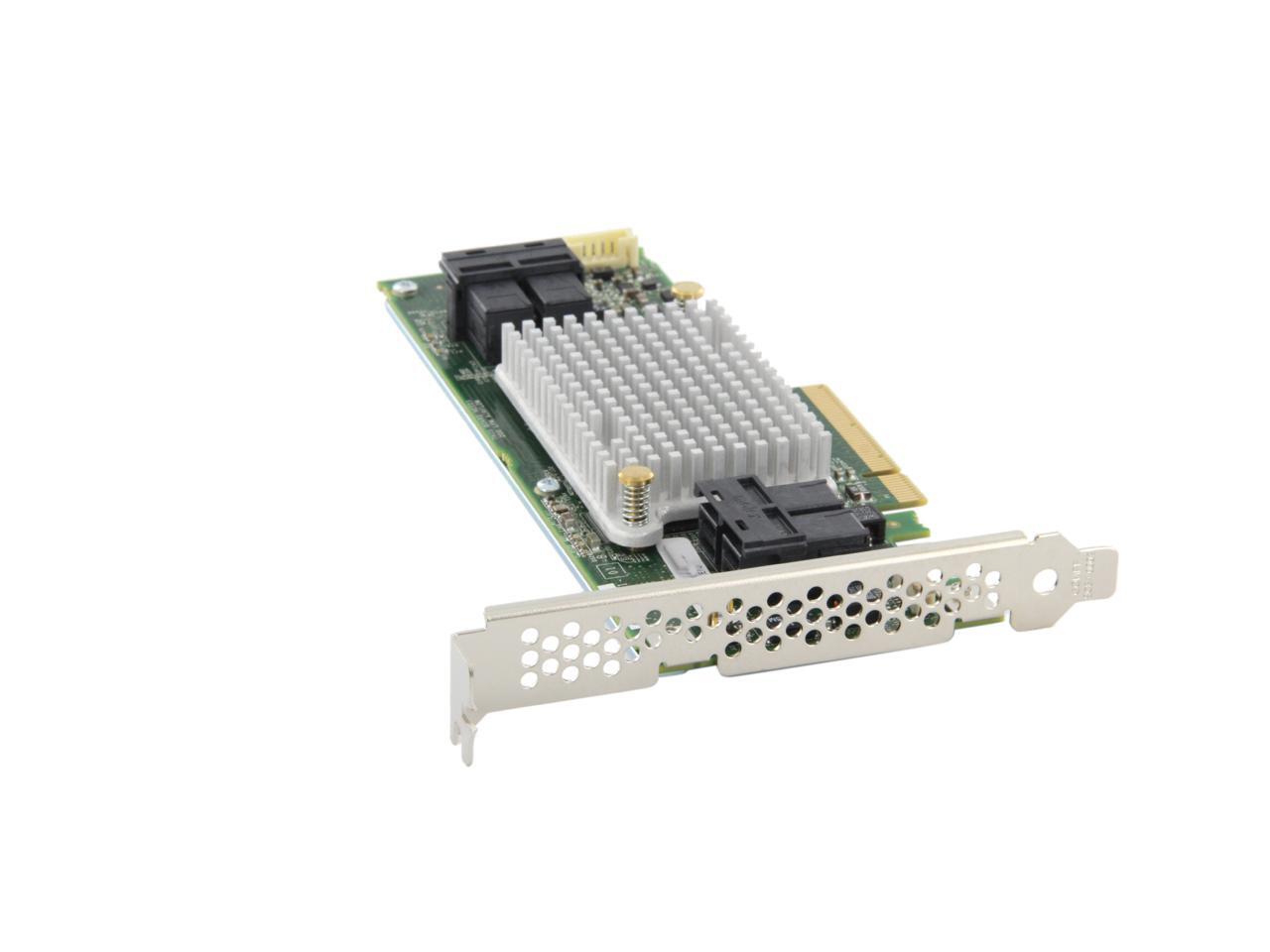

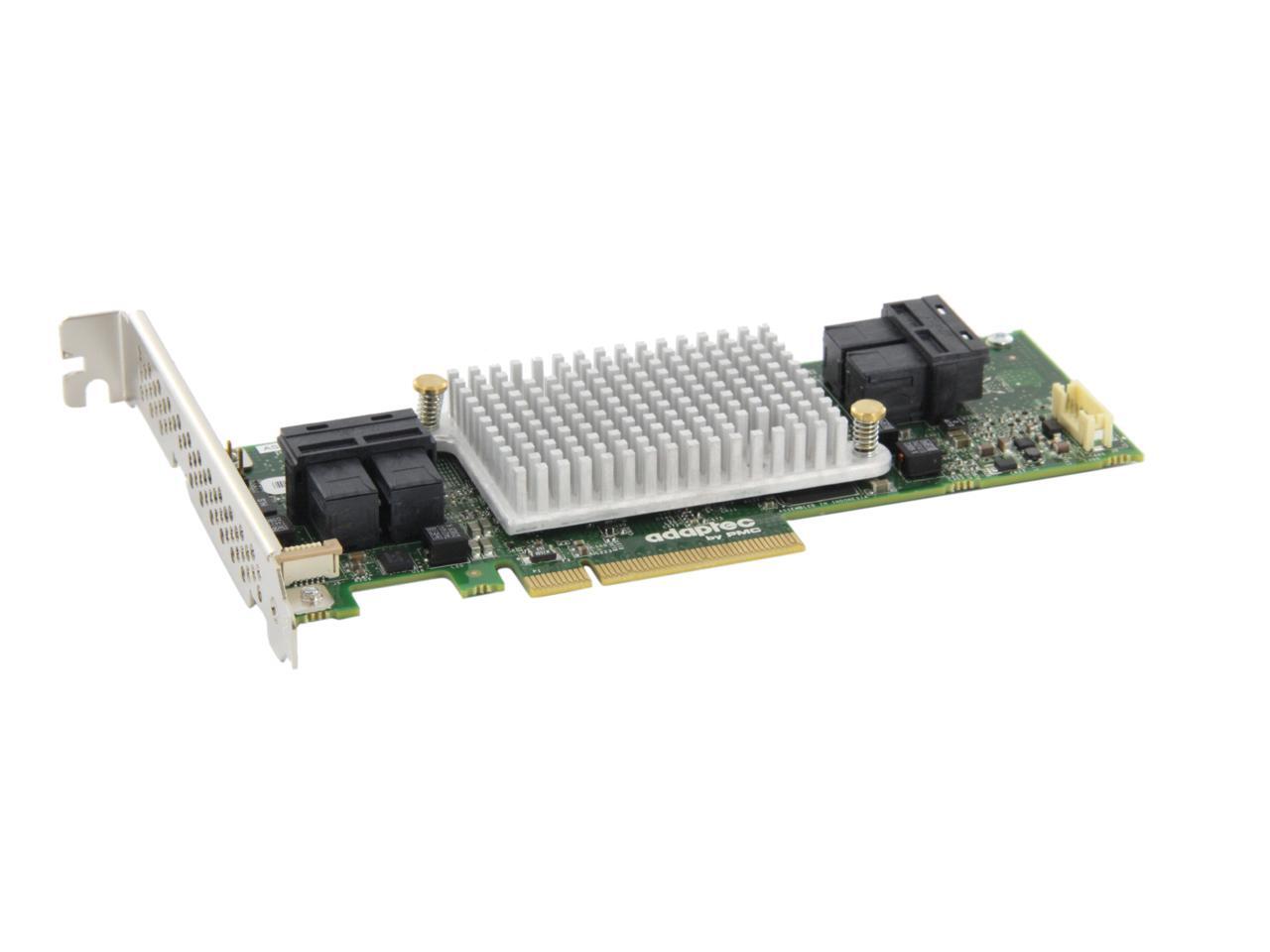

Alt view image 5 of 6 - Adaptec 81605ZQ (2281600-R) PCI-Express 3.0 x8 SATA / SAS 16 Internal Ports SAS/SATA RAID

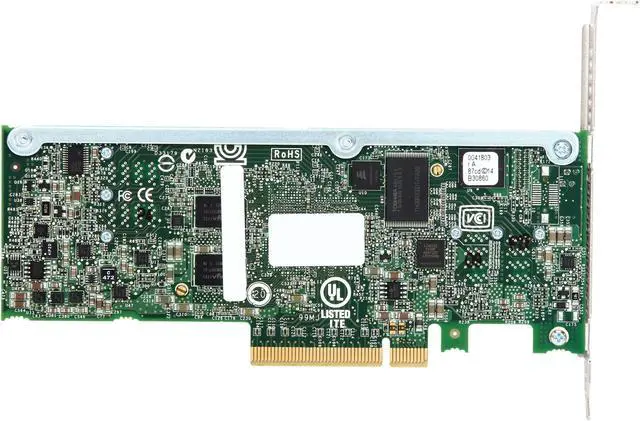

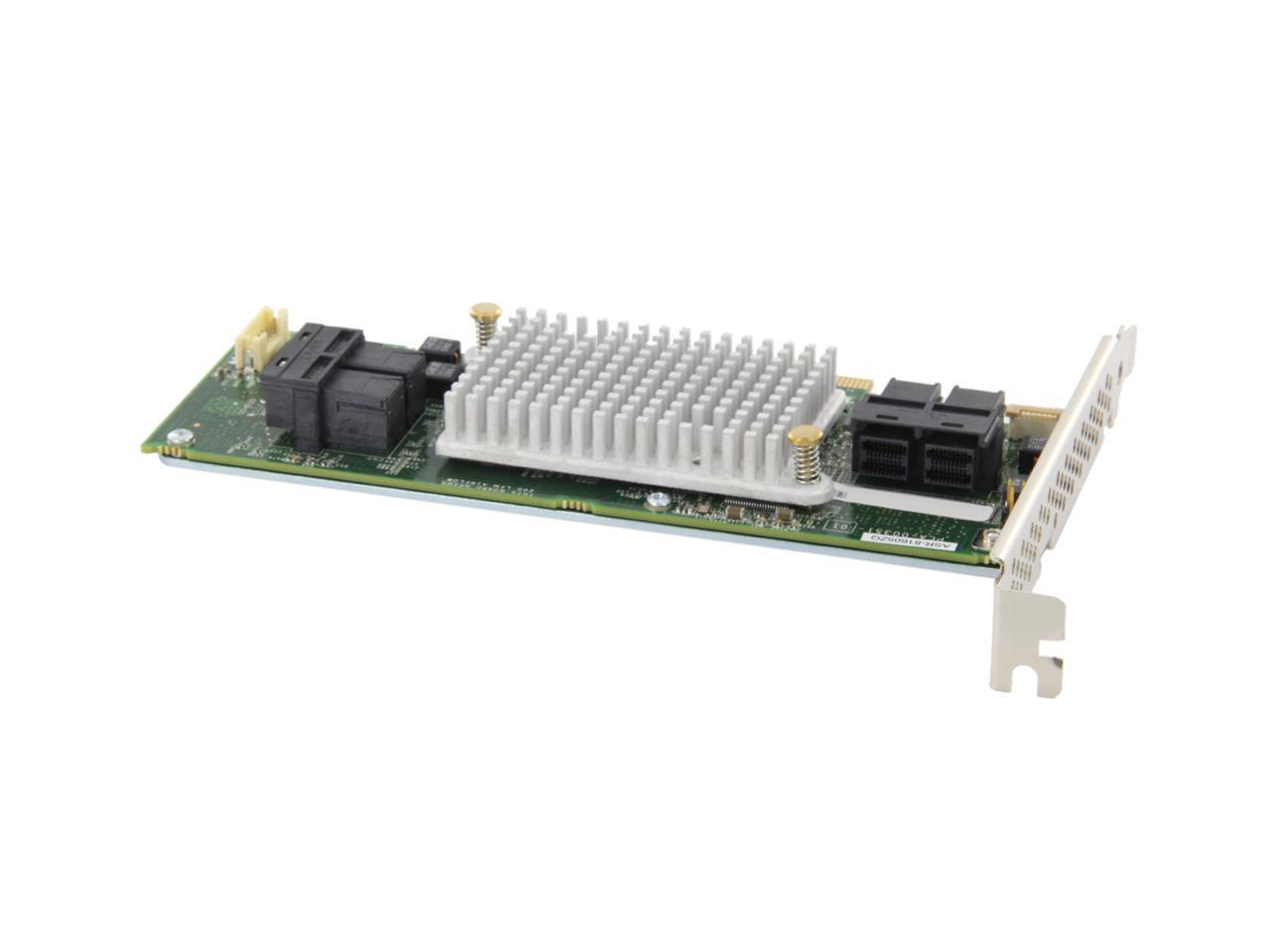

Alt view image 6 of 6 - Adaptec 81605ZQ (2281600-R) PCI-Express 3.0 x8 SATA / SAS 16 Internal Ports SAS/SATA RAID

360^°

Shop All Adaptec Products

Adaptec 81605ZQ (2281600-R) PCI-Express 3.0 x8 SATA / SAS 16 Internal Ports SAS/SATA RAID

(5) Write a Review

RAID 0/1/1E/5/6/10/50/60
16 x SAS/SATA Internal Connectors
12 Gb/s per port

Overview

Specs

Reviews (5)

Any questions? Our AI beta will help you find out quickly.

Try me now

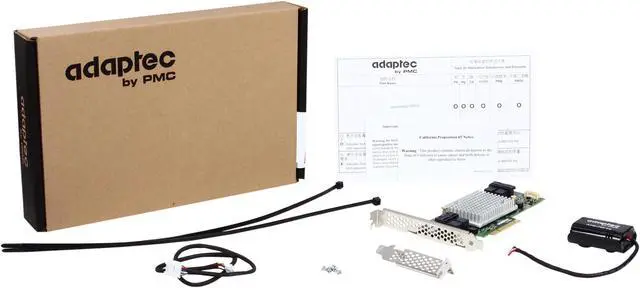

MAIN OVERVIEW FEATURES: Host Interface: PCI Express 3.0 x8Controller Type: 12Gb/s SASRAID Supported: YesRAID Levels: 0,1,1E,5,6,10,50,60Total Number of SAS Ports: 16Number of SAS Ports (Internal): 4SAS Connector Details: 4 SFF-8643Height: 2.5"Width: 6.6"Form Factor: Plug-in CardPackage Contents: Series 8Q with maxCache PlusLow profile vented bracketPlatform Supported: PC,SPARCEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 3 Year

Model
Brand	Adaptec
Model	81605ZQ (2281600-R)
Form Factor	Low Profile

Details
Type	SATA / SAS
Internal Connectors	16 x SAS
Interface	PCI-Express 3.0 x8
Cache Memory	1GB
RAID	RAID 0/1/1E/5/6/10/50/60
Dimensions	6.6" x 2.535" (L x H)

Features
Features	Processor: PMC PM8063 Cache Protection: Flash backup (embedded) Supercap (included) Connectors: 4 X SFF-8643 MC's PM8063 RAID-on-Chip (ROC), x8 PCIe Gen3 interface with 12Gb/s SAS ports to enable a new generation of performance 16 native SAS/SATA ports in a LP/MD2 design 12Gb/s throughput with mini SAS HD connectors >700K IOPS; 6.6GB/s sequential reads, 5.2GB/s sequential writes

Additional Information
First Listed on Newegg	January 29, 2014
