Question 1

does this part come with connection wires for the SAS connections and for the SATA connections?

Accepted Answer

Hi ?
It's do not come with cable
You have to buy it separately
Also keep in mind that this controller run very hot around 122F you will need to have a good vetilations also you will lost trim function
Hope it helps you

Question 2

Can I run a RAID 6 array with 4 drives and have another set of drives operate in JBOD mode at the same time or does the card require either all RAID or all JBOD?

Accepted Answer

I just got mail from Microsemi (Adaptec).  You can indeed have a set of drives in JBOD mode while others are in RAID arrays.  The card can be set up so that the drives not in RAID will be considered "raw" and are exposed to the operating system.  Cool.  I'm buying this card.

Question 3

What would be the best cables to connect the Adaptec 8805 to my Supermicro 747TQ backplane with 8 SAS drives?  Can't wait to get this card.  Thanks!

Accepted Answer

Yea I understand this seems like a "RTFM" question, but I did read the manual for the backplane.  All it says for the 8 backplane connectors is that they are "SAS connectors."  No other spec.  The backplane is the Supermicro SAS-747TQ that says SAS/SATA right on the board.  I'm seeing in the 8805 user guide that it has 2 mini-SAS SFF-8643 connectors.  So my best guess is to use two of the Microsemi 2279800-R fan-out cables 9like another user here did).  Is that correct?  I have eight 12Gbps SAS drives and I guess I'll be limited to a 6Gbps connection for each this way, correct?  Thanks to anyone willing to educate me.

Question 4

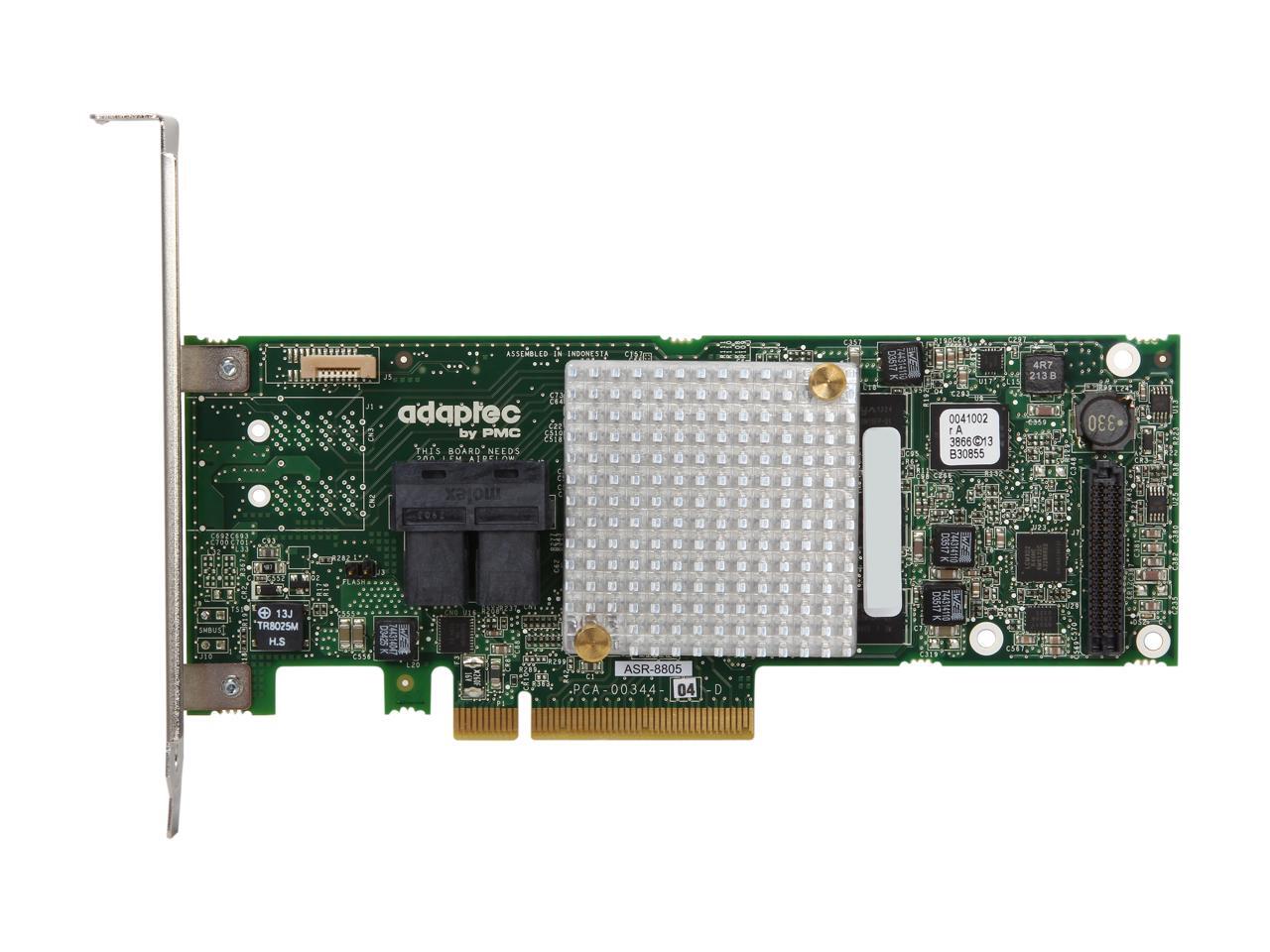

Does anyone know of a heat sink replacement for these controllers?   One that has the side air duct?   I have four I/O cards lined next to each other and there is no air flow.  If I stick a fan on this heat sink, then it takes over the next slot.   Want a thinner heat sink with fan that flows up maybe draws from the back.

Accepted Answer

Hello Joe, was imposible for me to remove the oem heatsink, look like the paste with time get glued to the processor, what i make a bracket and put a fan in the side and it's working properly

Question 5

What SAS/SATA cables are compatible with the Adaptec 8805?

Accepted Answer

The product information mentions that the Adaptec 8805 supports mini SAS HD connectors and SAS HD cables for fit and function in dense server configurations.

Question 6

Does this work with Windows 11 on a Gigabyte X570S Aero G motherboard?

Accepted Answer

The product supports Microsoft Windows operating systems.

Question 7

Will this card work with Windows 11 and a Gigabyte X570S Aero G motherboard?

Accepted Answer

The product supports Microsoft Windows operating systems. However, there is no specific mention of Windows 11.

Question 8

I need a list of supported hard drives for this controller please. I'm looking to use WD
HUS722T1TALA604 and HUS726T4TALA6L4?

Accepted Answer

The Adaptec 8805 RAID adapter supports up to 256 SAS and SATA devices, including SSDs and HDDs.
