Question 1

Does this SSd tend to need an aftermarket heat sink? Or is the plate it comes with sufficient enough?

Accepted Answer

If you plan to use it with PS5 it is highly recommended to use a aftermarket headsink, I understand that the default one does not qualify for use on PS5. However, I could use it on a PC with good ventilation.

Question 2

What is the DRAM cache capacity and SLC cache capacity based on 2 terabytes?

Accepted Answer

2048 MB DDR4-2666 CL19 for the 2TB model.
SLC cache isn't applicable as the drive has a DRAM cache.

Question 3

Can this be used in a desktop computer?

Accepted Answer

Yes it can. On the box it says what are the Reads and Write speeds for PC and PS5.

Question 4

i dont see a DRAM. Whats the issue if there's no dram when compared to having a dram ? or otherwise ?

Accepted Answer

Go educate yourself on the difference between D-Ram (Random Access Memory) and an SSD (Solid State Disk) storage device. Your incoherent question is equivalent to asking: "I don't see a blue sky, when the grass is green. Whats the issue if there's no blue sky when compared to having green grass? or otherwise?" Your question makes no sense whatsoever... What's the issue with having big feet when compared to having small hands? or otherwise? What are you trying to ask?!

Question 5

Does this compatible with macbook air?

Accepted Answer

Not Internally. the MacBook Air uses proprietary SSD modules and are not designed to be user upgraded.  However, there ARE thunderbolt enclosures for m.2 devices that will allow you to use this as an external USB device if you wish.

Brand	ADATA
Model	APSFG-2T-CSUS
Device Type	Internal Solid State Drive (SSD)
Used For	Consumer

Form Factor	M.2 2280
Capacity	2TB
Memory Components	3D NAND
Interface	PCI-Express 4.0 x4, NVMe 1.4
Controller	InnoGrit
Encryption	AES 256-bit encryption

Max Sequential Read	Up to 7400 MBps (PC/Laptop) Up to 6100 MBps (PS5)
Max Sequential Write	Up to 6800 MBps
4KB Random Read	Up to 750,000 IOPS
4KB Random Write	Up to 750,000 IOPS
Terabytes Written (TBW)	1480TB
MTBF	2,000,000 hours

Operating Temperature	0°C ~ +70°C
Storage Temperature	-40°C ~ +85°C
Max Shock Resistance	1500G

Height	4.30mm (with heat sink) 3.3mm (without heat sink)
Width	22.00mm
Depth	80.00mm
Weight	10.00g (with heat sink) 7.00g (without heat sink)

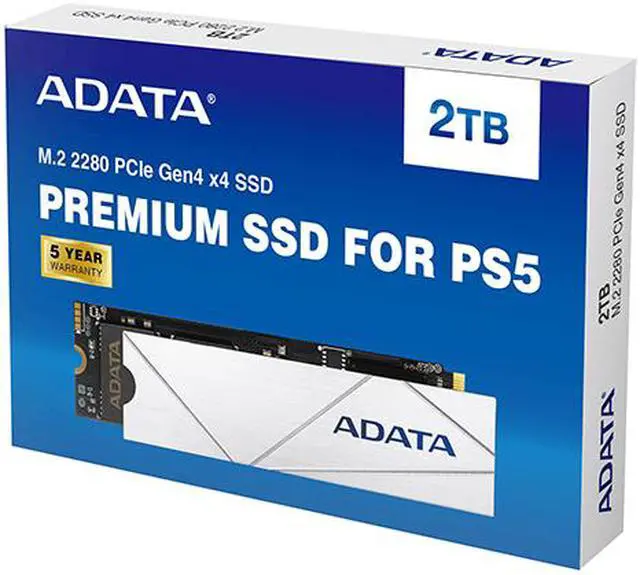

ADATA PREMIUM SSD FOR PS5 M.2 2280 2TB PCI-Express 4.0 x4, NVMe 1.4 3D NAND Internal Solid State Drive (SSD) APSFG-2T-CSUS
