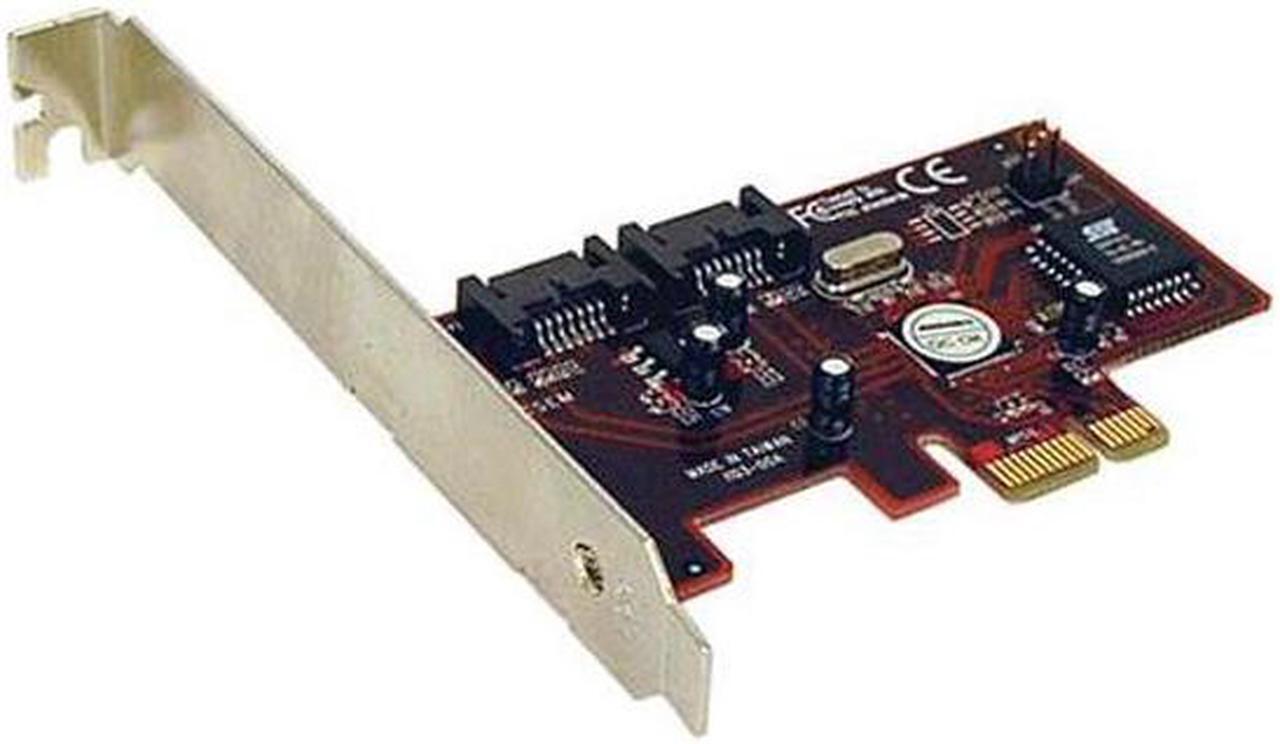

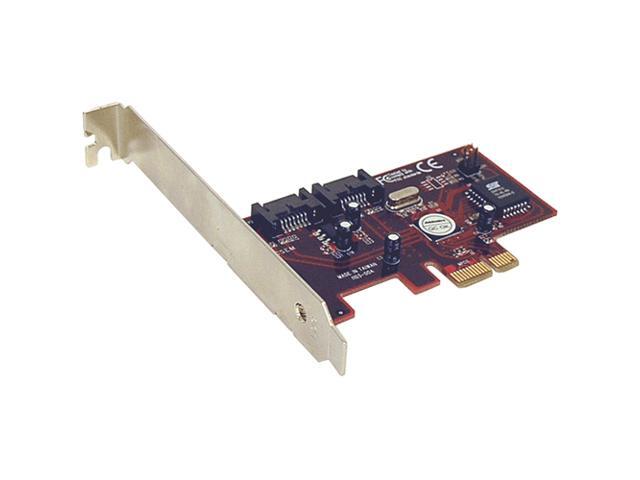

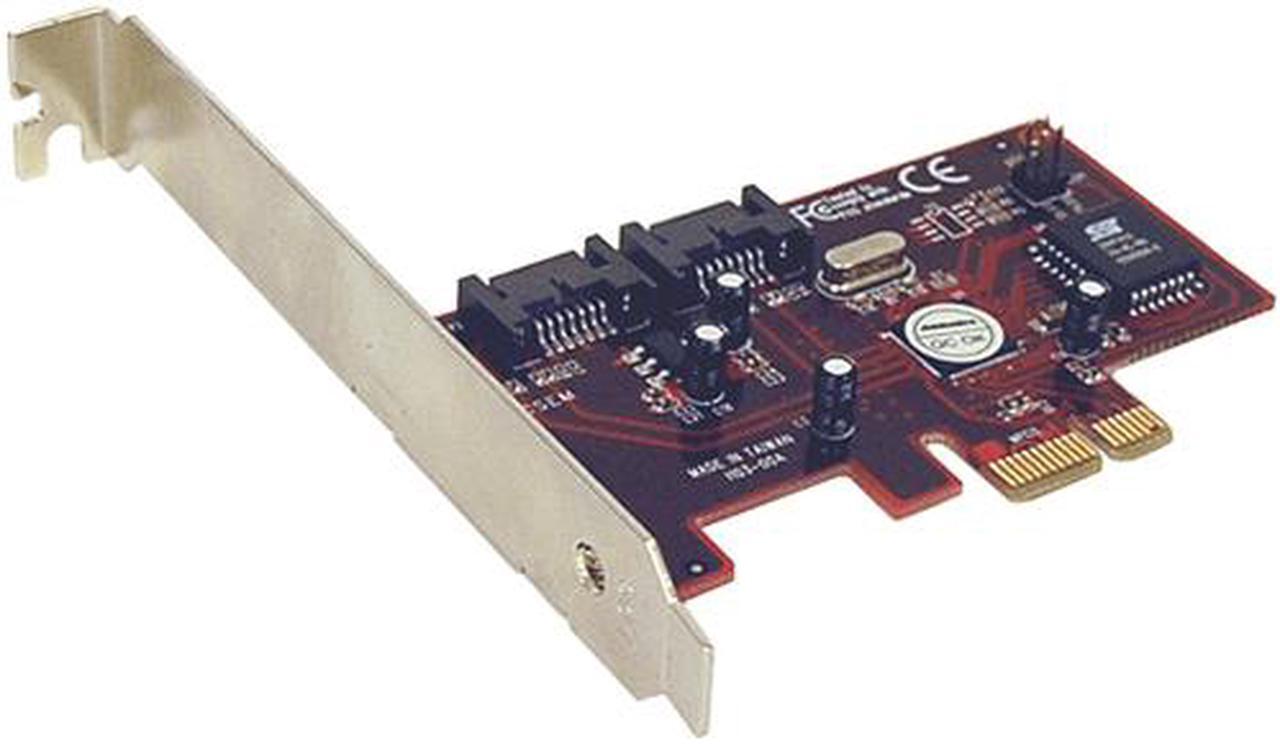

Addonics AD2SA3GPX1 PCI Express SATA II (3.0Gb/s) 2 Ports Controller

Be the first to review this product...

RAID 0/1/0+1/5 JBOD
2 x SATA II Internal Connectors
Up to 3Gb/s

Overview

Specs

Reviews

This new 2 Port SATA II PCI Express Controller Card offer the latest 3G/sec SATA performance and configuration flexibility at an amazingly affordable price. Can also be installed in low profile PCs using the low profile bracket. The two ports can be configured as individual ports, as RAID 1, 0, 0+1, RAID 5 or JBOD.

Model
Brand	Addonics
Model	AD2SA3GPX1

Details
Type	SATA II (3.0Gb/s)
Internal Connectors	2 x SATA II
Interface	PCI Express
Transfer Rate	Up to 3Gb/s
RAID	RAID 0/1/0+1/5 JBOD
Operating Systems Supported	Windows 2000 , XP, and 2003 Server, Vista

Features
Features	Silicon Image chipset SiI 3132. 48 bits LBA, support HDD partition larger than 137GB. Supports 1-lane 2.5Gbps PCI Express. Hot-plug capability. Fully compliant with Serial ATA 1.0 specifications. Supports two independent Serial ATA channels. Independent Link, Transport, and data FIFO. Independent command fetch, scatter/gather, and command execution. Supports Legacy Command Queuing (LCQ). Supports Native Command Queuing (NCQ). Supports Non-zero offsets NCQ. Supports Out of order data delivery NCQ. Supports FIS-based switching with Port Multipliers. 31 Commands and Scatter/Gather Tables per Port. Two Pin headers on board for LED connection. RoHS Compliant.

Package Contents
Package Contents	2 Ports SATA II RAID5/JBOD PCI Express controller, low profile bracket, Driver CD, User guide

Additional Information
Date First Available	December 15, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Manufacturer Contact Info

Manufacturer Website
Support Phone: 1-408-453-6212
