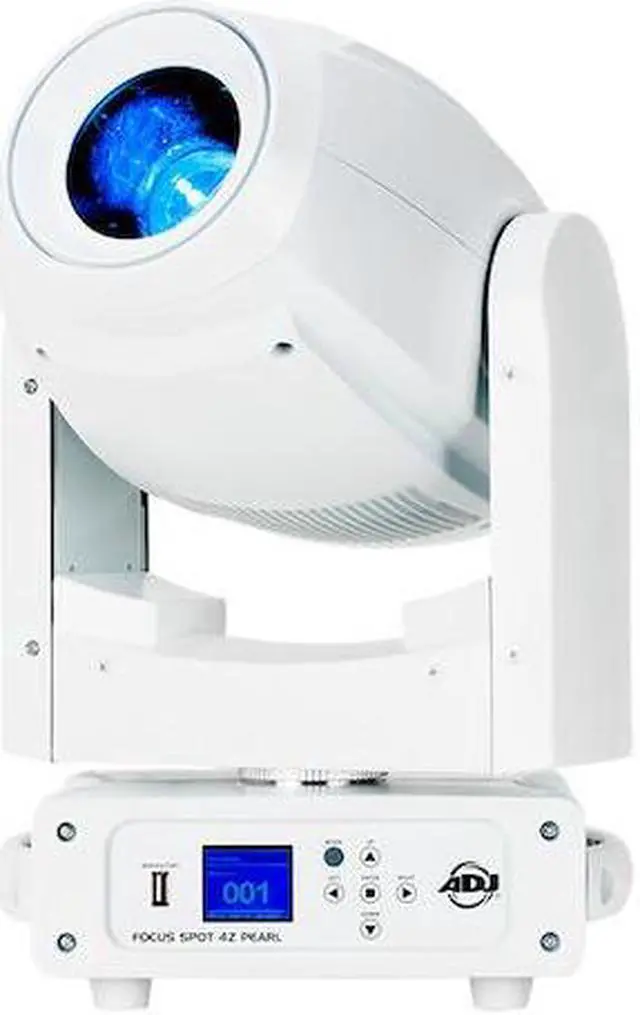

American DJ Focus Spot 4z Pearl

The new Focus Spot 4Z pearl sits at the top of range of the popular Focus Series moving heads from ADJ Lighting. The Focus Spot 4Z is powered by a 200W LED engine and is equipped with motorized focus and zoom (11 ~ 22-degree zoom). Its designed for temporary live events and fixed installations in nightclub stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS 8 vibrant colors plus white and 2 prism wheels (one 5-facet linear and one 6-facet circular).

The Focus Spot 4Z pearl has locking powerCON In and out connectors to daisy chain the power as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fin pan and tilt multiple DMX control modes and 6 different dimming options. The Focus Spot 4Z offers a robust light output in a light weight compact foot print (17-inch high and one 18 pounds).

Features:

Motorized Focus
Motorized Zoom: 11 ~ 22-degrees plus 16-bit Fine Zoom
2 Prism FX: Rotating 5-facet Linear & rotating 6-facet Circular
0-100% smooth dimming
Various strobe speeds
USB firmware update port
2 cooling fans

Specifications

:

Light Source:

200W Cool White LED Engine (50000 hr. )


Color Wheel:

8 dichroic colors + white


GOBO Wheel:

6 aluminum GOB
Os + open

All GOB
Os removable & rotatable

GOBO Shake Effect

GOBO size: 23mm (outer); 19mm (viewable); 0.5 mm (thickness)


Prism Wheel:

Prism Wheel 1: Rotatable 5-facet Linear

Prism Wheel 2: Rotatable 6-facet Circular

Prism Indexing


Control:

3 DMX Channel Modes: 16/18/22 Channels

Color LCD display with 6-button function menu

Data In/Out: 5-pin DMX

Power In/Out: Locking powerCON (Daisy chain 4 units @ 120V; 10 units @ 240V)

Control Mode: DMX512 or internal programs

6 Dimming Curve Modes: Standard Stage TV Architectural Theatre S
