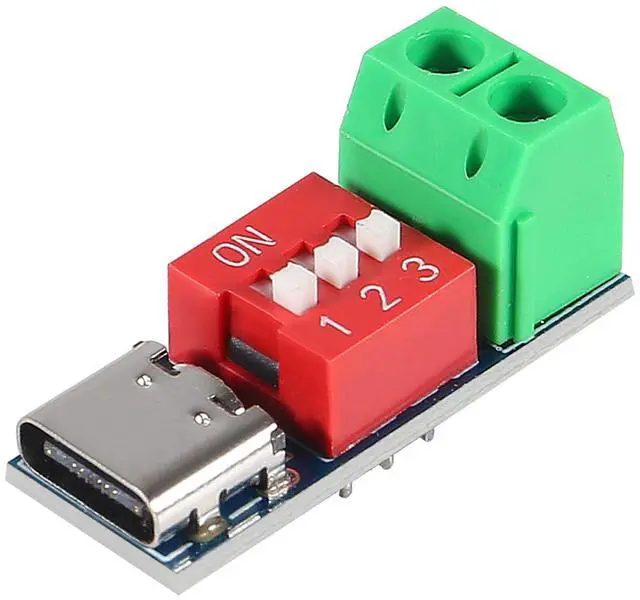

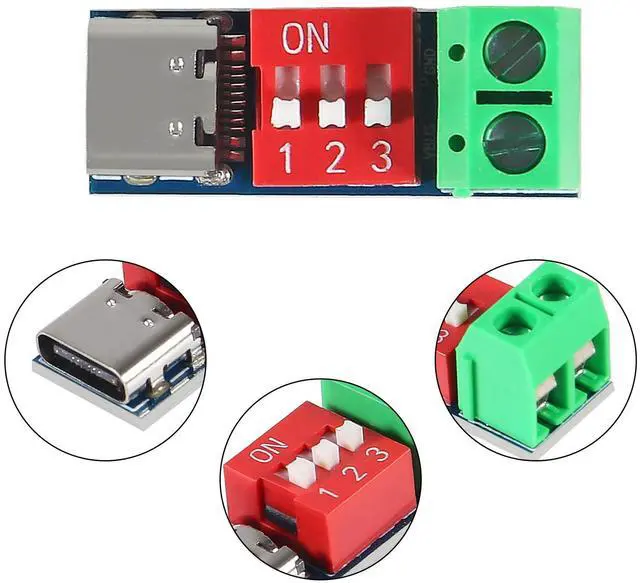

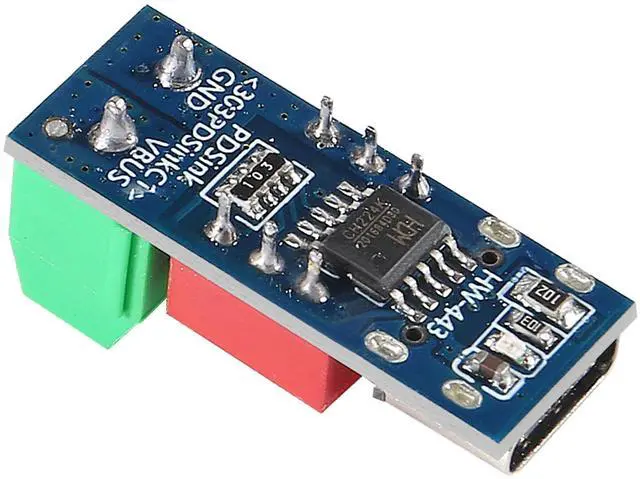

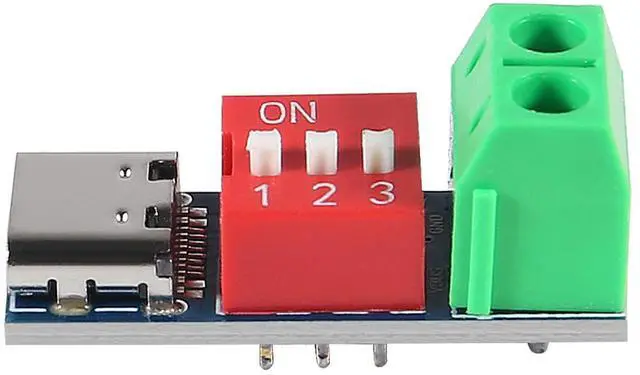

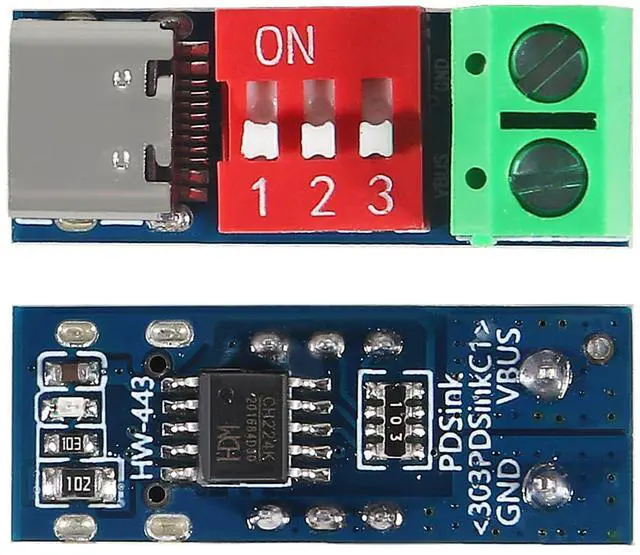

KEHIPI 10PCS USB-C PD Trigger Board Module PD/QC Decoy Board Fast Charge USB Type-c to 5V9V12V20V High Speed Charger Power Delivery Boost Module with Screw Terminal
- Provides over-temperature and over-voltage protection and other functions.
- Support USB TypeC PD, forward and reverse insertion detection and automatic switching
- Material:ABS ;Size: Approx.11x25.7mm/0.43x1inches
- Support 5V/9V/12V/15V/20V fixed voltage output,
- Supports USB Type-C PD, forward and reverse insertion detection and automatic switching
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description
1.The PD decoy supports PD3.0/2.0, BC1.2 and other boost and fast charging protocols, supports up to 10w power, and provides over-temperature, over-voltage protection and other functions.
2.The voltage can be adjusted by the dial switch, and the maximum output voltage is 20V.
3.Support fast charging protocols such as PD3.0/2.0 and BC1.2
4.Supports USB Type-C PD, forward and reverse insertion detection and automatic switching
5.Support 4V to 22V input voltage
Parameters:
- Input voltage: support 4V to 22V
- Output voltage: up to 20V
- Interface: support USB Type-C PD
- Power: up to 100W

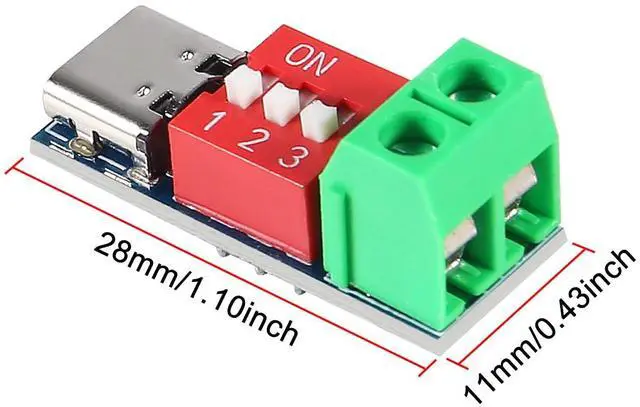

- Product size: 11 * 25.7mm
Instructions:
CFG1 corresponding dial switch 1
CFG2 corresponding dial switch 2
CFG3 corresponds to dial switch 3
Dial down to 1, and dial up to 0.
Toggle the switch to request the corresponding voltage according to the charger protocol
Package include:

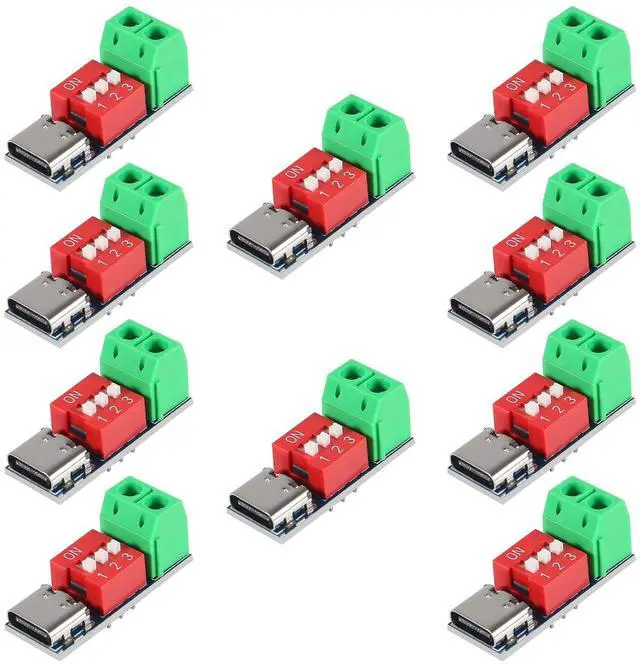

10PCS X decoy module
