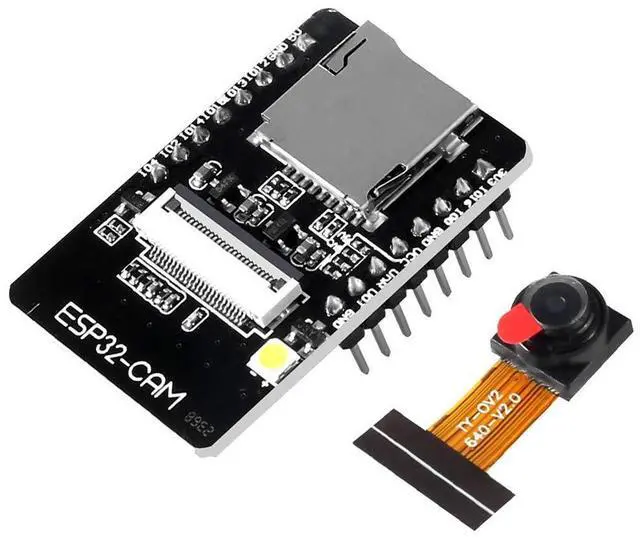

KEHIPI 1PCS ESP32-CAM Camera WiFi + Bluetooth Module 4M PSRAM Dual-core 32-bit CPU Development Board with OV2640 2MP Camera Module Support Image WiFi Upload
- ESP-32CAM can be used in various IoT applications. It is suitable for smart home appliances, industrial wireless control, wireless surveillance, wireless QR identification, wireless location system signals, etc. It is an ideal solution for IoT applications.
- Fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, it can be used as a master mode to build an independent network controller, or as a slave to other hosts MCUs to add networking capabilities to existing devices
- ESP integrates WiFi, traditional Bluetooth, and BLE Beacon, with two high-performance 32-bit LX3 CPUs, 7-stage pipeline architecture, main frequency adjustment range 80MHz to 240MHz, on-chip sensor, Hall sensor, temperature sensor and so forth
- ESP32-CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, and other IoT applications. It is an ideal solution for IoT applications
- This module supports interfaces such as UART / SPI / I2C / PWM / ADC / DAC; Supports OV2640 and OV7670 cameras.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OV2640 ESP32-CAM Wireless WIFI Bluetooth Module
Specifications:
IO Port: 9
Power Supply: 5V 2A
WiFi: 820.11 b/g/n/e/i
SPI Flash: Default 32Mbit
Spectrum Range: 2412-2484MHZ
Serial Port Rate: Default 115200 bps
RAM: Internal 520KB + External 4M PSRAM
Antenna Form: Onboard PCB antenna, gain 2dBi
Bluetooth: Bluetooth 4.3 BR/EDR and BLE standard
Image Output Format: JPEG (Only OV2640 support), BMP, GRAYSCALE
Feature
Support TF card.(Max 4G)
Support image WiFi upload.
Support multiple sleep modes.
Embedded Lwip and FreeRTOS.
Support secondary development.
Support STA/AP/STA+AP working mode.
Built-in 520 KB SRAM, external 4M PSRAM.
Support OV2640 and OV7670 cameras, built-in flash.
Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC.
Support Smart Config/AirKiss one-click distribution network.
Transmit Power:
820.11b: 17±2dBm (@11Mbps);
820.11g: 14±2dBm (@54Mbps);
820.11n: 13±2dBm (@MCS7)
Safety: WPA/WPA2/WPA2-Enterprise/WPS
Application:
Smart agriculture
Wireless monitoring
Home smart device map
QR wireless identification
Package Included:
1X ESP32-CAM Module
1X OV2640 2MP Camera Module
