By adjusting color ring or R/G/B value, you can obtain 16 millions static colors.
It can produce dynamic lighting effects such as waves, chasing, and breathing.
Built-in high-sensitivity microphone, the light color will change with the beat of the music!
Choose 9 favorite lighting effects, and you can set cycle changes after collection.
You can set the working hours of the lights according to your needs.
Choose the right controller for your project
By adjusting color ring or R/G/B value, you can obtain 16 millions static colors.
It can produce dynamic lighting effects such as waves, chasing, and breathing.
Built-in high-sensitivity microphone, the light color will change with the beat of the music!
Choose 9 favorite lighting effects, and you can set cycle changes after collection.
You can set the working hours of the lights according to your needs.

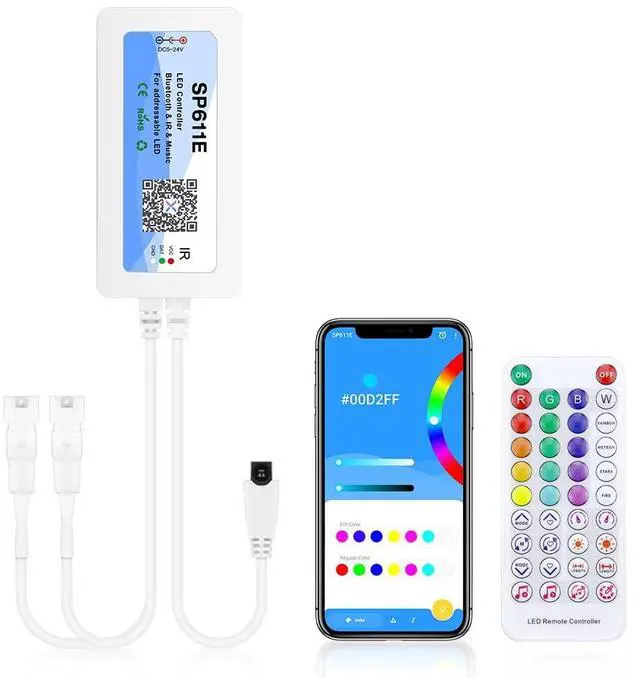

| Product Name | ALITOVE SP611E Bluetooth Music Sync Controller |
|---|---|
| Control method | Bluetooth APP; IR Remote; Controll Box |
| APP Name | BanlanX , Search " BanlanX " app in App Store/Google Play or scan the QR code to install |
| System Required | IOS 10.0 or Android 4.4 or later versions required |
| Supported Driver IC | WS2812B, SK6812, WS2811,SM16703, UCS1903 |
| Control IC | 600 Pixels |
| Working temperature | -20?~60? |
| Working voltage | DC5V~24V |
| Working current | 5mA~18mA |
| Remote distance | 15 Meters |
| Certificates | CE, RoHS |
| Package list | 1x SP611E IR LED remote; 1x receiving controller; 1x operating instruction |
| Kindly Note 1 | The controller’s input voltage is 5V~24V, but it can’t regulate the output voltage.That means you should choose power supply according to your led lights, not the controller. If your LED light needs 5V input, please use a 5V power supply, NEVER use a 12V or 24V power supply. Otherwise, your led light will be burnt out. |
| Kindly Note 2 | If the controller displays the wrong colors, for example red button shows green, please don’t worry, it doesn't mean the controller is defective. Resetting the R/G/B order again will resolve the issue. |
| Kindly Note 3 | Insufficient power supply will cause the controller to lose control, the color of the light strip to freeze, the remote cannot be used, and the Bluetooth will be disconnected. If you don't know what power supply can be used for your LED projects, please feel free to let us know. |
| Kindly Note 4 | We don't recommend to light up the full brightness white light for a long time, because the main function of the addressable LED light is chasing rainbow effects. |
