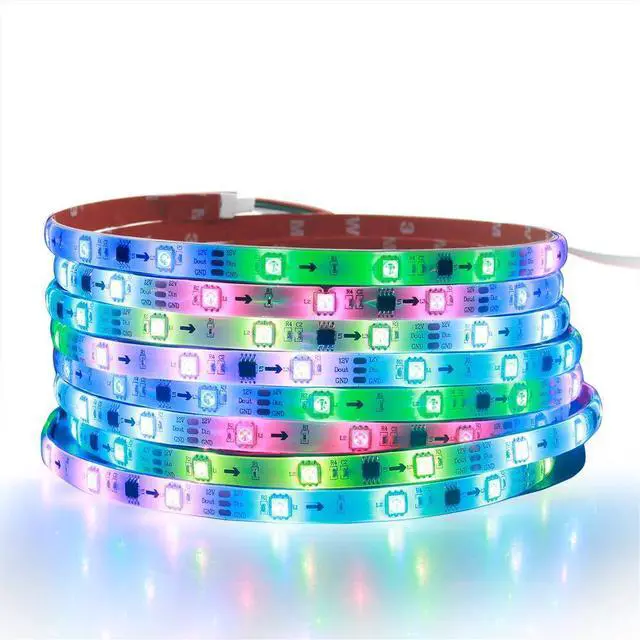

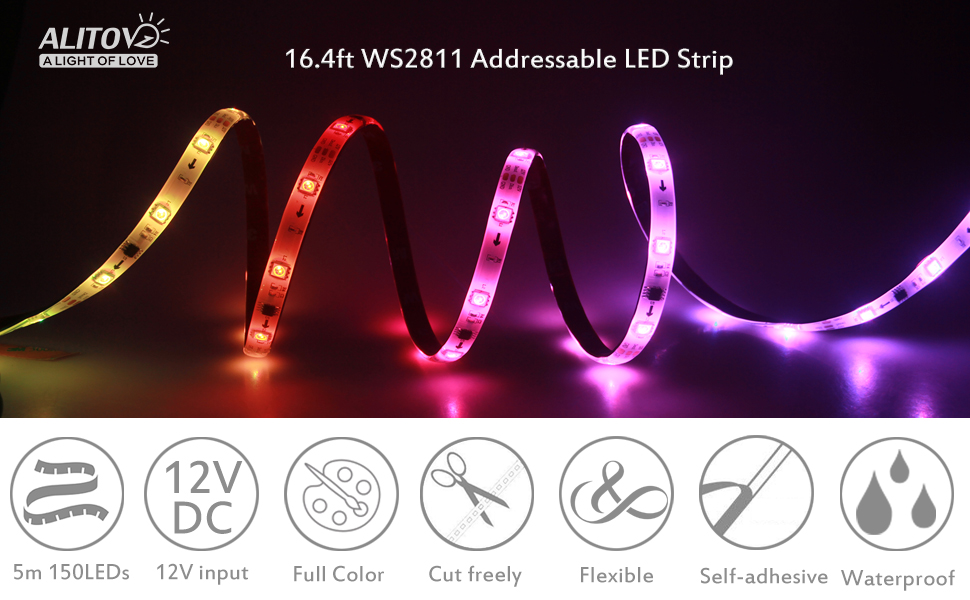

ALITOVE 16.4ft WS2811 12V Addressable RGB LED Strip Lights
Parameter
- Light source: 5050 RGB LED; 30 LEDs per meter; 150 LEDs per roll
- IC Model: WS2811 IC; 10pcs per meter; 50pcs per roll
- RGB order:BRG
- Color Display: 24-bit full color
- Working voltage: 12V
- Working Power: 3A max @12V DC ; 36W per roll
- Port scanning frequency reaches to 2KHz/s
- Data transmitting speed is up to 800Kbps
- Waterproof: IP65 Waterproof
- Dimension: (L) 5000mm*(W)10mm* (T)3mm
Package List:
- 1 x 5M/16.4ft WS2811 LED strip light
- 1x 3pin JST connector
Premium Features
Programmable LED Strip Light

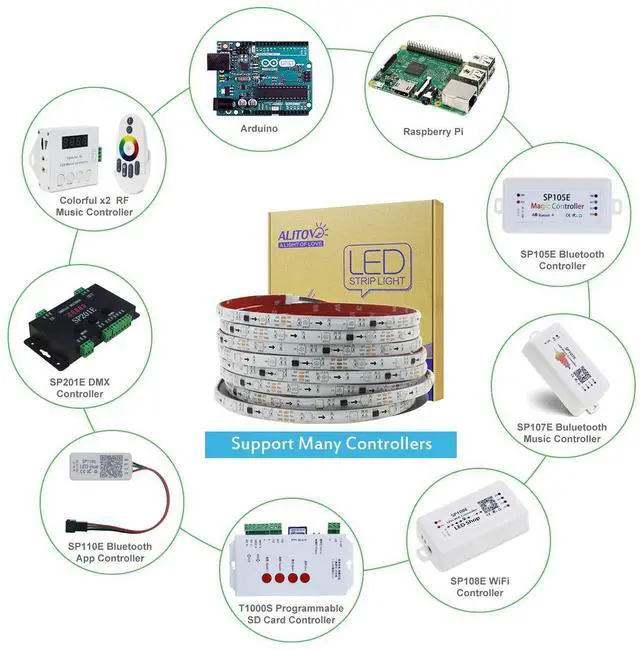

Built in WS2811 smart driver ICs which can be programmed with Arduino,Raspberry Pi, Fadecandy, T1000S, etc. You can set them to any color or animation you want.

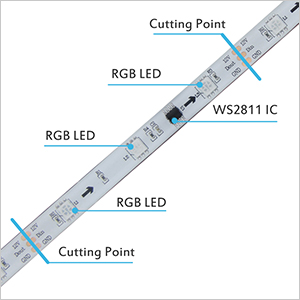

One IC Controls Three LEDs
LEDs and ICs are organized in groups of 3 LEDs with 1 IC. 1 IC controls 3 LEDs. Each group can be controlled individually, cut and welded at the cutting line to meet your requirements for length.

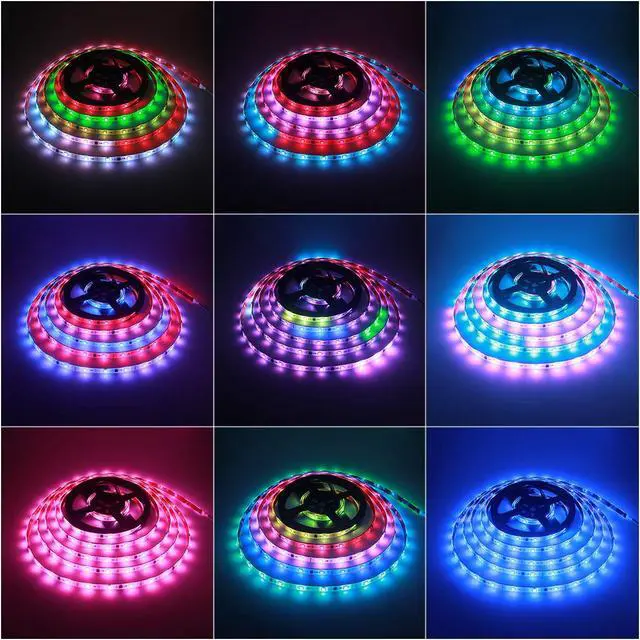

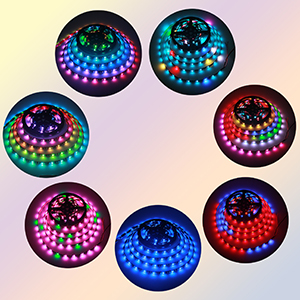

Static & Dynamic Dream Color Display
With compatible controllers, it will display much more amazing color effects than regular rgb strips, such as rainbow, flash, fading, chasing, breath, wave, raindrop, stacking, curtain-up,etc.

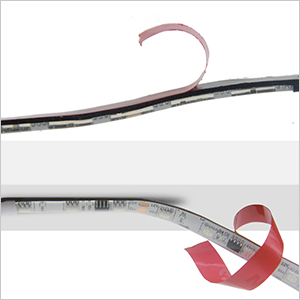

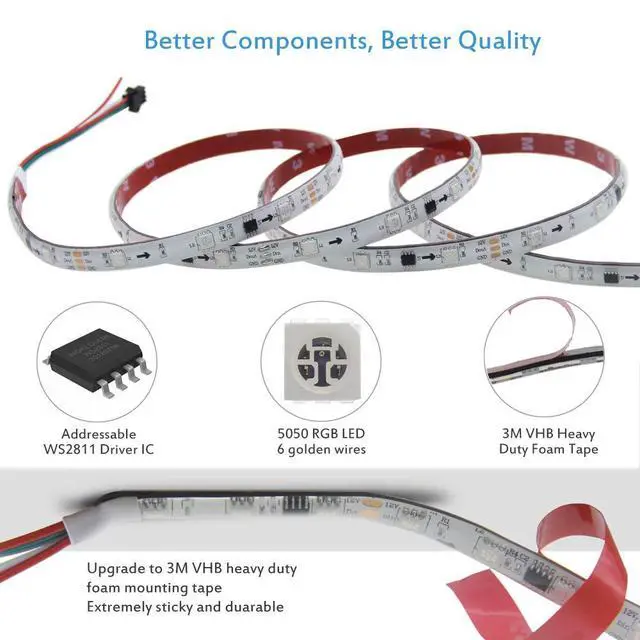

3M VHB Heavy Duty Tape
Based on buyers’ feedback on adhesive issue, we upgraded the tape to 3M VHB foam heavy duty mounting tape which is much more sticky than the tapes used by other brands' LED Strips.

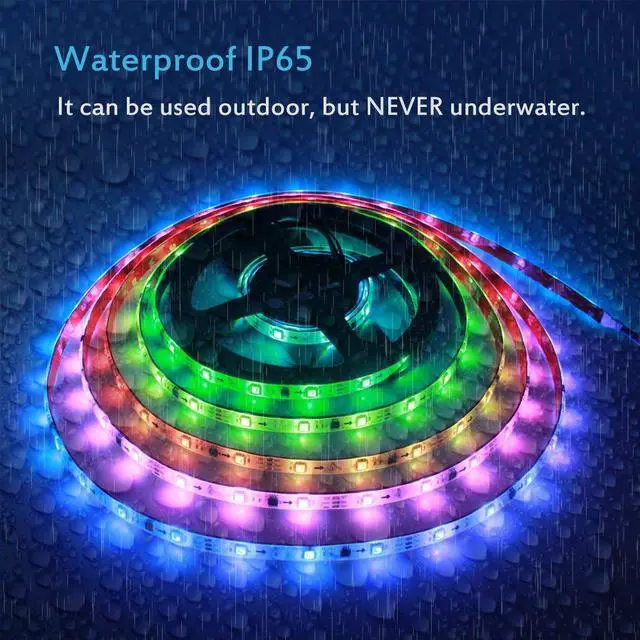

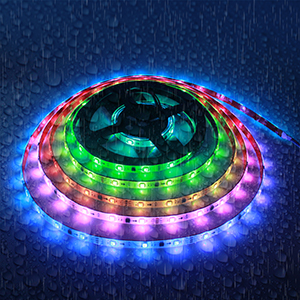

Waterproof IP65
It is covered by silicone coating, which protects it very well and makes it easy to clean. Waterproof grade is up to IP65. Great for both indoor and outdoor lighting project.

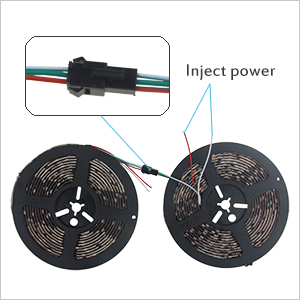

Extensible Design

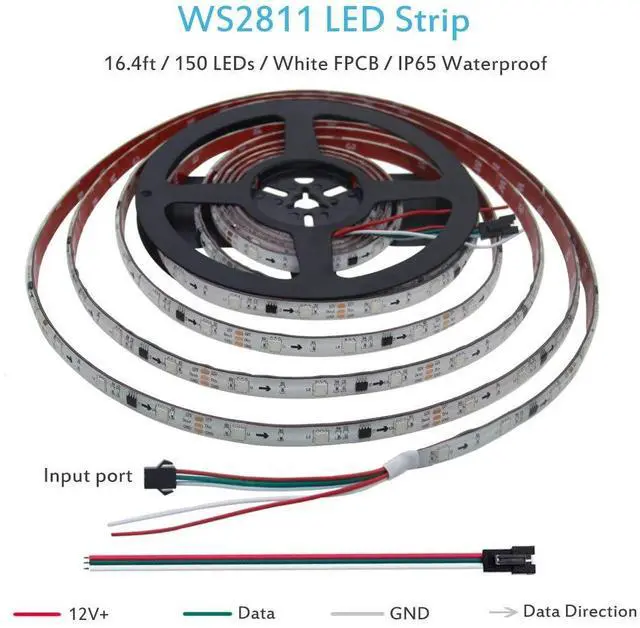

Designed with 3pin JST-SM connectors and separate power/ground wires on both ends.You can hook up multiple led strips together and inject power in the middle in case of voltage drop.
Application Scenarios
Holiday Decoration
Home Theater Lighting
Bed Room Decoration
Bar Decoration

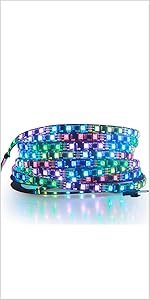

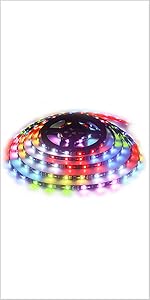

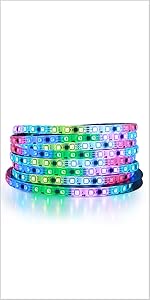

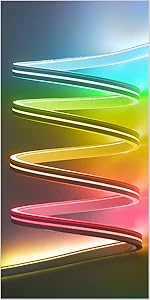

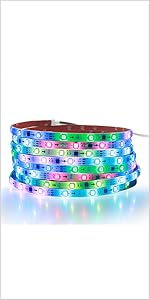

 6.6ft WS2812B 192LEDs Neon Strip Light |  6.6ft WS2811 216LEDs Neon Strip Light |  16.4ft WS2811 150LEDs White PCB Strip Light |  16.4ft WS2811 150LEDs Black PCB Strip Light |  16.4ft WS2811 300LEDs White PCB Strip Light |  16.4ft WS2811 300LEDs Black PCB Strip Light | |
|---|---|---|---|---|---|---|
| Customer Reviews | — | — | — | — | — | — |
| Price | — | — | — | — | — | — |
| Working Voltage | DC 5V | DC 12V | DC 12V | DC 12V | DC 12V | DC 12V |
| LED QTY | 192 | 216 | 150 | 150 | 300 | 300 |
| IC QTY | 192 | 36 | 50 | 50 | 100 | 100 |
| Control Method | Individually addressable | 6 LEDs with 1 IC, Group addressable | 3 LEDs with 1 IC, Group addressable | 3 LEDs with 1 IC, Group addressable | 3 LEDs with 1 IC, Group addressable | 3 LEDs with 1 IC, Group addressable |
| Current | 6A | 2.4A | 3A | 3A | 6A | 6A |
| Power | 30W | 28.8W | 36W | 36W | 72W | 72W |
| Waterproof | IP67 | IP67 | IP65 | IP65 | IP65 | IP65 |
| Light Source | 4020 RGB LED with built-in WS2812B IC | 3838 RGB LED with built-in WS2811 IC | 5050 RGB LED with built-in WS2811 IC | 5050 RGB LED with built-in WS2811 IC | 5050 RGB LED with built-in WS2811 IC | 5050 RGB LED with built-in WS2811 IC |
ALITOVE is a professional manufacturer of LED lighting & control system and power supply system.
We are willing to customize products according to customers' personalized requirements.
If you are a lighting designer, lighting retailer, advertising light box manufacturer or other lighting enthusiast, we will try our best to contribute to your unlimited lighting creativity.
Newest IP68 COB LED Strip
Newest 110V Neon Rope Light
Newest COB CCT LED Strip
Newest WS2811 COB LED Strip
5V 12V Power Adapter
5~24V Power Supply
