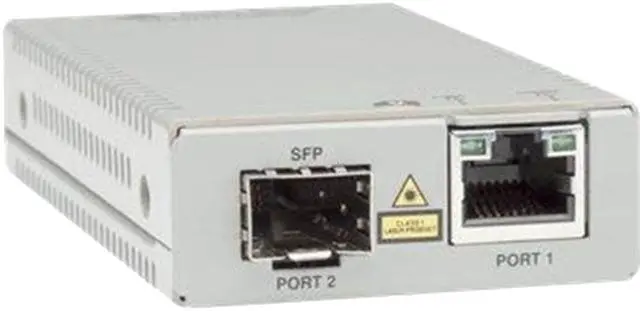

Allied Telesis AT-MMC2000/SP-960 Gigabit Ethernet to SFP Mini Media and Rate Converter 10/100/1000Base-T
- 10/100/1000Base-T
+
+
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Learn more about the Allied Telesis AT-MMC2000/SP-960
| Brand | Allied Telesis |
|---|---|
| Model | AT-MMC2000/SP-960 |
| Device Type | Converter |
|---|---|
| Media Conversion | RJ-45 - SFP |
| Wavelength | 850nm |
| Fiber Cable | 50/125µm, 62.5/125µm |
| Ports | 10/100/1000Base-T |
| Max Distance | 500m |
| Temperature | 0°C to 50°C (32°F to 122°F) |
|---|---|
| Humidity | 5% to 95% relative humidity (non-condensing) |
| Feature | Convert speed as well as media type 2K MAC address tables Store-and-forward switching mode Transparent to IEEE 802.1Q packets Auto Negotiation and Auto MDI/MDIX on copper port IEEE support on copper Far End Fault on Fiber 10K byte Jumbo packets Link/Activity LED per port Smart MissingLink Fixed SC/ST/LC or SFP (100MB or 1000MB) optics 12VDC power supply Wall-mountable using MMCWLMT Locking power supply jack to prevent accidental power disconnects Available in Trade Agreement Act (TAA) models |
|---|
| Dimensions | 2.16" x 4.00" x 0.86" |
|---|---|
| Weight | 6 oz. |
| First Listed on Newegg | March 06, 2020 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
LOADING...
LOADING...
The Allied Telesis AT-MMC2000/SP-960 is a compact media and rate converter that connects 10/100/1000Base-T copper Ethernet to an SFP fiber port, making it suitable for network teams extending or adapting business Ethernet links.
Recommended For
- Network installers connecting a 10/100/1000Base-T device to a fiber link when the copper-side equipment has no SFP port and a compact, standalone converter is sufficient.
- IT teams extending an Ethernet connection beyond a copper run by selecting a compatible 100 Mbps or 1 Gbps SFP for the fiber type and required distance.
- Organizations upgrading a 100 Mbps copper network or extending a Gigabit network that need copper-to-fiber conversion while retaining support for tagged VLAN packets.
- Installers needing a small converter for a single link at an equipment edge, such as connecting a copper Ethernet endpoint to a fiber-connected network device.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Converting 10/100/1000Base-T copper Ethernet to SFP fiber, including multimode fiber links up to 500 m |
| Media Conversion And Fiber | RJ-45 to SFP conversion; supports 850 nm optics with 50/125 µm or 62.5/125 µm fiber. Available with fixed SC/ST/LC optics or 100MB/1000MB SFP optics |
| Ethernet And Switching Features | Converts speed as well as media type; supports auto-negotiation and auto MDI/MDIX on the copper port, store-and-forward switching, a 2K MAC address table, transparent IEEE 802.1Q packets, Far End Fault on fiber, Smart MissingLink, and 10K-byte jumbo packets |
| Indicators And Compliance | Link/activity LED per port; available in Trade Agreement Act (TAA) models |
| Power And Mounting | 12 VDC power supply with a locking jack to help prevent accidental disconnection; wall-mountable using MMCWLMT |
| Operating Environment | Operating temperature: 0°C to 50°C (32°F to 122°F); relative humidity: 5% to 95%, non-condensing |
| Dimensions And Weight | 2.16 × 4.00 × 0.86 in; 6 oz |
| Model Identifiers | Allied Telesis AT-MMC2000/SP-960 |
