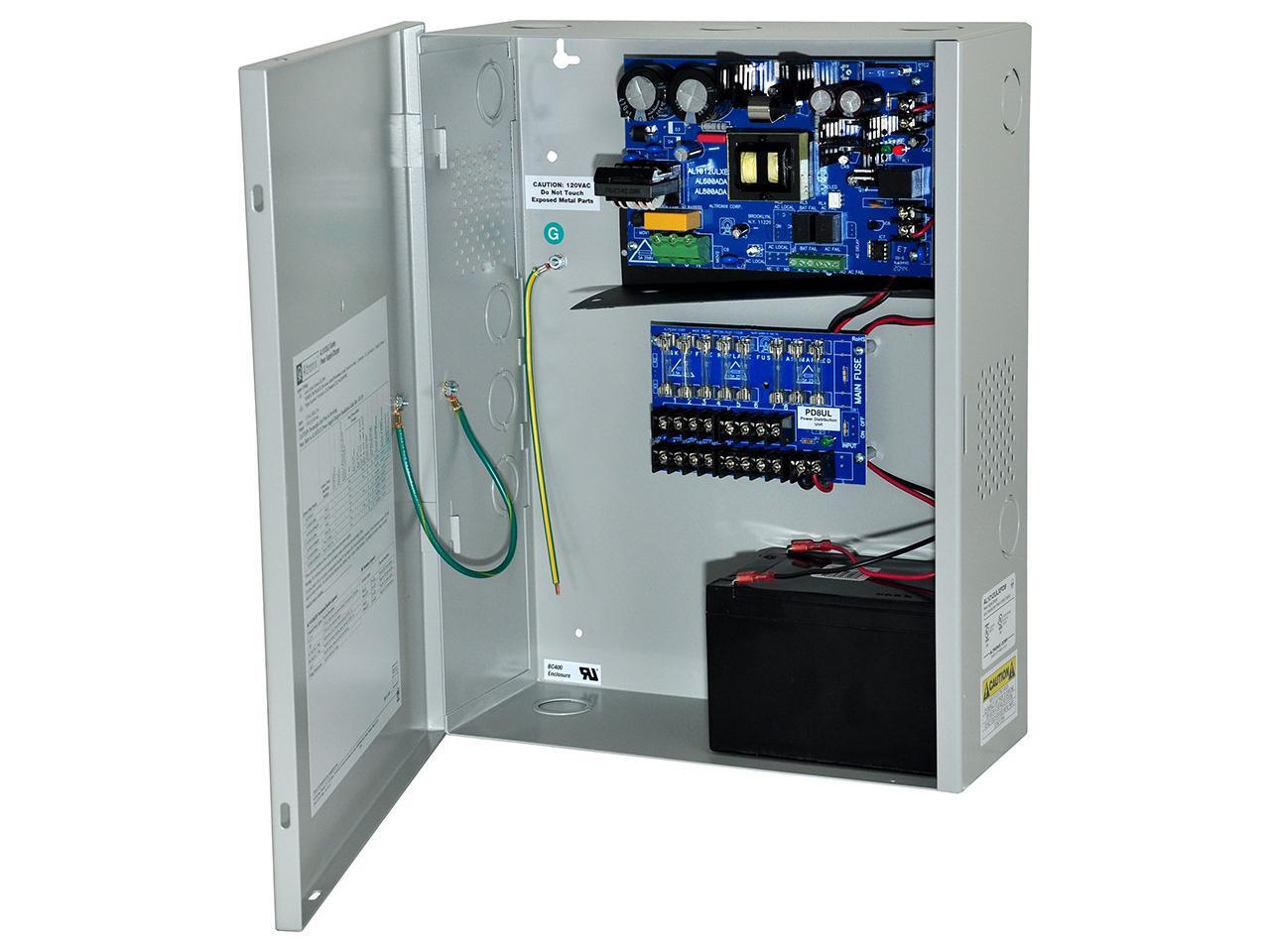

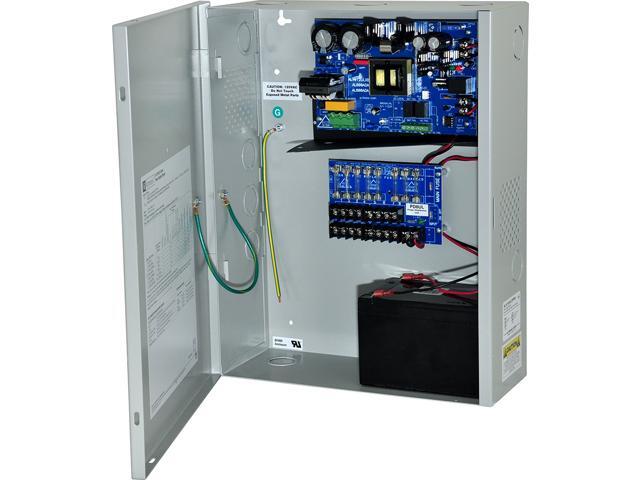

Altronix AL1012ULXPD8 Proprietary Power Supply - Power Supply Charger - 8 Fused Outputs - 12VDC @ 10A - 115VAC - BC400 Enclosure
- Input
- Input 115VAC, 60Hz, 1.9A.
- Input fuse rated @ 5A/250V.
- Output
- 12VDC output.
- 10A continuous supply current.
- Eight (8) fuse protected outputs.
- Output fuses are rated @ 3.5A/250VAC.
- Filtered and electronically regulated output.
- Short circuit and thermal overload protection.
- Battery Charging
- Built-in charger for sealed lead acid or gel type batteries.
- Maximum charge current: 0.7A.
- Automatic switch over to stand-by battery when AC fails.
- Zero voltage drop when switched over to battery backup.
- (Batteries are sold separately).
- Supervision
- AC fail supervision (form "C" contacts).
- Notification trigger is selectable for 30 seconds (factory set) or 6 hours.
- Low battery supervision (form "C" contacts).
- Battery presence supervision (form "C" contacts).
- Visual Indicators
- AC input and DC output LED indicators.
- Temperature
- Operating: 0 to 49° C (32 to 120° F ).
- Storage: - 20 to 70° C ( - 4 to 158° F).
- Relative Humidity: 85% +/- 5%
- BTU/Hr. (approx.): 61 BTU/Hr.
- System AC input VA requirement: 299VA.
- $259.99 –
