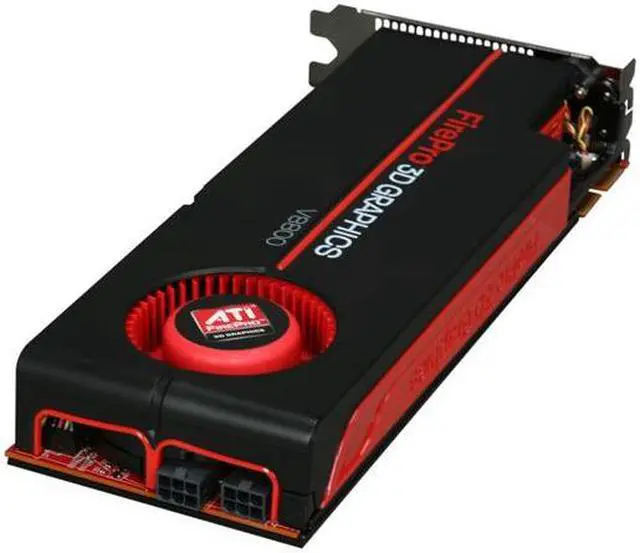

The ATI FirePro V8800 is ideally suited for users who work with large data sets or shader-intensive applications and who demand high-end computational power and the superior visual flexibility.
Based on a new-generation GPU with 1600 stream processors, its ultra parallel processing architecture helps maximize throughput by automatically directing graphics horsepower where it’s needed.
AMD Eyefinity TechnologyAdvanced multi-display technology delivers a highly immersive graphics/computing experience with innovative display capabilities supporting massive desktop workspaces.
AutoDetect TechnologyAs a user moves between applications, or opens new ones, the graphics driver settings are automatically configured for optimized performance.
Multi-View DisplayWith four DisplayPort outputs, Multi-View enables up to four displays with independent display resolution, refresh rate, and display rotation settings.
Full 30-bit Display PipelineThe full 30-bit display pipeline enables more color values than 24-bit products for more accurate color reproduction and superior visual fidelity. (30-bit monitor required for full 30-bit display.)
OPTIMIZED AND CERTIFIED FOR MANY CAD AND DCC APPLICATIONSThe certification of AMD FirePro professional graphics solutions ensures compatibility, reliability and the highest level of performance when used with professional 3D software packages.
Industry-leading API SupportFull Shader Model 5.0 support helps create highly complex geometry and scenes without taxing the CPU. DirectX 11 and OpenGL 4.1 advanced features enable optimal performance in leading applications. Support for industry standard OpenCL 1.1, an open, multiplatform development platform, helps enable broad adoption of heterogeneous computing.
Learn more about the AMD 100-505603
Model
Brand
AMD
Model
100-505603
Interface
Interface
PCI Express 2.0 x16
Chipset
Chipset Manufacturer
ATI
GPU
FirePro V8800
Stream Processors
1600
Memory
Memory Size
2GB
Memory Interface
256-bit
Memory Type
GDDR5
3D API
DirectX
DirectX 11
OpenGL
OpenGL 3.2
Ports
DisplayPort
4
Other Ports
Stereo (3-pin DIN)
Details
Digital Resolution
2560x1600 @ 60Hz
CrossFire Supported
CrossFire Pro
Cooler
With Fan
Operating Systems Supported
Windows Vista (64-bit and 32-bit), Windows XP (64-bit and 32-bit) Linux (64-bit and 32-bit)
System Requirements
512MB of system memory CD-ROM drive (or internet access) for software installation Power supply w/225W for graphics Two 2x3 power connectors
Auxiliary Power Connector
2 x 6 Pin
Features
Features
ATI Eyefinity Technology Industry’s most powerful workstation graphics that supports up to four independent displays Professional quality and performance for the high-end market Features industry’s highest memory bandwidth 2X computing capability over prior generation ATI Eyefinity capable graphics card Four DisplayPort outputs Drive up to 4 independent 30" displays – 16.4 million pixels Scalable ultra parallel processing architecture with 1600 stream processors AutoDetect technology instinctively optimizes performance for multi-application workflow Hardware acceleration of DirectX 11 & OpenGL 3.2 advanced features Optimized and certified for many major CAD and DCC applications Full 30-bit Display Pipeline Full Shader Model 5.0 Support OpenCL 1.0
Form Factor & Dimensions
Form Factor
Full Height / Full Length
Packaging
Package Contents

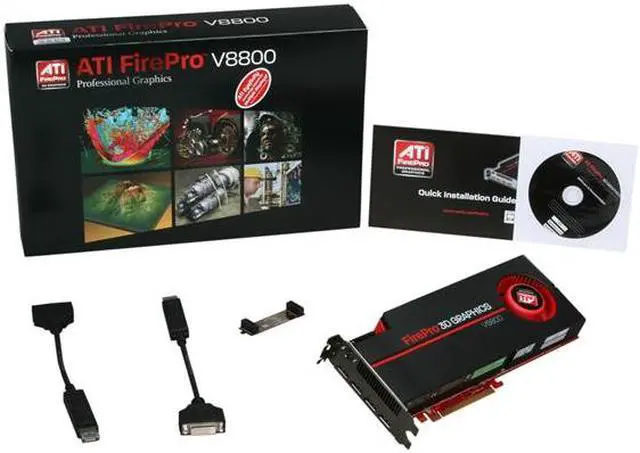

ATI FirePro V8800 professional graphics card Installation CD with drivers and documentation Quick Start Reference Guide Two DP to DVI (single-link) adapters One ATI CrossFire Pro connection cable
Additional Information
First Listed on Newegg
October 05, 2021
