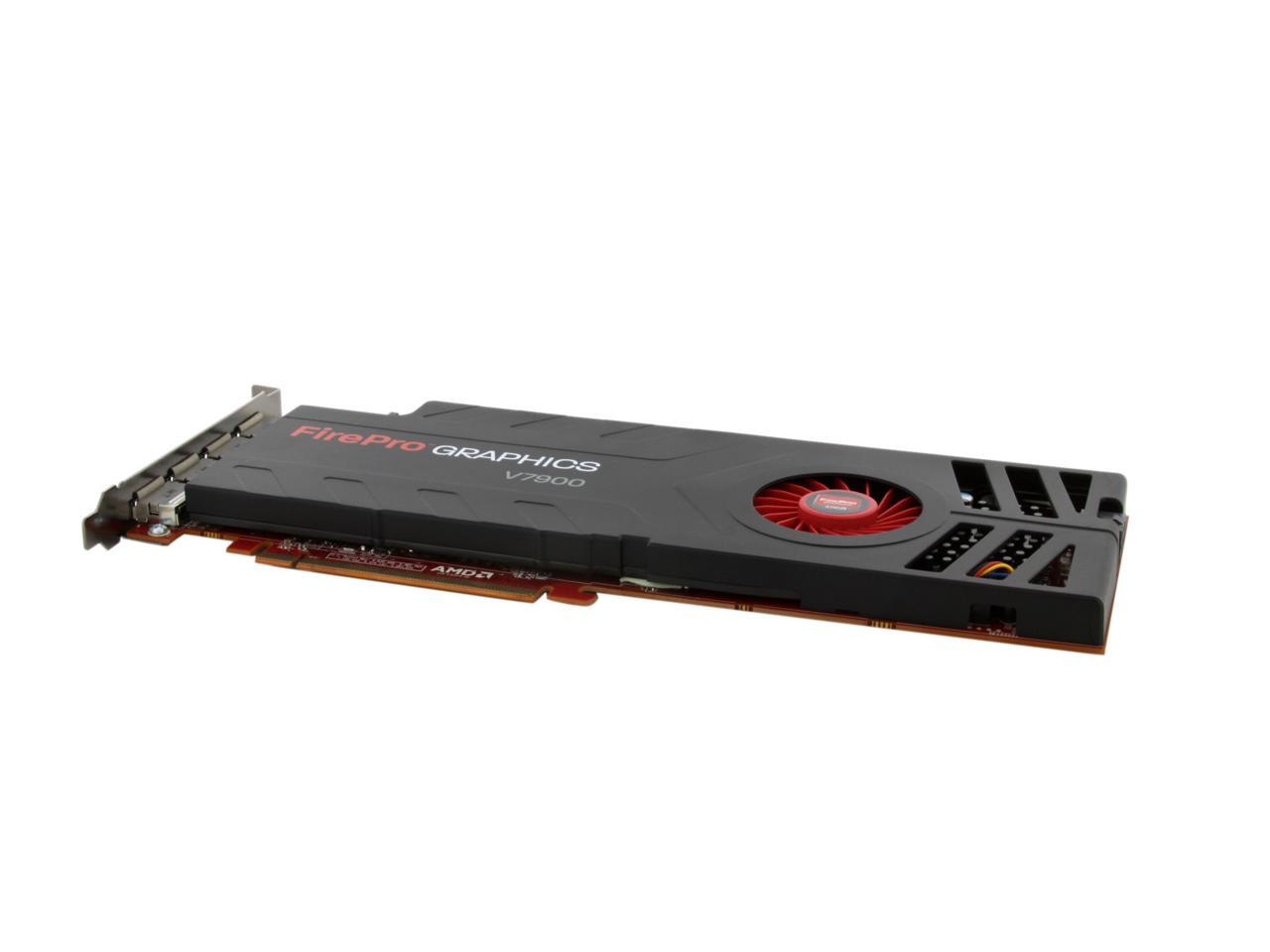

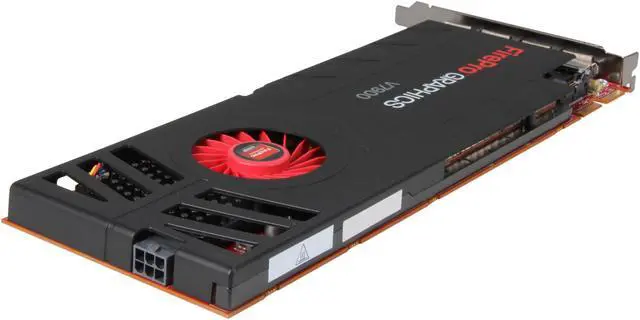

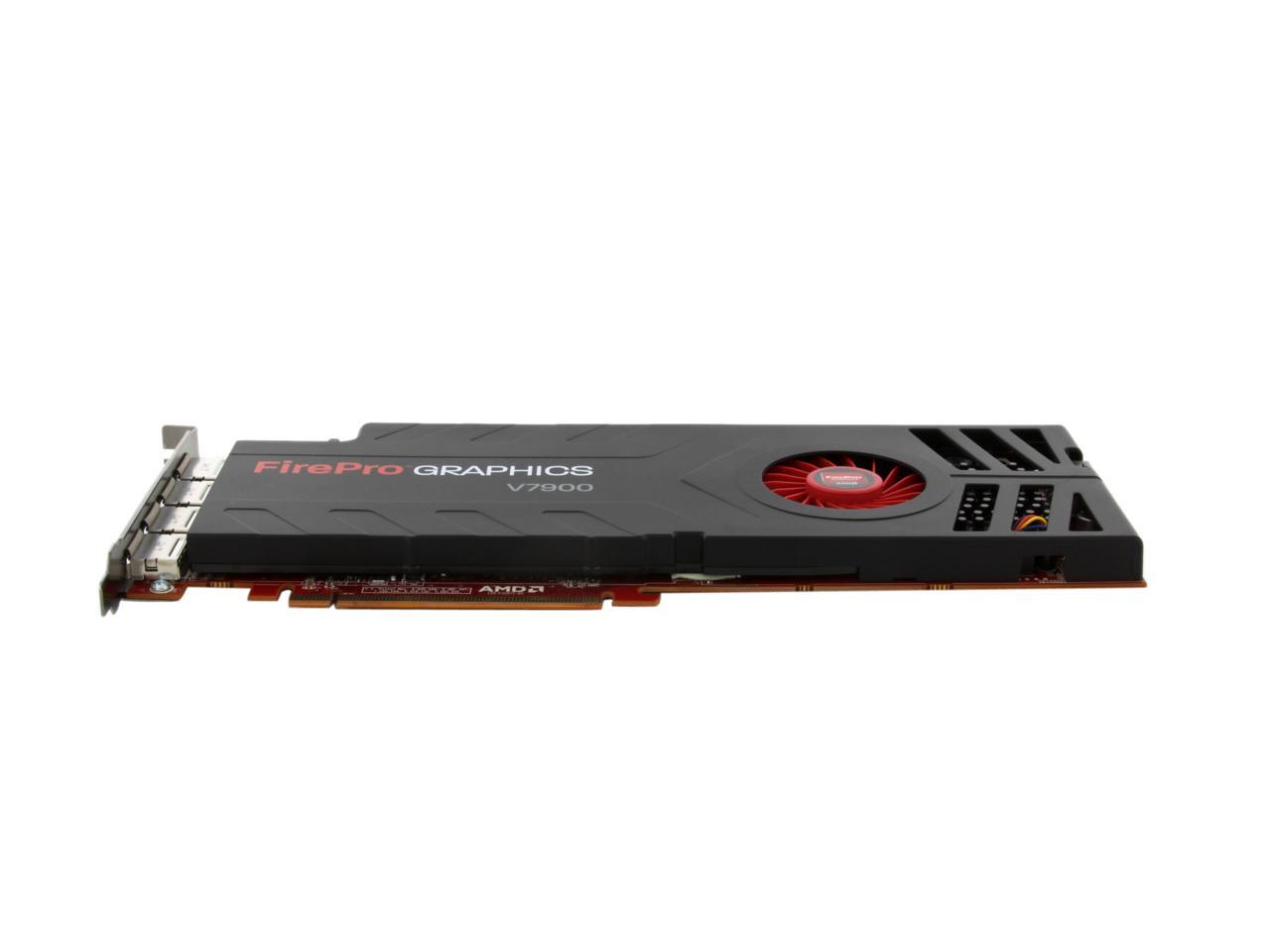

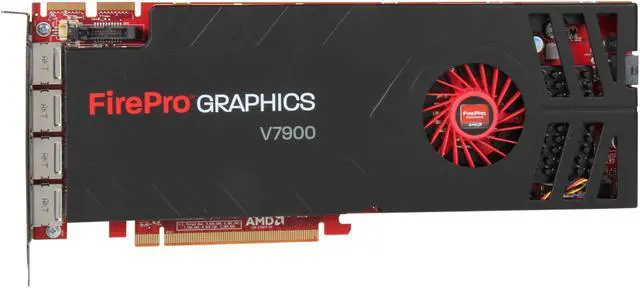

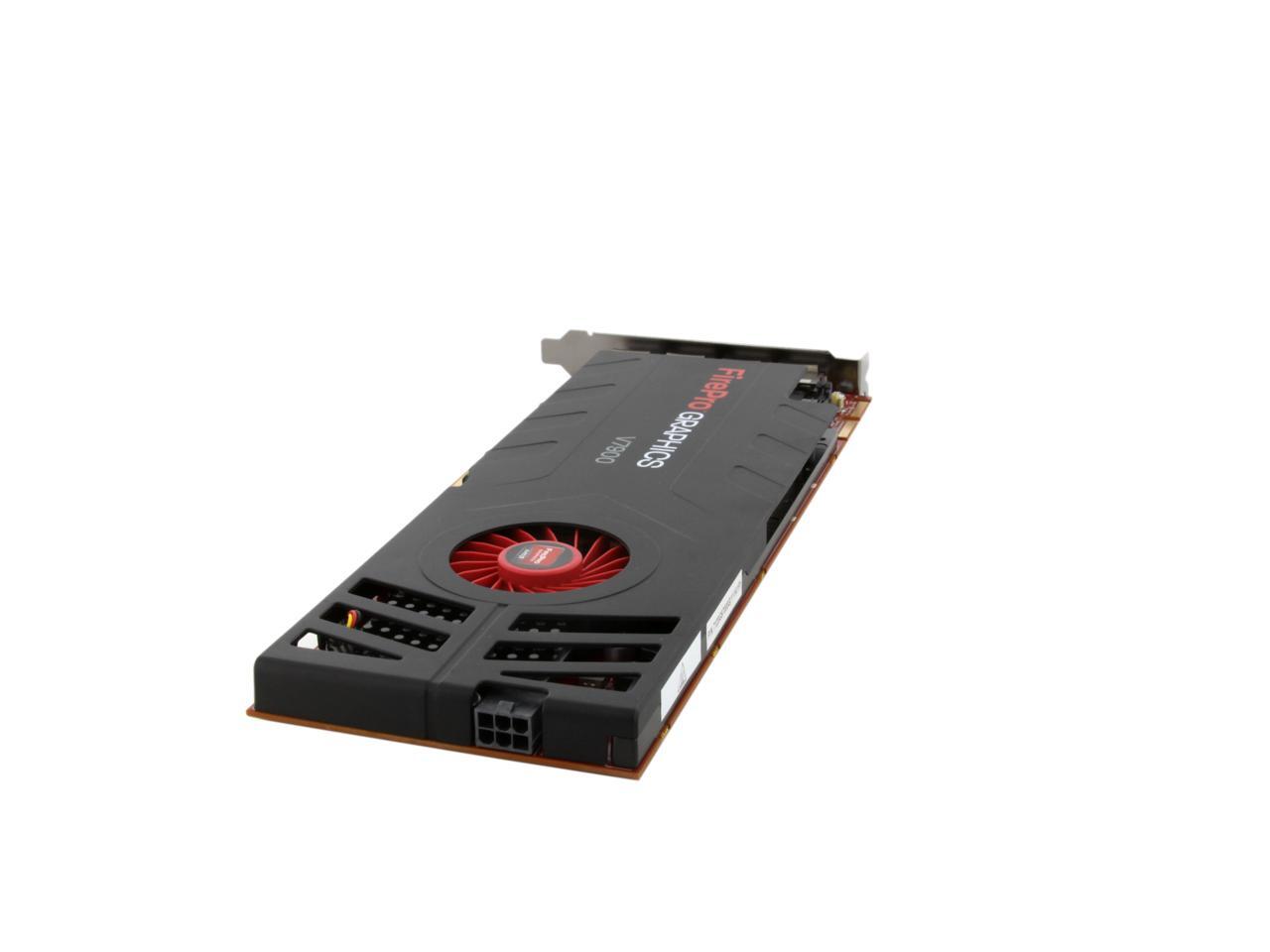

The AMD FirePro V7900 professional graphics delivers incredible performance, superb visual quality, and outstanding multi-display capabilities all in a single-slot solution. It is an excellent solution for professionals who work with advanced visualization, complex models, and large data sets.
The AMD FirePro V7900 features incredible multi-display capability with AMD Eyefinity technology support for four simultaneous and independent monitors from a single graphics card. Also, the AMD FirePro V7900 is backed by 2GB of ultra-fast GDDR5 memory and 1280 stream processors.
AMD Eyefinity Technology plus DisplayPort 1.2With the revolutionary multi-display technology, the AMD FirePro V7900 supports four independent displays, delivering the most immersive graphics/computing experience with innovative display capabilities supporting massive desktop workspaces. Support for the newest DisplayPort 1.2 standard adds exciting new features such as high bit-rate audio, higher data bandwidth, and multi-streaming capabilities.
GeometryBoost TechnologyUnleash your creativity with the new hardware architecture that provides ultra-high geometry performance and ensures smooth handling of complex models.
AMD PowerTune TechnologyThis state-of-the-art power management technology provides direct control over GPU power usage. Applications enjoy ultimate performance with dynamic clock optimization, while keeping your workstation energy-conscious and helping to conserve electricity when it isn’t needed.
Full 30-bit Display Pipeline, Framelock/Genlock, and AutoDetect TechnologyThe full 30-bit display pipeline enables more color values than 24-bit products for more accurate color reproduction and superior visual fidelity. Framelock/Genlock ensures accurate and consistent video synchronization to external sources or multiple GPUs in different systems. As a user moves between applications, or opens new ones, AutoDetect Technology ensures the graphics driver settings are automatically configured for optimized performance.
Certified ApplicationsThe certification of AMD FirePro professional graphics solutions assures professional engineers, designers and animators that the AMD FirePro professional graphics line delivers a stable and high performance workstation graphics environment on both Windows and Linux platforms. AMD FirePro professional graphics are certified for: Engineering and Design (CAD/CAE/AEC), Digital Content Creation (DCC) & Digital Media, Geographical Information Systems (GIS) & Visualization, Life Sciences and Oil & Gas.
Industry-leading API SupportFull Shader Model 5.0 support helps create highly complex geometry and scenes without taxing the CPU. DirectX 11 and OpenGL 4.1 advanced features enable optimal performance in leading applications. Support for industry standard OpenCL 1.1, an open, multiplatform development platform, helps enable broad adoption of heterogeneous computing.
Learn more about the AMD 100-505861
Model
Brand
AMD
Model
100-505861
Interface
Interface
PCI Express 2.1 x16
Chipset
Chipset Manufacturer
AMD
GPU
FirePro V7900
Stream Processors
1280
Memory
Memory Size
2GB
Memory Interface
256-bit
Memory Type
GDDR5
3D API
DirectX
DirectX 11
OpenGL
OpenGL 4.1
Ports

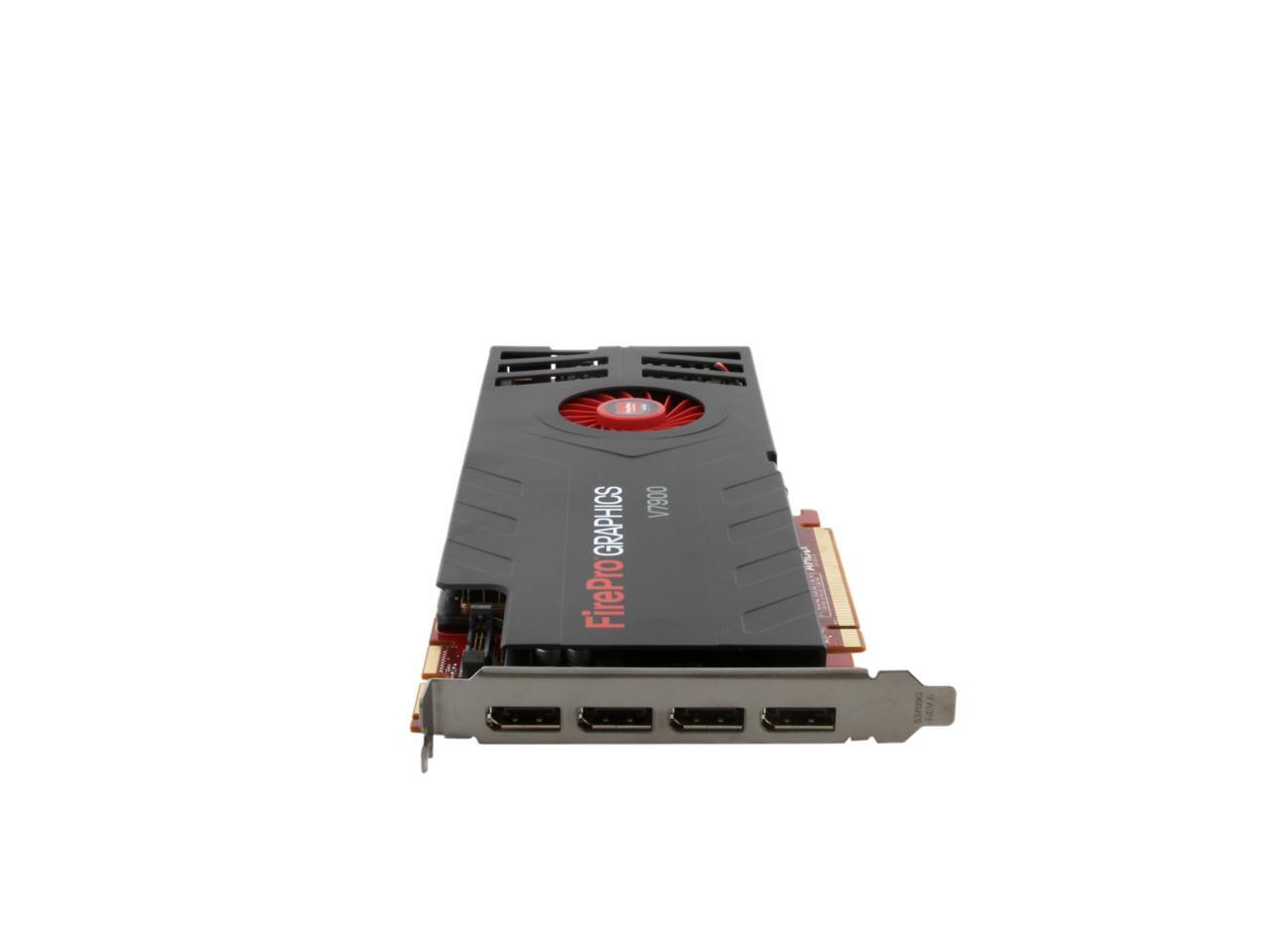

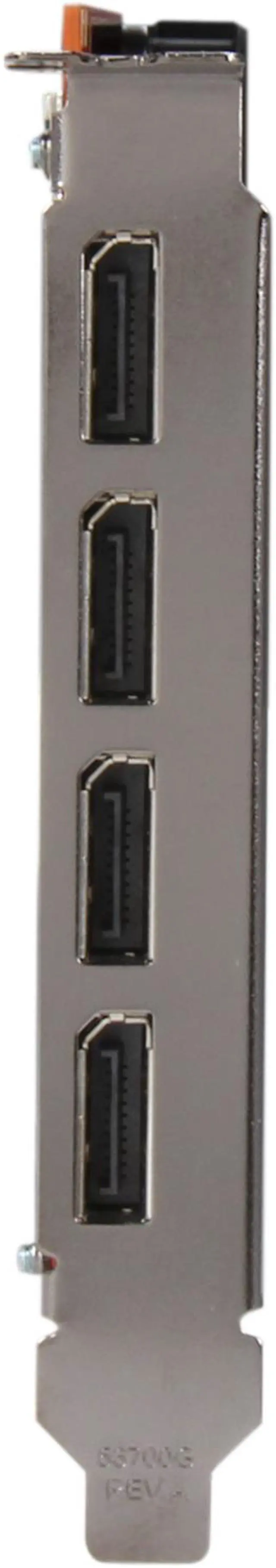

DisplayPort
4
Details
RAMDAC
400 MHz
Digital Resolution
2560 x 1600
Max Displays Per Board
4
CrossFire Supported
Yes
Cooler
With Fan
Dual-Link DVI Supported
Yes
HDCP Ready
Yes
Operating Systems Supported
Windows Vista (64-bit and 32-bit), Windows XP (64-bit and 32-bit) Linux (64-bit and 32-bit)
System Requirements
Max Power: <150W 512MB of system memory CD-ROM drive (or internet access) for software installation Available PCI Express x16 slot

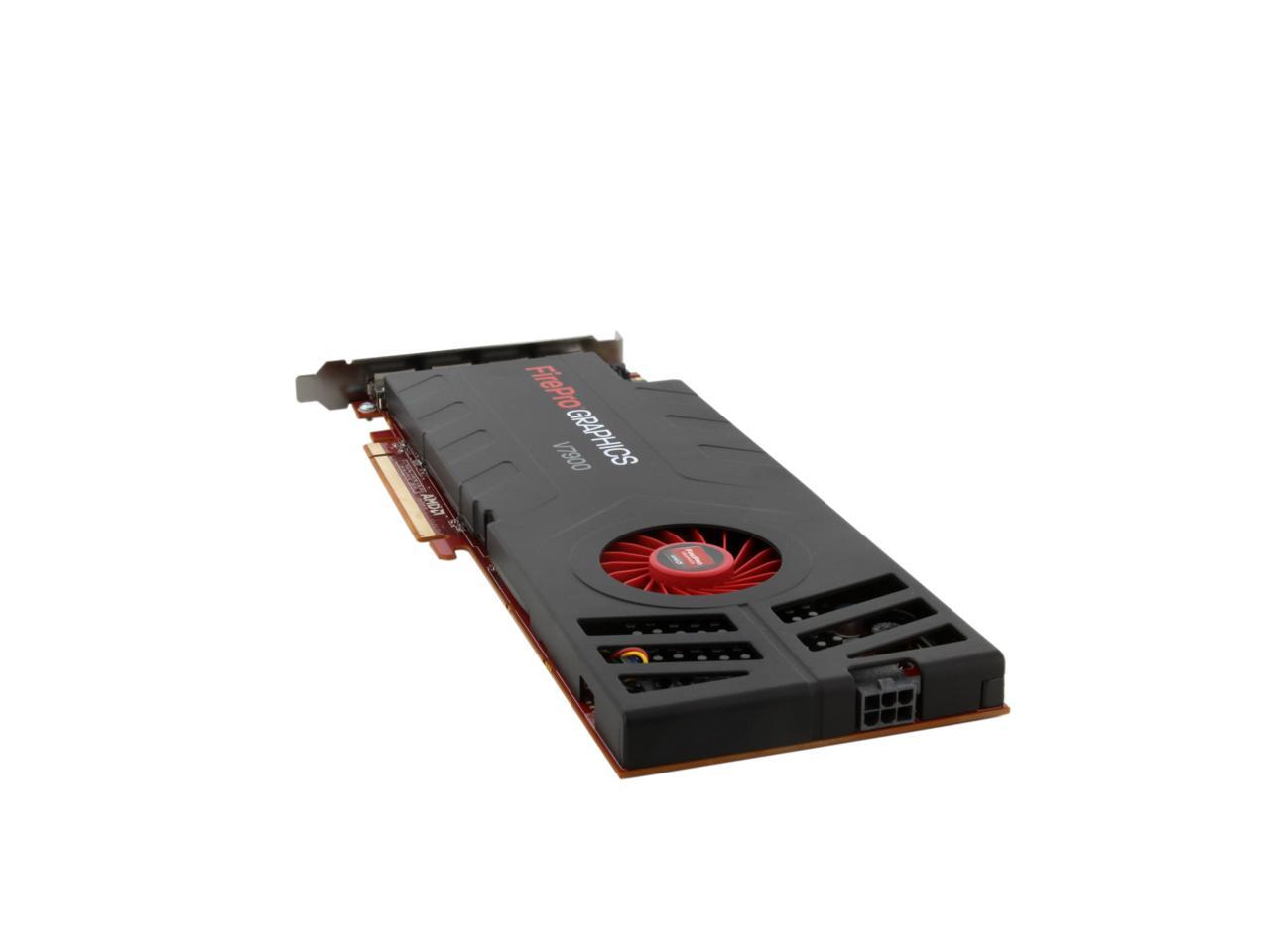

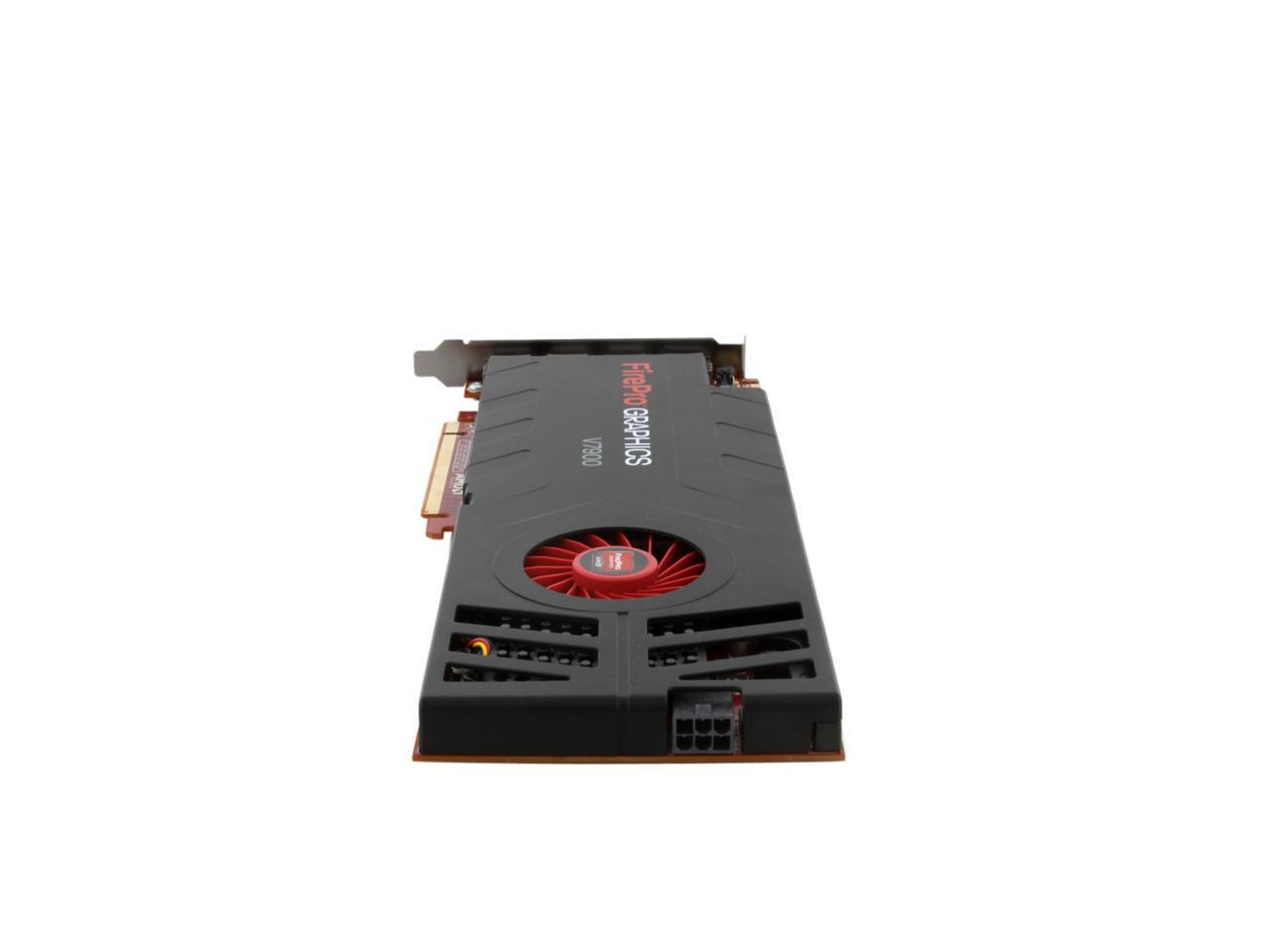

Auxiliary Power Connector
6 Pin
Features
Features
AMD Eyefinity Technology - With the revolutionary multi-display technology, the AMD FirePro V7900 supports four independent displays, delivering the most immersive graphics/computing experience with innovative display capabilities supporting massive desktop workspaces
GeometryBoost Technology - Unleash your creativity with the new hardware architecture that provides ultra-high geometry performance and ensures smooth handling of complex models.
AMD PowerTune Technology - State of the art power management technology that provides direct control over GPU power usage.
DisplayPort 1.2 - Support for the newest DisplayPort standard adds exciting new features such as high bit-rate audio, higher data bandwidth, and multi-streaming capabilities.
Framelock/Genlock - Ensures accurate and consistent video synchronization to external sources or multiple GPUs in different systems.7
AutoDetect Technology - As a user moves between applications, or opens new ones, the graphics driver settings are automatically configured for optimized performance.
Full 30-bit Display Pipeline - Enables more color values than 24-bit products for more accurate color reproduction and superior visual fidelity.
Full Shader Model 5.0 Support - Helps create highly complex geometry and scenes without taxing the CPU.
Certification - Ensure compatibility, reliability and the highest level of performance when used with professional 3D software packages.
DirectX 11 and OpenGL 4.1 Advanced Features - Enables optimal performance in leading applications.
OpenCL 1.1 - Industry standard API - Open, multiplatform development platform to help enable broad adoption of heterogeneous computing.
Form Factor & Dimensions
Form Factor
Full Height / Full Length
Packaging
Package Contents
AMD FirePro V7900 PCI Express Professional Graphics
Form Factor & Dimensions
Slot Width
Snigle slot
Additional Information
First Listed on Newegg
November 13, 2024
