Does your item come with the old-style heat sink (as shown in your picture) or new heat sink version released by AMD? The old heat sink will warp after a year of use and the card will overheat and get damaged.

The heat sink is as shown. The card produces very little heat and the heat sink is of little importance. I use the card in an older server which has a bad onboard video processor. This card is very low powered compared to other cards. As such, it only really makes sense for folks that need a PCIe x1 card. If you're looking for high performance, and thus something where the heat sink is a concern, you'll want something else.

can this be used to display 1080 to 1440p video in HDR?

No. The display port adapter on this card is v1.2, and v1.4 is the minimum for HDR support.

$182^.00

Free 30-day Returns

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Tech Trends

Top Rated

4.7 (170 seller ratings)

Shipped by Tech Trends

Best Sellers

Alliance Group (USA)

4.4 (44 total ratings)

$182^.00
+ FREE SHIPPING

Meet Your Seller

Tech Trends

See Seller Store

100%

360^°

Shop All AMD Products | Visit Tech Trends Store

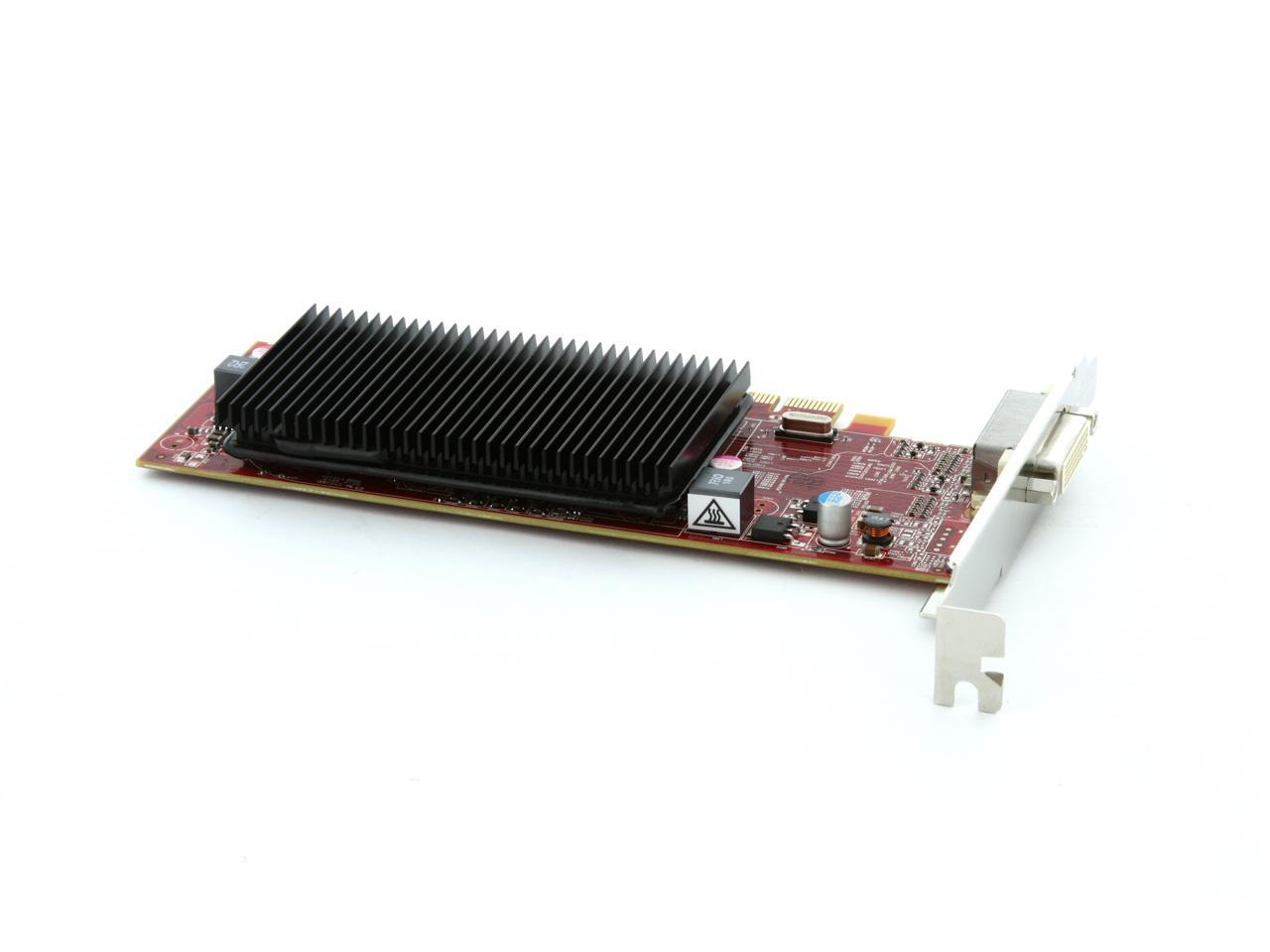

AMD FirePro 2270 100-505972 512MB DDR3 PCI Express 2.1 x1 Low Profile Graphics Card

(13) Write a Review

FirePro 2270
512MB DDR3
PCI Express 2.1 x1

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (13)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	AMD
Model	100-505972

Interface
Interface	PCI Express 2.1 x1

Chipset
Chipset Manufacturer	AMD
GPU	FirePro 2270

Memory
Memory Size	512MB
Memory Type	DDR3

3D API
DirectX	DirectX 11
OpenGL	OpenGL 4.1

Ports
DMS-59	1

Details
RAMDAC	400 MHz
Digital Resolution	2560x1600 (DisplayPort)
Analog Resolution	1920x1200 (DVI / VGA)
Max Displays Per Board	2
Cooler	Fanless
Operating Systems Supported	Microsoft Windows XP, Windows Vista, Windows 7 or Linux (32-bit or 64-bit)
System Requirements	Available PCIe x1 or x16 lane 256MB of system memory CD-ROM drive (or Internet access) for software installation* *Linux drivers can be downloaded from support.amd.com

Features
Features	Power two 30" high resolution displays Maximum digital resolution 2560x1600 Maximum analog resolution 1920x1200 Maximum board power 15W Low profile design 512MB graphics memory DMS-59 connector to support breakout cables for dual DisplayPort, DVI and VGA output PCI Express 2.1 compliant Full DirectX 11 and OpenGL 4.1 support Planned minimum four year lifecycle

Form Factor & Dimensions
Form Factor	Low Profile
Dimensions (L x H)	6.50" x 2.17"

Packaging

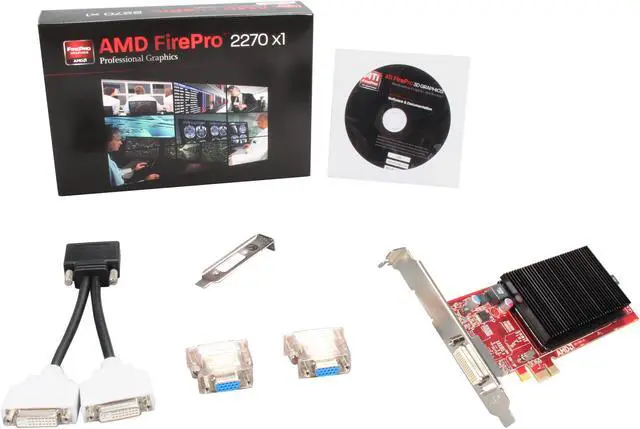

Package Contents	FirePro 2270 Graphics Card (512MB) 2x DVI to D-Sub Dongle 1x DMS-59 to Dual DVI Cable Low Profile Bracket Driver Disc Quick Installation Guide

Form Factor & Dimensions
Slot Width	Single slot

Additional Information
First Listed on Newegg	October 05, 2021
