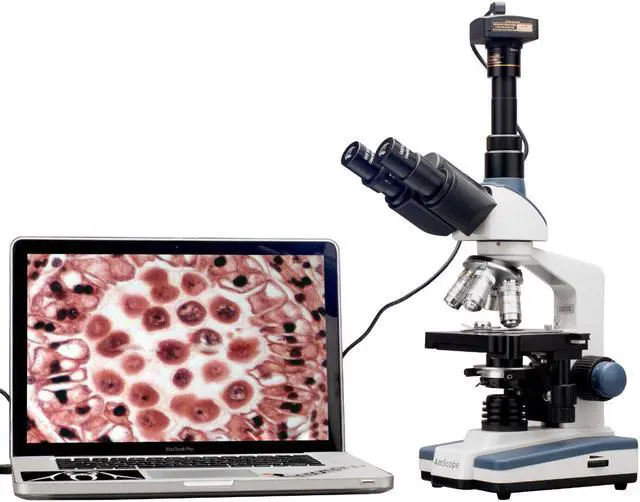

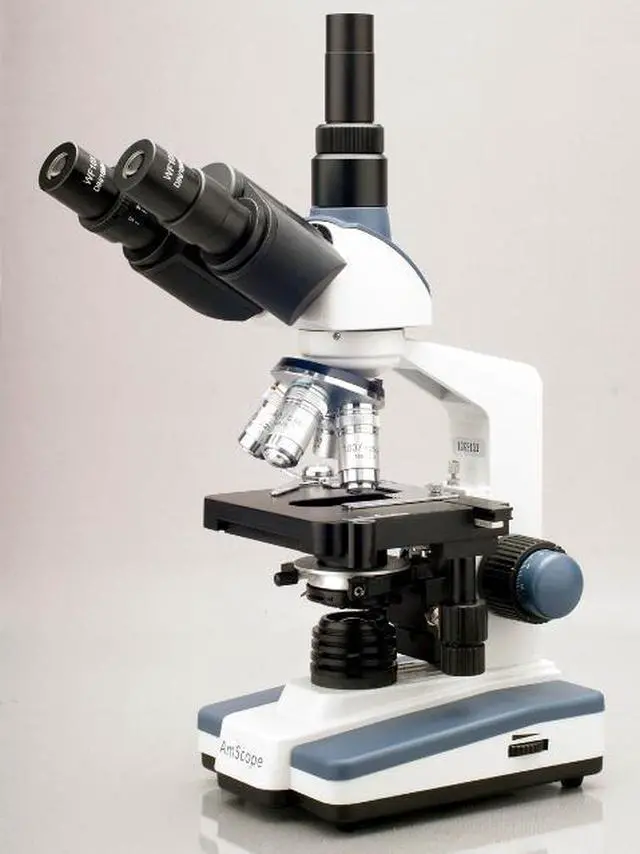

2000X LED Lab Trinocular Compound Microscope w 3D Mechanical Stage + 10MP Camera

Our new trinocular compound microscope with digital camera is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for teachers and students including those in medical school or with a major in biology. It comes with a Siedentopf trinocular head, double layer mechanical stage with course & fine focusing, and an LED illumination system. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. The digital camera captures still microscopy images, streams live videos on your computers, and is compatible with Windows XP/Vista/7/8, Mac OS X, and Linux. The 0.5X reduction lens included gives your computer screens the same field of view as your microscope's eyepiece. The user-friendly software for Windows offers advanced features including Stitching, EDF (Extended Depth of Focus), video recording, and measurement functions. Live video and still image capture can be set in different resolutions simultaneously. You can edit and process images in a manner similar to PhotoShop. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches. Your product will arrive in a factory sealed box with retail value $1900.

Features :

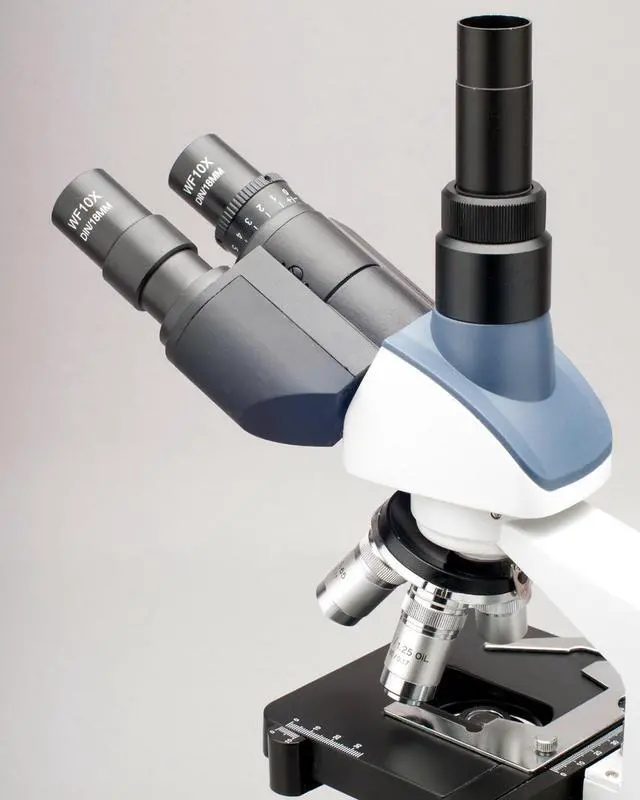

30 degree inclined 360 degree swiveling Siedentopf trinocular head

High quality precise optical glass elements

Easy to attach a microscope camera or digital imager

Eight magnification settings, 40X-80X-100X-200X-400X-800X-1000X-2000X

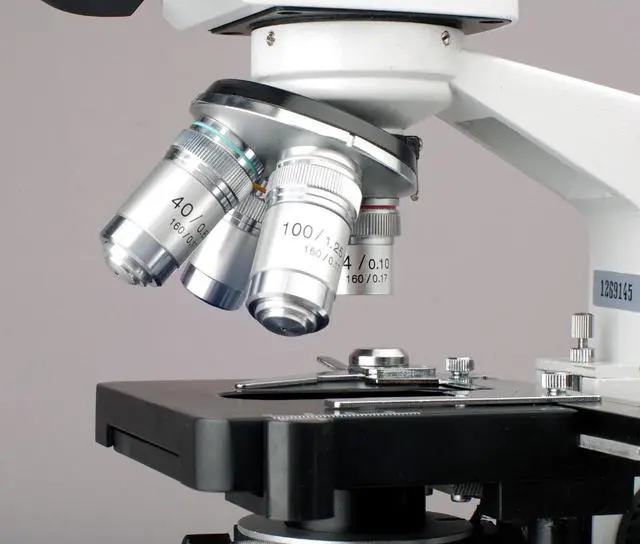

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

Two pairs of widefield eyepieces: WF10X and WF20X

Adjustable interpupillary distance

Adjustable ocular diopter

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Focusing knobs are on both sides

Stage upward moving lock protects objectives and slides

Stain-resistant double layer mechanical stage

NA1.25 Abbe Condenser with iris diaphragm & filters

Rack and pinion adjustment condenser

Excellent Five (5) Year Factory Warranty

Specifications :

Eyepieces: widefield, WF10X and WF20X

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30 degree inclined 360 degree swiveling trinocular

Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)

Adjustable ocular diopter

Nosepiece: revolving quadruple

Mechanical Stage: 3-D double layer

- Size: 4-5/8" x 5" (118mm x 127mm)

- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

Condenser: NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm)

Camera Specs:

Sensor: Aptina MT9J003 CMOS (color)

Sensor Size: 1/2.3" (6.119mm(H) x 4.589mm(V), diagonal 7.649mm)

Resolution: 3584x2748 (approx. 10,000,000 pixels)

Reduction Lens: 0.5X

Pixel Size: 1.67??m x 1.67??m

G Sensitivity: 0.31v / lux-sec (550nm)

Frame Rate: 27fps @896x684, 8fps @1792x1374, 1.9fps @3584x2748

Exposure: 0.38~2000ms, ROI Auto & Manual

Operating System: Windows XP/Vista/7/8 (32 & 64 bit), Mac OS X, Linux

PC Requirements: CPU equals to Intel Core2 2.8GHz or higher, USB2.0 port

Life-time free software upgrades
