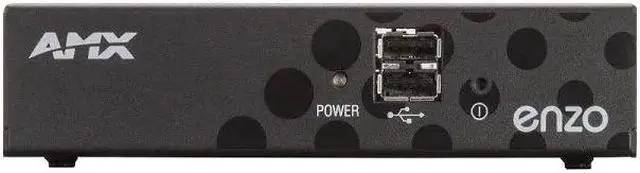

Enzo is a device purposely designed for the collaboration space to easily access content and documents stored on USB, on the web, or in the cloud.
Learn more about the AMX FG3211-01
Model
Brand
AMX
Model
FG3211-01
Performance
Screen Size
No Screen
Audio
ANALOG AUDIO -Output Connection: (1) 3.5 mm stereo audio jack -Output Level (Max): 1 Vp-p into 10 kOhms -Output Impedance: 200 Ohms
Connection
HDMI
HDMI -Output Connection: (1) HDMI Type A Female -Output Signal Type Support: HDMI -Output Resolution: 720p, 1080p
Network Interface
ETHERNET -Connection: (2) RJ-45, Auto MDI/MDI-X -Description: 10/100 BASE-T -Link/Act Indicator: (1) LED (green), on for link, blink off for activity -Speed Indicator: (1) LED (yellow), on for 100 BASE-T, off for 10 BASE-T
USB Port
USB Connection: -(4) USB 2.0 Type A -Connect USB drive to display documents -Connect keyboard and mouse
+5 V Current Output (Max): 4 W total across all USB connections
Wireless Keyboard & Mouse: -Supports 2.4 GHz RF wireless keyboard and mouse using wireless dongle (not included) -Note: Does not support Bluetooth keyboard and mouse
Power
Power Consumption
13 W, (Max)
Power Supply
External, Required: NMX-MM-1000 requires the use of a 802.3AF Compliant Power over Ethernet (PoE) Injector or PoE capable Ethernet Switch, not included
ACTIVE POWER REQUIREMENTS -Power over Ethernet: PoE, 802.3af -Power Indicator: (1) LED (red/green), solid red at start of boot, blinking green during boot, solid green after boot is complete
ENVIRONMENTAL -Temperature (Operating): 0° C to 40° C (32° F to 104° F) -Temperature (Storage): -20° C to 70° C (-4° F to 158° F) -Humidity (Operating): 5% to 85%, non-condensing
CONTROL NetLinx: -Master Code: URL, Auto, Listen -ICSP Security: Yes
RS-232: -DB-9 Male -Supported Baud Rates 150 to 115,200 -Used to control display* *To be released in a future firmware release
Operation Button: -Quick press: Sleep -Press-and-hold: System Settings
FUNCTIONAL CAPABILITIES Management Interface: On-screen configuration NetLinx On-Screen Keypad: -Number of buttons, 12 -Number of text rows, 3 -Note: Control can be disabled
Supported Document Sources: -Dropbox -USB Drive (only one can be connected to Enzo at a time) -Web Browser -Note: Document sources can be disabled
Supported Document Sharing: -Email (all sources) -Dropbox (Dropbox documents only) -Note: Email document sharing can be disabled
Supported Images: png, .jpg, .bmp, .gif
Supported Videos: .mp4 with H.264 video and AAC audio Email: -SMTP with SSL or TLS encryption -Note: Email can be disabled
-Maximum Number of Web Applications Supported: TBA
-Supported Web Browser: -Chromium-based web browser that supports HTML5. Plug-ins, including Flash, are not supported. -Note: Web browsing can be disabled
Wallpaper: Supported Formats: .png
Resolutions: any, 1920 x 1080 preferred
Customizable: Can select a single wallpaper applied to all screens EXCEPT for start session screen
