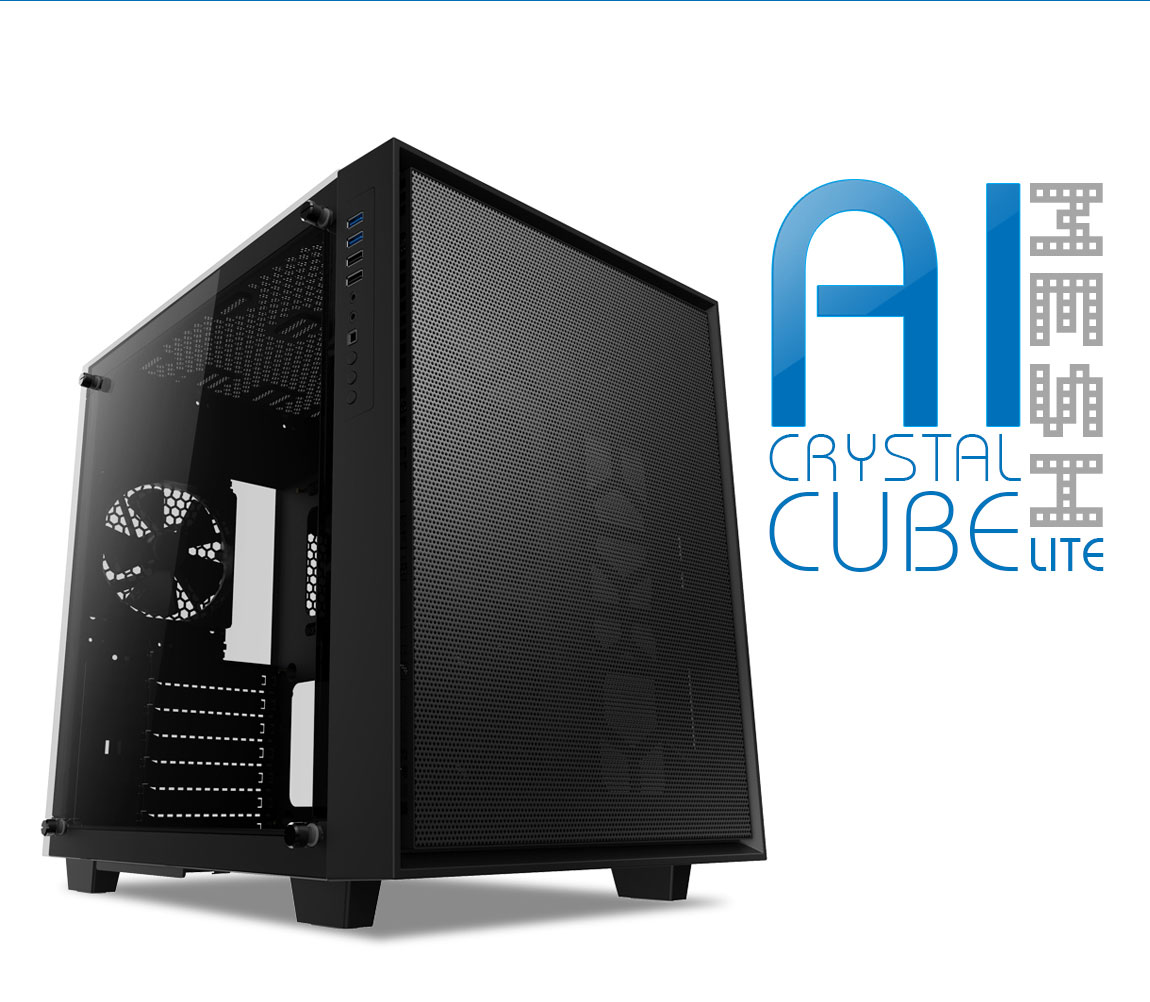

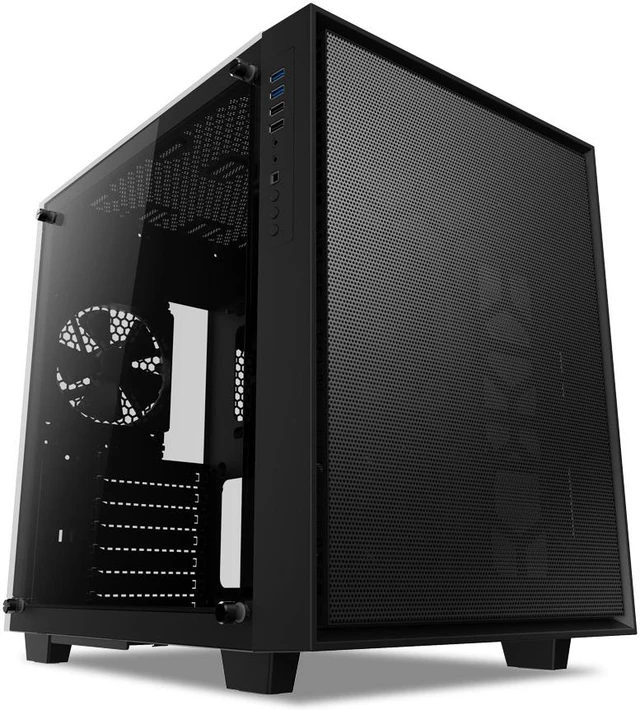

| Technical SPEC (AI-CL-CUBE-ML) |

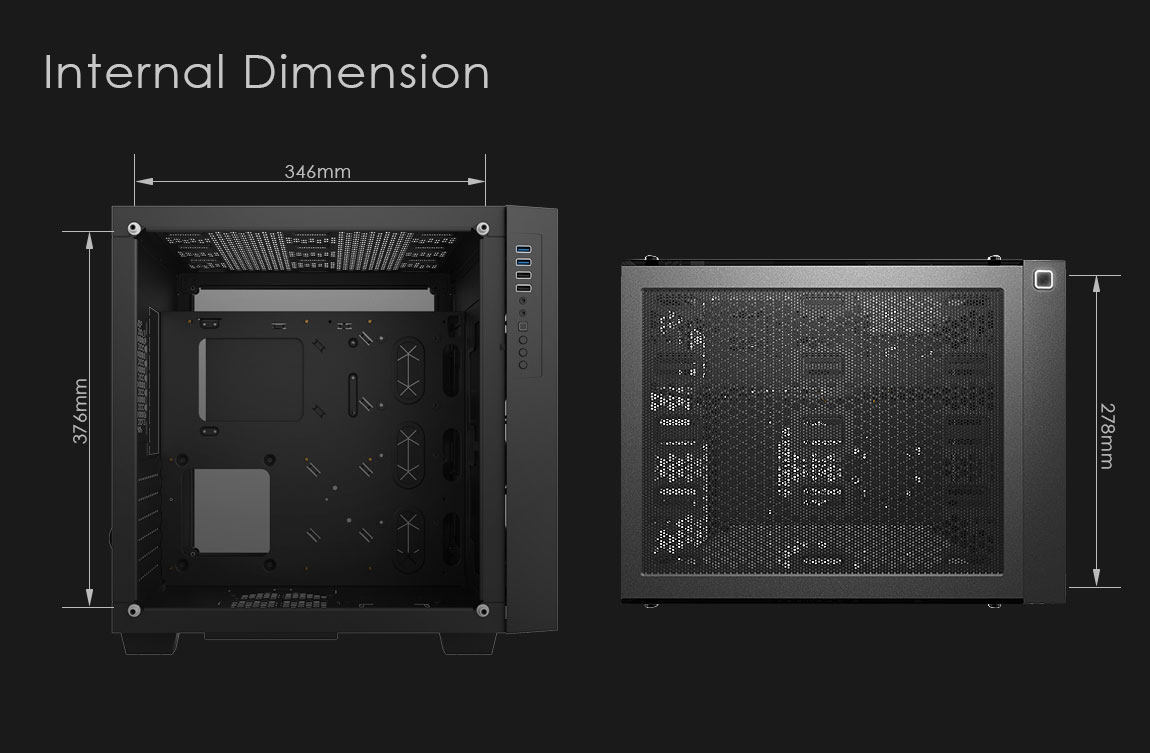

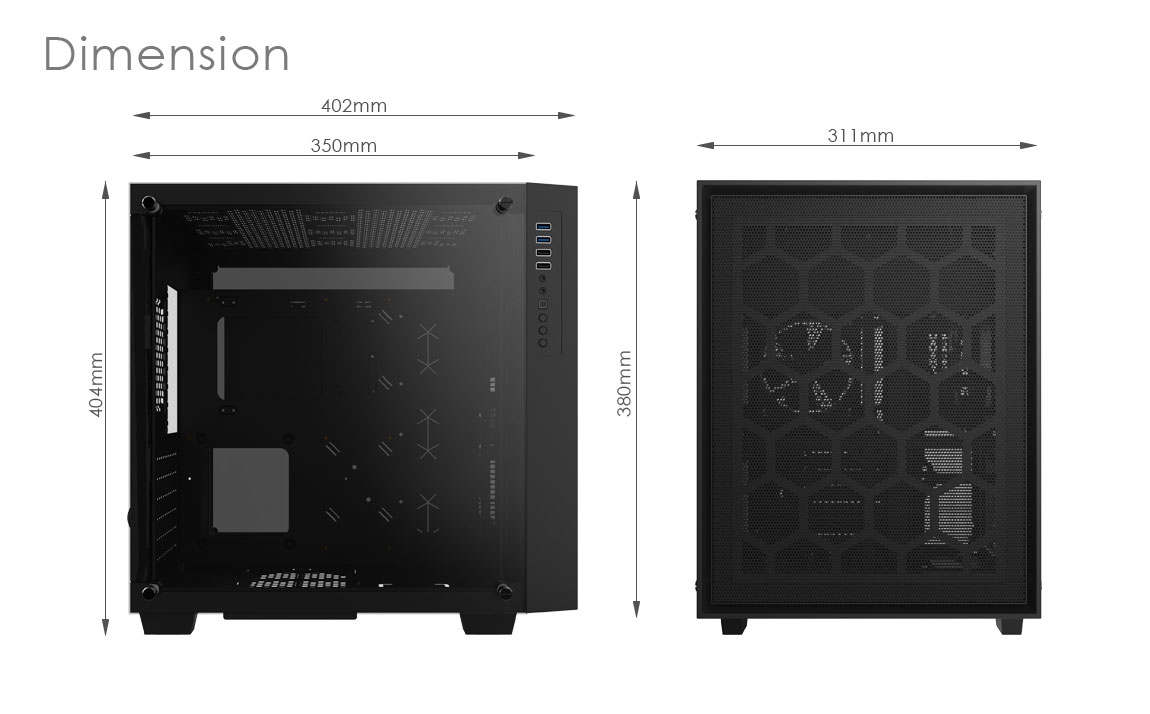

| Dimension (D / W / H ) |
402 x 311 x 404 mm |
| Color |
Black |
| Material |

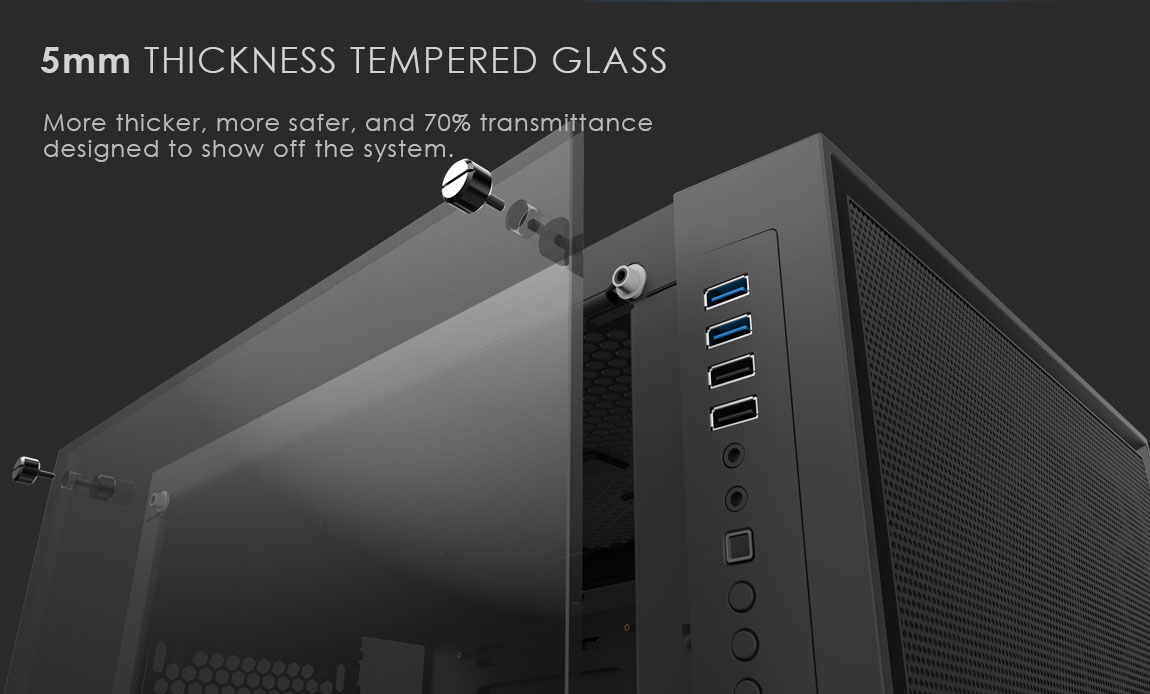

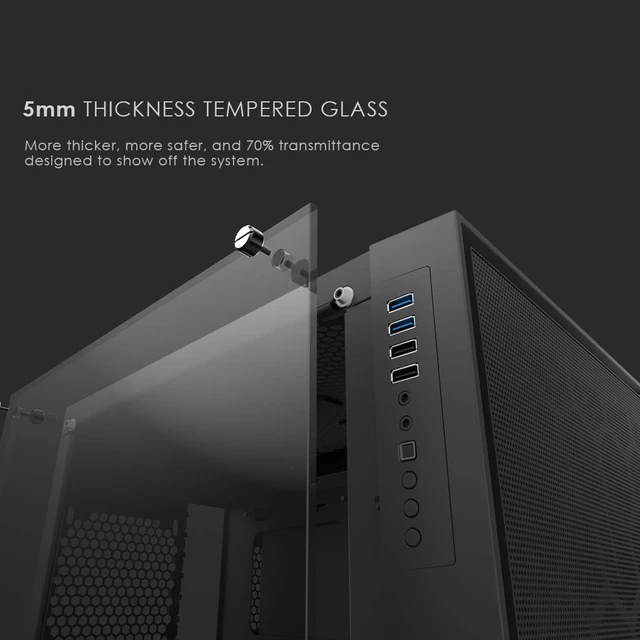

Steel body / Plastic / 5mm thickness Tempered Glass |
| Form Factor |
Midtower |

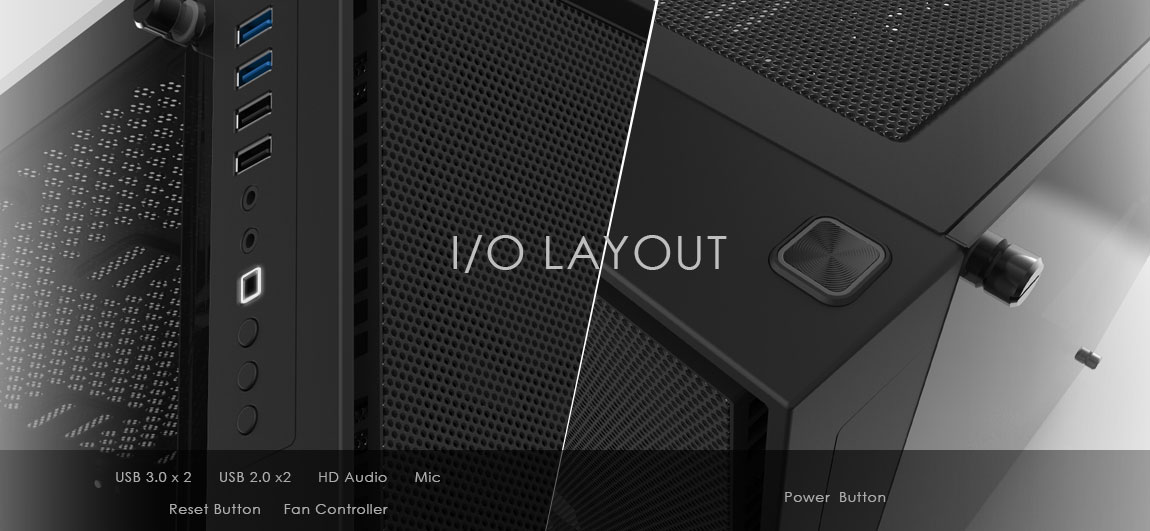

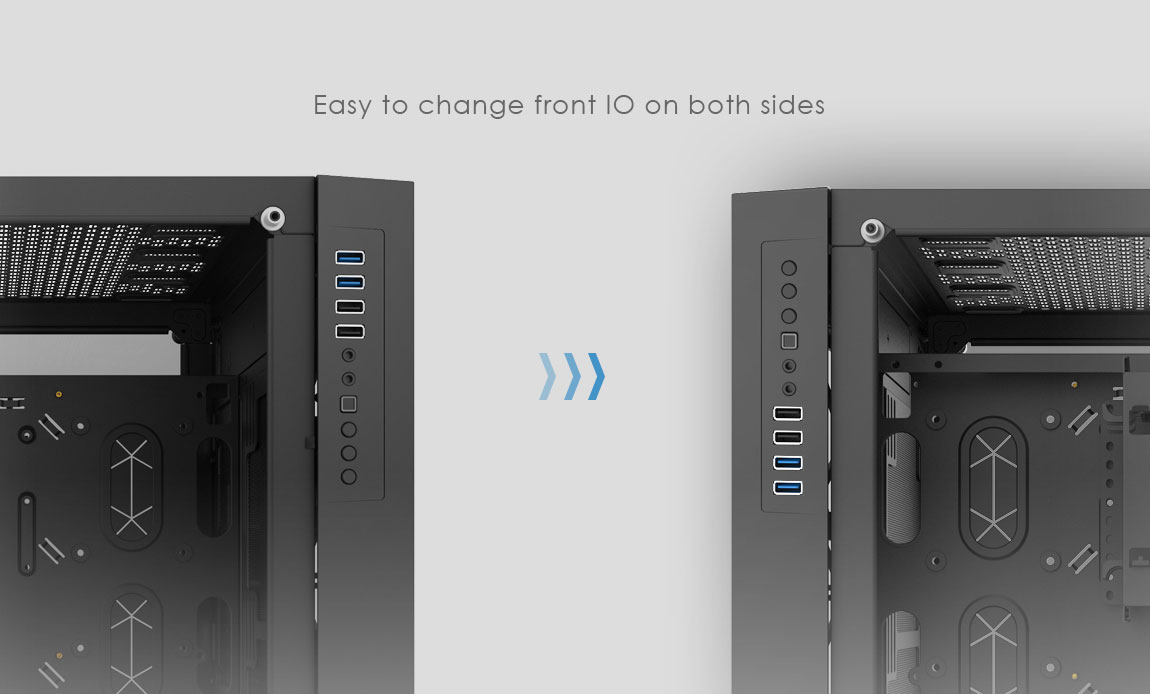

| Front IO |
USB3.0 x 2, USB2.0 x 2, Fan Controller, Audio,Mic |
| 5.25" Drive Bay |
N/A |

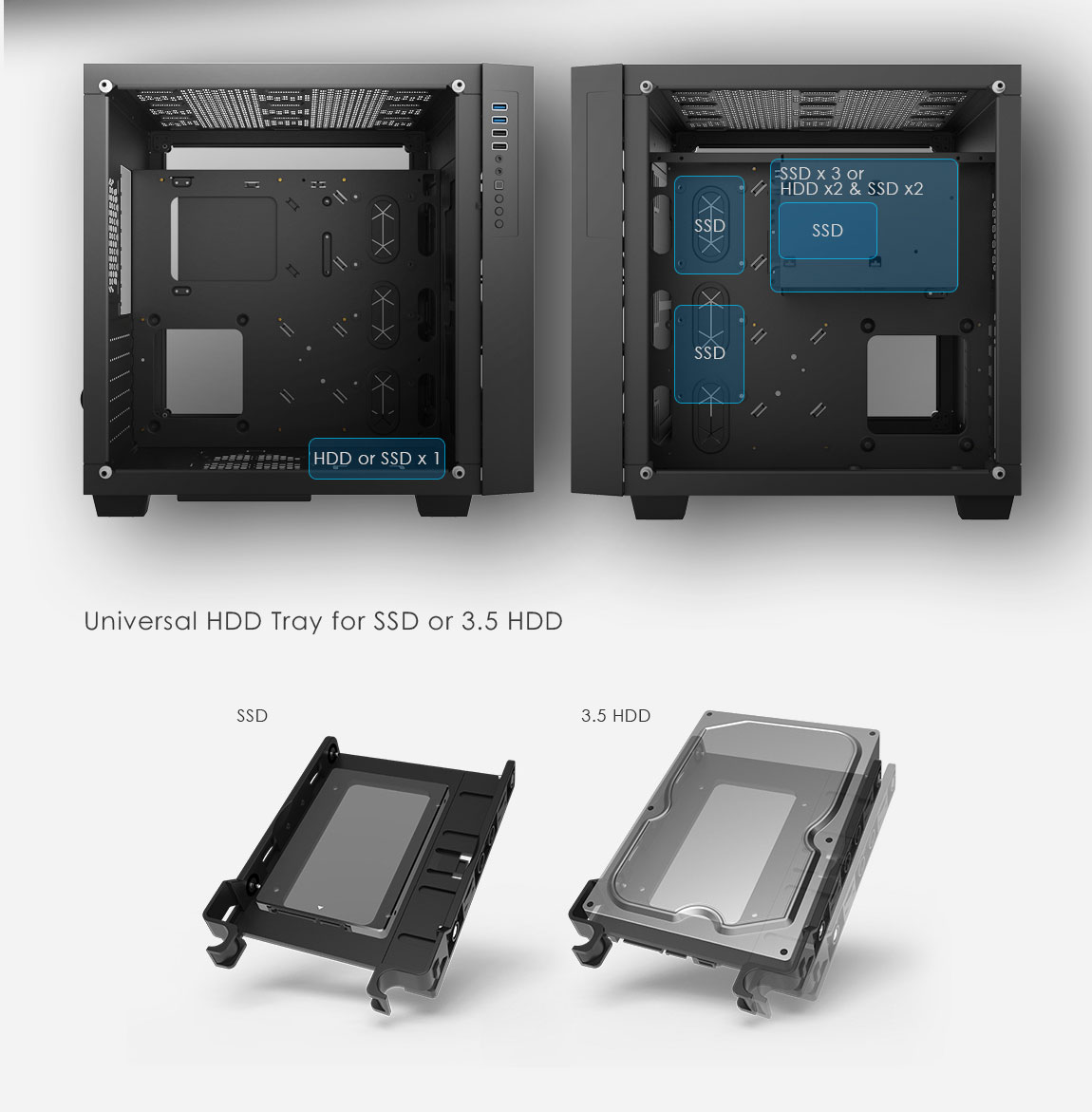

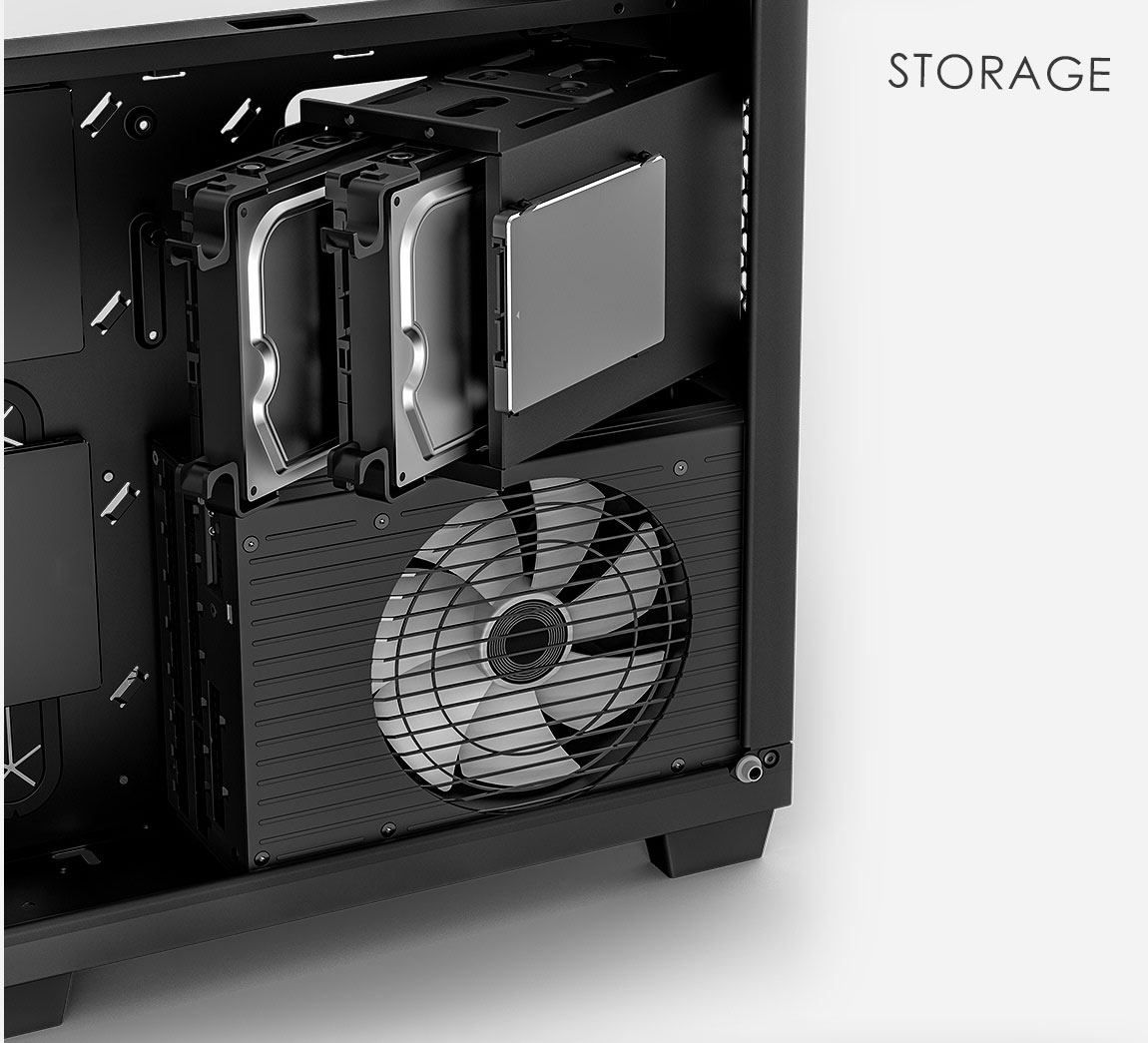

| 3.5" Drive Bay(internal) |
3 (Max) |
| 2.5" Drive Bay |
6 (Max) |
| Expansion Slots |
7 |
| Compatibility |

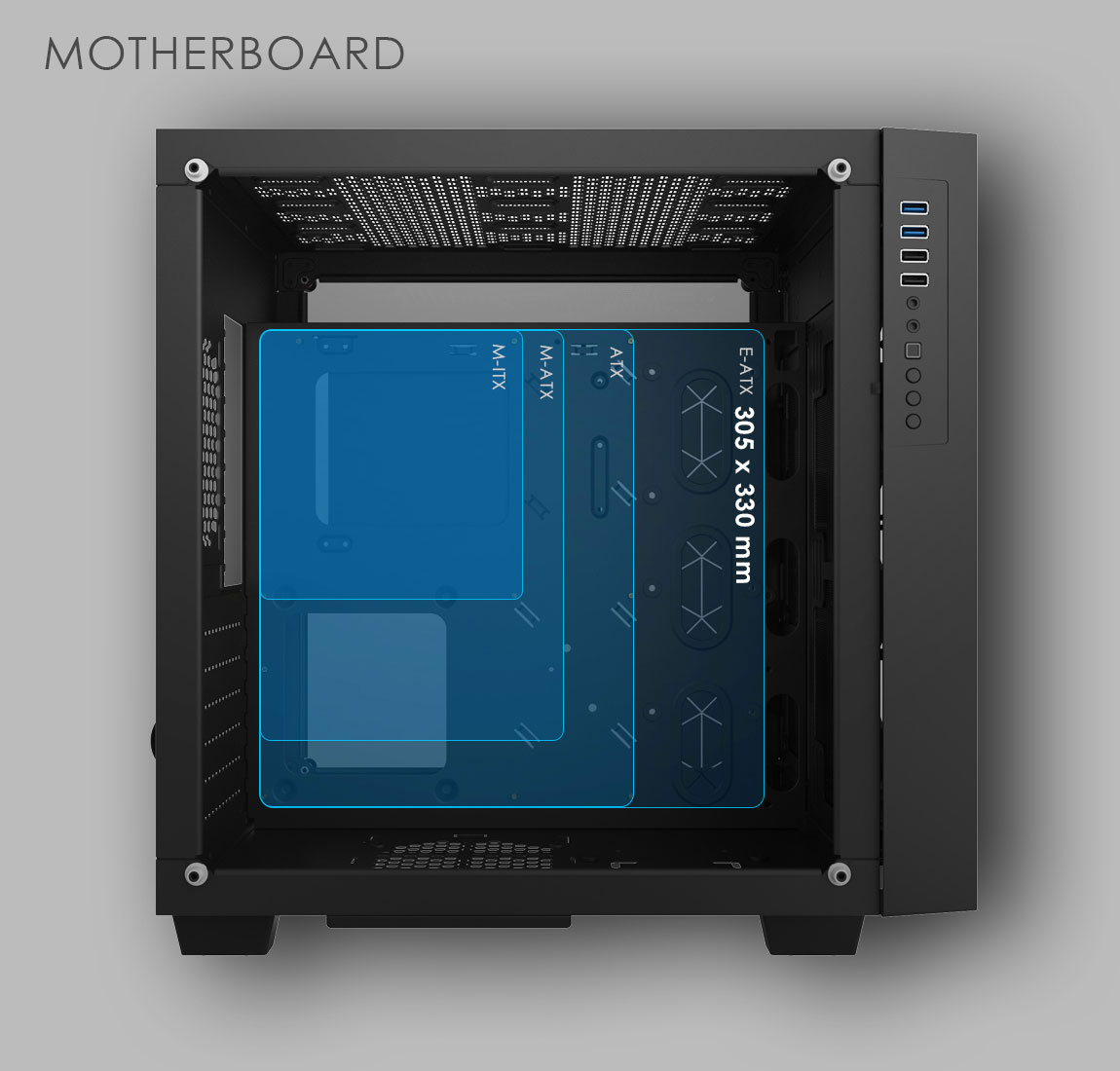

| Motherboard Type |
M-ITX, M-ATX, ATX, E-ATX |

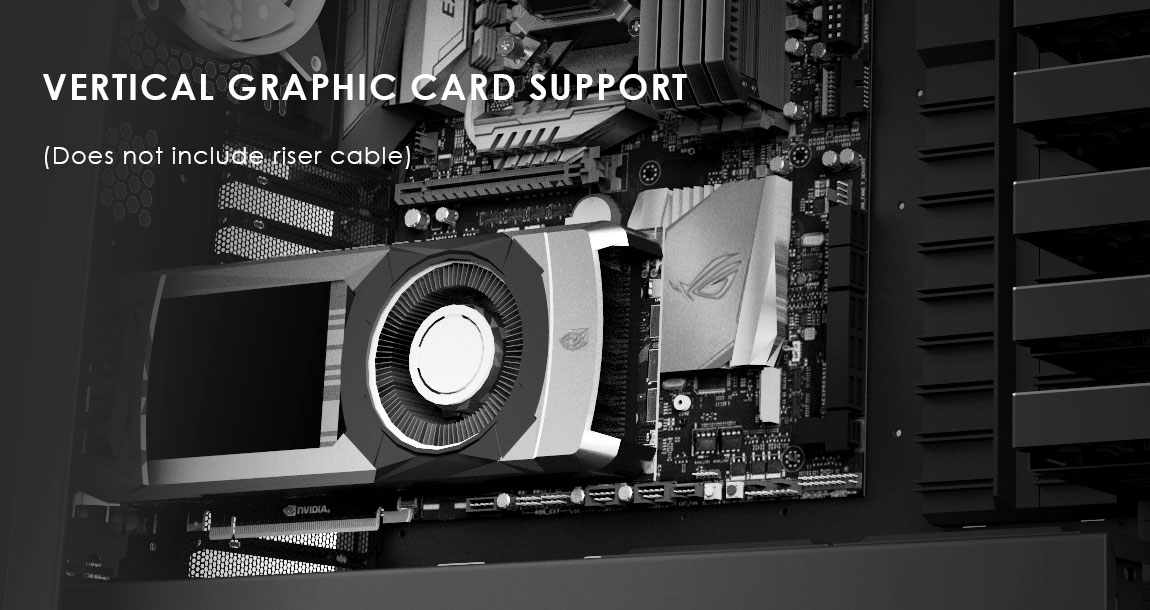

| Graphics Card Length |
335 mm / 13.1 inches |
| CPU Cooler Height |
168 mm / 6.6 inches |

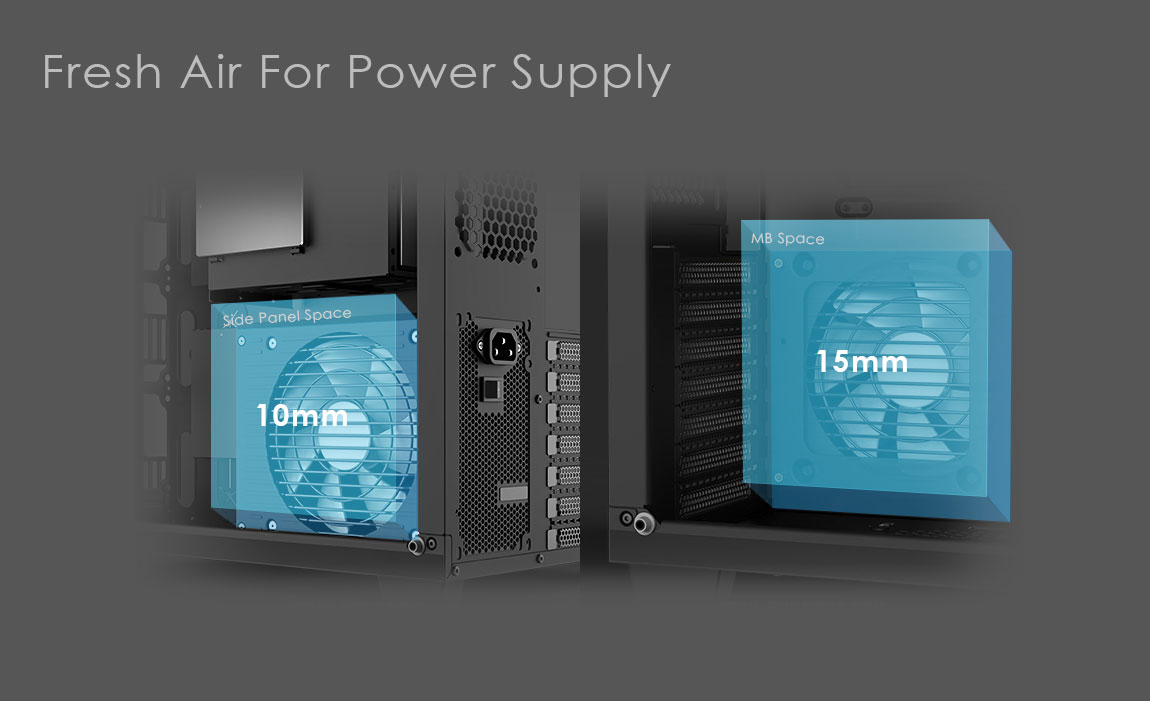

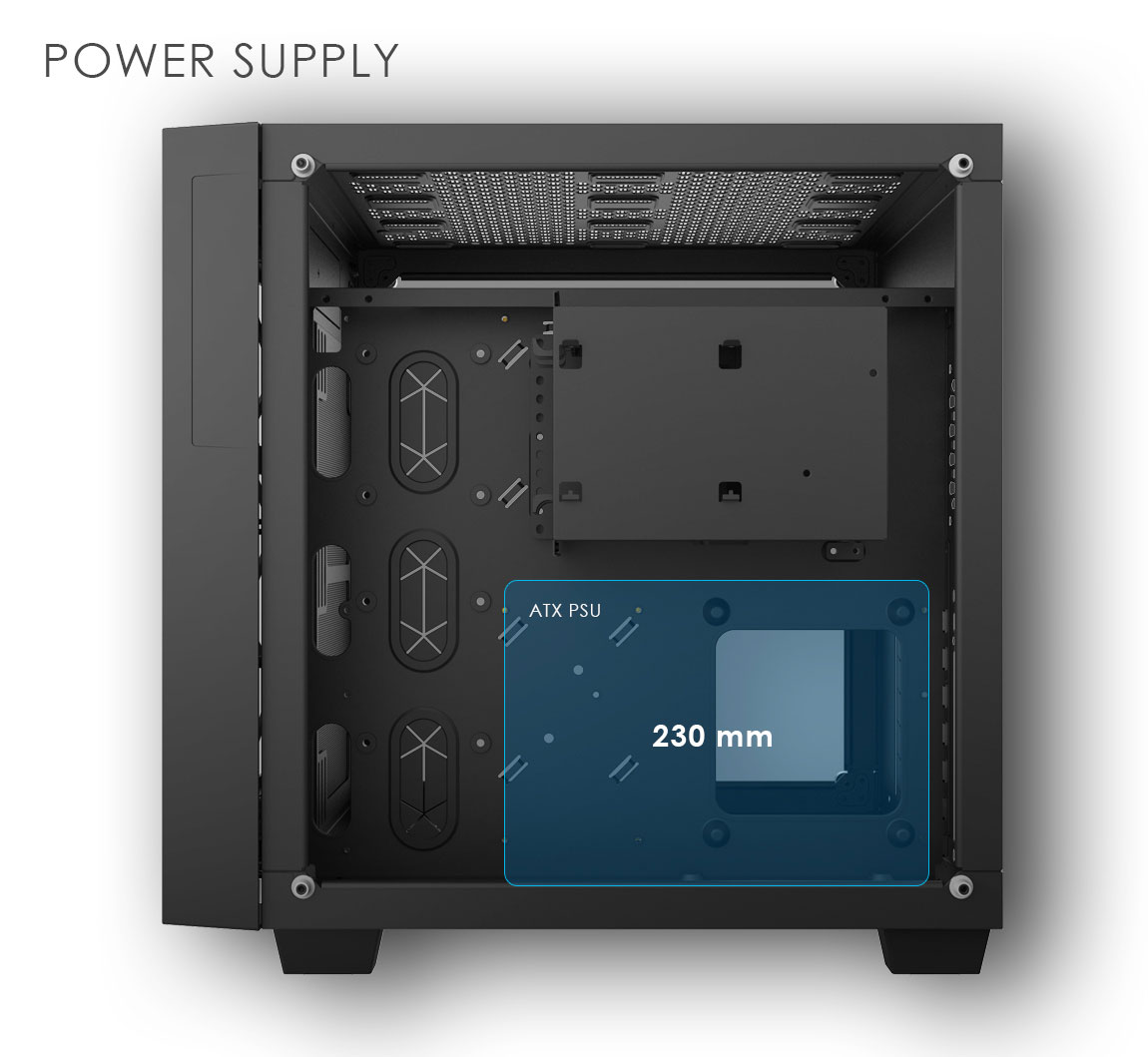

| PSU (including cable) |
230mm / 9.0 inches |

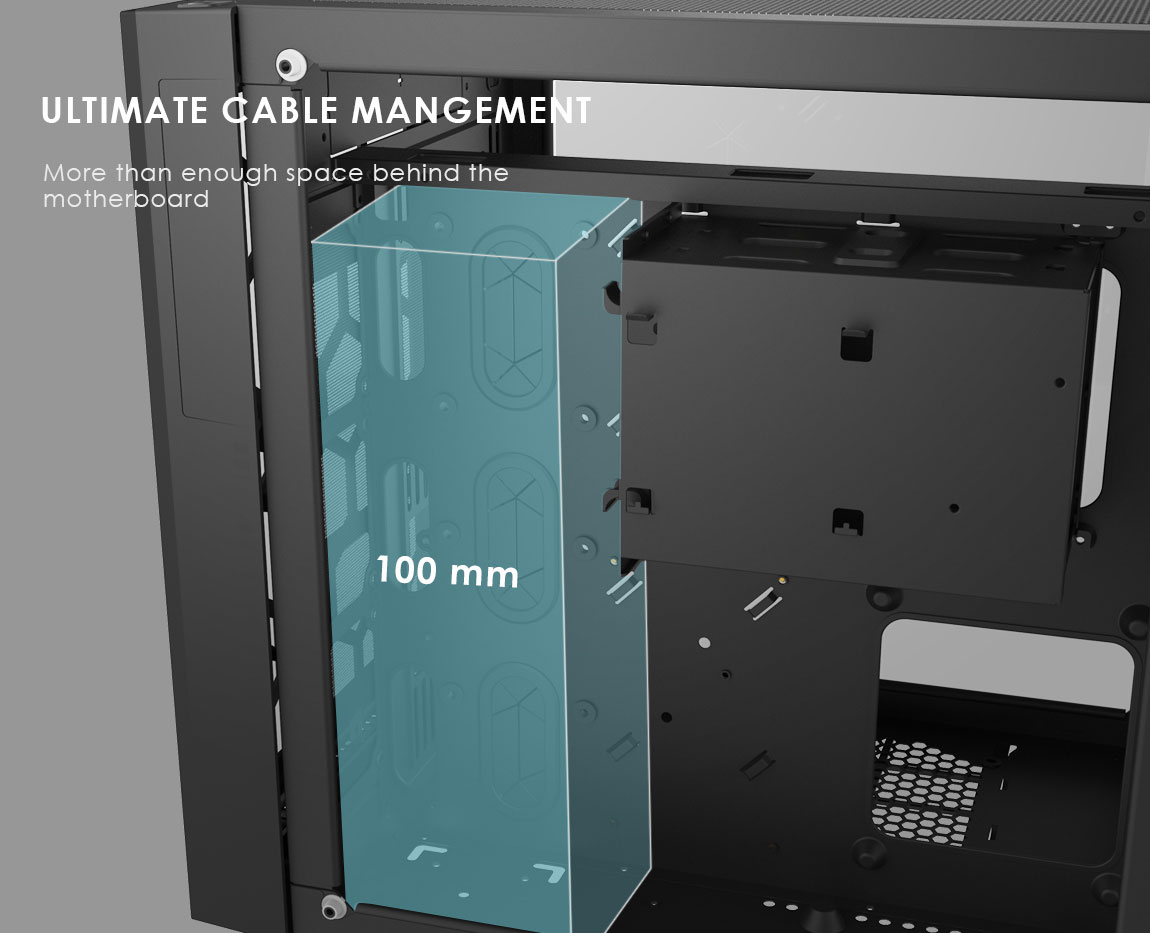

| Cable Management |
100 mm / 3.93 inches |
| Air Cooling |
| Front |
120mm x2 / 140mm x 2 & 80mm x 3 |
| Top |
120 mm x 4 / 140mm x 2 |
| Rear |
120mm x 1 (included) |
| Bottom |
120mm x 1 |

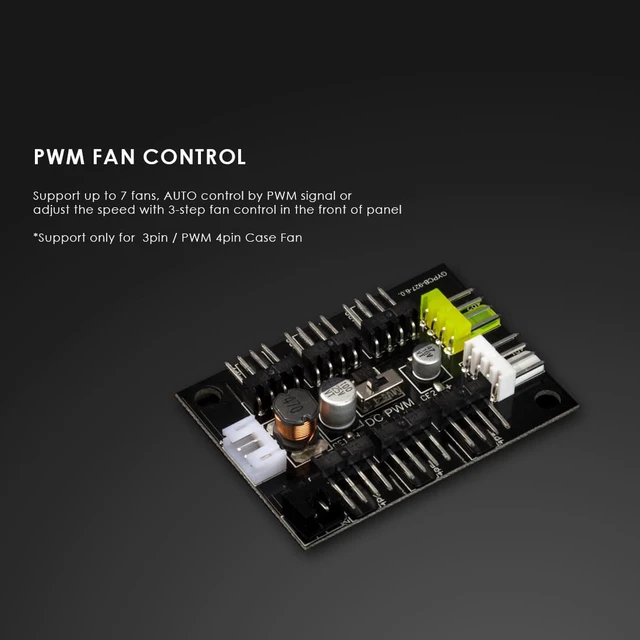

| Fan Control |

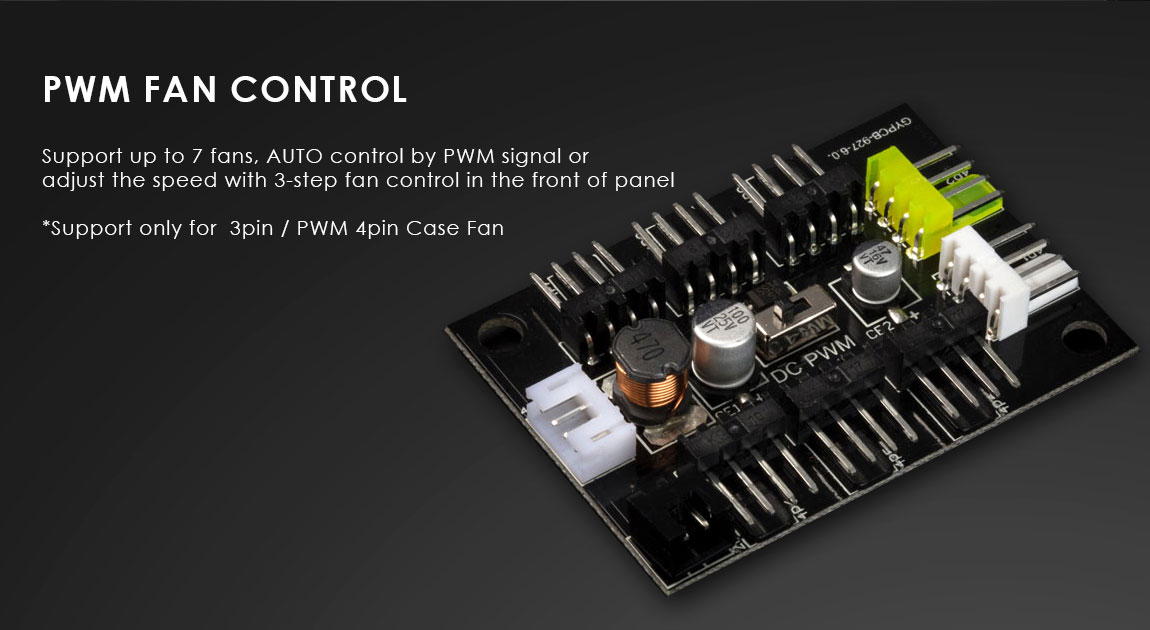

3 steps Fan Controller ( S / L / H & Auto) |

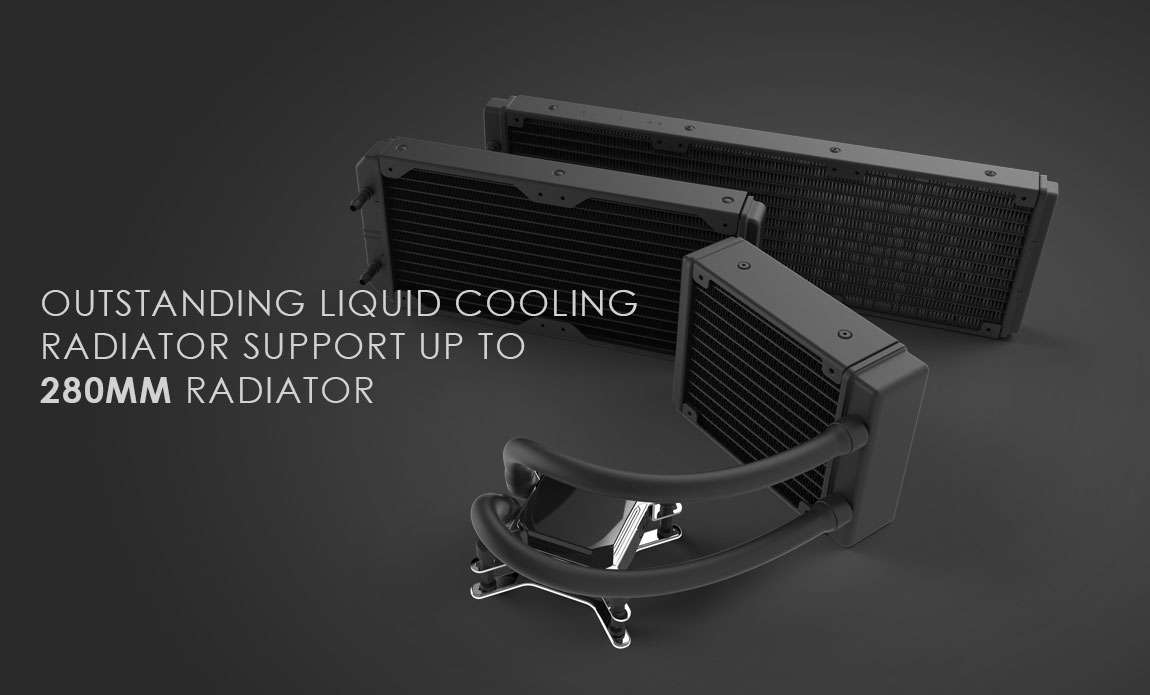

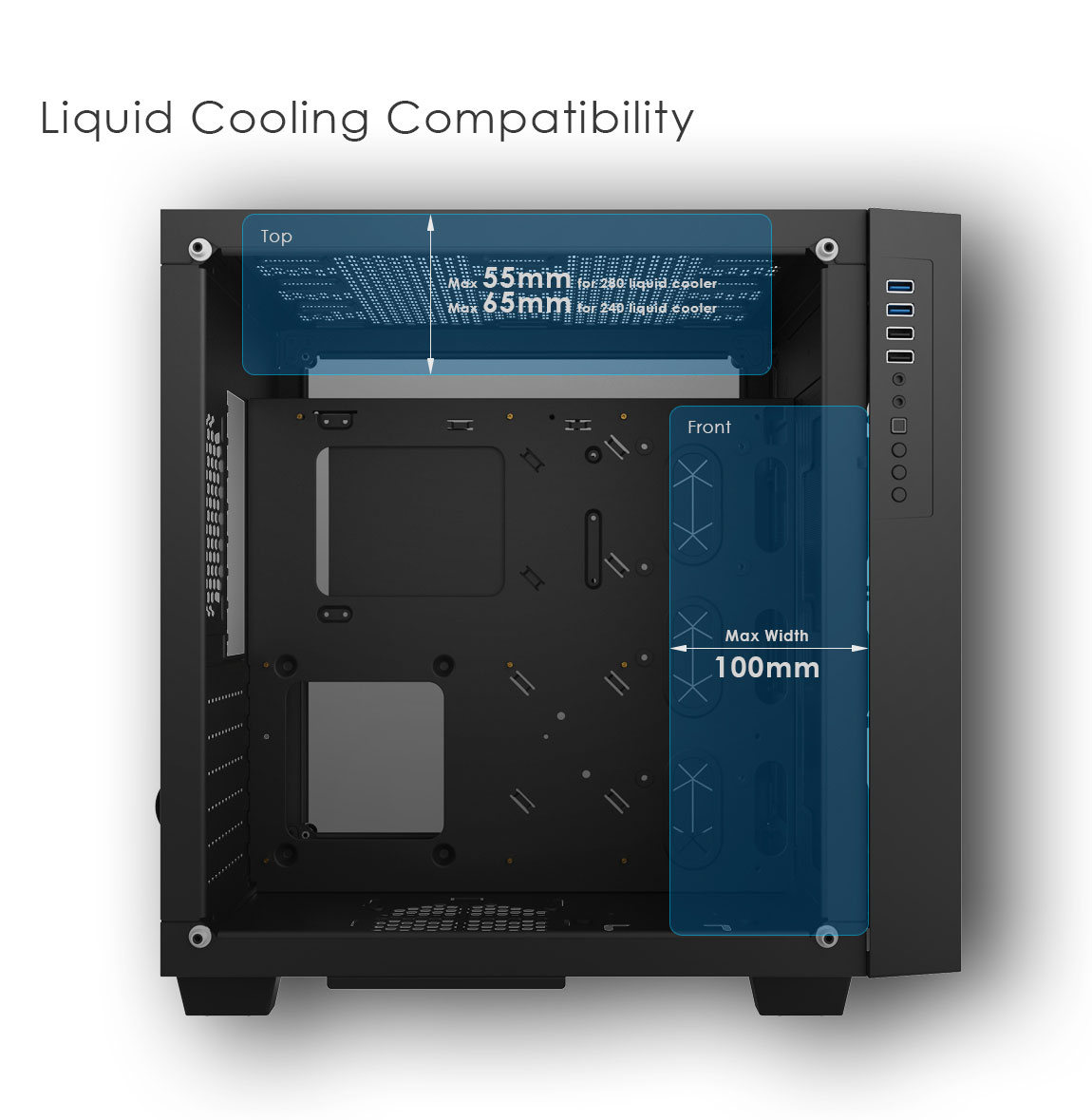

| Liquid Cooling |
| Front |
240mm x 1 / 280mm x 1 Rad |
| Top |
240mm x 2 / 280mm x 1 Rad |
| Rear |
120mm x 1 Rad |
| Bottom |
120mm x 1 Rad |
| Packing |
| Model |
AI-CL-CUBE-ML |
| Net Weight |
9.0 kg / 19.84 Ibs |
| EAN |
6952093601456 |
| UPC |
848043001420 |

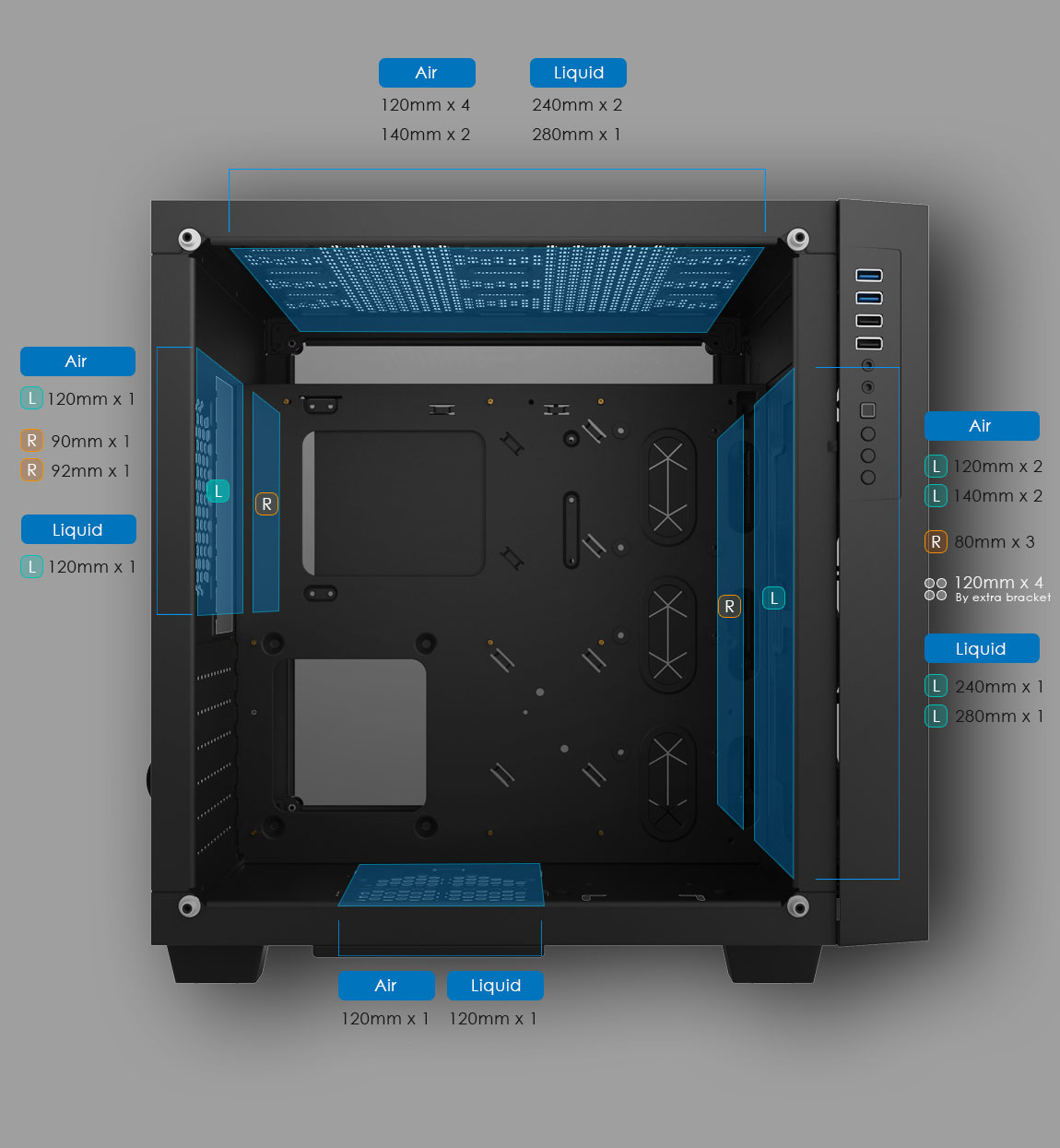

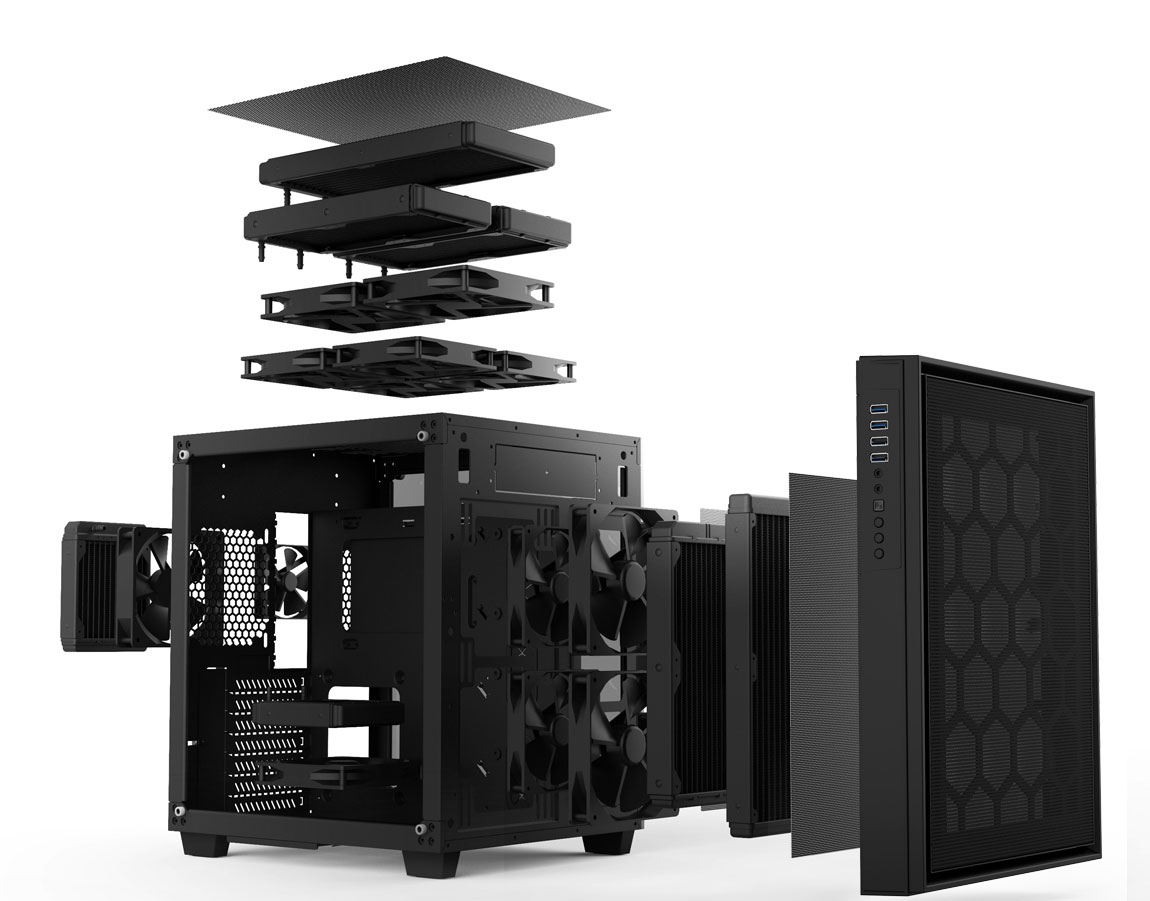

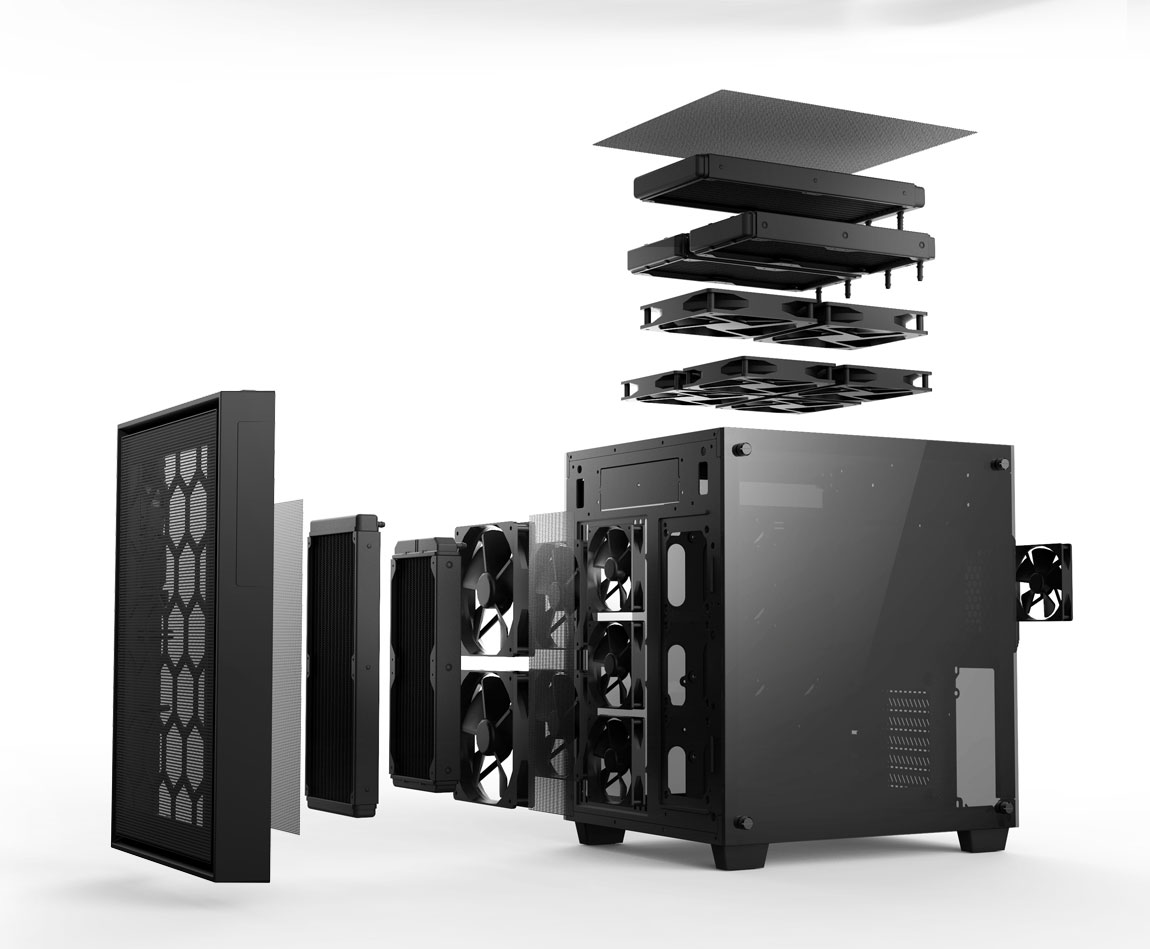

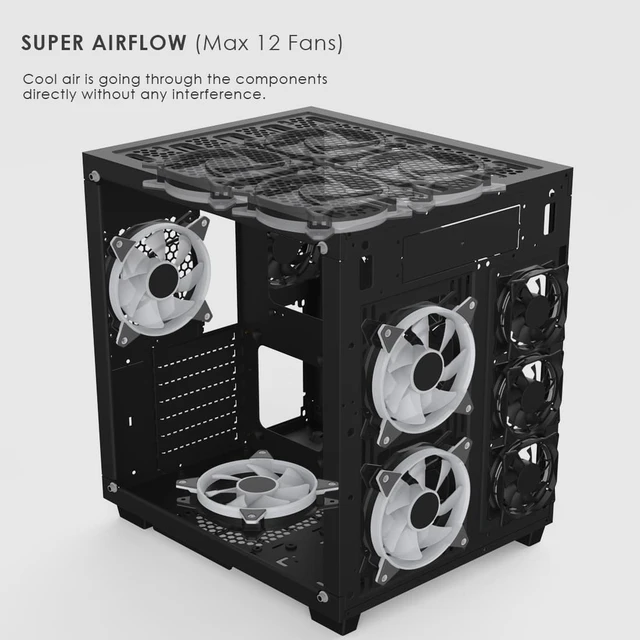

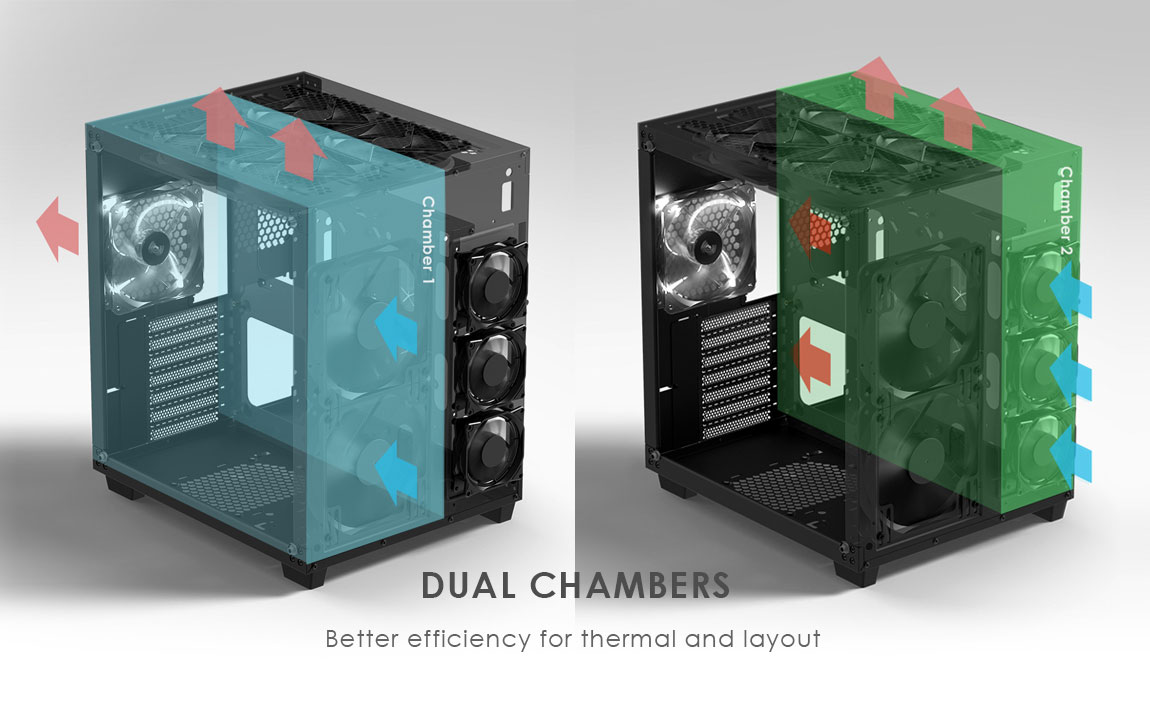

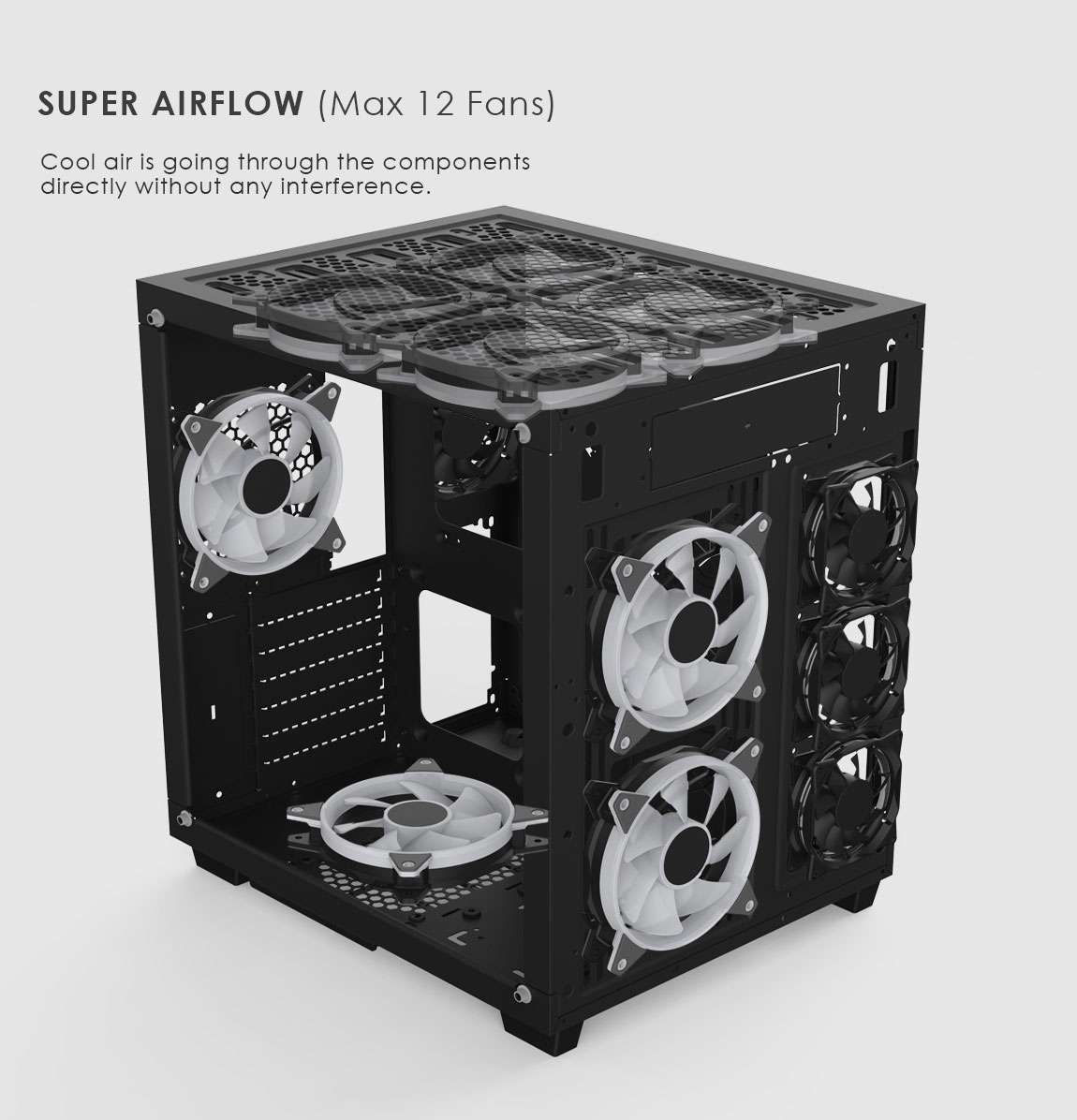

COOLING SYSTEM

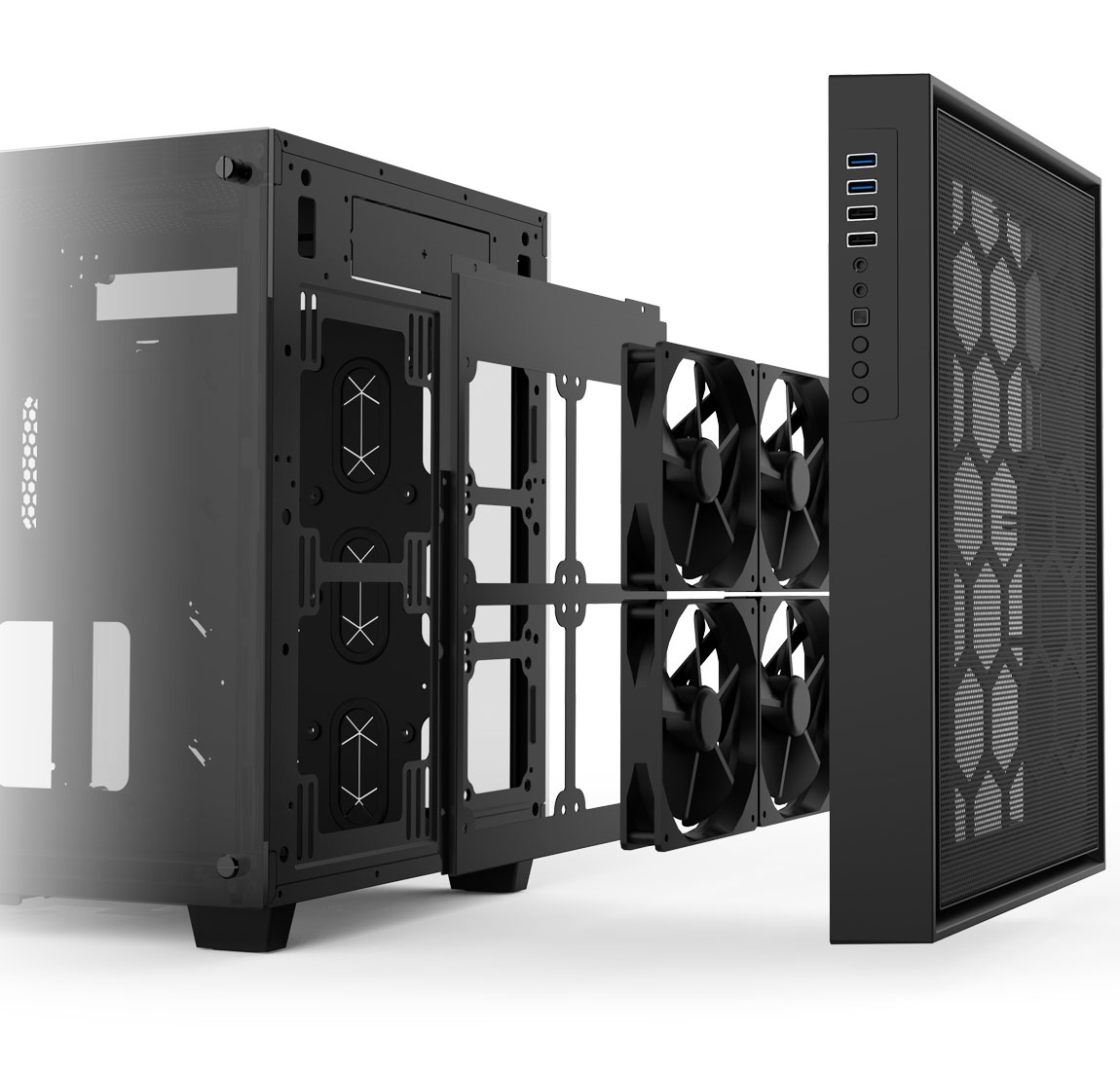

Front:140mm x 2 , 80mm x 3(optional) / 4 x120mm(optional) with Fan Bracket (included)
Rear:120mm x 1 (included)
Top:140mm x2 /120mm x 4 (optional)
Bottom:120mm x 1 (optional)

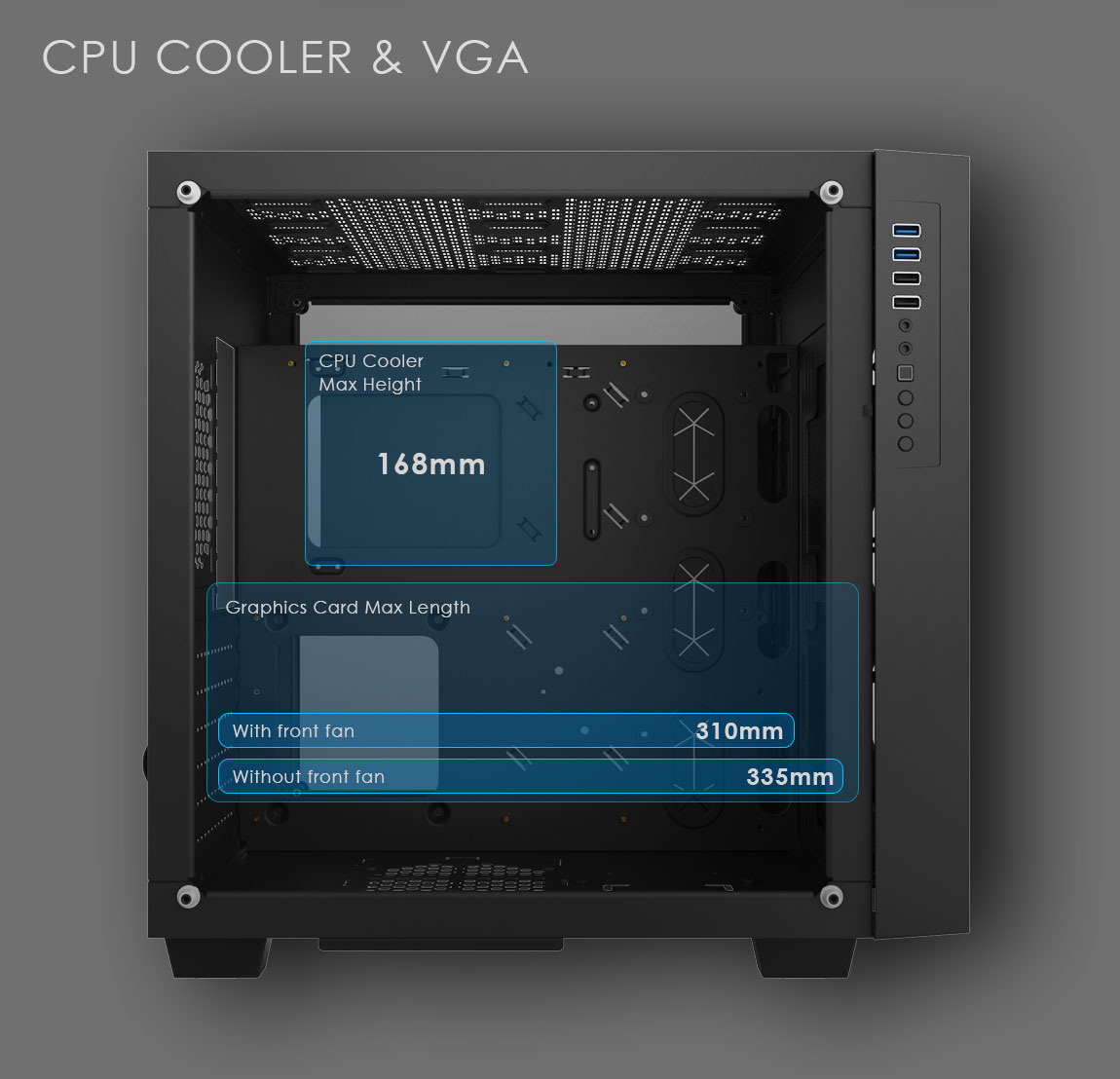

MAXIMUM COMPATIBILITY
Graphics Card Length: 335mm /13.2 inches (w/o front fan) 310 / 12.2 inches (w/ front fan)
CPU Cooler Height: 168mm /6,6 inches
Water Cooling : 240/280 mm Rad on top (Optional)
240/280 mm Rad in the front (Optional)
120 mm Rad in the rear (Optional)
