"Dimension (D / W /H )
620 x 235 x 595 mm / 24.4 x 9.25 x 23.4 in
Weight
Net Weight: 20 kg / 44 lbs
Motherboard Type
HPTX, XL-ATX, E-ATX(12? x13? ) SSI-EEB, ATX, M-ATX, M-ITX
5.25 â Drive Bay
N/A
3.5 â Hidden
15 (Max)
3.5 â Exposed
N/A
2.5 â Drive Bay
17 (Max)
I/O Panel
USB 3.0 x 2, USB 2.0 x 2, 3 steps Fan Controller, Audio* 1, Mic *1
Expansion
10 + 2 (Vertical Graphic Card Support)

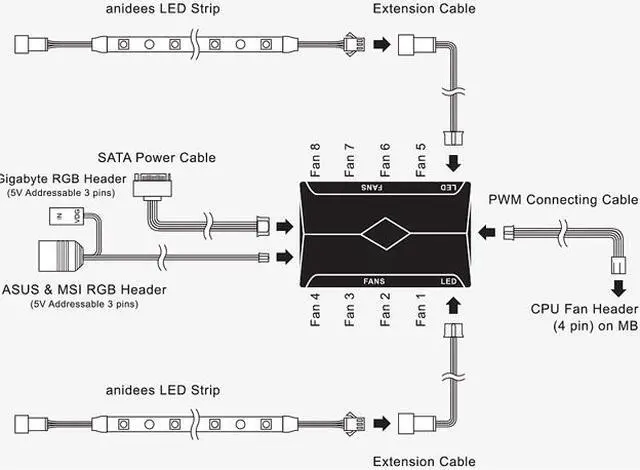

RGB Version has RF Wireless fan controller and Fan hub for RGB Fans.
Cooling System
Front: 140mm Fan x 3 (optional) /120mm Fan * 4 (included)
Rear: 140mm Fan x 1 (optional) / 120mm Fan * 1 (included)
Top: 140mm x 3 /120mm x 4 (optional)
Power Supply
Standard ATX PS2 / EPS (optional)
530mm / 20.8 inches
Maximum Compatibility
Graphics Card Length: 530 mm / 20.8 inches
CPU Cooler Height: 190 mm / 7.4 inches
Water Cooling: 240/280/360/420/480 mm Rad on top 100mm total clearance for Fan and Rad (Optional)
240/280/360/420/480 mm Rad in the front 100mm total clearance for Fan and Rad (Optional)
120/140 mm Rad in the rear (Optional) "
