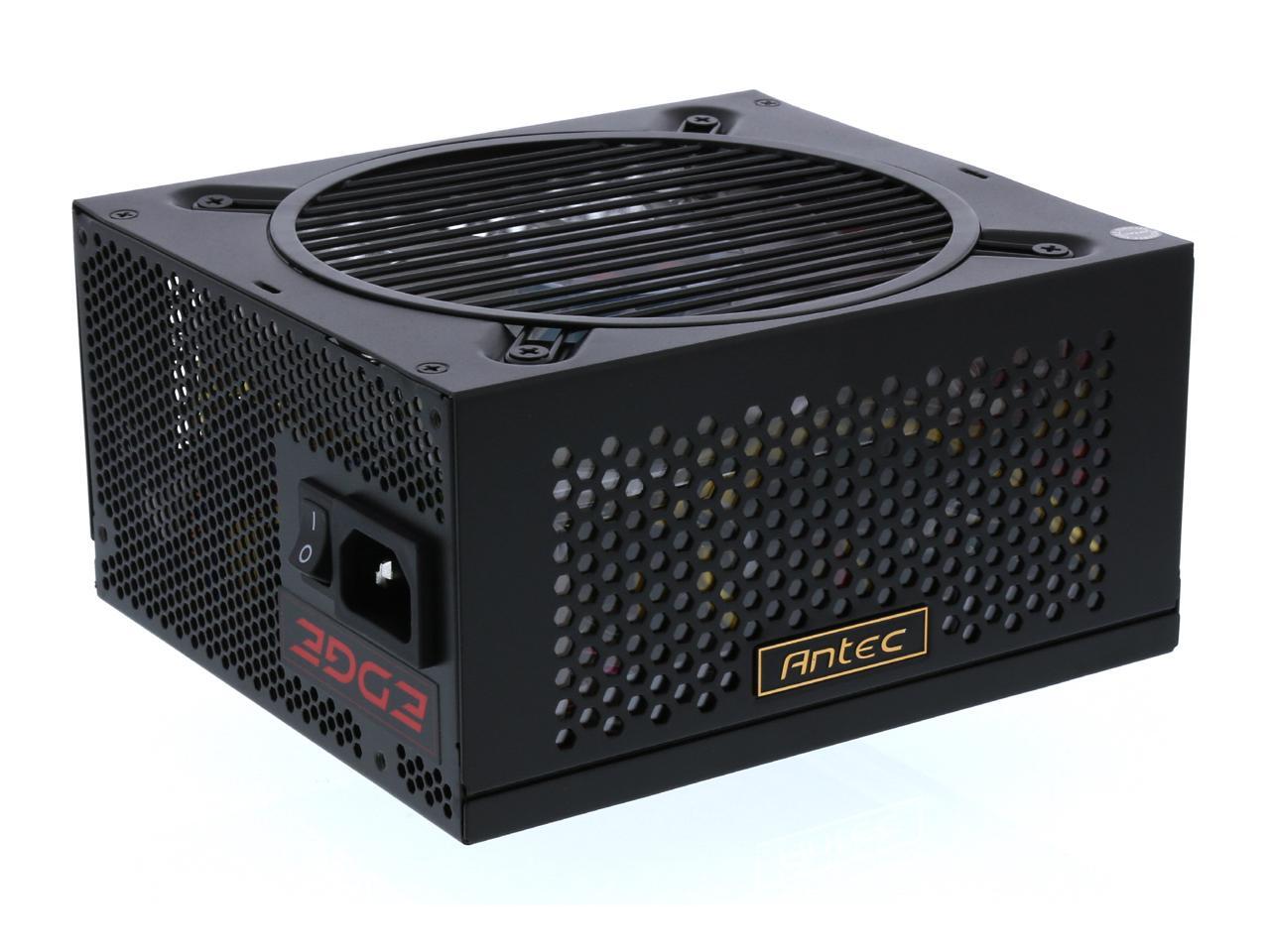

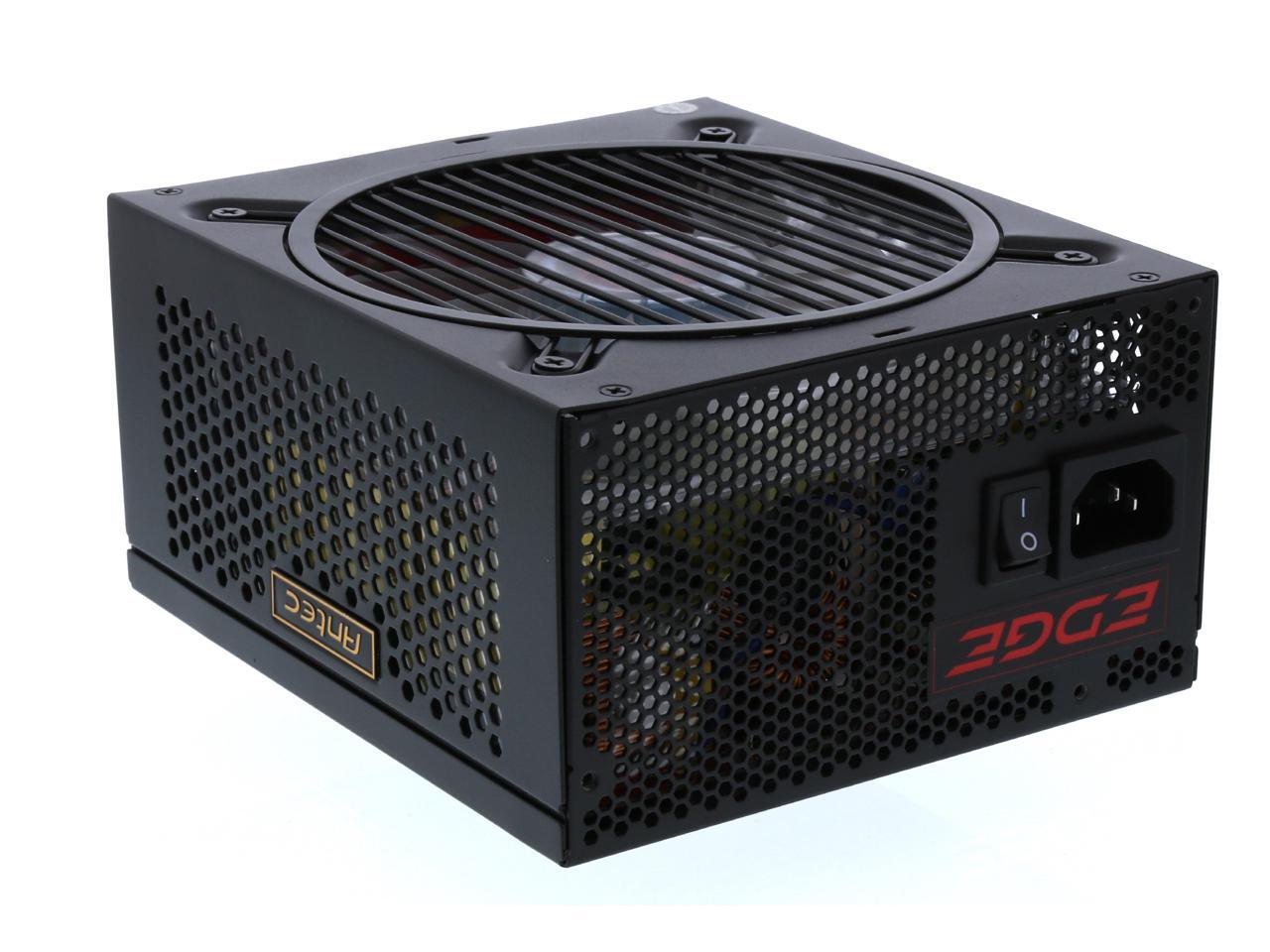

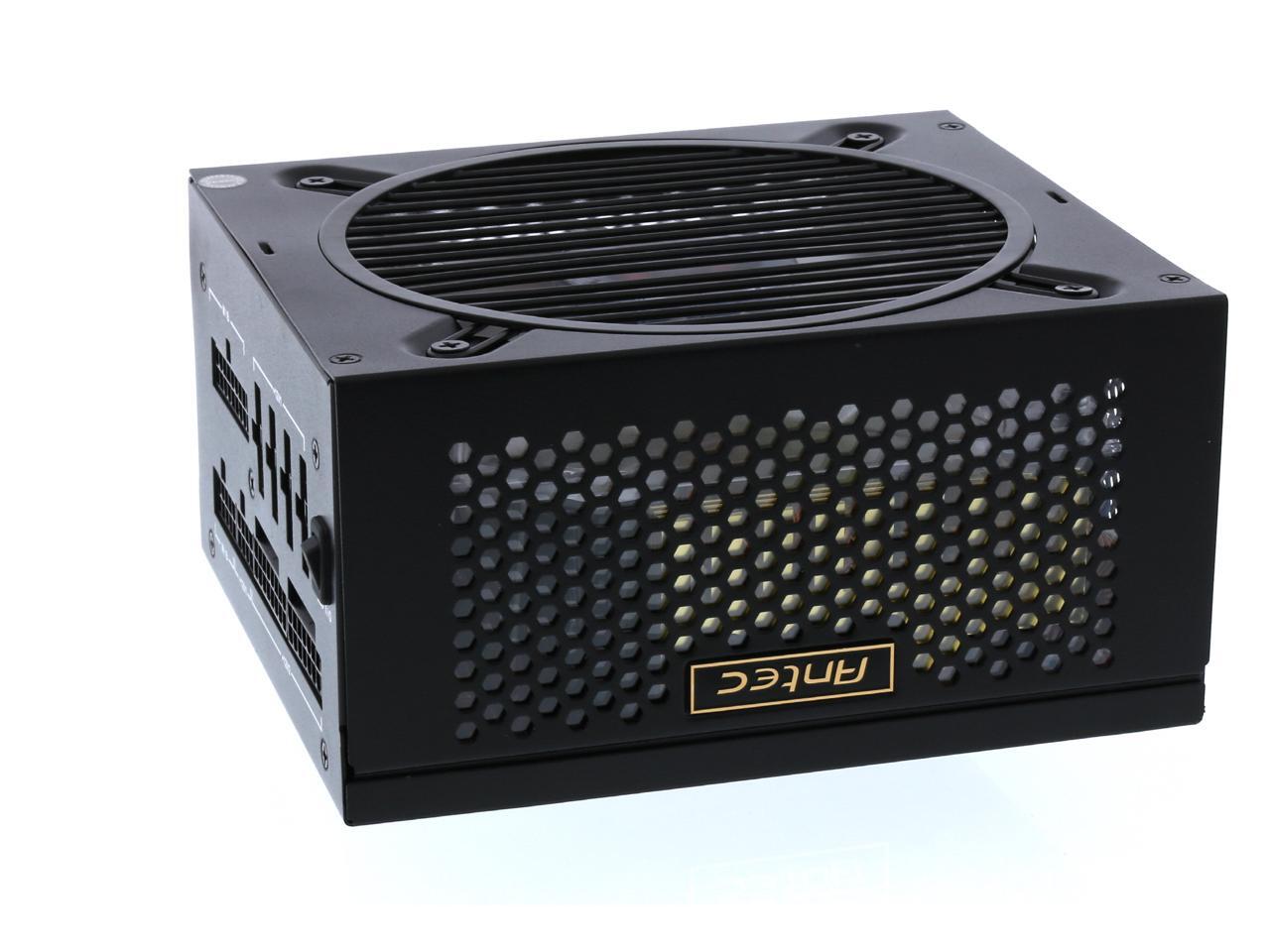

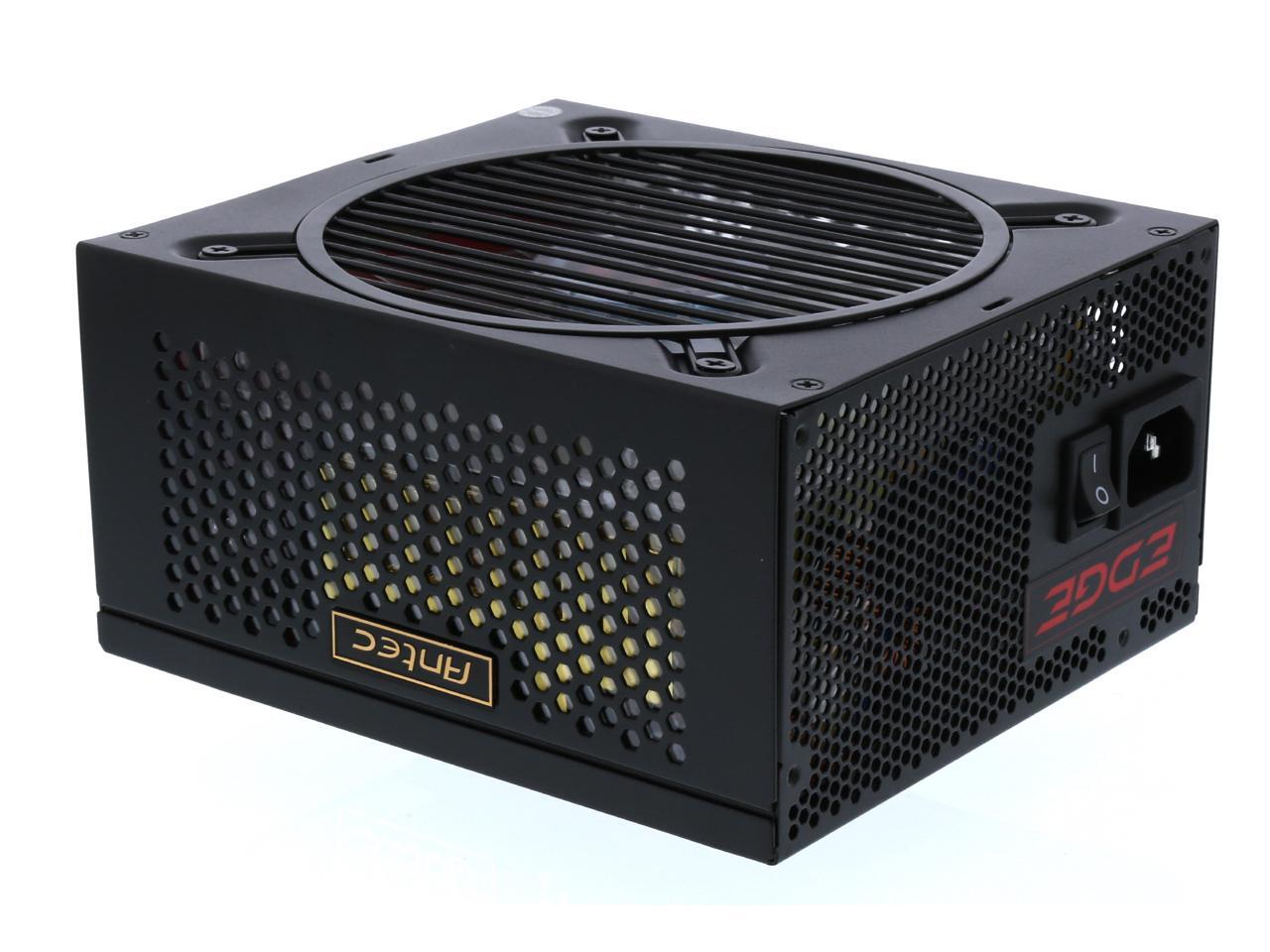

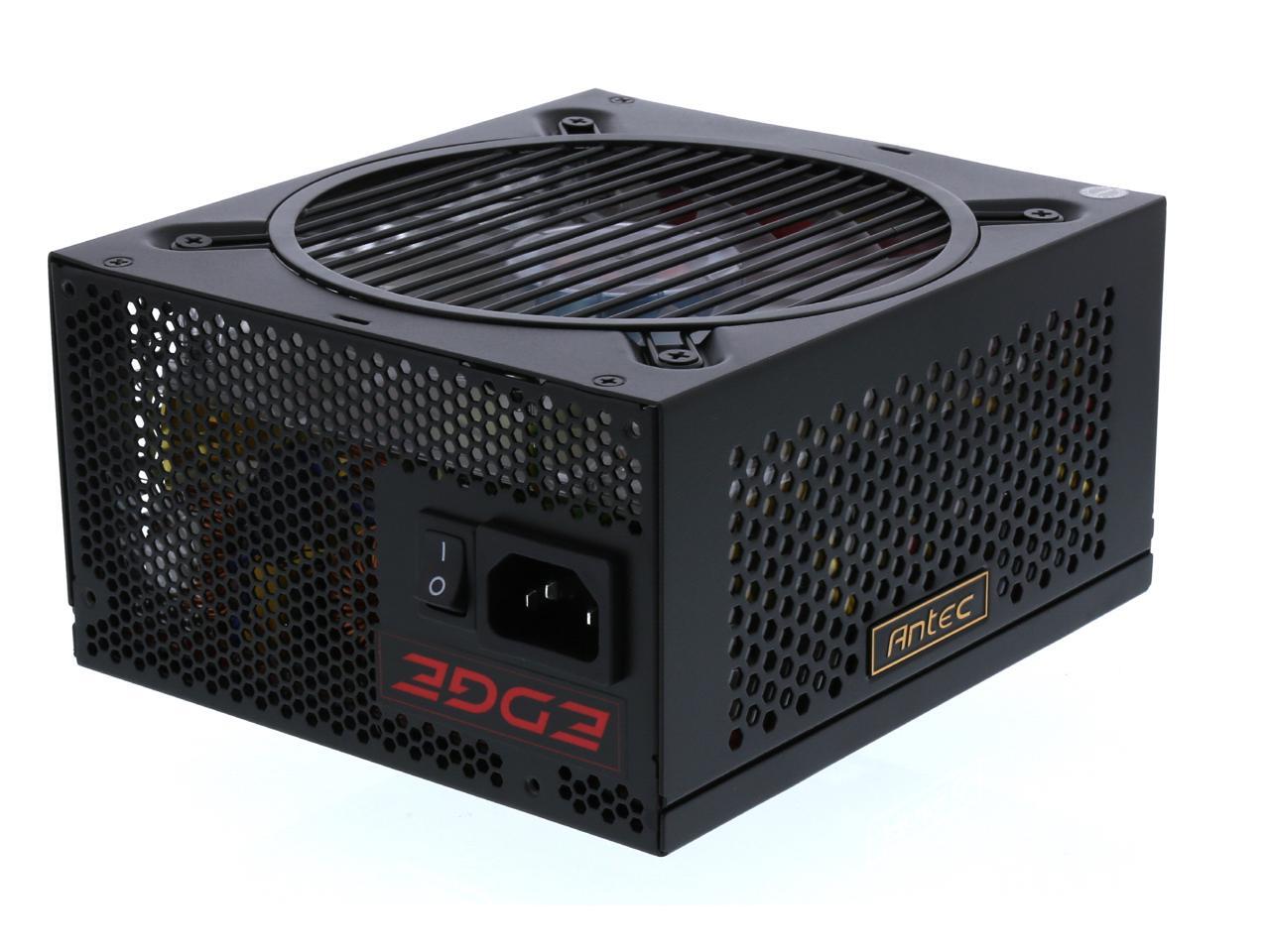

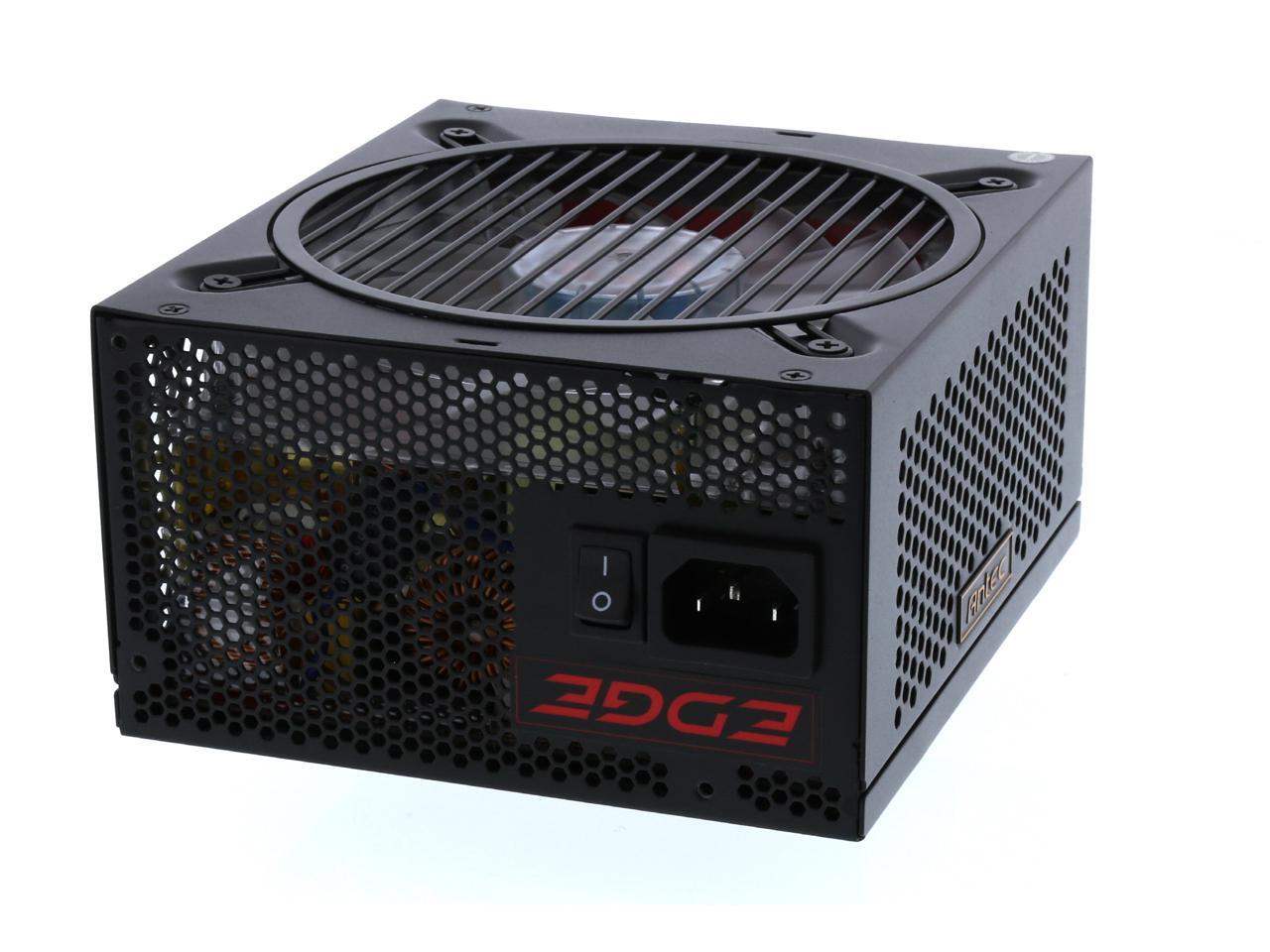

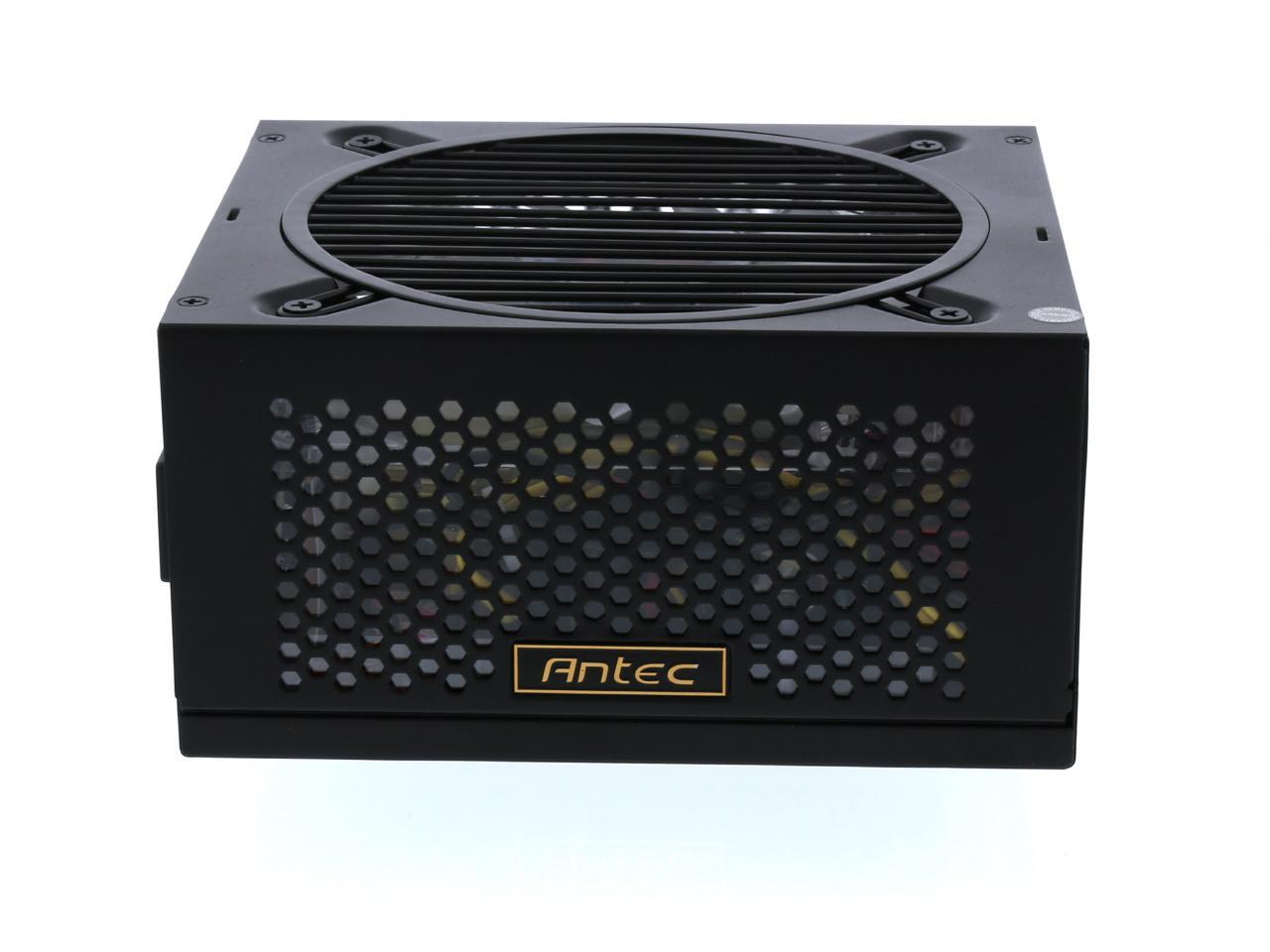

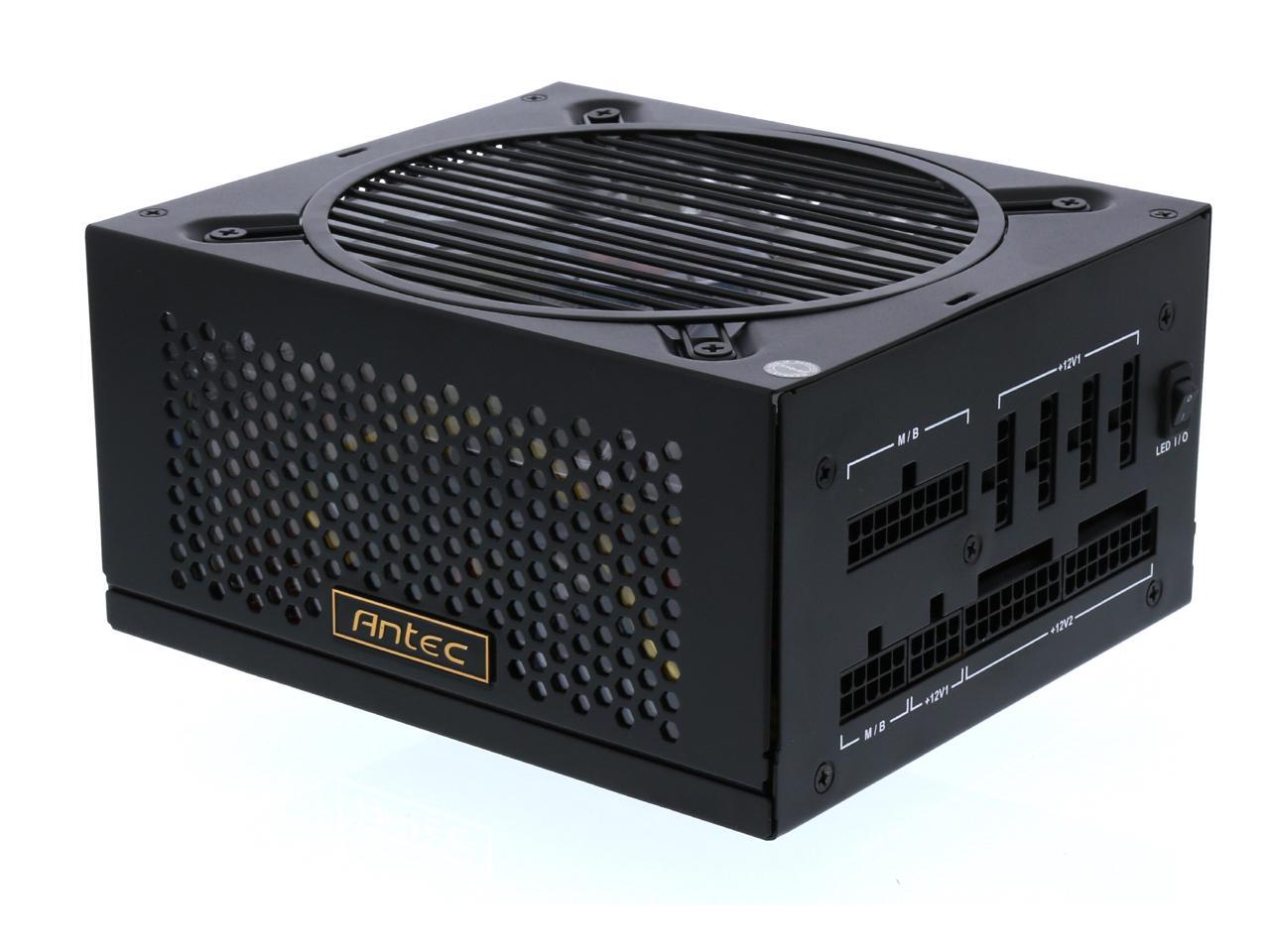

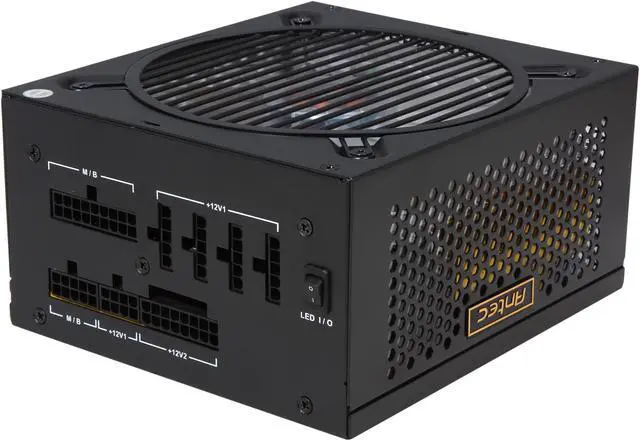

Antec EDGE Series EDG 650 650 W ATX12V / EPS12V 80 PLUS GOLD Certified Full Modular Power Supply
- ATX12V / EPS12V
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz
- +3.3V@20A, +5V@20A, +12V1@35A, +12V2@35A, [email protected], [email protected]
Overview
Specs
Reviews (17)
Antec 650W Full Modular Power Supply - EDG650
Silence Defined

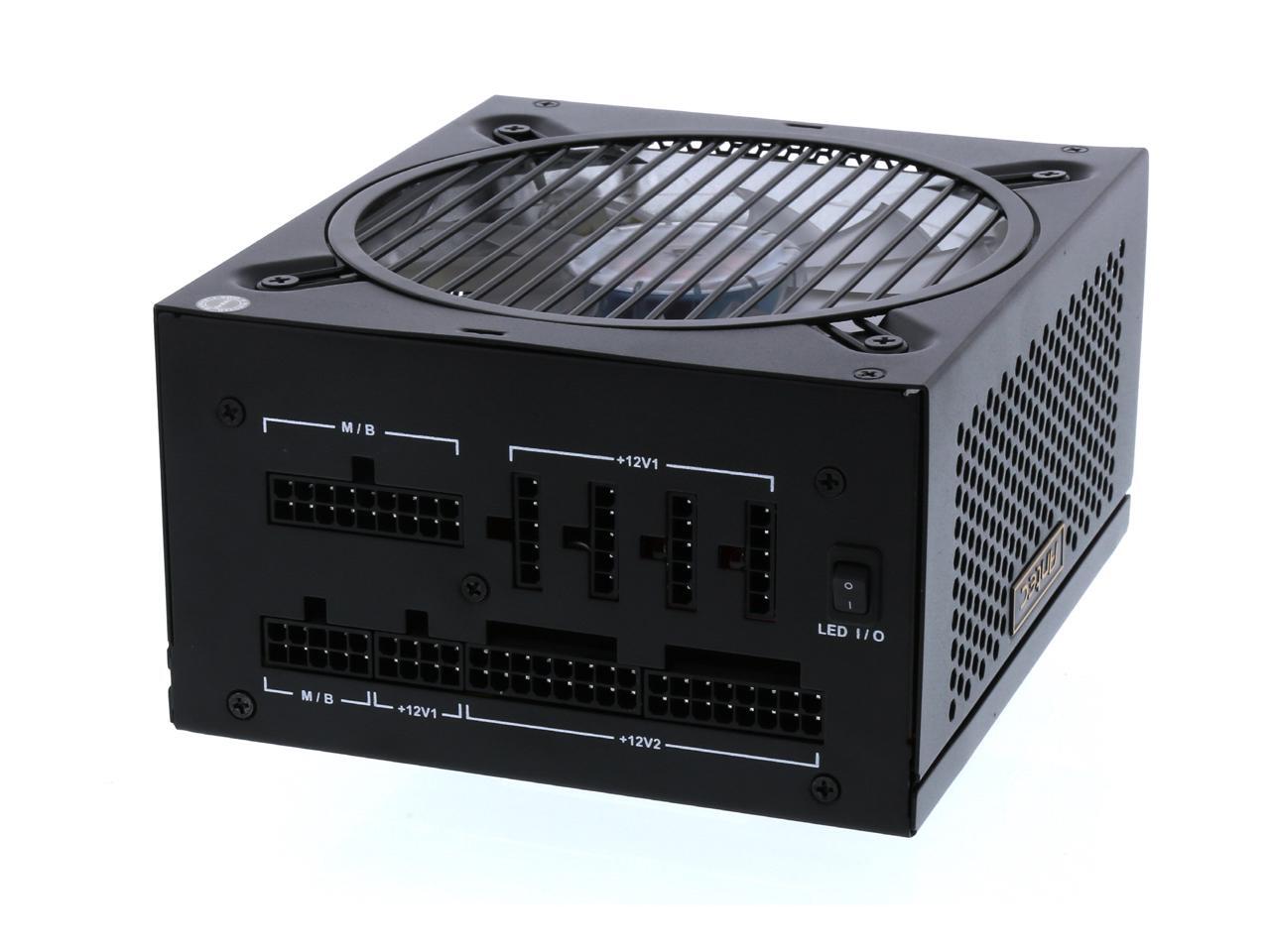

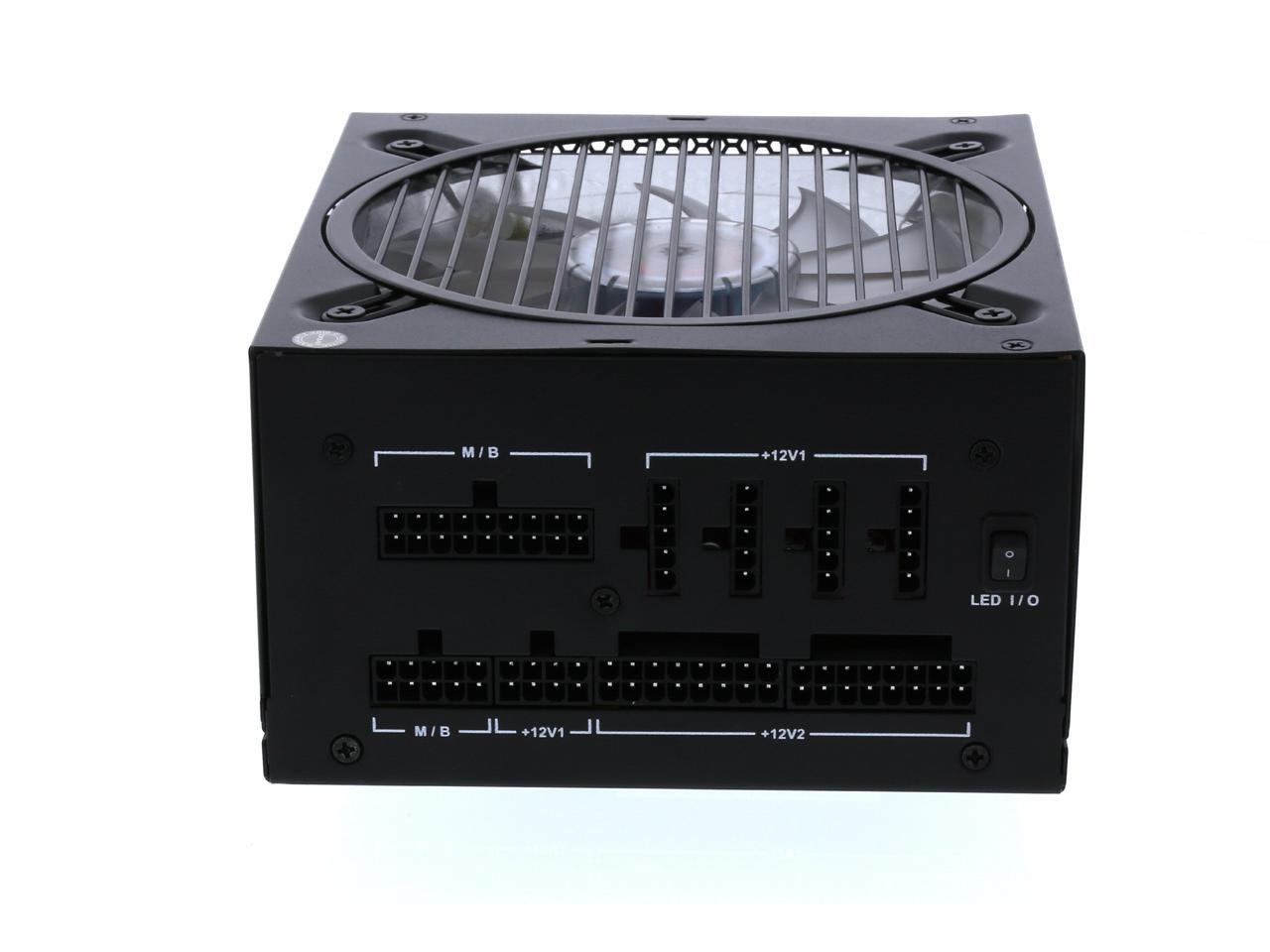

Antec’s EDGE Series is the pinnacle of power supplies. EDGE is fully modular with a revolutionary 18+10-pin MBU socket for the needs of tomorrow. By using a PSU that is 80 PLUS® GOLD & ErP Lot 6: 2013 certified, operating up to 92% efficient, you can reduce your electricity bill by up to 20% when compared to many other power supplies. EDGE’s innovative 16-pin sockets create a new level of flexibility by doubling the modular connectivity, supporting two different 8-pins connectors and even future connectors of 10, 12, 14 or 16-pins. All cables are darkened and also flat (except MBU cable) to become Flat Stealth Wires and are thus nearly invisible in your chassis. Two High Current Rails and a ~99% +12V output ratio maximize EDGE’s capabilities to power the latest CPU’s & GPU’s. CircuitShield™ makes EDGE safe and reliable in any environment with its 7 industrial-grade protections. Backed by a five-year warranty and lifetime global 24/7 support, EDGE embodies everything a power supply can accomplish today.
Features
Certification
By using a PSU that is 80 PLUS® GOLD & ErP Lot 6: 2013 certified, operating at up to 92% efficiency, you can reduce your electricity bill by up to 20% over many other power supplies.
Less Clutter, More Room, Better Cooling

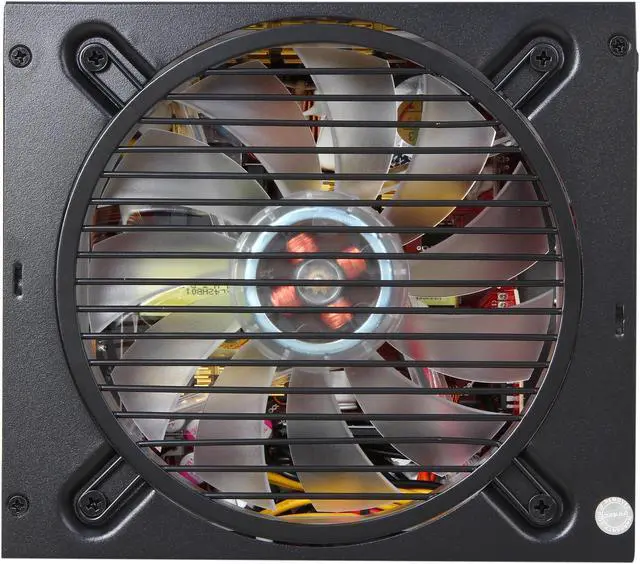

The EDG650 is a fully modular PSU, this allows you to use only the cables you need, greatly simplifies installation, and helps clear out space. This can also improve cooling because excess cables can obstruct and reduce airflow. With the addition of Flat Stealth Wires, all wires are darkened for minimal visibility in the chassis, making your rig that much cleaner. With a silent - whisper-quiet - high-quality, 135mm Fluid Dynamic Bearing (FDB) fan with a long lifespan.
Silent Computing

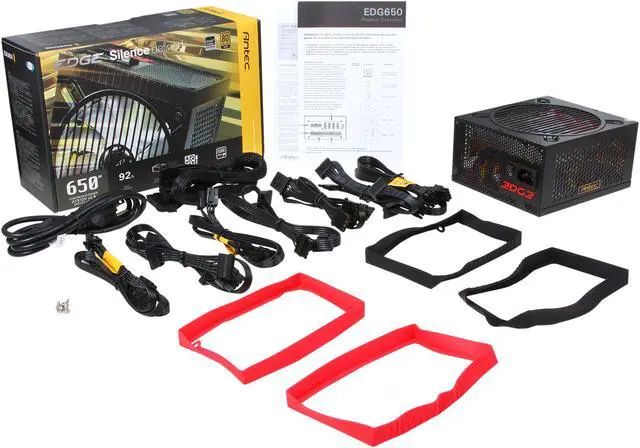

Includes two Anti-Noise De-Couplers to reduce vibration within the chassis
Gallery

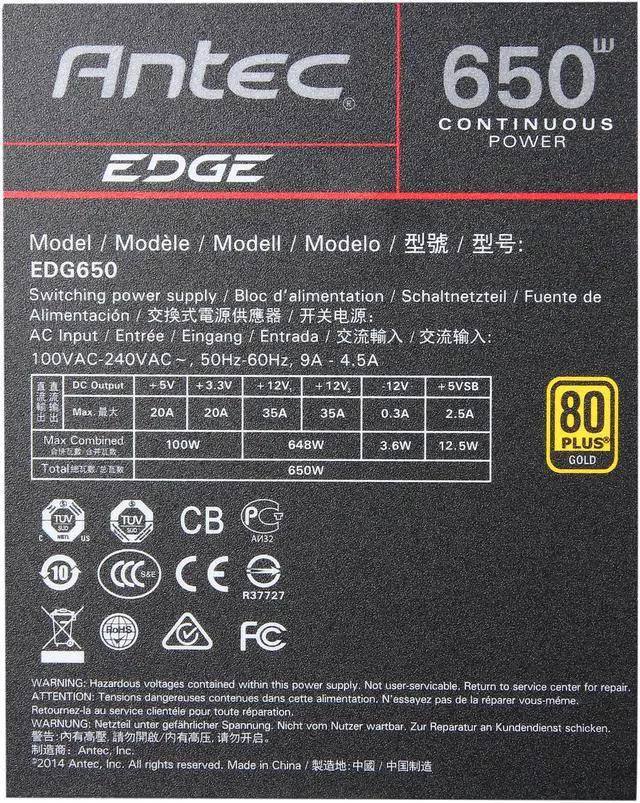

OUTPUT
| +3.3V | +5V | +12V1 | +12V2 | -12V | +5Vsb | |
| Min. | 0A | 0A | 0.1A | 0A | 0A | 0A |
| Max. | 20A | 20A | 35A | 35A | 0.3A | 2.5A |
| Total | 100W | 648W | 3.6W | 12.5W | ||
| 650W | ||||||
CONNECTORS
 1 x 20 + 4-Pin |
 4 x 6 + 2 PCI-E |
 9 x SATA |
 6 x Molex |
 1 x Floppy |
 1 x 4 + 4-Pin ATX/EPS |
