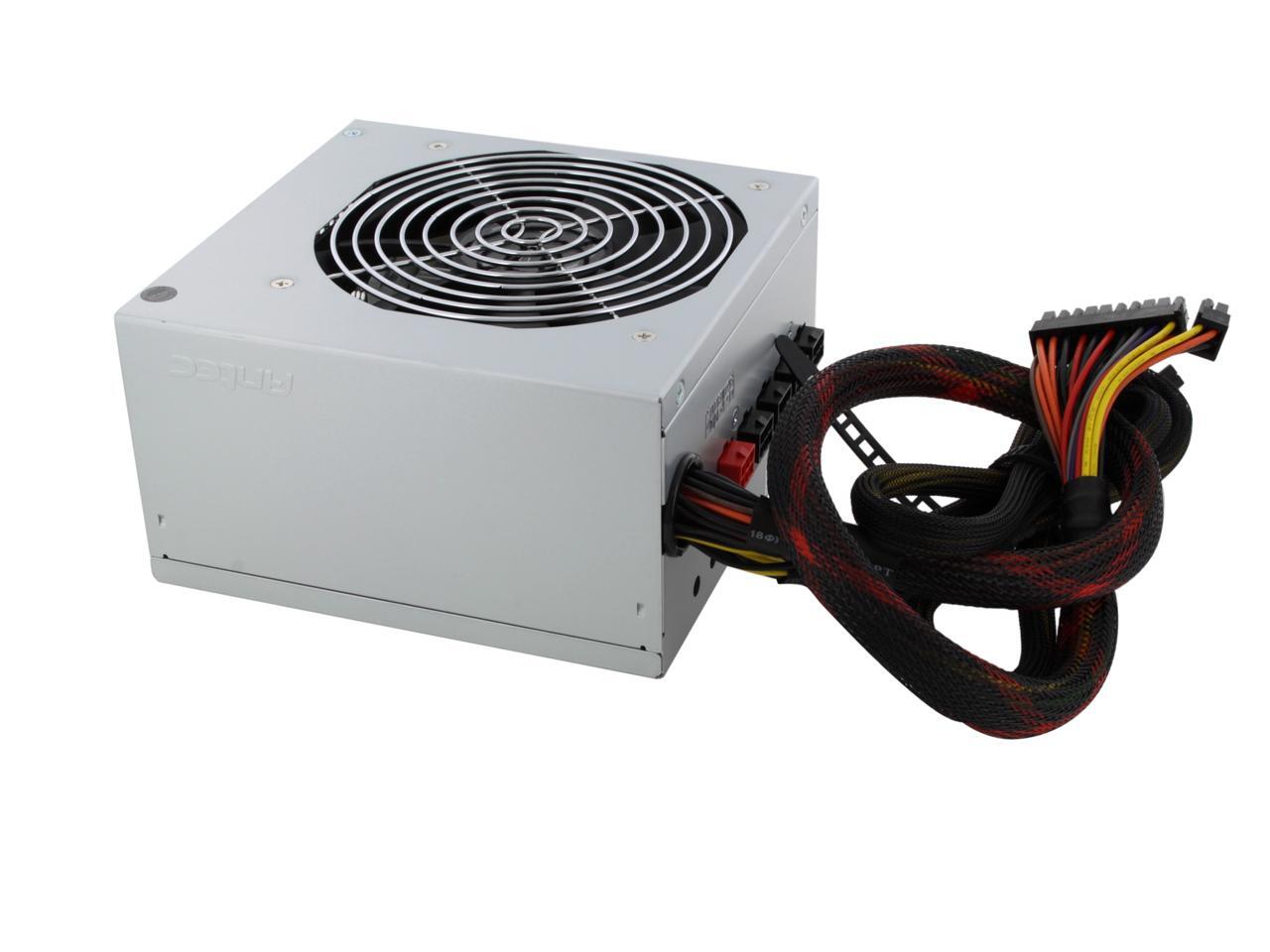

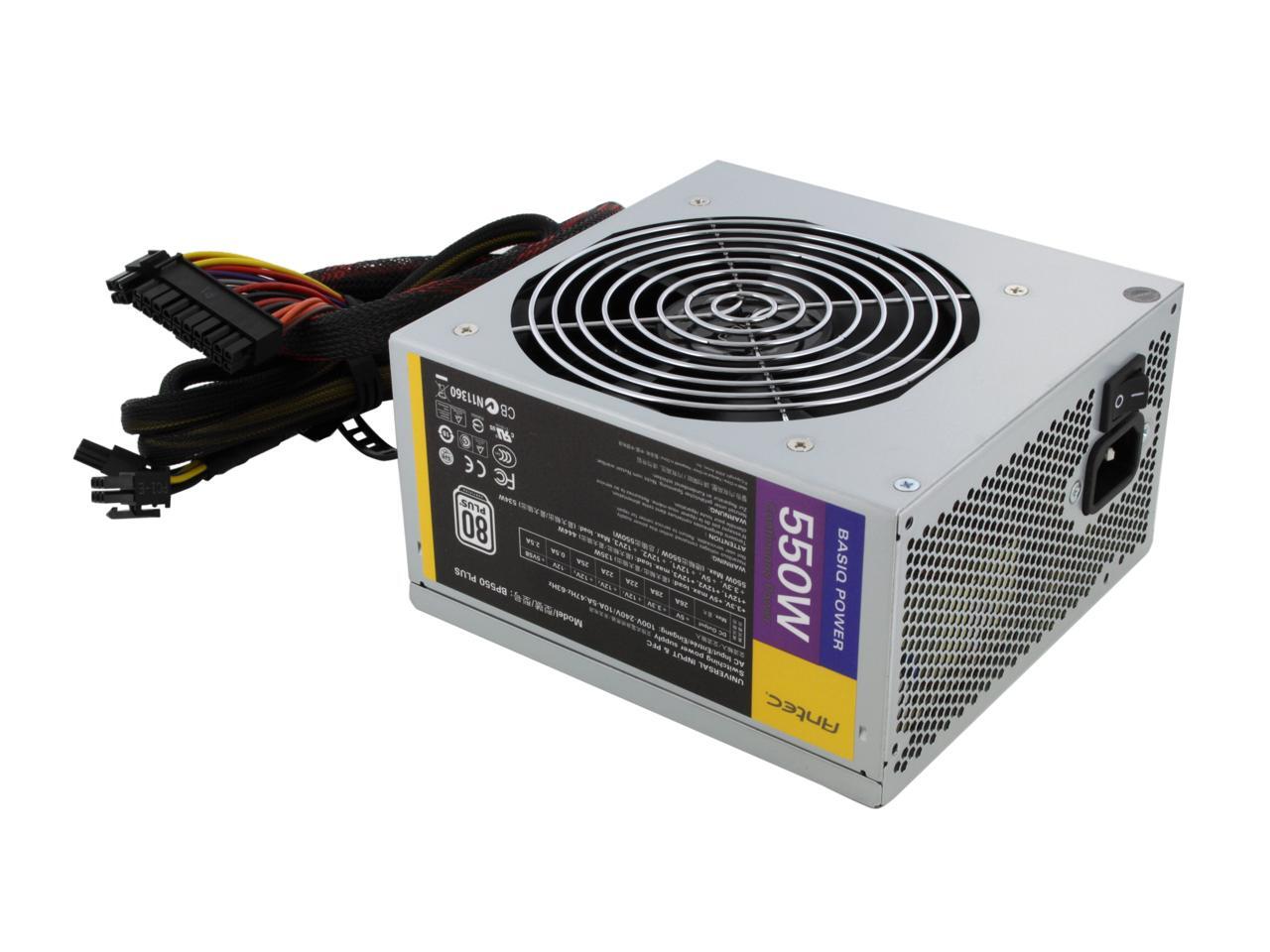

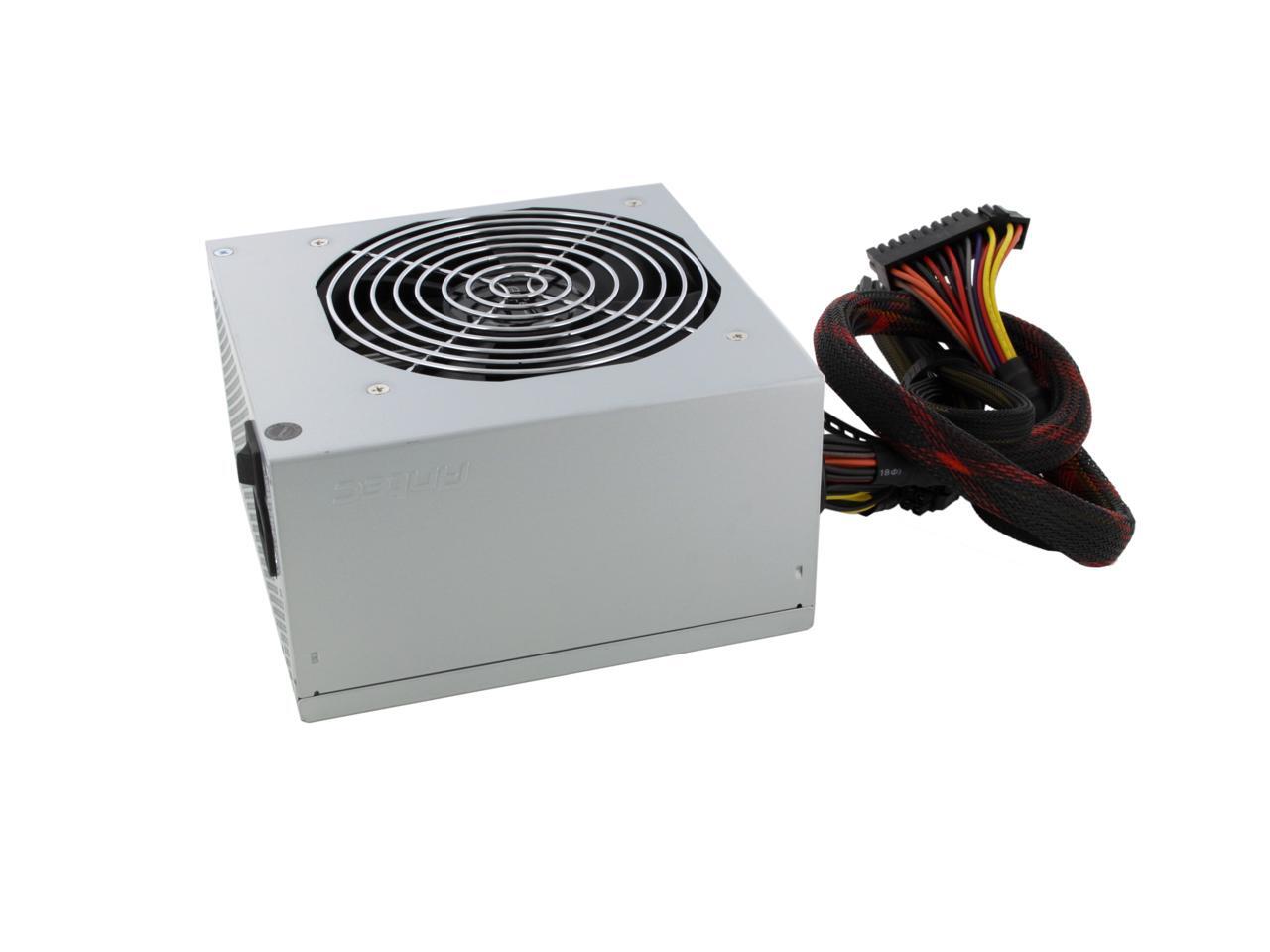

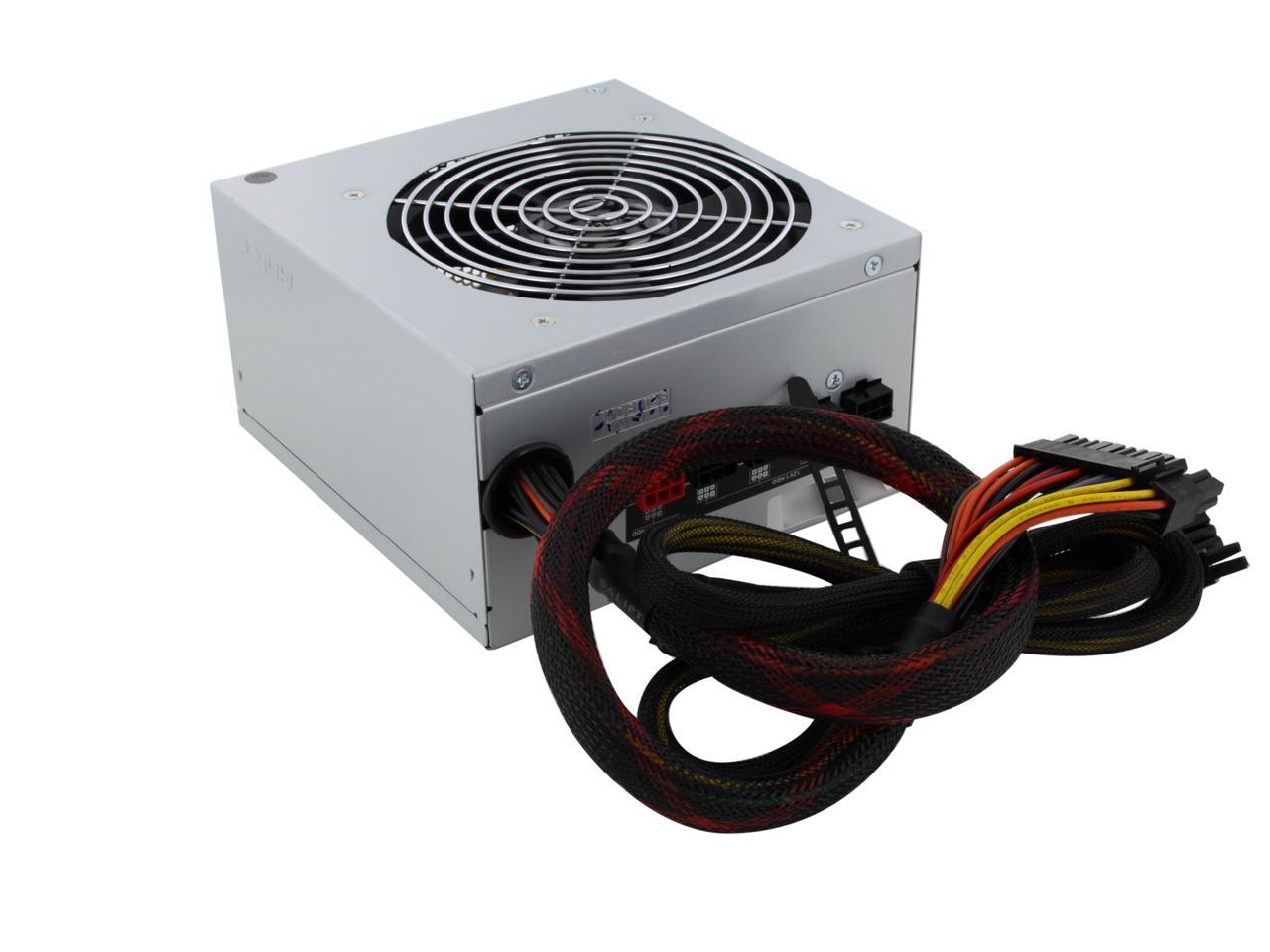

Antec BP550 Plus 550W Continuous Power ATX12V V2.2 80 PLUS Certified Modular Active PFC Power Supply - Intel Haswell Fully Compatible
Check more best sellers of "Power Supplies"
Check more lowest price of "Power Supplies"
Check more deals of "Power Supplies"
OUT OF STOCK.
- ATX12V V2.2
- Modular
- 80 PLUS Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@28A, +5V@26A, +12V1@22A, +12V2@22A, +12V3@25A, -12V@0.5A, +5VSB@2.5A
Overview
Specs
Reviews
Quality Power. Incredible Value.
The ideal choice in high-quality value-priced power supplies, now with advanced cable management! The Basic 550 Plus is the perfect power supply for the entry-level user, providing stable power, quiet cooling, and advanced cable management for improved airflow and ease-of-use.
Features
- 80 PLUS® Certified: Reduces operating costs and protects the environment
- Advanced Cable Management for improved airflow and ease of use
- ATX12V Version 2.2
- Low Noise 120mm Cooling Fan
- Industrial Grade Protection: OVP (Over Voltage Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection)
- Universal Input with Active PFC
- SATA Connectors for Serial ATA drive
- MTBF: 100,000 hours
- Safety Approval: UL, CE, TüV, CB, FCC, CCC, C-TICK
- Backed by a 3-year parts and labour warranty
- Unit Dimensions (H x W x D): 3.4 x 5.9 x 6.1 inches (8.6 x 15 x 15.5cm)
- Net Weight: 4.4lbs (2.0kg)

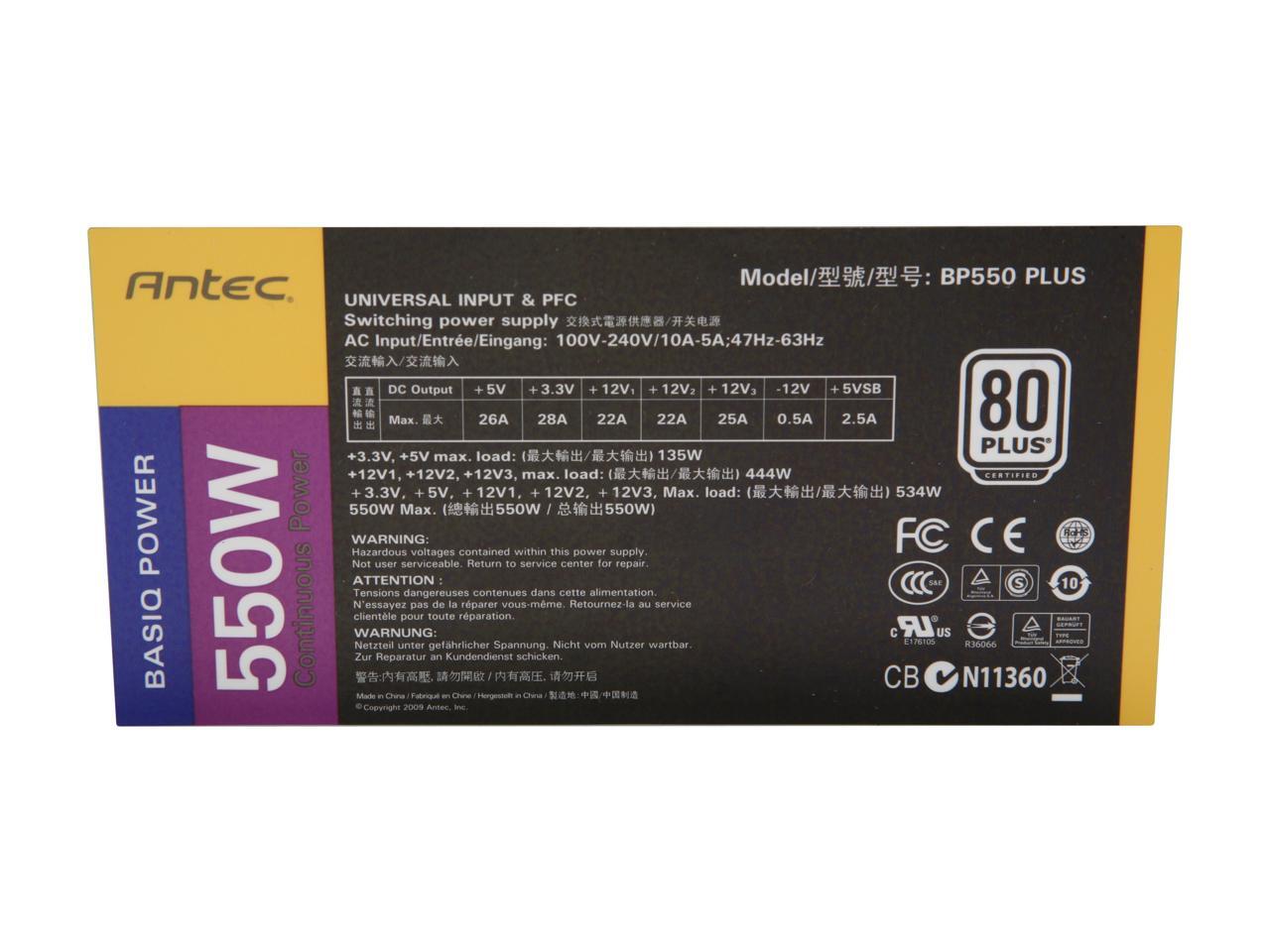

Output
| Output Voltage | Range Max. | Reg. | OCP Set Point | Ripple & Noise |
|---|---|---|---|---|
| +5V | 26.0A | ±5% | 36A | 50 |
| +12V1 | 22.0A | ±5% | 36A | 120 |
| +12V2 | 22.0A | ±5% | 36A | 120 |
| +12V3 | 25.0A | ±5% | 36A | 120 |
| -12V | 0.5A | ±10% | 120 | |
| +5V5B | 2.5A | ±5% | 50 | |
| +3.3V | 28.0A | ±5% | 36A | 50 |
Connectors
1 x 20 + 4-Pin
1 x 6 + 2-PCI-E
1 x 6-Pin PCI-E
6 x SATA
6 x Molex
1 x Aux.
1 x 4 + 4-Pin ATX / EPS
