Antec High Current Gamer Series HCG-900 900W ATX12V v2.3 / EPS12V v2.91 SLI Certified CrossFire Certified 80 PLUS BRONZE Certified Active PFC Power Supply - Intel Haswell Fully Compatible

OUT OF STOCK.
  • ATX12V v2.3 / EPS12V v2.91
  • 80 PLUS BRONZE Certified
  • 100 - 240VAC ±10% 47 - 63 Hz
  • +3.3V@25A, +5V@25A, +12V1@40A, +12V2@40A, +12V3@40A, +12V4@40A, -12V@0.5A, +5VSB@3.0A
Overview
Specs
Reviews

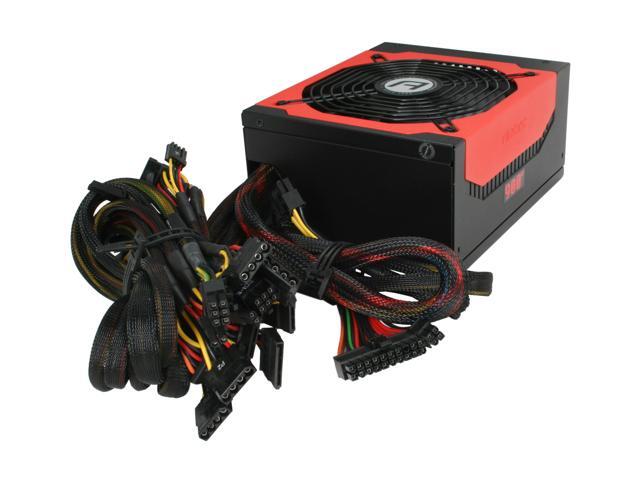

The front is offered with a variety of power connectors

Making quad rail power and highly advanced power supply design available at a popular Wattage, the HCG-900 features special High Current connectors and heavy-duty cabling, earning it NVIDIA® SLI®-Ready and ATI™ CrossFire™ certifications. At the same time the HCG-900 is also 80 PLUS® Bronze certified for efficiency, and features Active Power Factor Correction (PFC) with a swift, quiet 135mm double ball bearing fan so you know you're getting not only High Current, but also high efficiency and excellent cooling. If loads of power, High Current engineering and exceptional efficiency are what you're after, the HCG-900 is the perfect PSU for you.

icon for 80plus bronzeicon for sliicon for Intel Haswellicon for aq5icon for rohsicon for hexus recommended.jpg

Features

features
  • 900 Watts of Continuous Power
  • NVIDIA&® SLI®-Ready Certified, ATI CrossFire™ Certified
  • 80 PLUS® Bronze Certified - Up to 88% efficiency
  • Quad High Current +12V Rails With high maximum load for better graphics card compatibility

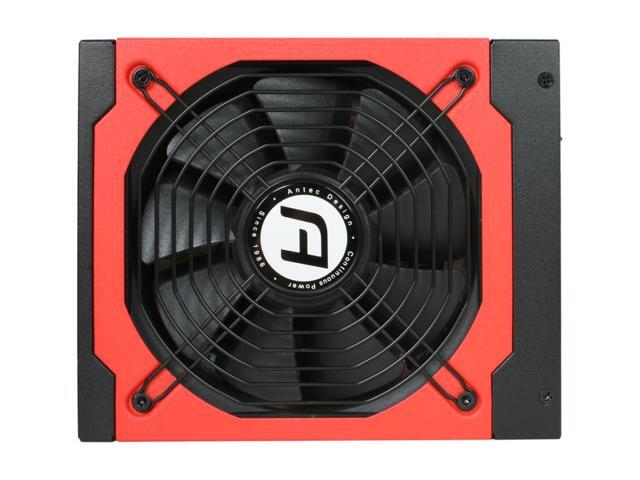

  • Quiet 135mm Double Ball Bearing Cooling Fan With low start voltage
  • Four Gold-Plated 8-Pin (6 + 2) PCI-E Connectors For multiple-graphics card configurations
  • All Japanese Brand Capacitors For reliability
  • ATX12V Version 2.3 and EPS Version 2.91 Compliant
  • Gold-plated High Current terminals For optimal conductivity
  • Universal Input - Works on any 100V ~ 240V grid
  • Active PFC With PF: 0.99 - less harmonic pollution, greater efficiency
  • Full Suite of Industrial Grade Protection: Over current protection (OCP), Over voltage protection (OVP), Short circuit protection (SCP), Over power protection (OPP), and Over temperature protection (OTP).
  • MTBF: 100,000 hours
  • Meets ErP Lot 6: 2010 Requirement: 5Vsb < 1W
  • Safety: cUL, TÜV, CE, CB, FCC, C-TICK, CCC, BSMI, Gost-R
  • AQ5: Antec Quality 5-year limited warranty on parts and labor
  • Unit Dimensions (H x W x D): 3.4 x 5.9 x 7.1 inches (86 x 150 x 180mm)
  • Package Dimensions (H x W x D): 4.9 x 12.2 x 7.1 inches (124 x 310 x 180mm)
  • Weight: 6.0lbs (2.7kg) (Net), and 7.5lbs (3.4kg) (Gross)

Output

Output Voltage Range MAX Reg. OCP Set Point Ripple & Noise
+5V 25A ±5% 38A 50
+12V1 40A ±5% 52A 120
+12V2 40A ±5% 52A 120
+12V3 40A ±5% 52A 120
+12V4 40A ±5% 52A 120
-12V 0.5A ±10% 120
+5V5B 3A ±5% 50
+3.3V 25A ±5% 38A 50
+5V and +3.3V combined max. output: 150W; +12V outputs combined max. output: 850W (70.8A)

Input

Input Voltage 100 ~ 240VAC ±10%
Input Frequency Range 47Hz ~ 63Hz
Efficiency Up to 88%

Connectors

1 x 20+4 Pin

1 x 20 + 4-Pin

4 x 6+2 PCI-E

4 x 6 + 2 PCI-E

9 x SATA

9 x SATA

6 x Molex

6 x Molex

1 x Floppy

1 x Aux.

1 x 4+4 Pin ATX/EPS

1 x 4 + 4-Pin ATX/EPS
