Question 1

will this mother board fit on this case???????
Details
Manufacturer: ASRock
Form factor: ATX
Socket type: Socket LGA1155
RAM type: DDR3
Maximum RAM: 32 GB RAM
Feature: Onboard Sound, Onboard Graphics, With Gigabit Ethernet

Accepted Answer

This is a MicroATX case.  That means that an ATX motherboard will not fit inside it.  If you must fit this particular case, then look for a MicroATX or FlexATX motherboard.  Otherwise, if you want that motherboard, then you will need a larger (ATX) case.

Question 2

Will a standard ATX PSU fit in this case?

Accepted Answer

Yes, a standard ATX PSU will surely fit in this case. What makes this case smaller in footprint is with the size of the mobo it can fit which is limited to MicroATX but not with the PSU.

Question 3

Hello there

Will this fit a standard ATX PSU?

Accepted Answer

Yes, any Micro ATX or Mid ATX or Full ATX Tower will accept standard ATX power supplies.  Only ITX or Mini ATX cases need special power supplies, and even some of them are adopting the ATX standard in the past year or so, depending on space in the case.

Question 4

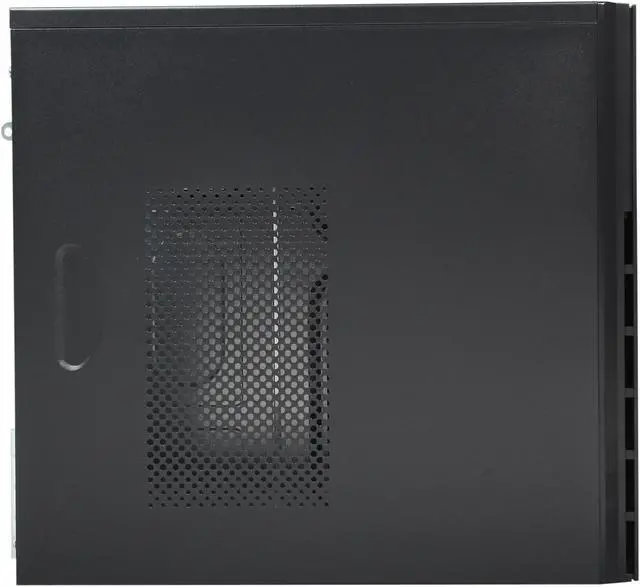

Would this case work well on it's side? If so, is the bottom reasonably aesthetically pleasing or at least painted black to match the rest of the case? Thanks

Accepted Answer

Any case should work in any orientation which allows you to insert and remove disks safely and doesn't block airflow.

That said, these cases are only tested for being used as intended. It's possible for a case to have a design flaw that would make placing it on it's side harmful to the electronics within... something QA testing wouldn't reveal as they would likely not test it that way.

Also, the side panel is not reinforced so even on its side you should *not* place a monitor or anything else on the case. Which means that case will end up taking up considerably more space than it would standing vertical.

My advice is to buy a case designed for such use. Antec makes them and they sell them on Newegg.

Question 5

will this case fit a msi h110m gaming lga 1151 motherboard?

Accepted Answer

it says micro atx, so as long as your motherboard is a micro atx then you're fine. Sometimes they'll say mini atx or m atx, but they're all the same.

Question 6

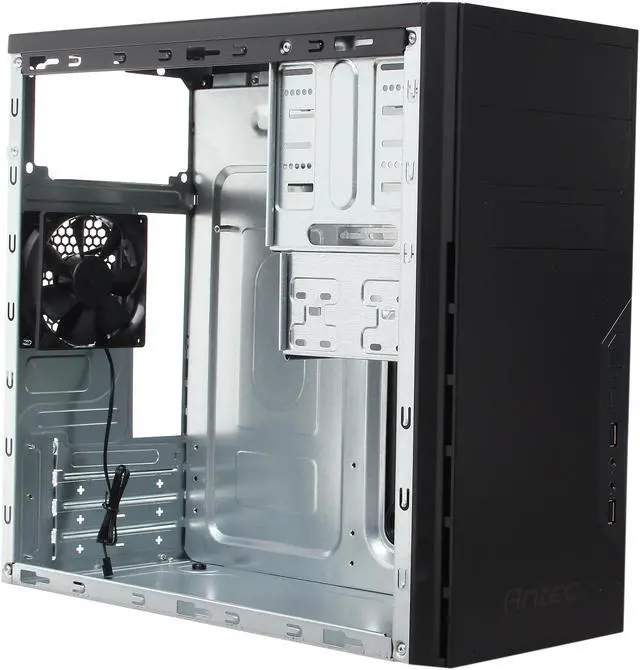

Is the case fan a 3 wire or 4 wire?

OR

Can the fan speed be controlled by the motherboard?

Accepted Answer

It's a 3 pin fixed speed fan.

Question 7

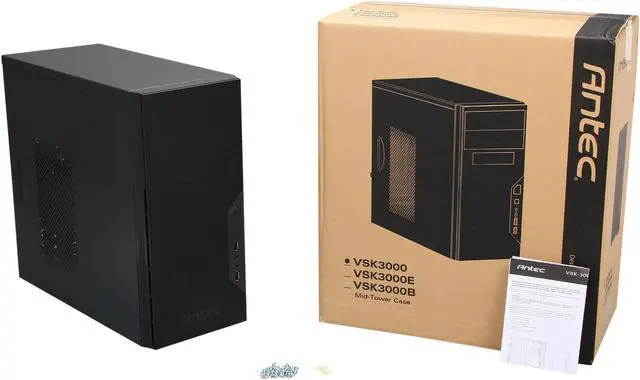

Is this (VSK-3000) the same as the VSK-3000E? If not, what's different?

Accepted Answer

yes it is the same case

Question 8

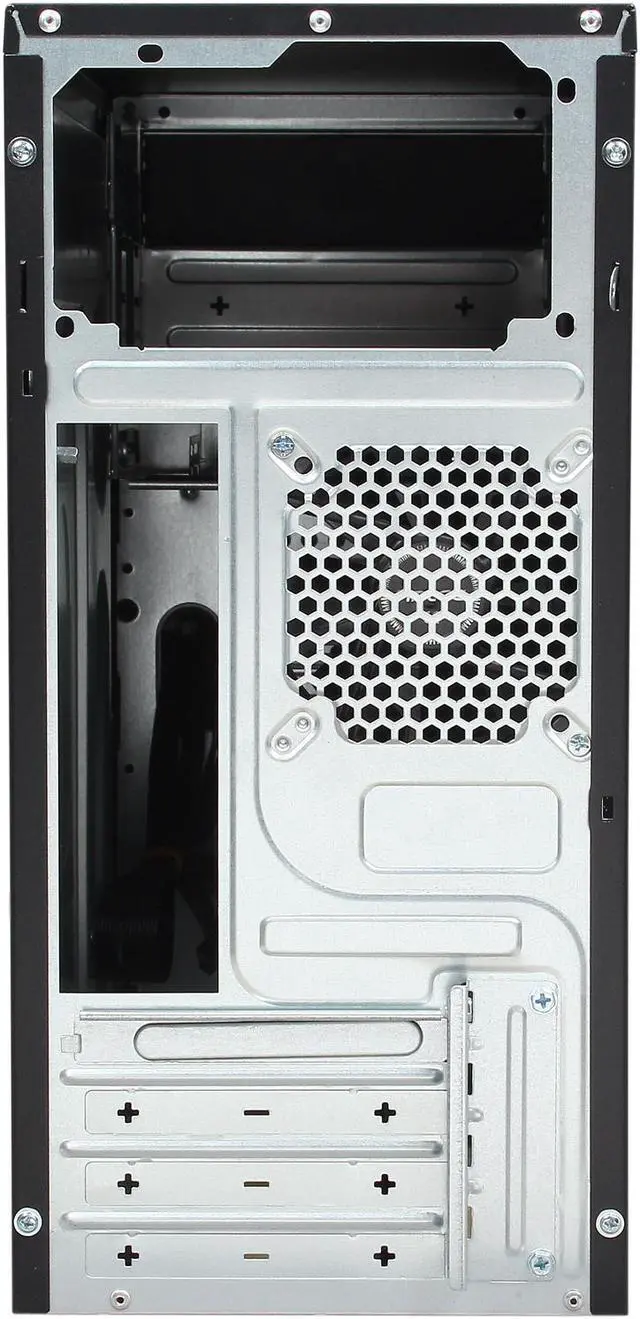

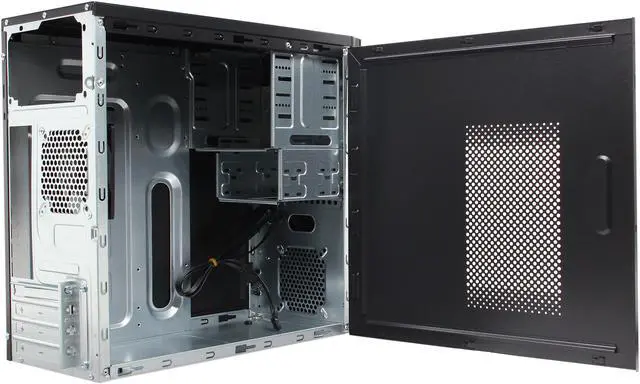

As far as the PCI slots go, does the back panel have screw-in/screw-out covers, or is it the permanent bend and then rip off type?

Accepted Answer

There is one screw in and out cover the rest are the permanent & Disposable kind.

Brand	Antec
Series	NEW SOLUTION SERIES
Model	VSK-3000

Type	Micro ATX Mini Tower
Color	Black
Case Material	SGCC steel
With Power Supply	No
Power Supply Mounted	Top

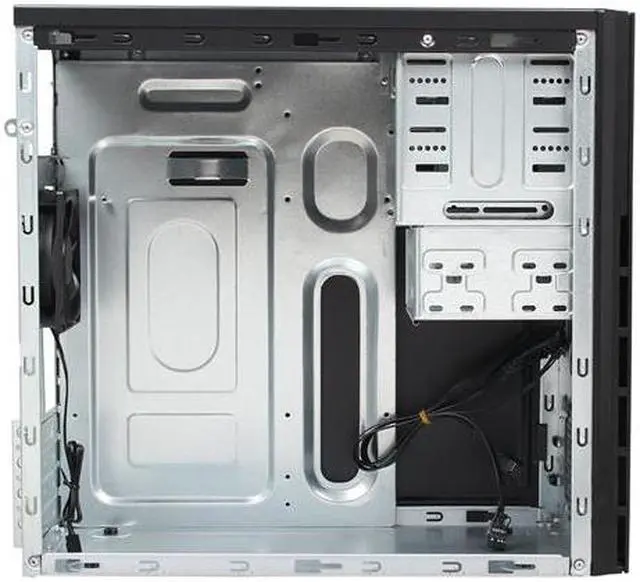

Motherboard Compatibility	Micro ATX / Mini-ITX
Side Panel Window	No

External 5.25" Drive Bays	2
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	2
Expansion Slots	4

80mm Fans	No
120mm Fans	No
Side Air duct	No

Dimensions (H x W x D)	14.40" x 6.80" x 15.50"
Weight	9.00 lbs.

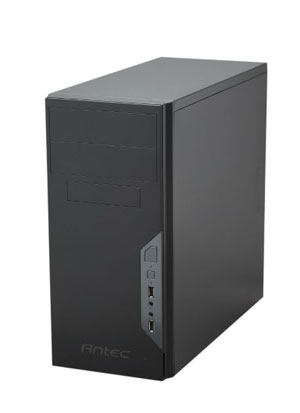

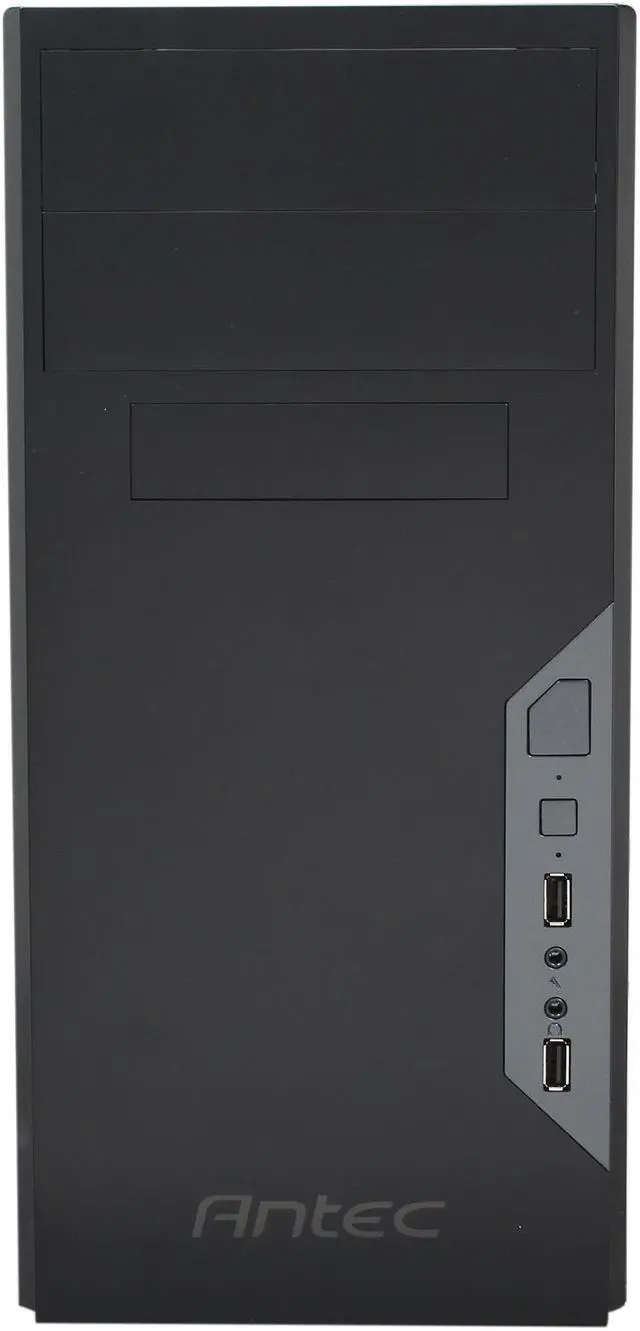

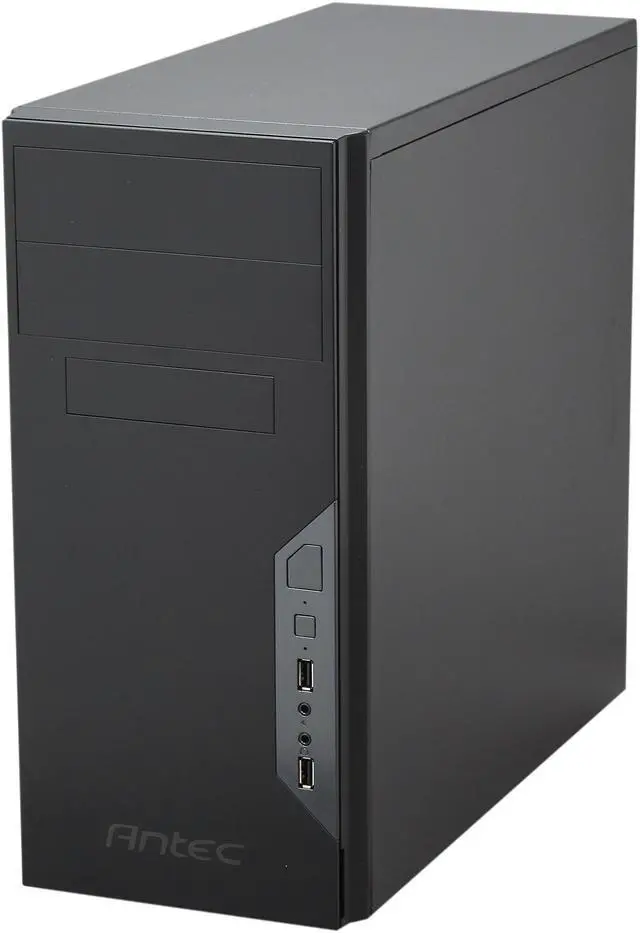

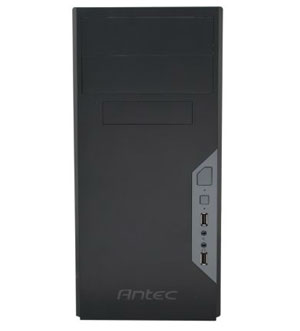

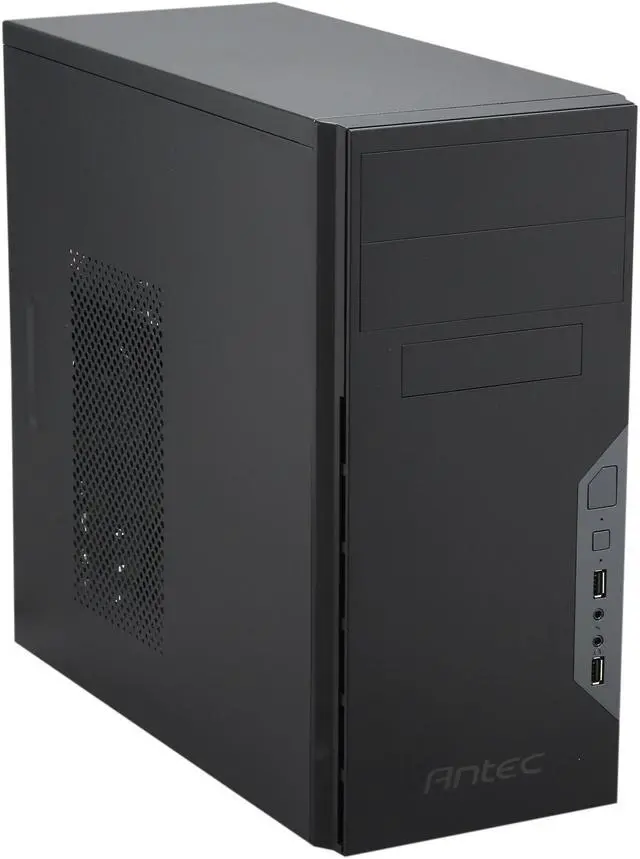

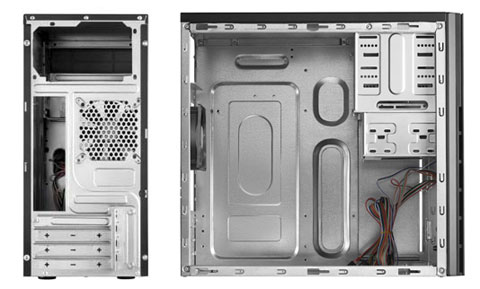

Antec NEW SOLUTION SERIES VSK-3000 Black SGCC steel Micro ATX Mini Tower Computer Case
