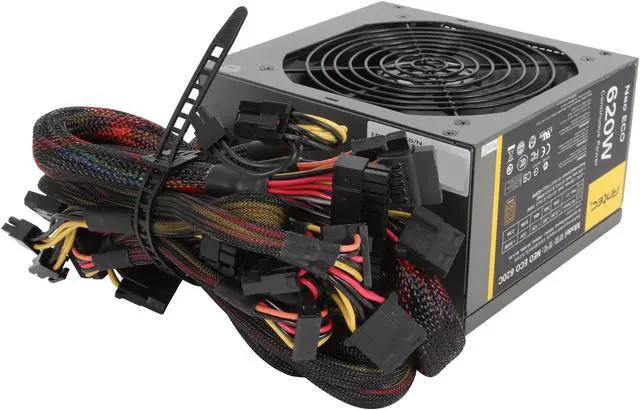

Antec NeoECO C NeoECO 620C 620W ATX12V 80 PLUS BRONZE Certified Active PFC Power Supply
- ATX12V; 620W Continuous Power
- 80 PLUS BRONZE Certified
- Approvals: UL, cUL, FCC, TUV, CE, CB, CCC, C-Tick, BSMI, Gost-R
- Output: +3.3V@24A, +5V@24A, +12V@48A, [email protected], [email protected]
Overview
Specs
Reviews (422)
Any questions? Our AI beta will help you find out quickly.
Try me now
The NEO ECO 620C power supply combines the most desired features in PC power supplies with unprecedented efficiency in design. The Antec NEO ECO 620C power supply power supply features 80 PLUS certification, saving energy and your money. It also generates less heat, and enhances cooling with a super-silent 120mm fan. The Active PFC circuitry further reduces impact on the power infrastructure resulting in cooler, quieter, and more environmentally friendly power.
The Antec NEO ECO 620C power supply’s Universal Input capability together with ATX12V and EPS12V compliance enables you to use it in a variety of situations, and almost everywhere, without worrying about input voltages. Dedicated power circuitry, industrial grade protection circuitry, and Active PFC deliver safe, reliable output.

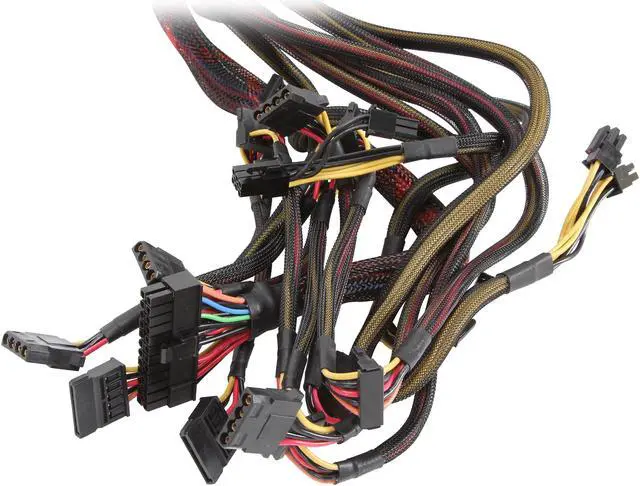

The presence of one Main connector (20 + 4 pin), one 12V rail (4+4-pin), six Molex, six SATA, one Floppy, and two PCI-E (one 6-pin and one 6+2-pin) connectors are more than enough for all your components. The single +12V output circuits provide maximum stable power for the CPU independently of the other peripherals. Bring new power to your system with this remarkable supply!
The Antec NEO ECO 620C power supply’s Universal Input capability together with ATX12V and EPS12V compliance enables you to use it in a variety of situations, and almost everywhere, without worrying about input voltages. Dedicated power circuitry, industrial grade protection circuitry, and Active PFC deliver safe, reliable output.
The presence of one Main connector (20 + 4 pin), one 12V rail (4+4-pin), six Molex, six SATA, one Floppy, and two PCI-E (one 6-pin and one 6+2-pin) connectors are more than enough for all your components. The single +12V output circuits provide maximum stable power for the CPU independently of the other peripherals. Bring new power to your system with this remarkable supply!
Antec NeoECO C NeoECO 620C 620W ATX12V 80 PLUS Certified Active PFC Power Supply
Get economical power today with the NeoECO C Series, Antec's high-efficiency power supply solution. Featuring 80 PLUS® BRONZE certification, a quiet double ball bearing 120mm fan, and universal input with active power factor correction (PFC), the NeoECO C series gives you a cooler, quieter system all powered by Continuous Power. The NeoECO C series also features industrial safety protection, including short circuit and over voltage protection, for stable and reliable power no matter what.
Features
- 620W Continuous Power - Guaranteed 620W of Continuous Power from Antec
- 80 PLUS® BRONZE certified - Up to 87% efficient, to reduce your electricity bill
- AQ3 - Antec Quality three-year warranty and lifetime global 24/7 support
- 120mm DBB Silence - Whisper-quiet high-quality double ball bearing fan with long lifetime
- Thermal Manager - An advanced low voltage fan control for optimal heat and noise management
- Multi PCI-E - 2 PCI-E connectors for multiple GPU support
-
CircuitShield™ - Full suite of industrial grade protections:
- Over Current Protection (OCP)
- Over Voltage Protection (OVP)
- Under Voltage Protection (UVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Japanese Heavy-duty Caps - High-performance Japanese capacitors ensure tightest DC stability and regulation
-
ATX12V and EPS12V Compatible Compatible with the ATX12V and EPS12V standards, the Antec NEO ECO 620C power supply provides maximum power stability to drive the processors as well as other components for desktop and server computer systems. -
620W Continuous Power A continuous power of 620W delivers safe, reliable output for high-end gaming computer systems. A strong +12V single rail ensures the maximum provision of 12V power to energy-hungry components such as CPU and VGA card, minimizing the likelihood of overload shut down. -
80 Plus Certified The 80 PLUS certified power supply provides high power efficiency of over 80% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life. -
Dual PCI-E Connectors With one 6-pin and one 6+2-pin PCI-E connectors, the Antec NEO ECO 620C power supply is ideal for building up a SLI or CrossFire gaming system. -

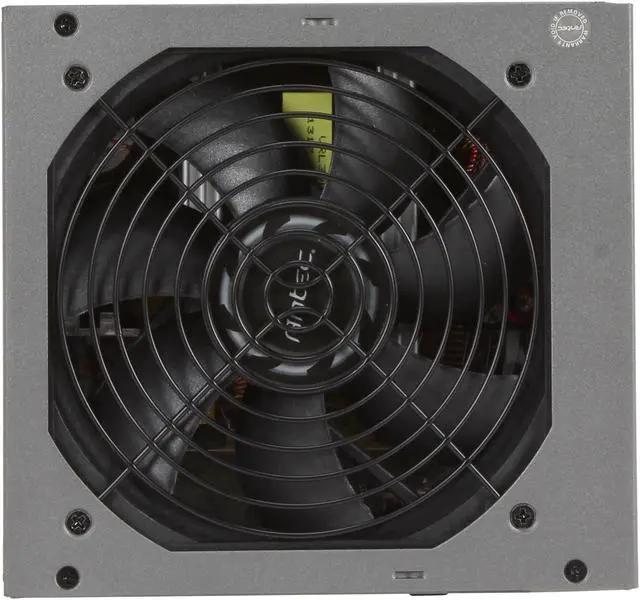

Quiet Operation The silent 120mm dual-ball-bearing fan delivers high efficient cooling and ensures quiet operation through fan speed adjustments in response to loading conditions.
ATX12V and EPS12V Compatible Compatible with the ATX12V and EPS12V standards, the Antec NEO ECO 620C power supply provides maximum power stability to drive the processors as well as other components for desktop and server computer systems.
620W Continuous Power A continuous power of 620W delivers safe, reliable output for high-end gaming computer systems. A strong +12V single rail ensures the maximum provision of 12V power to energy-hungry components such as CPU and VGA card, minimizing the likelihood of overload shut down.
80 Plus Certified The 80 PLUS certified power supply provides high power efficiency of over 80% at any load between 20% and 100%, saving your money on your electrical bill, reducing heat in your computer's system and prolonging its life.
Dual PCI-E Connectors With one 6-pin and one 6+2-pin PCI-E connectors, the Antec NEO ECO 620C power supply is ideal for building up a SLI or CrossFire gaming system.
Quiet Operation The silent 120mm dual-ball-bearing fan delivers high efficient cooling and ensures quiet operation through fan speed adjustments in response to loading conditions. Output table

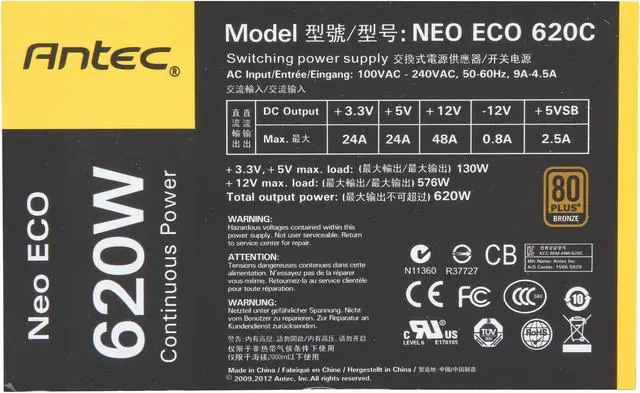

| +3.3V | +5V | +12V | -12V | +5Vsb |
| 24A | 24A | 48A | 0.8A | 2.5A |
| 130W | 576W | 9.6W | 12.5W | |
| 620W | ||||
| Input | ||||
| Input Voltage | 100VAC - 240VAC ~ ±10% (Active PFC) | |||
| Input frequency Range | 50Hz - 60Hz, 9A - 4.5A | |||

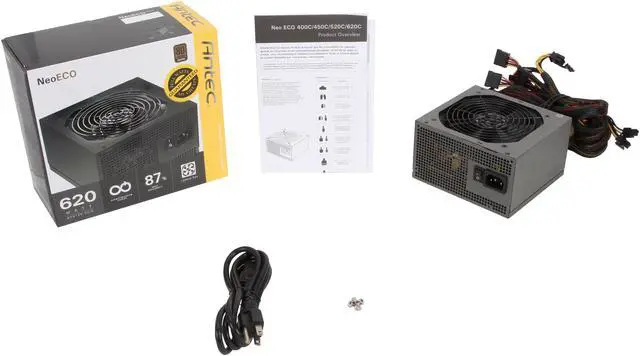

What's in the Box
