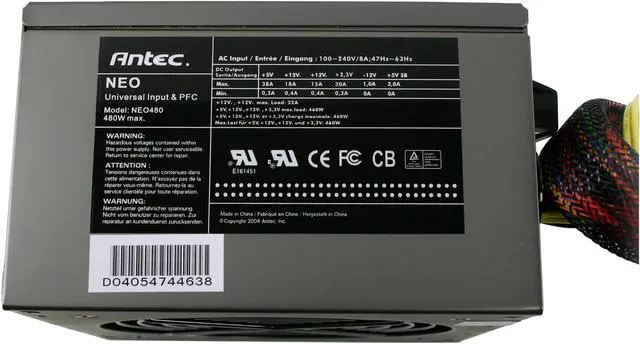

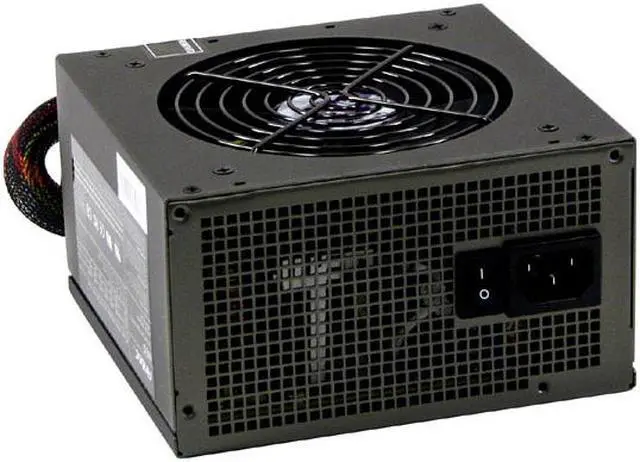

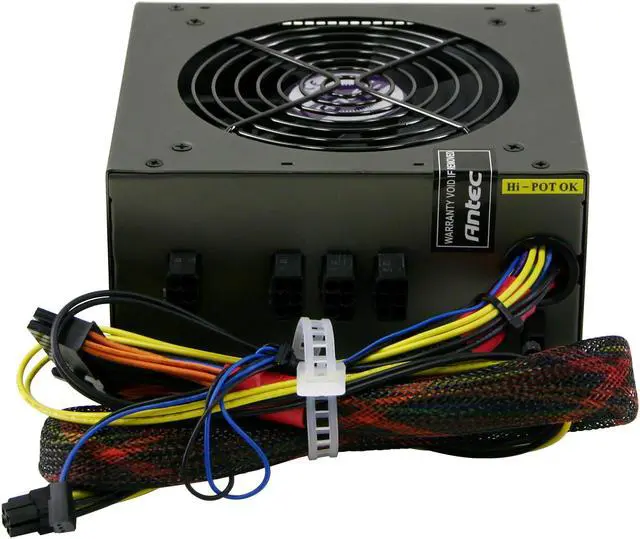

Antec NEOPOWER 480 480 W ATX12V v2.0 Modular Active PFC Power Supply
- ATX12V v2.0
- Modular
- 100 - 240 V 47 - 63 Hz
- +3.3V@30A, +5V@38A, +12V1@18A, +12V2@15A, -12V@1A, +5VSB@2A
Specs
Reviews
Learn more about the Antec NEOPOWER 480
| Brand | Antec |
|---|---|
| Model | NEOPOWER 480 |
| Type | ATX12V v2.0 |
|---|---|
| Maximum Power | 480 W |
| Fans | 1 x 120mm Fan |
| PFC | Active |
| Main Connector | 24Pin |
| +12V Rails | Yes |
| SLI | No |
| Modular | Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | 20 ms min |
| Efficiency | > 70% |
| Over Voltage Protection | Yes |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 12A @ 115V, 6A @ 230V |
| Output | +3.3V@30A, +5V@38A, +12V1@18A, +12V2@15A, -12V@1A, +5VSB@2A |
| MTBF | >80,000 Hours |
| Approvals | TUV, UL, CUL, CE, CB, FCC |

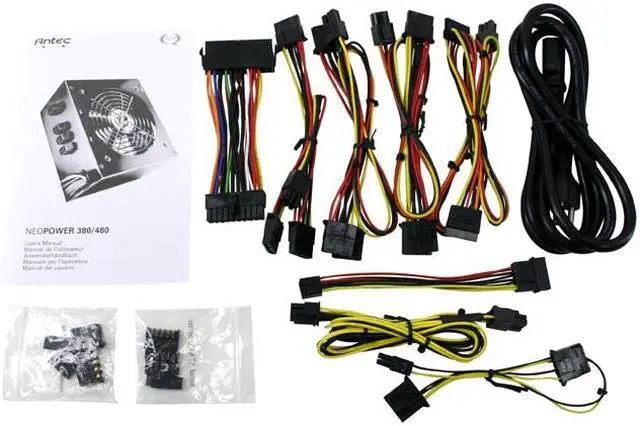

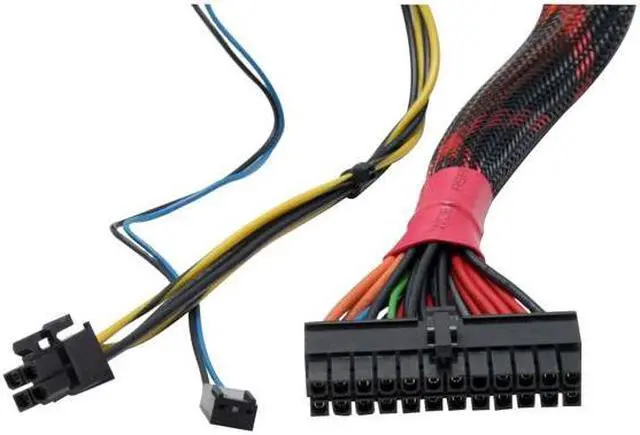

| Connectors | 1 x Main connector (24 pin) 1 x 12V (P4) 6 x peripheral 4 x SATA 1 x Floppy |
| Features | •Advanced Cable Management System allows you to use only the cables you need. This improves airflow and reduces clutter inside your case •Reduces power consumption by up to 25%, saving you money on your electricity bill •Includes special power connector for PCI Express graphic cards •Dedicated circuits for each voltage output allow NeoPower to overcome combined-output limitations •Voltage-feedback circuitry improves system stability by delivering extremely accurate power •Temperature-response system ensures blissfully quiet operation, by varying fan speed in response to load and conditions •Dedicated Fan-Only connectors allow NeoPower to control case fan speeds, thereby further reducing system noise •Over-temp and over-current protection, provide maximum reliability •Gold-plated connectors for superior conductivity |
|---|
| Date First Available | July 16, 2004 |
|---|
