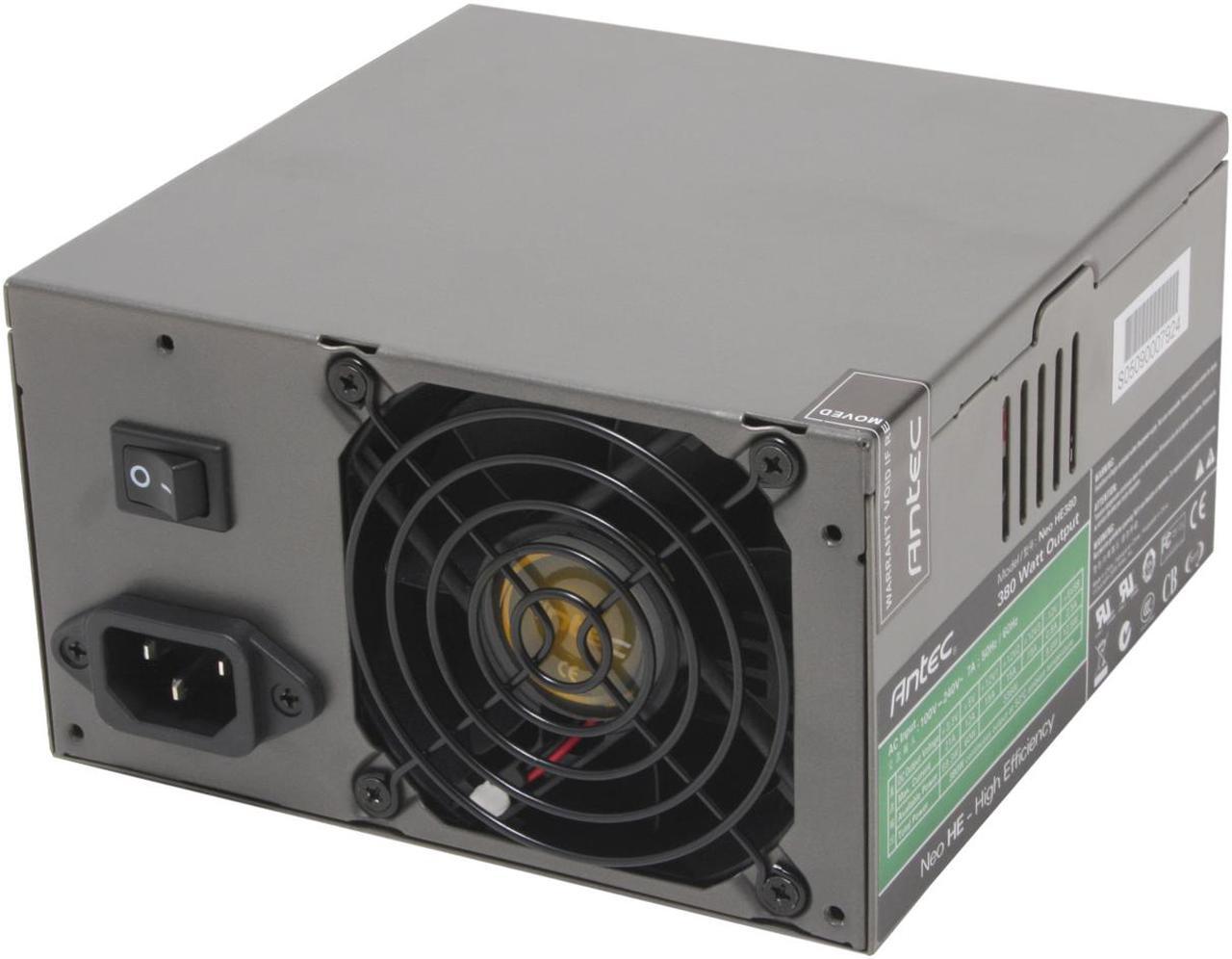

Antec NeoPower NeoHE 380 380 W ATX12V SLI Certified CrossFire Ready Modular Active PFC Power Supply

(19) Write a Review
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (19)

Learn more about the Antec NeoHE 380

General
Brand Antec
Series NeoPower
Model NeoHE 380
Details
Type ATX12V
Maximum Power 380 W
Fans 1 x 80mm super-silent fan
PFC Active
Main Connector 20+4Pin
+12V Rails 3
PCI-Express Connector 2 x 6-Pin
SLI SLI Certified
CrossFire CrossFire Ready
Modular Modular
Power Good Signal 100-500ms
Hold-up Time 20ms at full load
Efficiency Up to 85%
115V - Full load 76%; Typical load 82%, Light load 77.9%
230V - Full load 80%; Typical load 85%, Light load 79.45%
Over Voltage Protection +5V trip point < +6.5V
+3.3V trip point < +4.1V
+12V trip point < +14.3V
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 7A

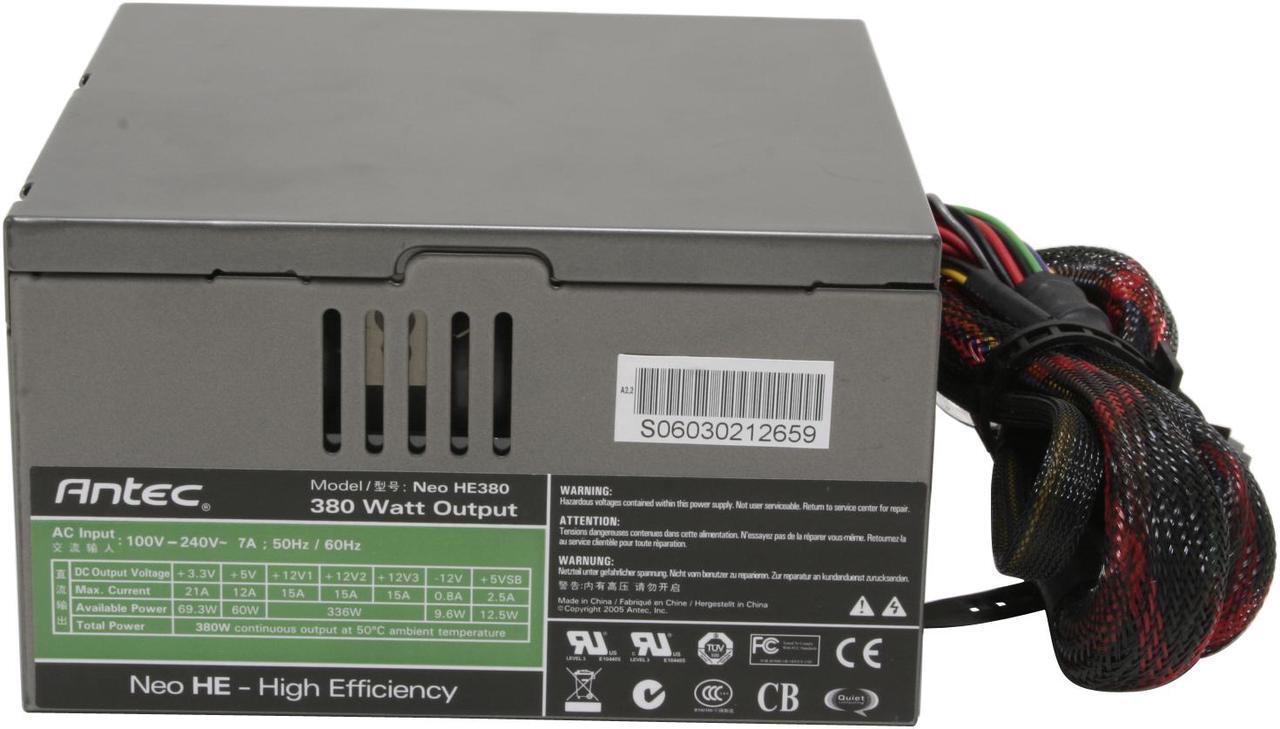

Output +3.3V@21A, +5V@12A, +12V1@15A, +12V2@15A,
+12V3@15A, [email protected], [email protected]
MTBF >80,000 Hours
Approvals UL, CUL, TUV, CE, FCC, CCC, CB, C-tick

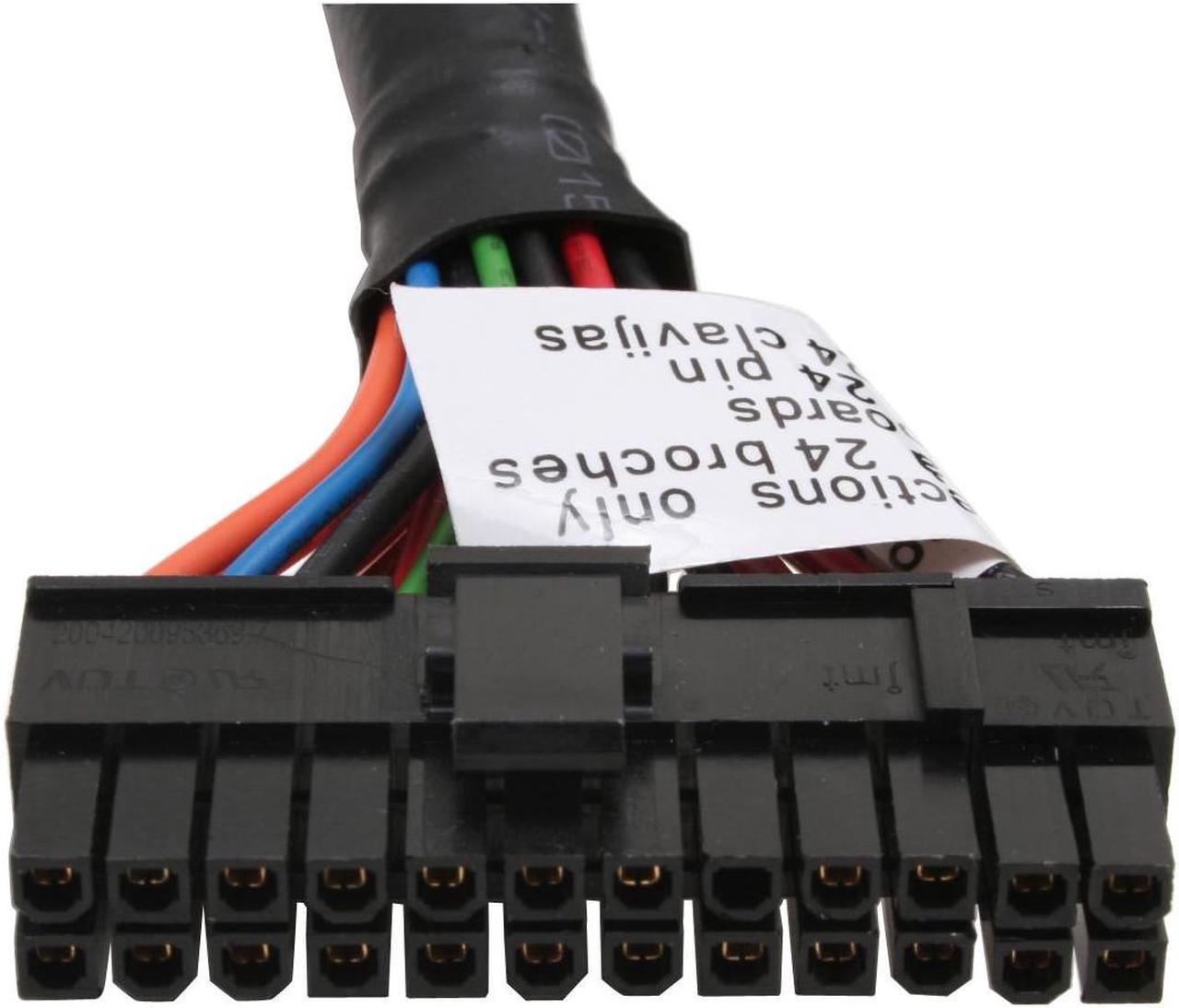

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
6 x peripheral
4 x SATA
2 x Floppy
2 x PCI-E
Features
Features Highly efficient (up to 85%), one super-silent 80mm fan keeps Neo HE cool; less than 18dBA noise level.

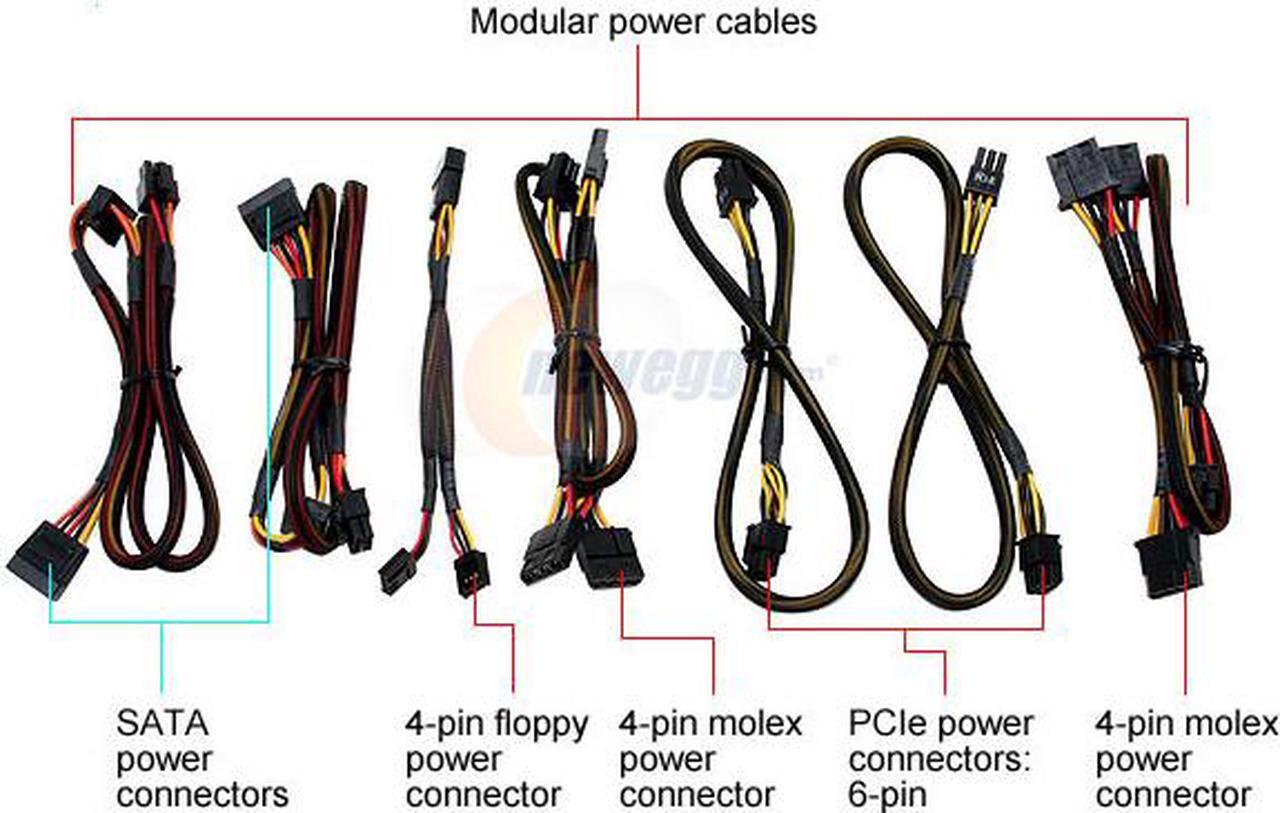

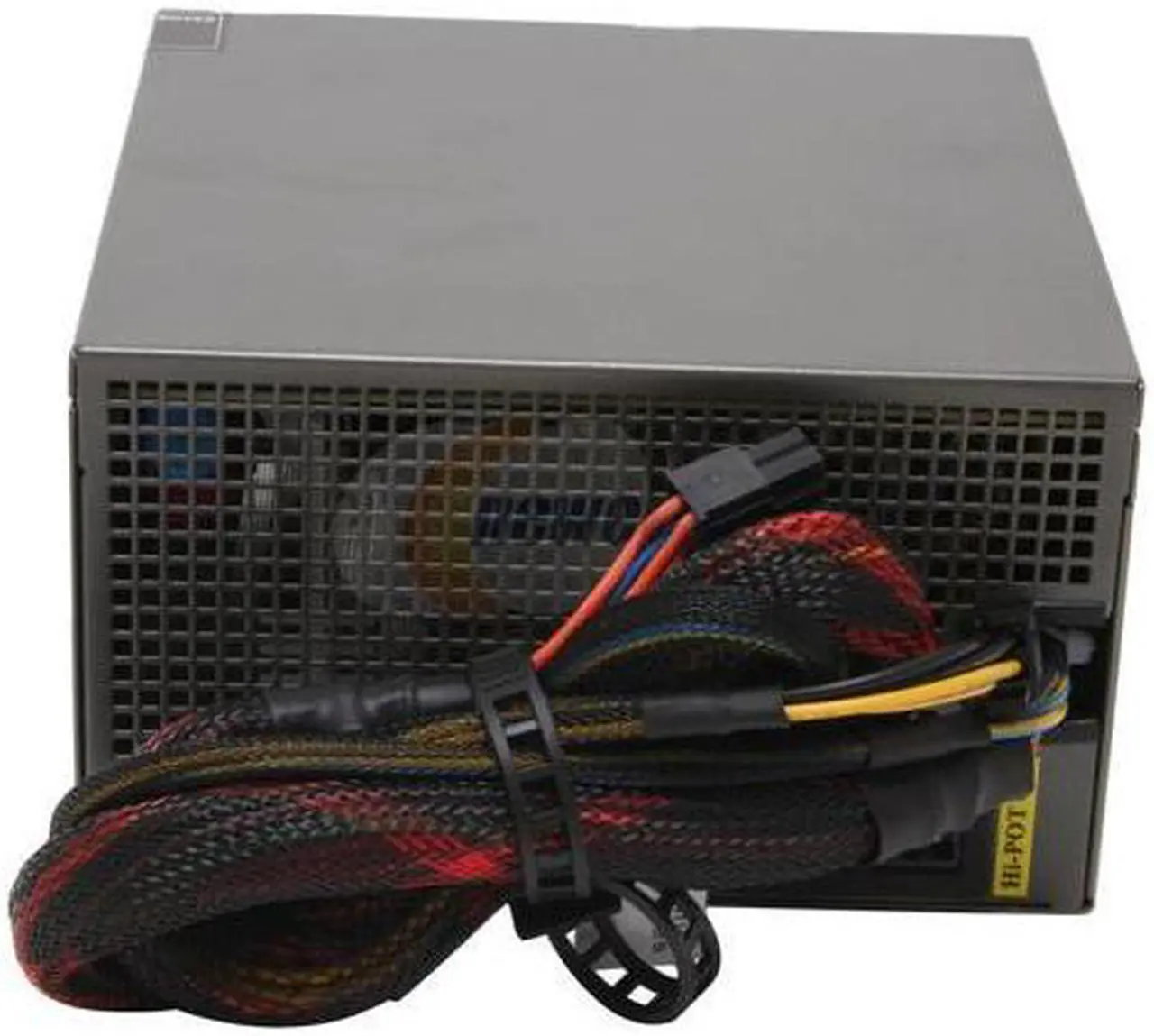

Advanced Cable Management System improves internal airflow and reduces system clutter by allowing you to use only the cables you need.
Universal Input with Active PFC: Use anywhere in the world without worrying about input voltages; Active PFC improves voltage stability and delivers environmentally-friendlier power.
Dedicated Power Circuitry: Delivers safer, more reliable output to your system's delicate components.
ATX12V v2.2 compliant; backward compatible with all ATX12V systems.
Three +12V output circuits provide maximum stable power for the CPU independently of the other peripherals.
Accurate power rating allows Neo HE to deliver its full rated power, 24 hours a day rated at 50ºC.
PCI Express graphics card power connector.
Low-speed 80mm fan delivers whisper-quiet cooling and ensures quiet operation by varying fan speed in response to load and conditions.
Industrial grade protection circuitry prevents damage resulting from short circuits (SCP), under voltage protection (UVP), power overloads (OPP), excessive current (OCP) and excessive voltages (OVP).
Additional Information
Date First Available October 07, 2005

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
