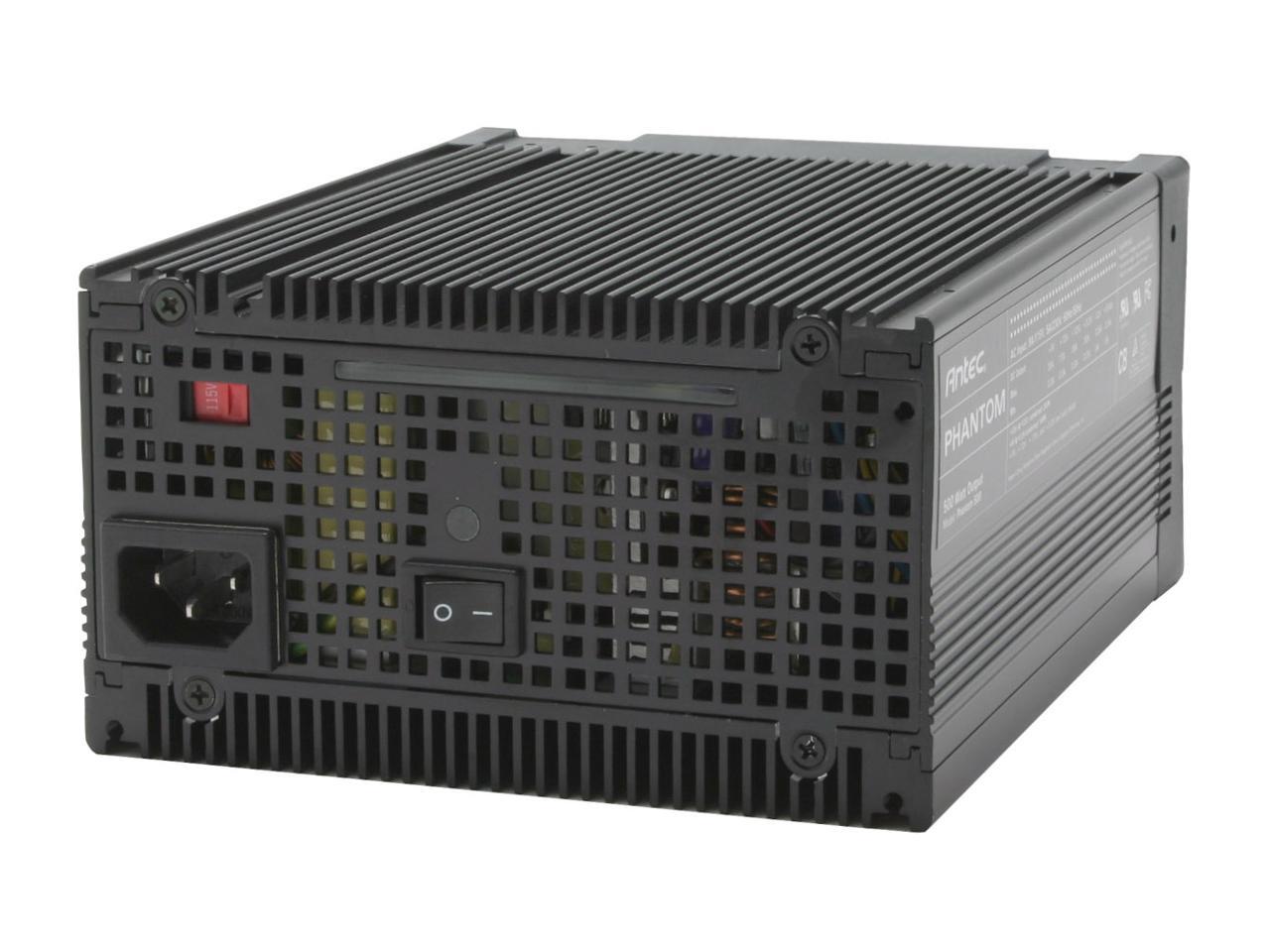

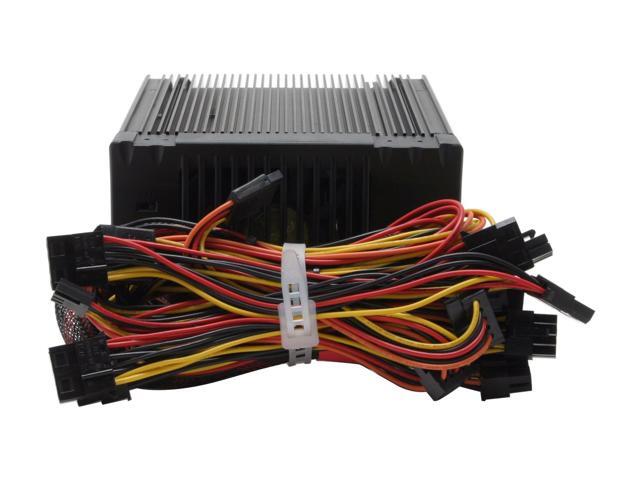

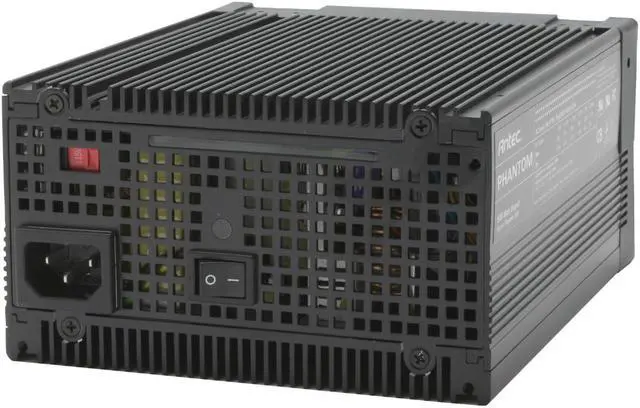

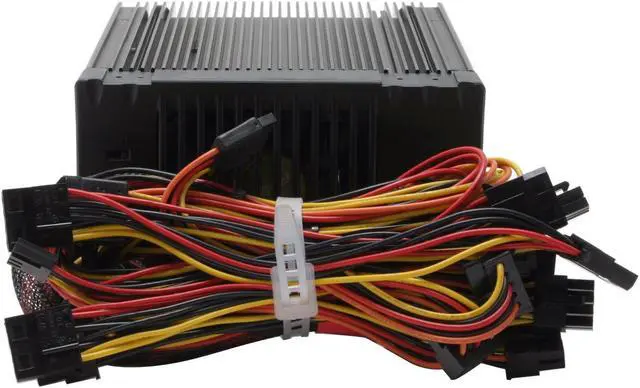

Antec Phantom 500 500 W ATX12V Power Supply

(59) Write a Review
  • ATX12V
  • 100Vac to 240Vac +/- 10% 47 - 63 Hz
  • +3.3V@30A, +5V@30A, +12V1@17A, +12V2@18A, -12V@0.5A, +5VSB@2.0A
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (59)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Antec Phantom 500

General
Brand Antec
Model Phantom 500
Details
Type ATX12V
Maximum Power 500 W
Fans 0
PFC No

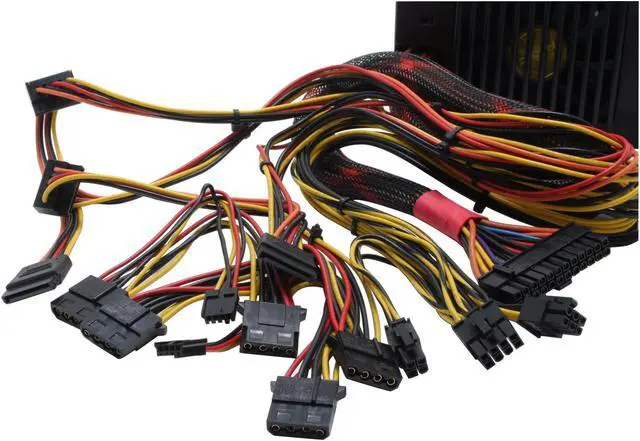

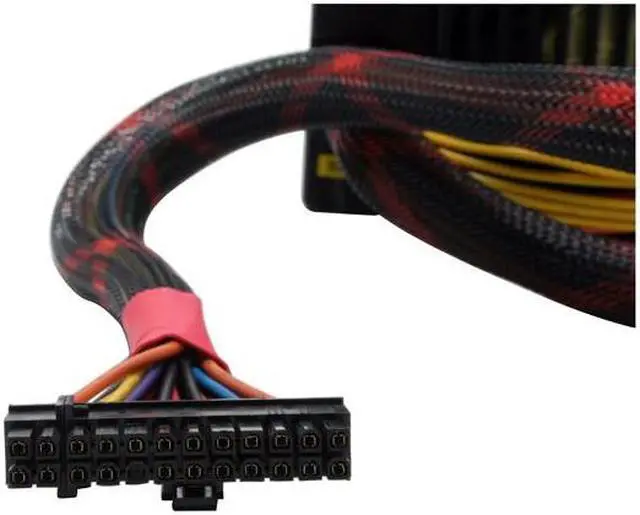

Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 1 x 6-Pin
Power Good Signal 100-500ms
Hold-up Time 20ms at full load
Efficiency 82%at full loads, 115V/230Vac 60/50Hz
Over Voltage Protection +5V trip point < +6.2V
+3.3V trip point < +4.1V
+12V trip point < +14.3V
Input Voltage 100Vac to 240Vac +/- 10%
Input Frequency Range 47 - 63 Hz
Input Current 9A @ 115V, 5A @ 230V

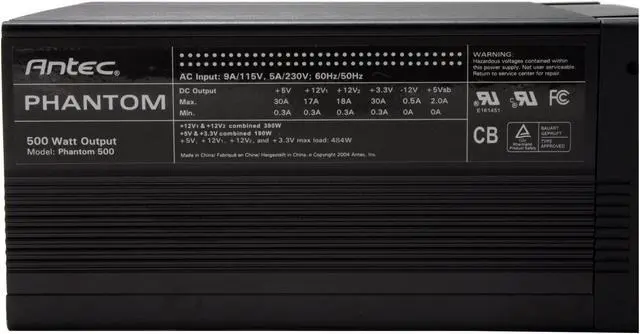

Output +3.3V@30A, +5V@30A, +12V1@17A, +12V2@18A, -12V@0.5A, +5VSB@2.0A
MTBF 80,000 hours
Approvals TUV, UL, CUL, CE, CB, FCC
Features
Features Fanless operation for absolutely silent computing. Three user selectable fan kick-in points for quiet computing under higher loads, 4 Serial ATA power connectors
PCI Express graphic card power connector
Additional Information
First Listed on Newegg July 11, 2005
