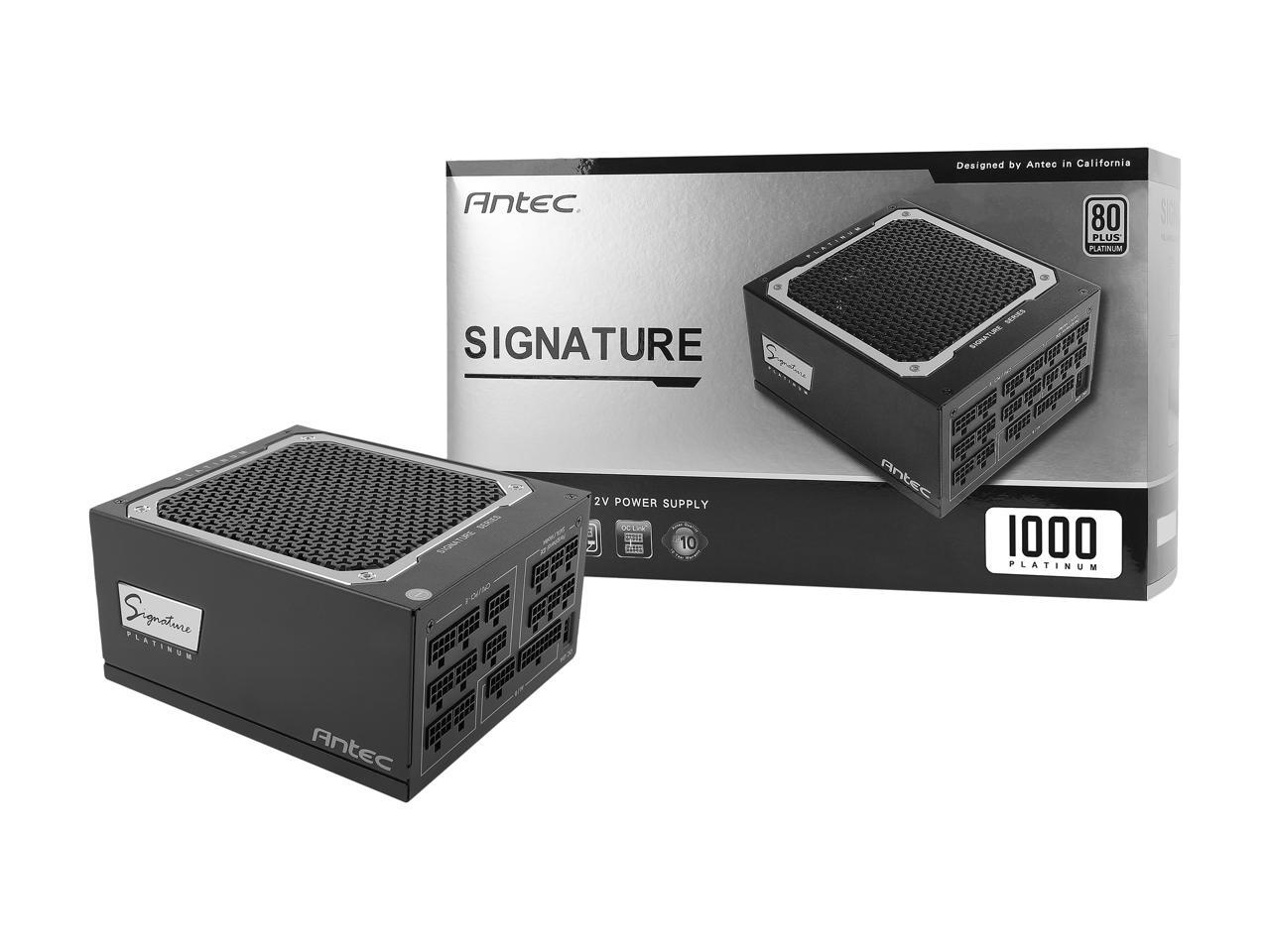

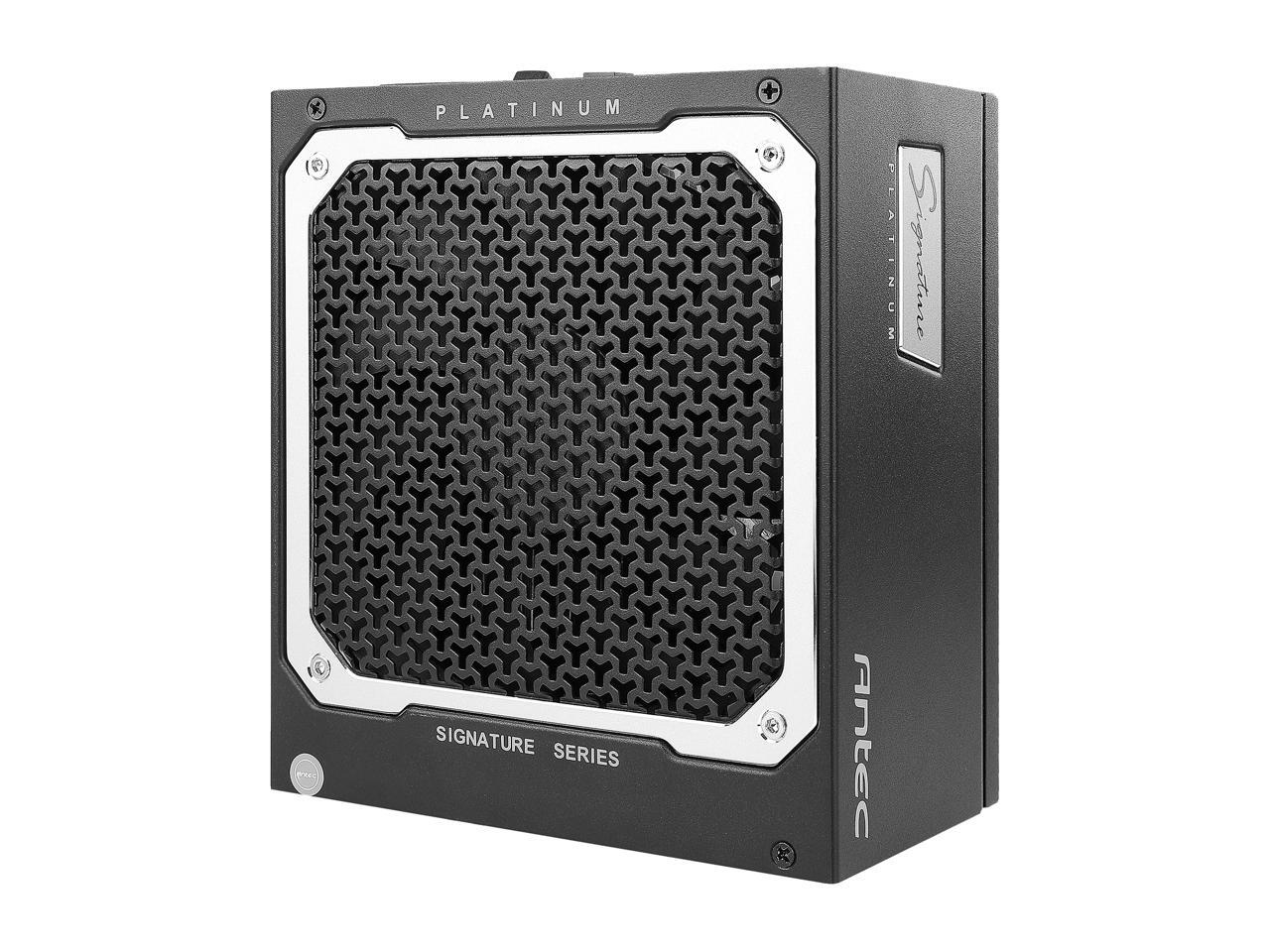

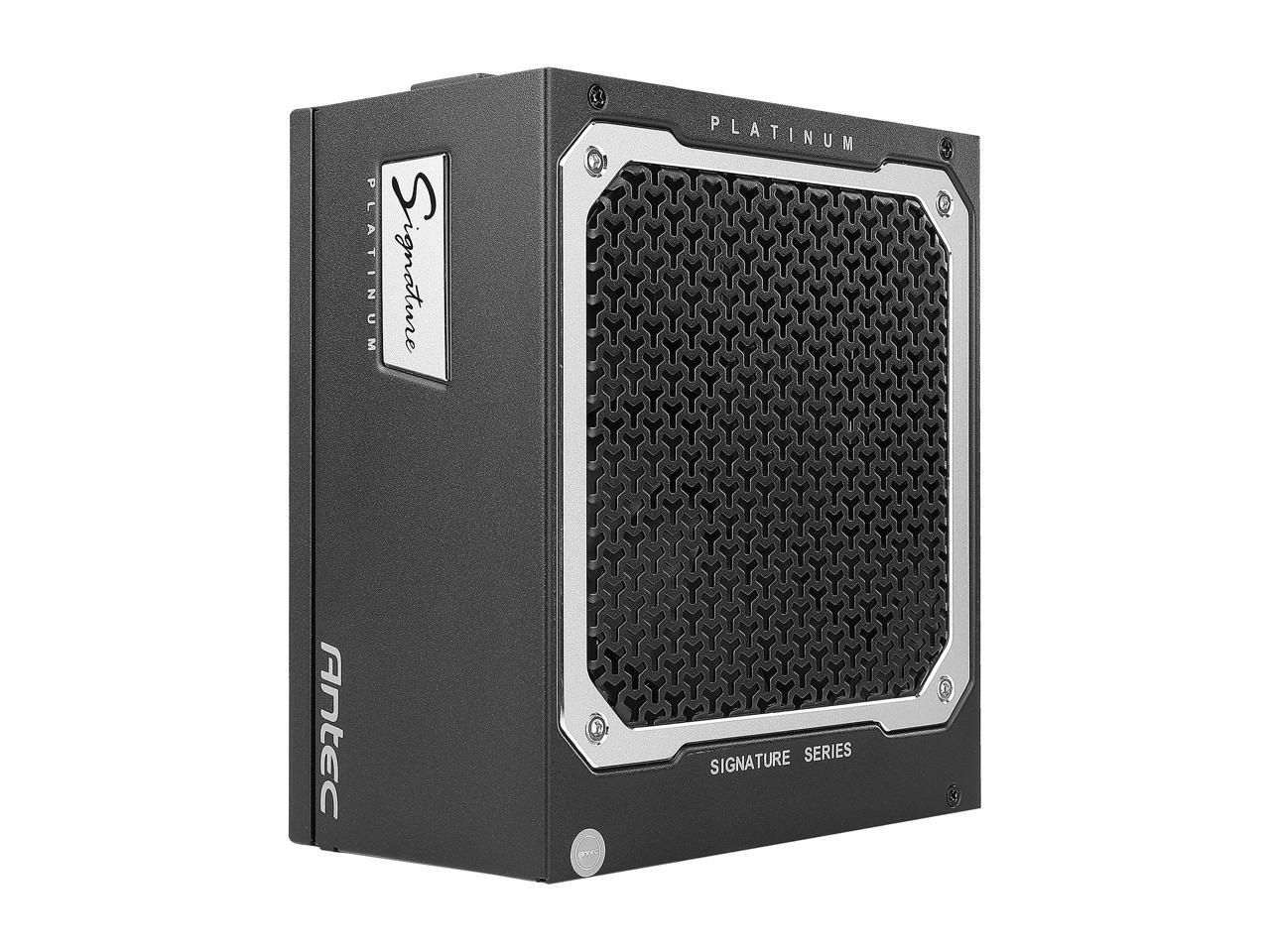

Equipped with superior features that ensure peak performance for the enthusiast and gaming-oriented segment, the Signature power supply Series boasts unparalleled stability and 80 PLUS® Platinum-certified efficiencies. Advanced thermal control with the Zero RPM mode enables the optimal balance between silence and cooling. The CircuitShield suite of industrial-grade protections ensures that the power delivered to your system is safe and reliable in any environment. Signature Series are a great choice for a reliable and efficient PC system for gamers and professionals.

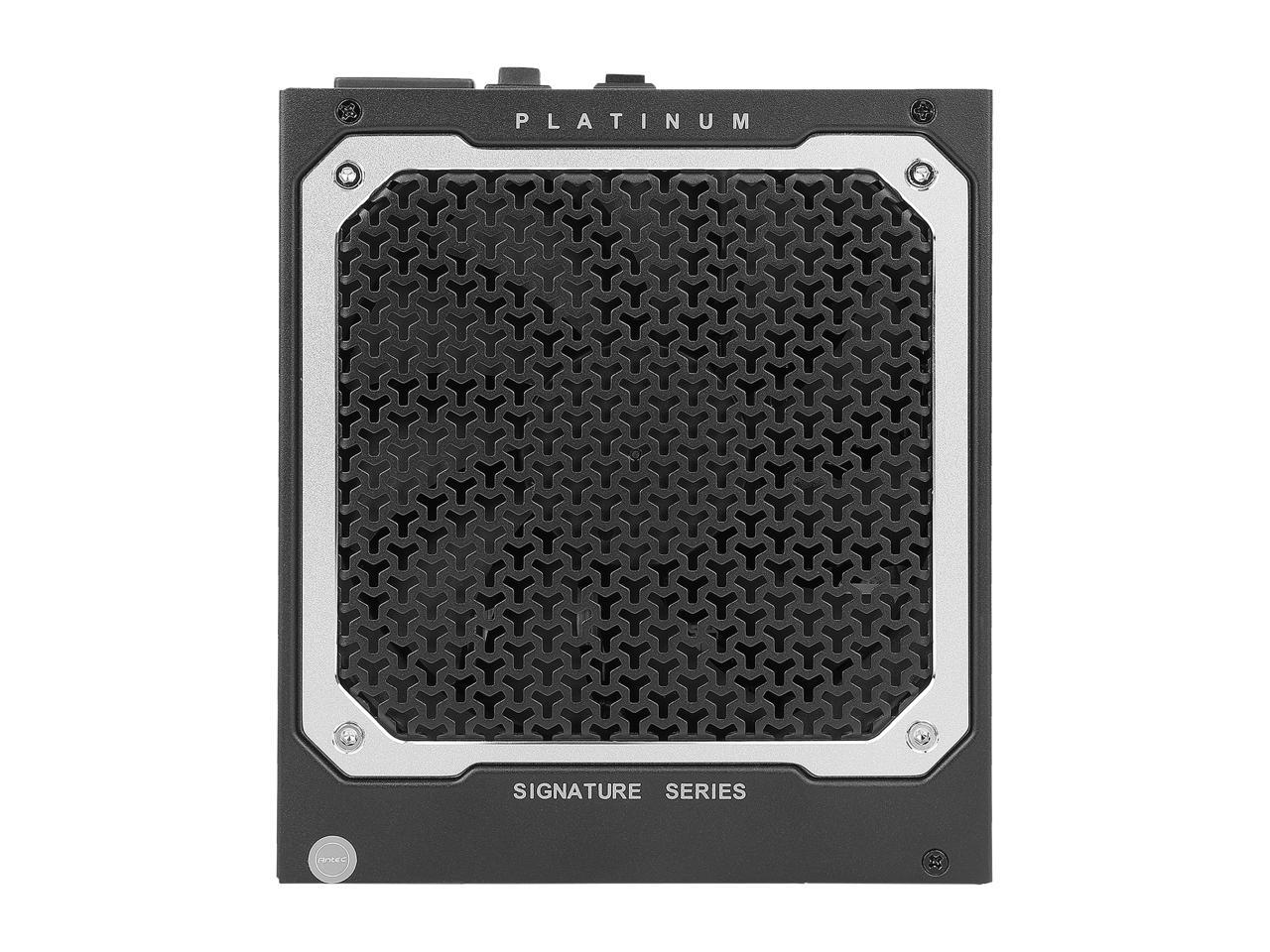

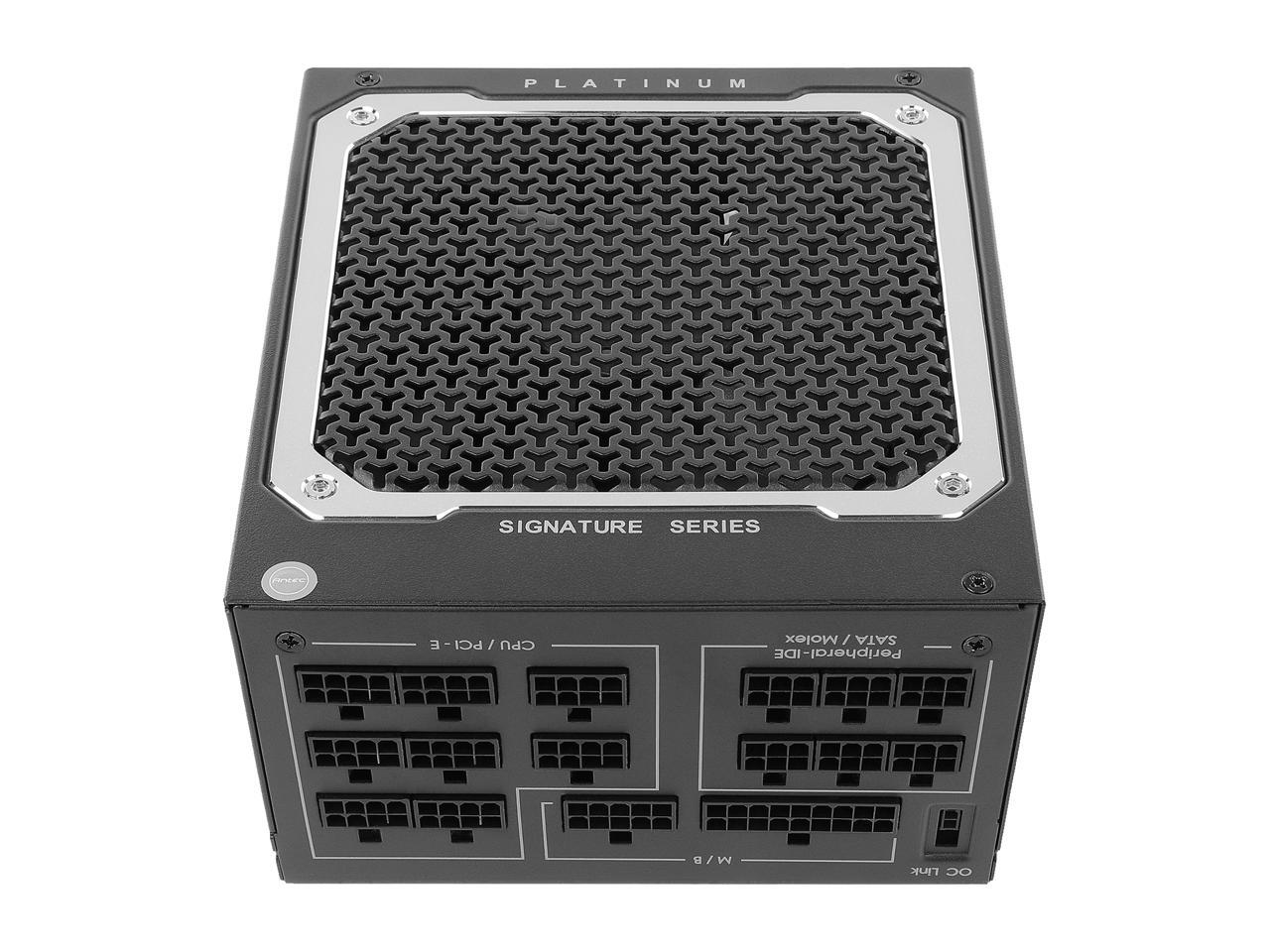

FDB 135mm Silent Fan
Featuring whisper-quiet, fluid dynamic bearing 135mm fan provides high airflow with durability and longevity.

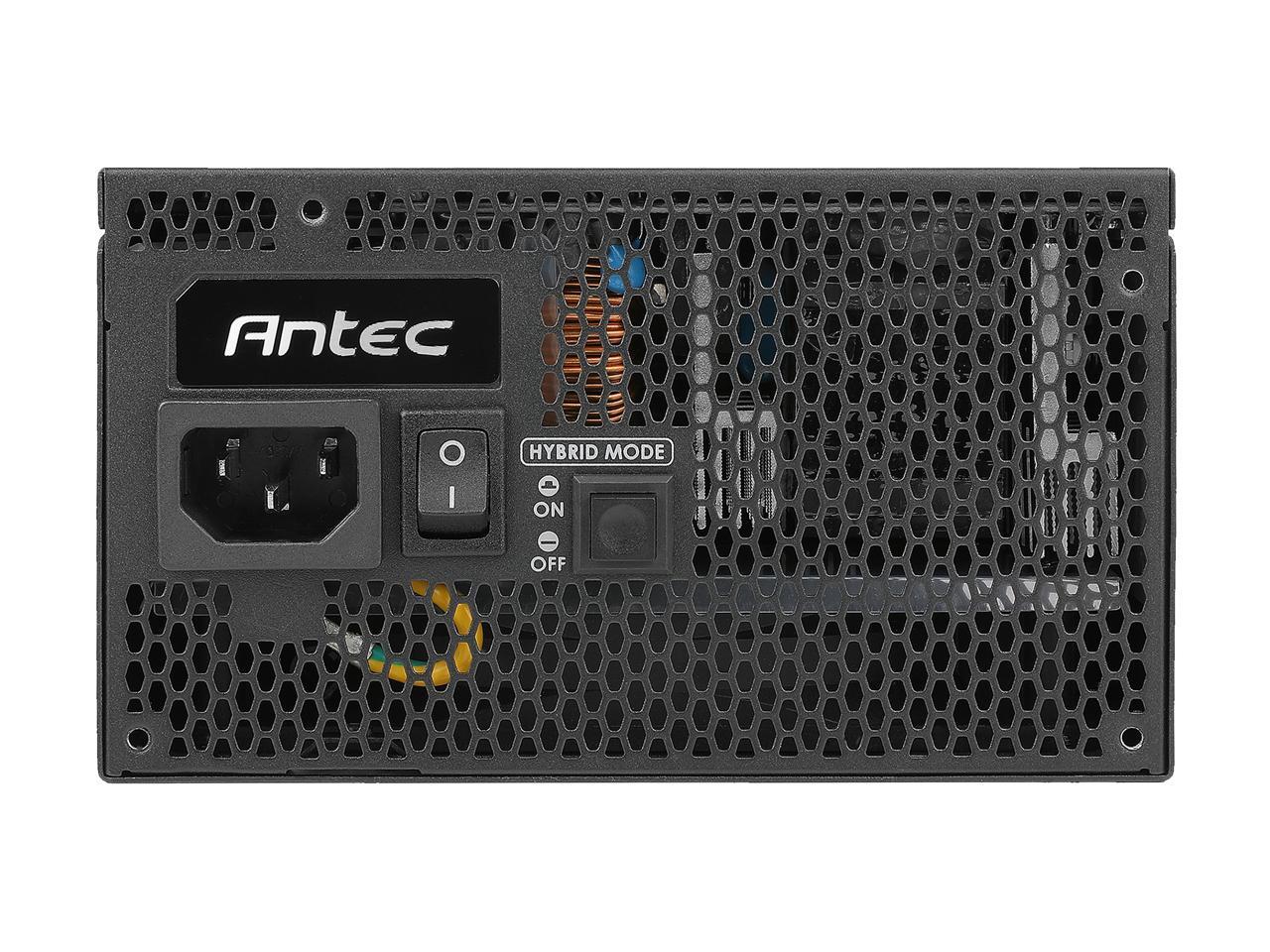

Zero RPM Mode
The Zero RPM fan mode further ensures a longer-lasting and quieter system by using thermal sensors to activate the fan only when you need it.
100% Top-Grade Japanese Capacitors
Achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance.
PhaseWave Design
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
OC Link Feature
Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
10-year Warranty
This new PSU line from Antec pushes the standard for excellence with the circuit shield suite of industrial protections and is backed by a 10-year warranty.

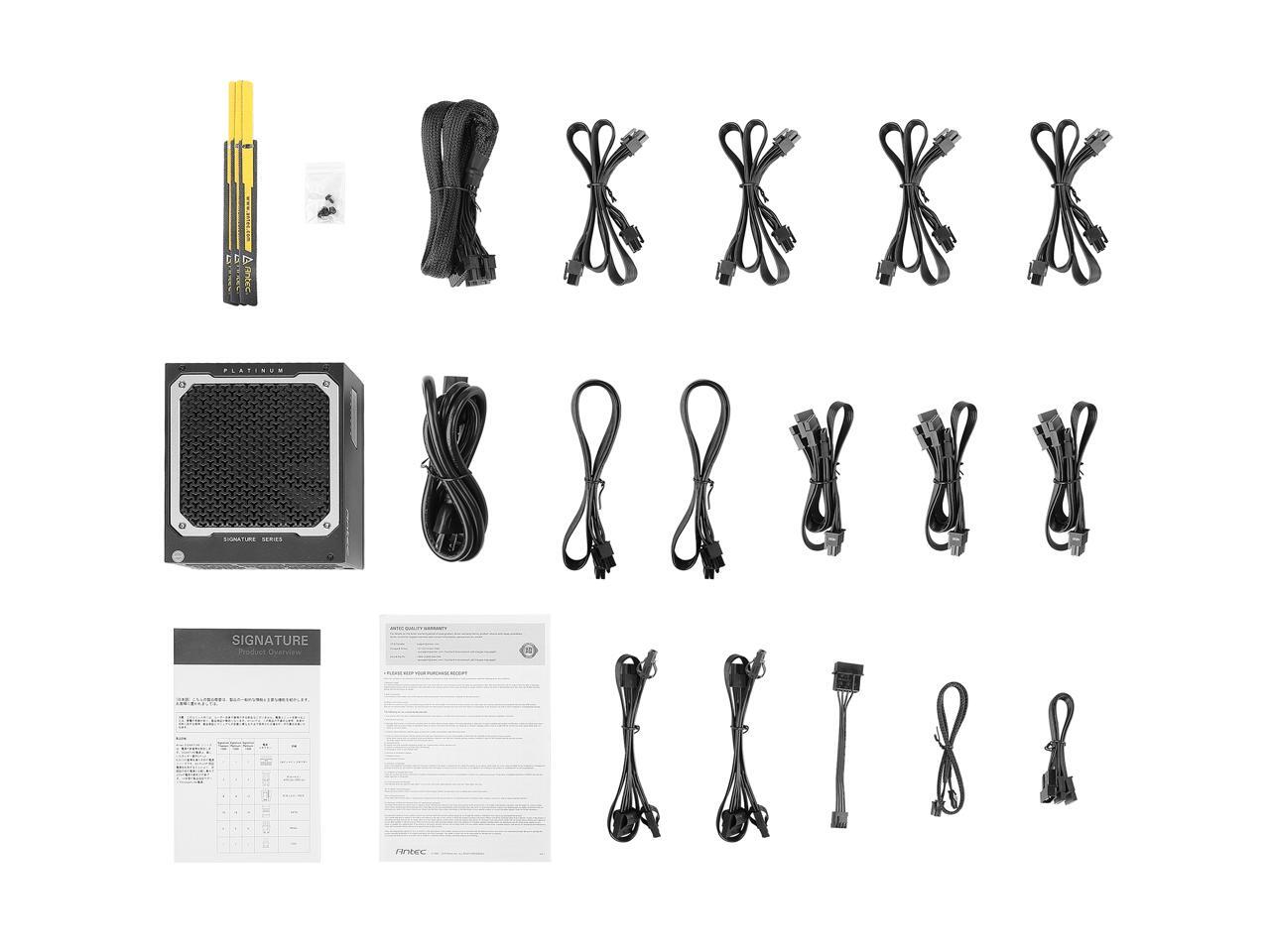

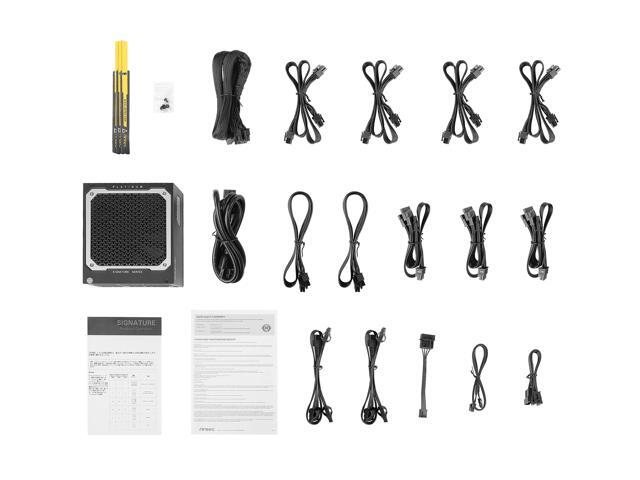

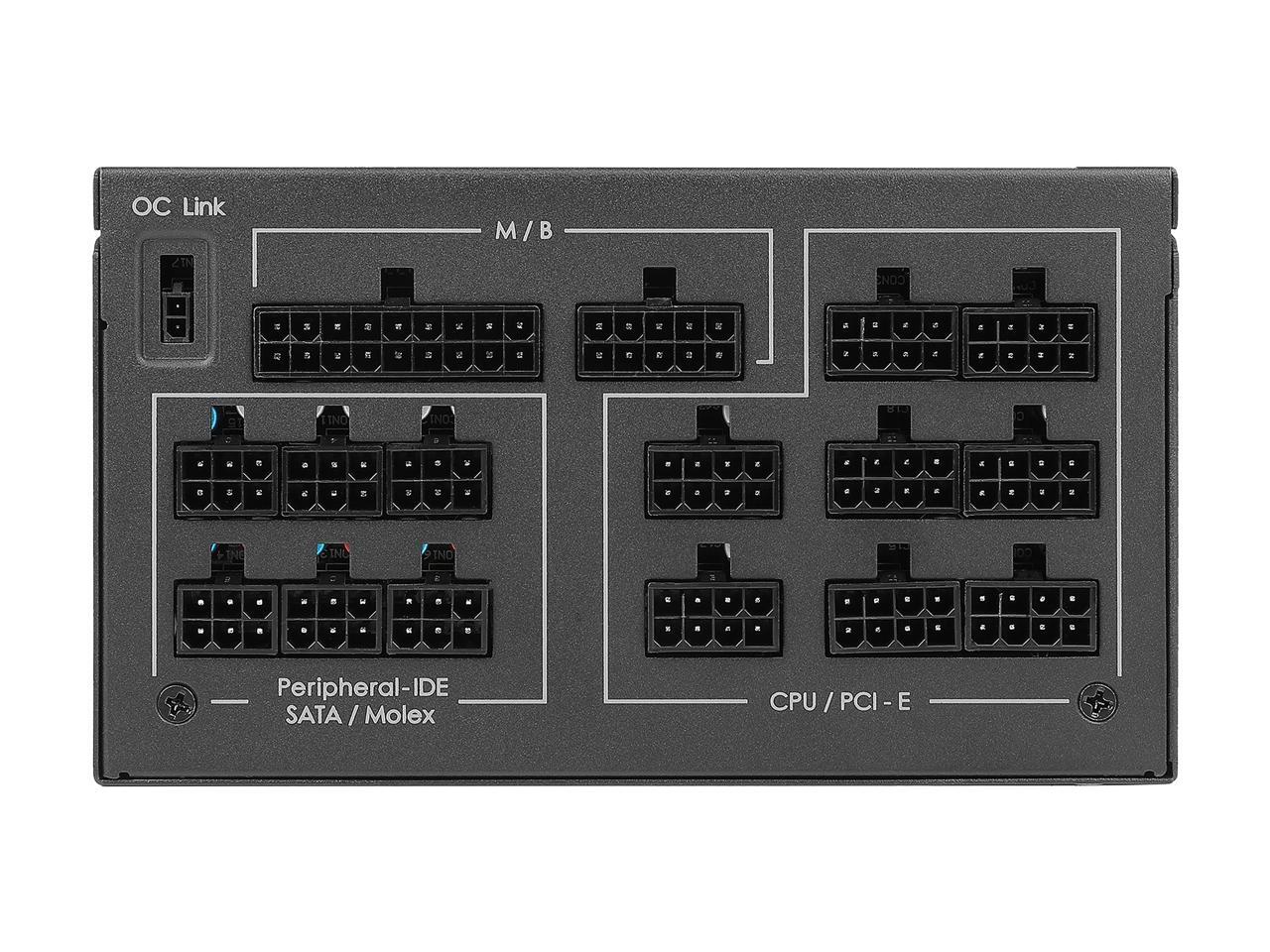

Full Modular Cable Management
Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.

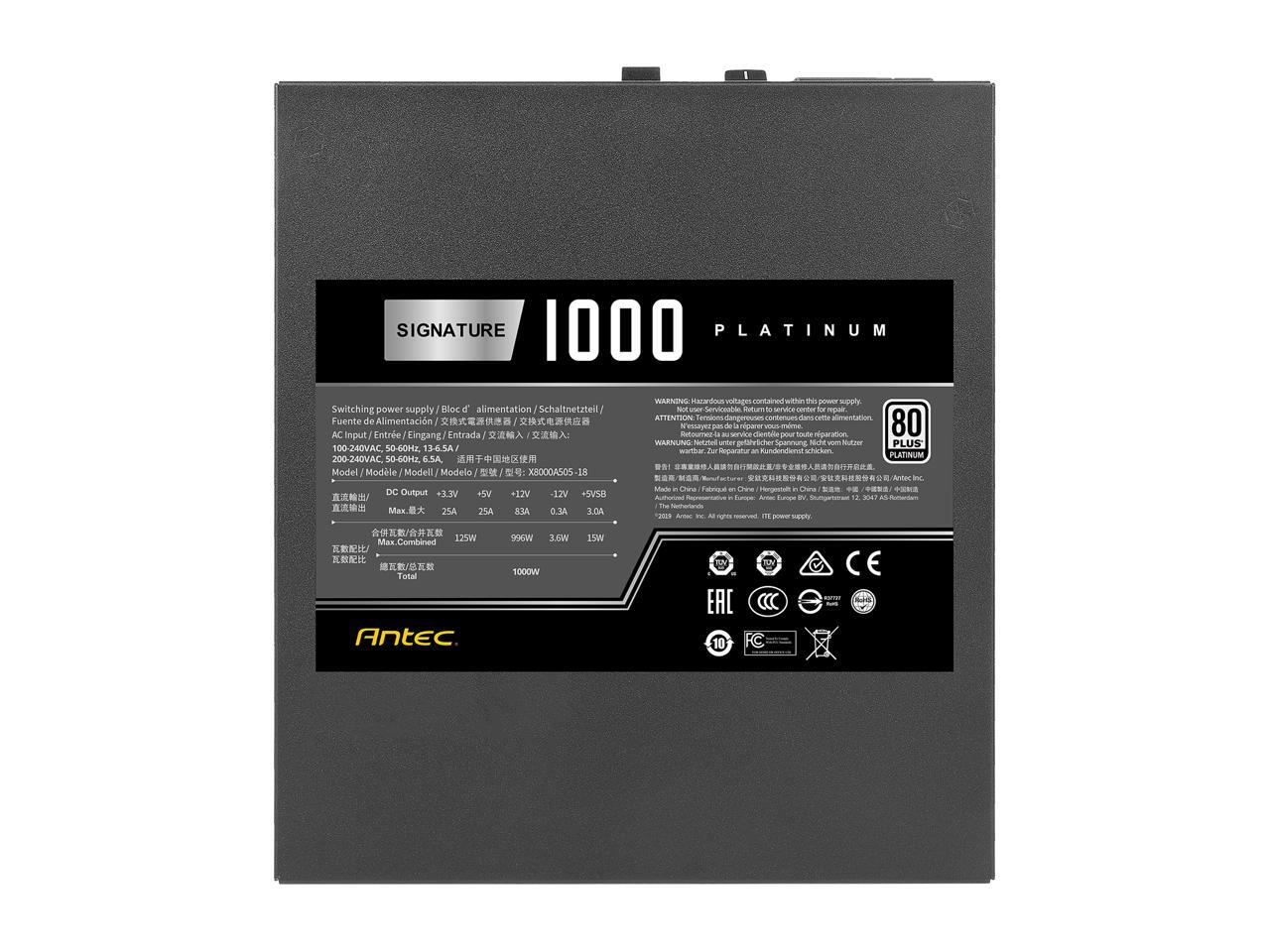

INPUT
100-240V, 50-60Hz, 13-6.5A /
200-240V, 50-60Hz, 6.5A
OUTPUT
| +3.3V | +5V | +12V | -12V | +5VSB |
| 25A | 25A | 83A | 0.3A | 3.0A |
| 125W | 996W | 3.6W | 15W | |
| 1000W | ||||
- Guaranteed 1000W of Continuous Power from Antec
- 100% Modular—Improves airflow and reduces clutter
- 80 PLUS Platinum certified-Up to 92% efficient, to reduce your electricity bill
- PhaseWave Design—A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology
- Antec Quality 10-year warranty
- 135mm FDB Silence—Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime
- Zero RPM Manager—An advanced low voltage fan control with the fan-off mode at low loads for absolute silence
- 99%+12V—Output for maximum CPU & GPU support
- CircuitShield—Full suite of industrial-grade protections: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO
- 100% Japanese capacitors achieve unprecedented tight voltage regulation & low ripple & noise to maximize your system’s performance

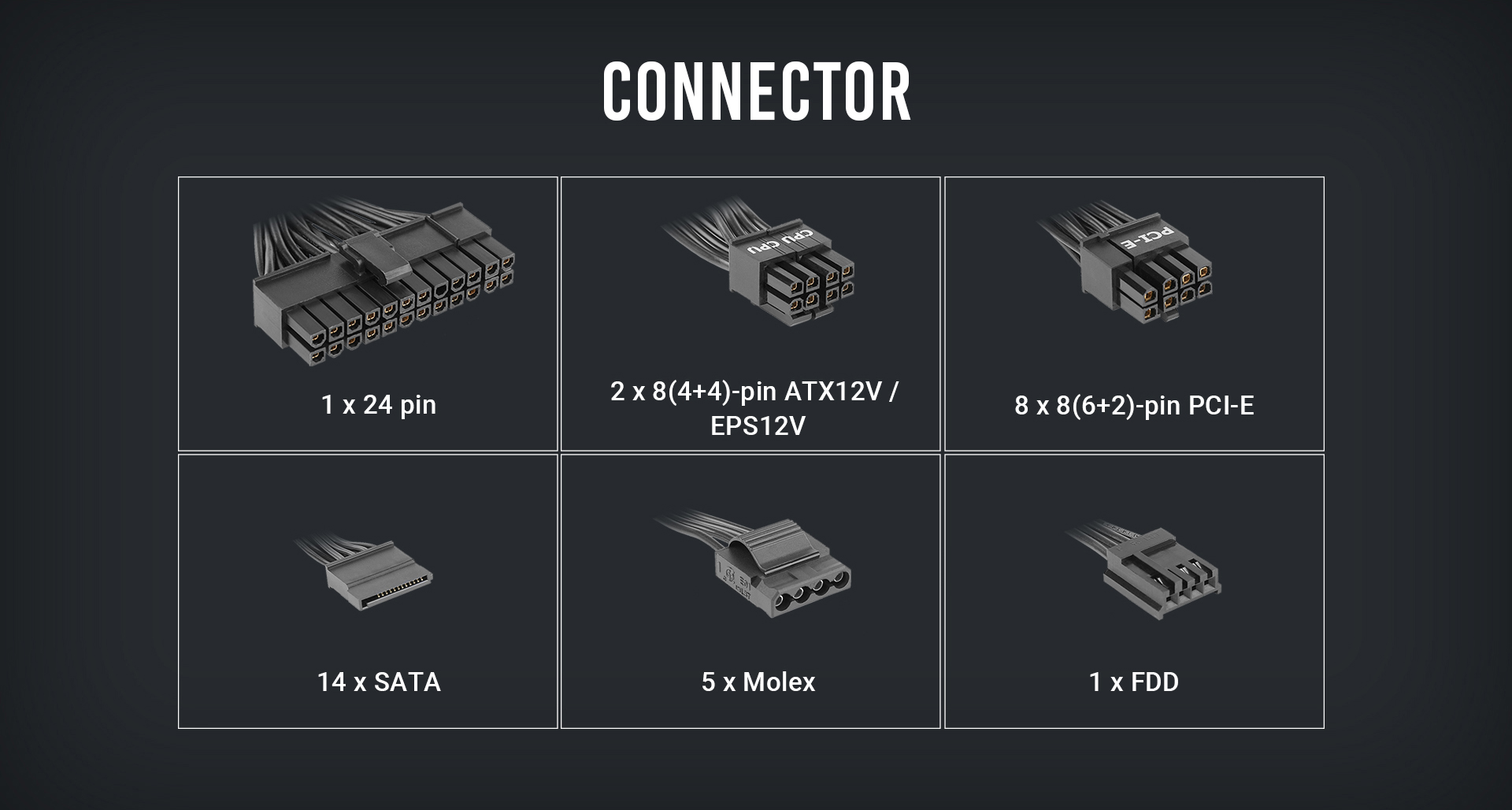

- 28(18+10) pin MBU socket—For possible future MBU connectors
- ATX12V 2.4—Engineered according to the newest PSU guideline and compatible with the latest CPU generation
- Delivers non-stop industrial class performance for high-end computer systems at up to 40°C ambient.
- OC Link—Allows 2 Signature PSUs to work in tandem to power the most demanding systems.
