Antec TruePower 2.0 TP2-550 EPS12V 550 W ATX12V SLI Certified CrossFire Ready Power Supply
- ATX12V
- 115/ 230 V
Specs
Reviews (192)
Learn more about the Antec TP2-550 EPS12V
| Brand | Antec |
|---|---|
| Series | TruePower 2.0 |
| Model | TP2-550 EPS12V |
| Type | ATX12V |
|---|---|
| Maximum Power | 550 W |
| Fans | 2 |
| PFC | No |

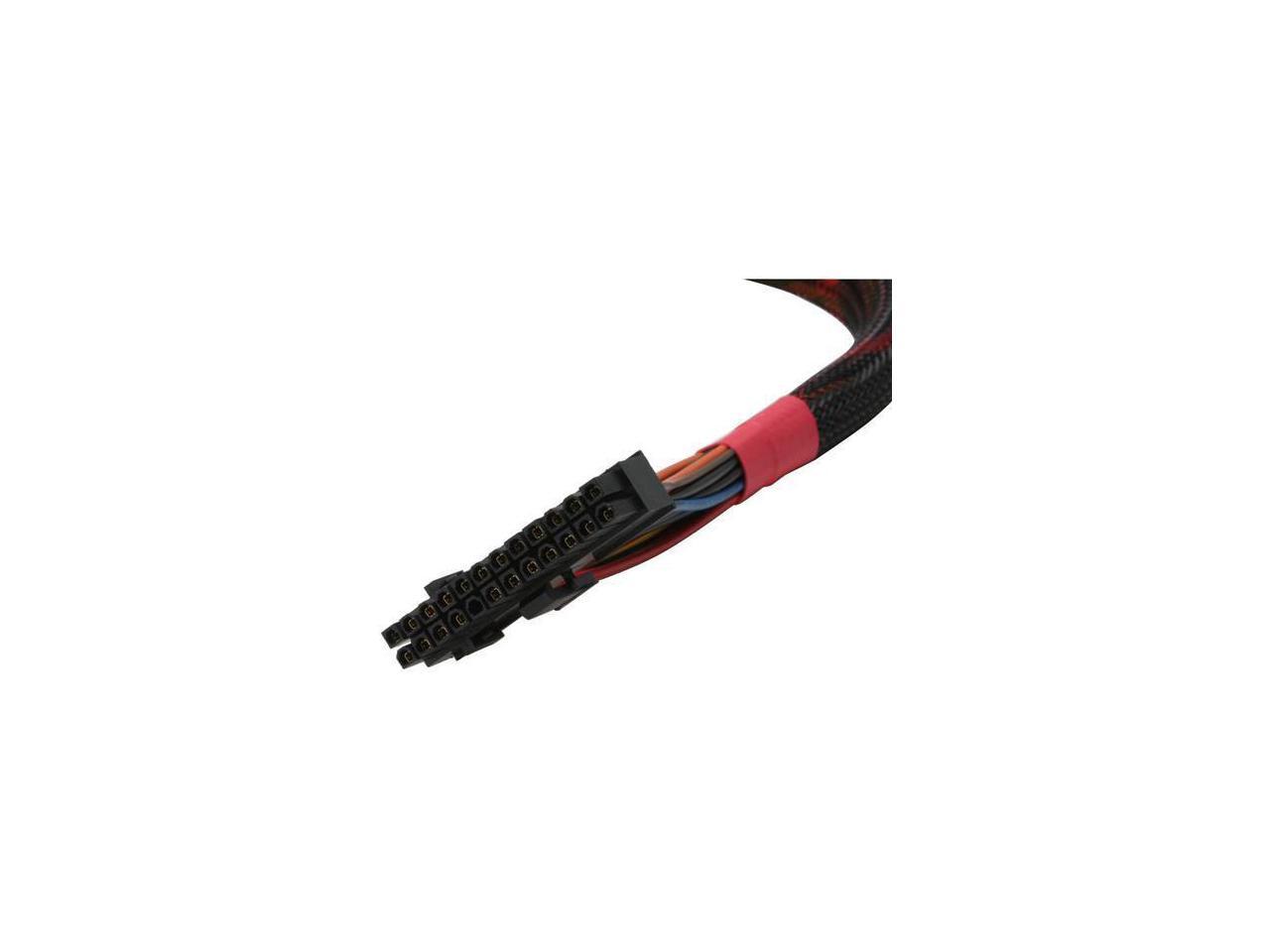

| Main Connector | 20+4Pin |
| +12V Rails | 2 |
| PCI-Express Connector | 2 x 6-Pin |
| SLI | SLI Certified |
| CrossFire | CrossFire Ready |
| Modular | No |
| Power Good Signal | 100-500ms |
| Hold-up Time | 17ms min. |
| Efficiency | > 70% |
| Over Voltage Protection | +5V trip point < +6.5V, +3.3V trip point < +4.1V, +12V trip point < +14.4V |
| Input Voltage | 115 / 230 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 12A @ 115V, 6A @ 230V |
| Output | +3.3V@32A, +5V@40A, +12V1@19A, +12V2@19A, -12V@1A, +5VSB@2A |
| MTBF | >80,000 Hours |
| Approvals | UL, TUV, CB, FCC CLASS B, CUL |
| First Listed on Newegg | April 12, 2005 |
|---|
