Antec TruePower 2.0 TP2-550 EPS12V 550 W ATX12V SLI Certified CrossFire Ready Power Supply

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (192)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Antec TP2-550 EPS12V

Details
Type	ATX12V
Maximum Power	550 W
Fans	2
PFC	No

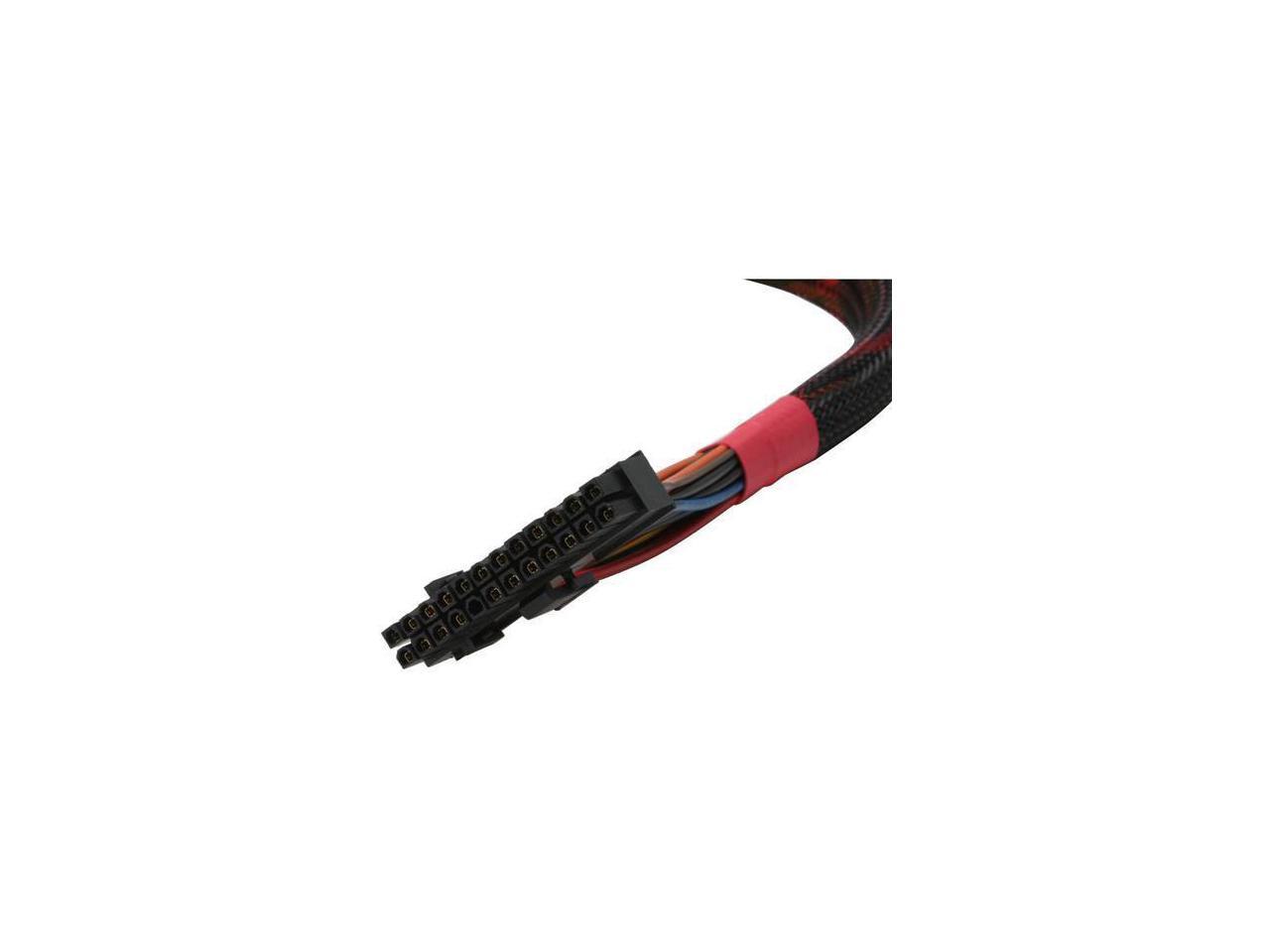

Main Connector	20+4Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin
SLI	SLI Certified
CrossFire	CrossFire Ready
Modular	No
Power Good Signal	100-500ms
Hold-up Time	17ms min.
Efficiency	> 70%
Over Voltage Protection	+5V trip point < +6.5V, +3.3V trip point < +4.1V, +12V trip point < +14.4V
Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	12A @ 115V, 6A @ 230V
Output	+3.3V@32A, +5V@40A, +12V1@19A, +12V2@19A, -12V@1A, +5VSB@2A
MTBF	>80,000 Hours
Approvals	UL, TUV, CB, FCC CLASS B, CUL

Additional Information
First Listed on Newegg	April 12, 2005
