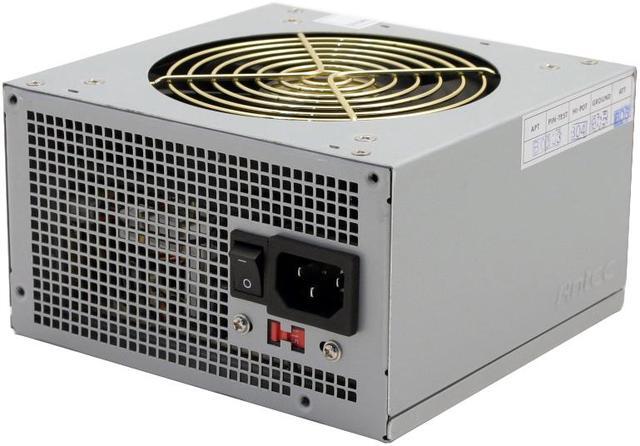

Antec TRUEPOWERII TPII-430 430 W ATX12V 2.01 Power Supply

OUT OF STOCK.
  • ATX12V 2.01
  • 115 / 230 V 50/60 Hz
  • +3.3V@28A, +5V@36A, +12V1@17A, +12V2@17A, -12V@1A, +5VSB@2A
Specs
Reviews

Learn more about the Antec TPII-430

General
Brand Antec
Series TRUEPOWERII
Model TPII-430
Details
Type ATX12V 2.01
Maximum Power 430 W
Fans 1
PFC No

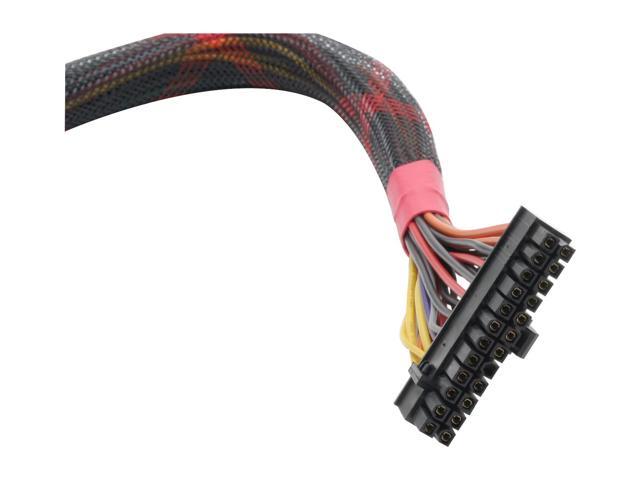

Main Connector 20+4Pin
+12V Rails Yes
PCI-Express Connector 1 x 6-Pin
SLI No
Modular No
Power Good Signal 100-500ms
Hold-up Time 17ms min.
Efficiency > 70%
Over Voltage Protection +5V trip point < +6.5V, +3.3V trip point < +4.1V, +12V trip point < +14.4V
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Input Current 10A @ 115V, 5A @ 230V

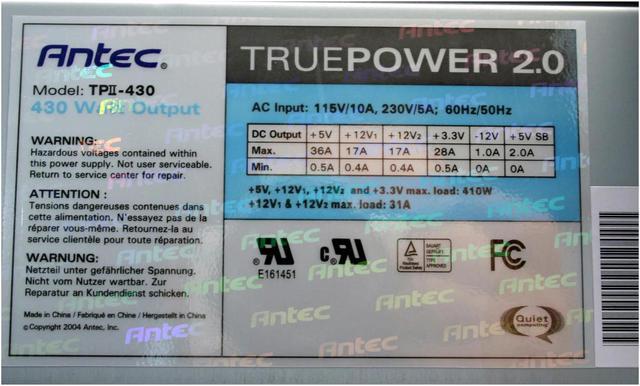

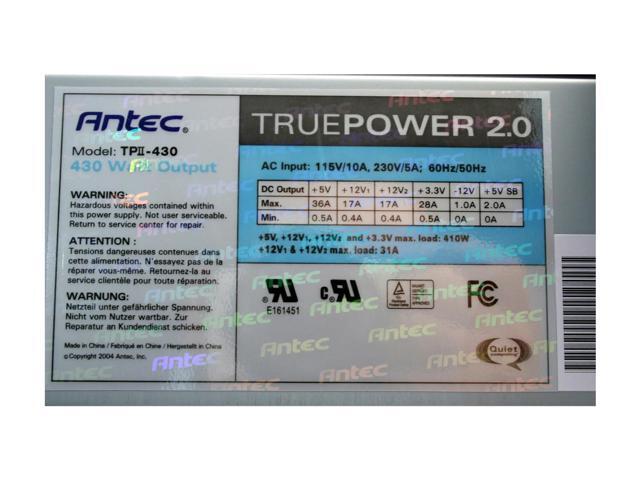

Output +3.3V@28A, +5V@36A, +12V1@17A, +12V2@17A, -12V@1A, +5VSB@2A
MTBF >80,000 Hours
Approvals UL, TUV, CB, FCC CLASS B, CUL

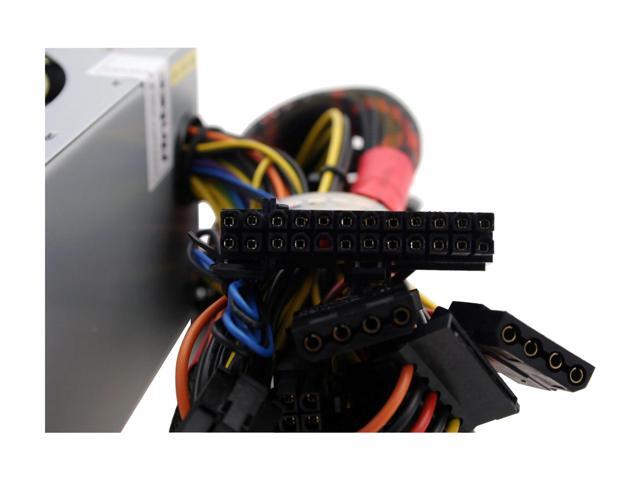

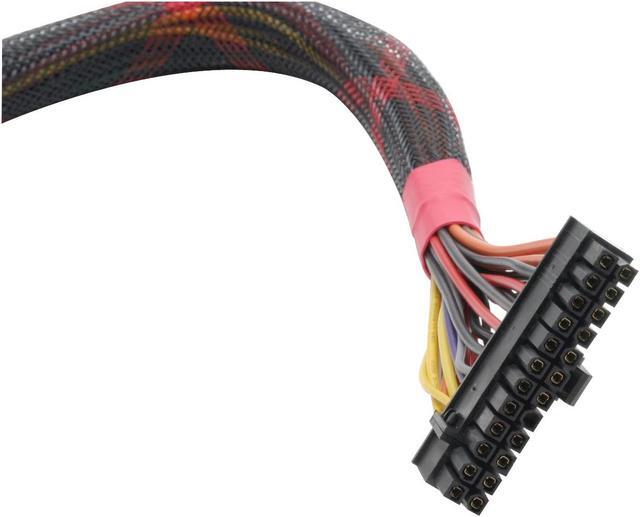

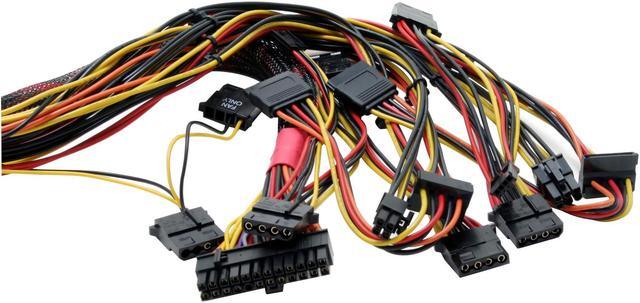

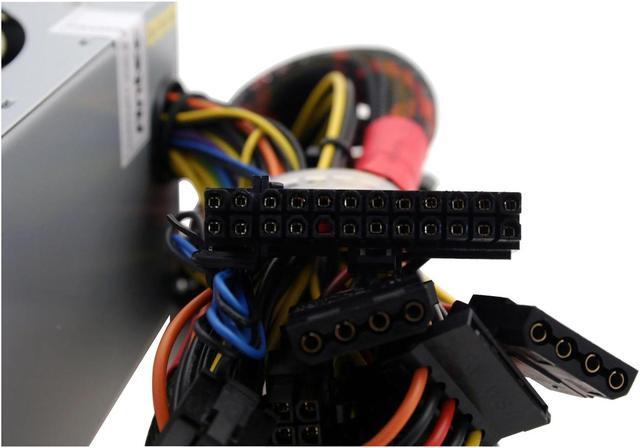

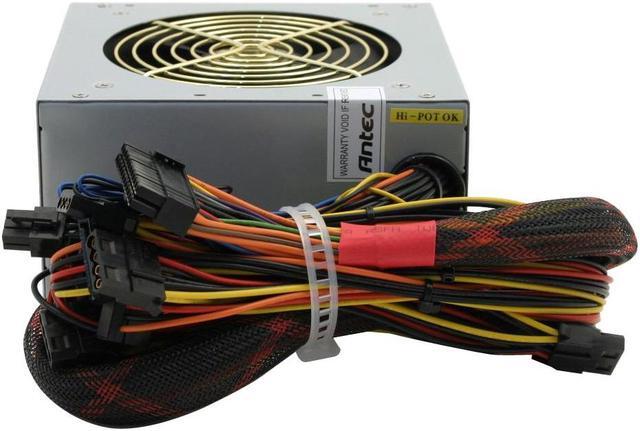

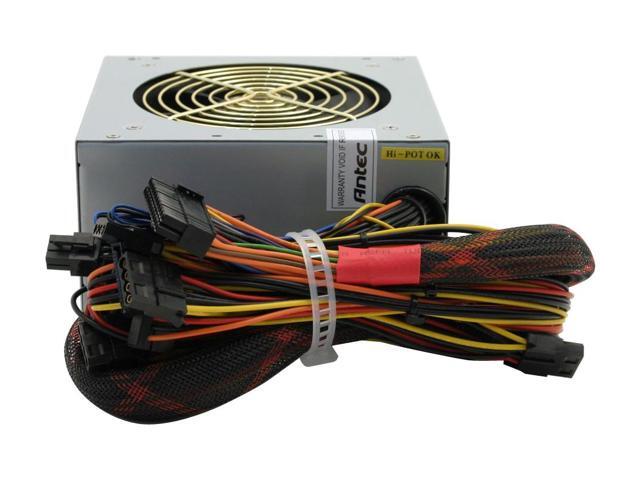

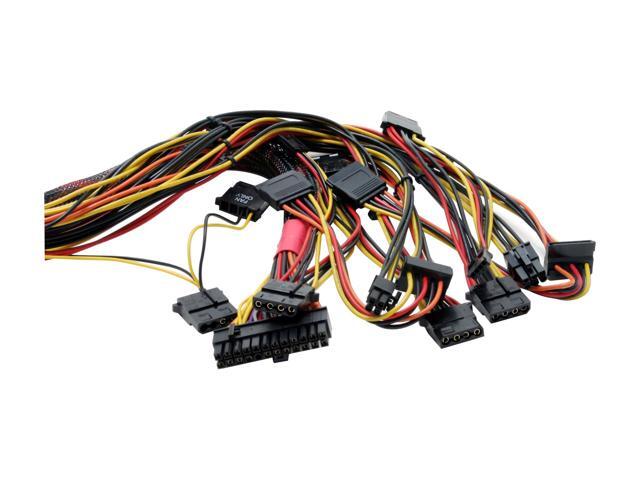

Connectors 1 x Main connector (20+4Pin)
1 x 12V (P4)
5 x peripheral
4 x SATA
2 x Floppy
1 x PCI-E
Additional Information
Date First Available March 30, 2005
